Hardware Introduction

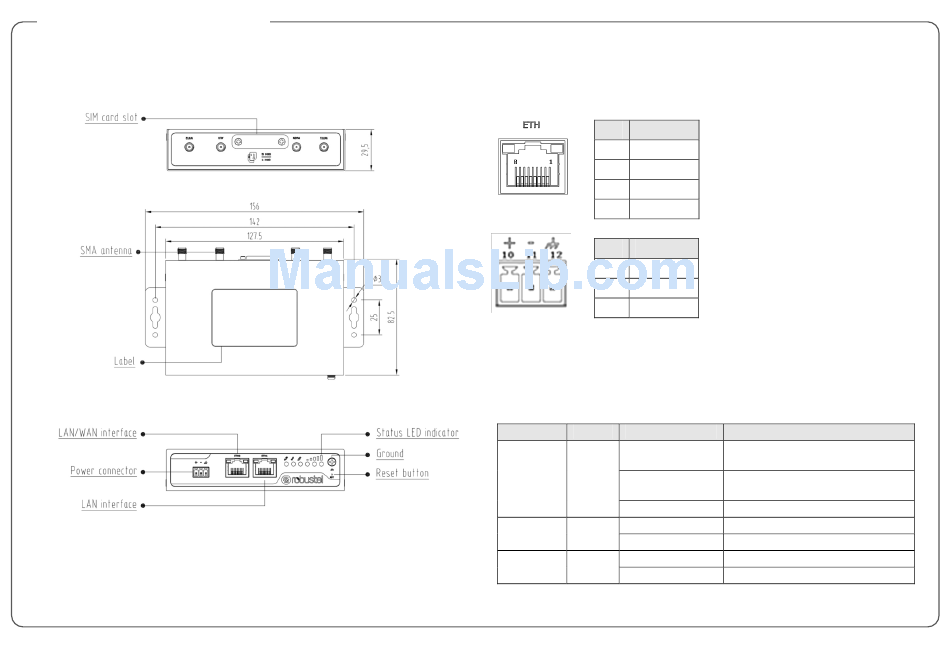

1. Overview

2. PIN Assignment

PIN Function
1 TX+
2 TX-
3 RX+
6 RX-
PIN Polarity
10 Positive
11 Negative
12 GND

3. LED Indicators

Name Color Status
RUN Green On, fast blinking
(250 mSec blink time)
On, blinking
(500 mSec blink time)
Off
PPP Green On, solid
Off
USR-SIM Green On, blinking
Off
-2-
Description
Router is powered on
(System is initializing)
Router starts operating
Router is powered off
Link connection is working
Link connection is not working
Backup card is being used
Main card is being used
