Installation Quick Guide
R3000 Lite - Dual SIM Industrial Cellular VPN Router

Packing List

Before installing the R3000 Lite router, please verify the kit contents as following:
Robustel R3000 Lite router
Power terminal block
Documents and software CD
Optional Accessories
AC/DC power supply adapter
Rubber/magnet SMA cellular antenna for HSPA+/LTE
Serial cable (DB9 female connector switches to DB9 male connector)
35 mm DIN rail mounting kit or wall mounting kit
*If any of the above items is missing or damaged, please contact your Robustel Sales
Representative.

Environmental Requirements

Power input: 6 to 26 VDC
Power consumption: 100 mA@12 V in idle state, 400 mA (peak) @12 V in communication state
Operating temperature: -40 °C to 85 °C (R3000-L3E supports -20 °C to 75 °C)
Relative humidity: 5% to 95% RH

Hardware Introduction

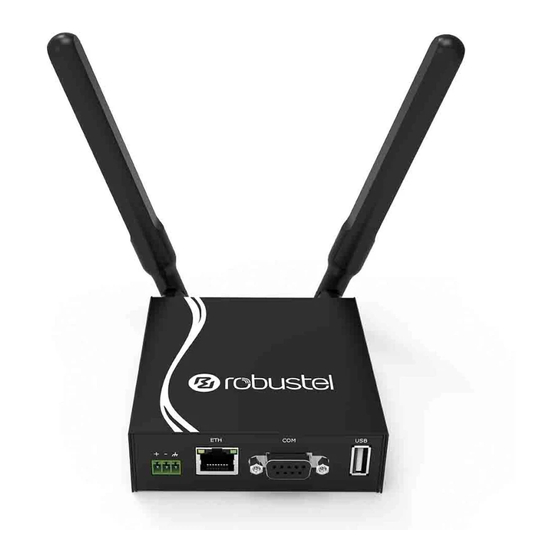

As shown in the following figure, R3000 Lite router has an Ethernet port (LAN interface), a DB9
serial port (supports for RS232 and RS485), two cellular SIM card slots, two cellular antenna
interfaces and a GPS antenna interface (optional).
Dimension: 105 mm x 98 mm x 29.5 mm
CAUTION!
Device should be in accordance
with the reliable grounding to avoid
lighting strike.
Use the rated power adapter for
the device, and note the power
polarity when wiring.
Pay attention to waterproof in
storage, transporting and operating
environment.
Place the device on the horizontal
surface.
Damaging the product's warranty
labeling cannot enjoy the free
maintenance in warranty period.
