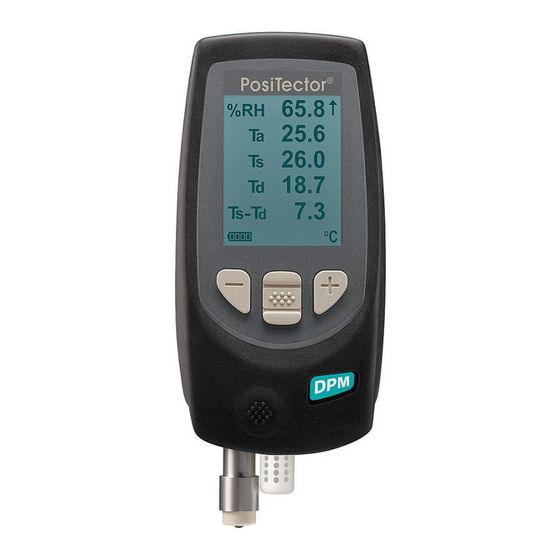

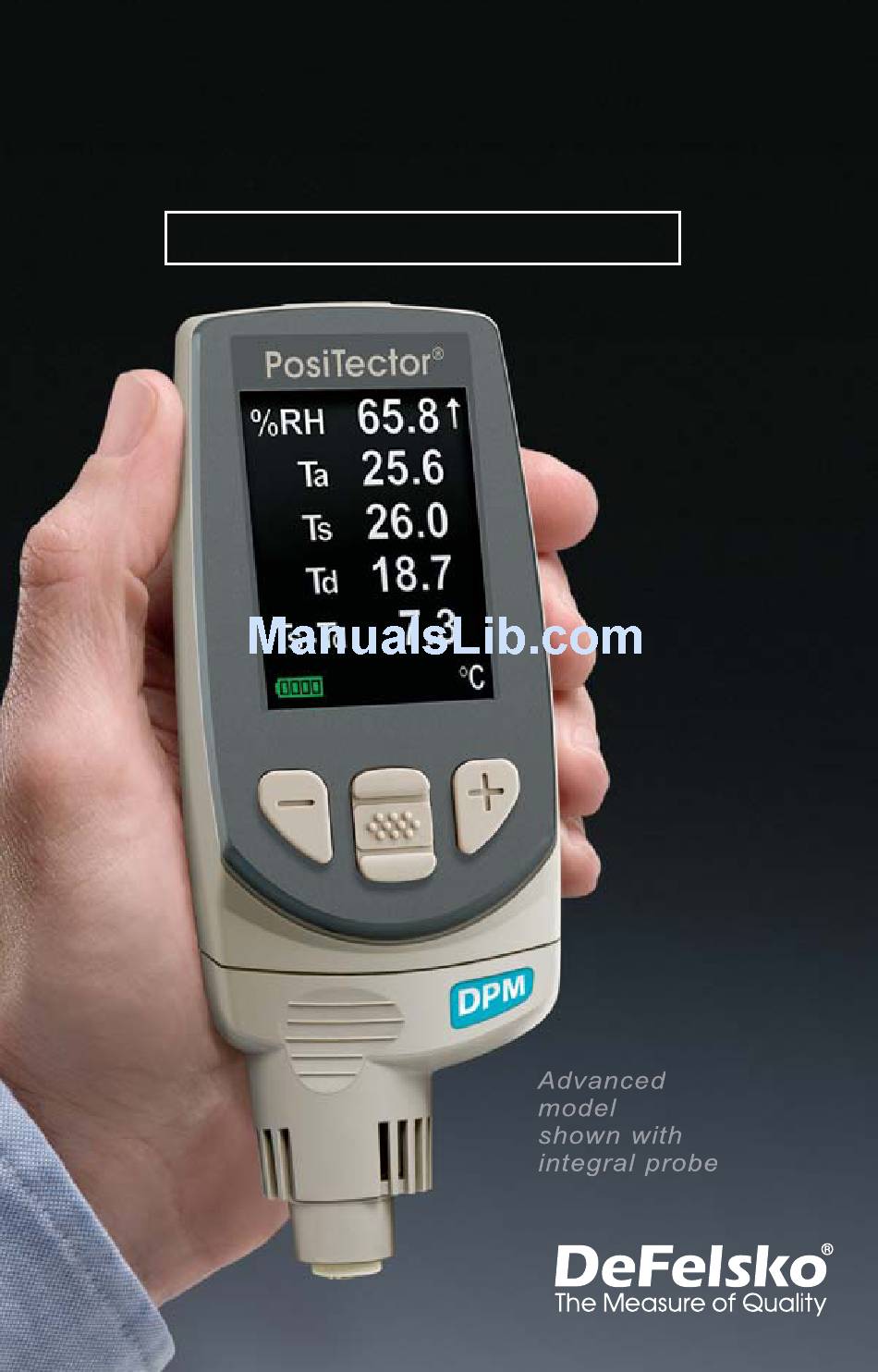

- Page 1 PosiTector ® Dew Point Meter Full Guide v. 3.3...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Introduction ............Quick Start ............Operation Overview ..........Calibration ............Why is Measurement Important ......Probes ..............Menu Operation ..........Alarm Mode ............Setup Menu ............11 Reset .............. 11 Gage Info ............12 Wet Bulb Temperature ........ - Page 3 Connect Menu ............. 20 WiFi..............20 Access Point........... 20 USB..............22 USB Serial Streaming........23 Sync.net Now..........24 Bluetooth Smart..........24 Bluetooth............25 Updates ............26 Power Supply / Battery Indicator ......26 Troubleshooting ..........27 Technical Data ............ 28 Returning For Service .........
-
Page 4: Introduction
Introduction Introduction Quick Start Quick Start The PosiTector DPM powers-up when the center navigation button is pressed. Readings are updated automatically each second. To preserve battery life, the Gage powers down after approximately 5 minutes of no activity. All settings are retained. - Page 5 DPM-D probes only display RH, Ta, & Td NOTE: Protective Cap The PosiTector DPM is shipped with a protective plastic cap over the surface temperature sensor. Remove this cap prior to use. Replace it when the Gage is not in use to protect the sensor.
-
Page 6: Operation Overview
Operation Overview Operation Overview The PosiTector DPM powers-up when the center navigation button is pressed. Readings are updated automatically each second. To preserve battery life, the Gage powers down after approximately 5 minutes of no button activity. All settings are retained. - Page 7 For surface temperature measurement on steel over an extended of time, consider using the optional Magnetic Surface Temperature probe (pg. 7). d - The surface minus dew point temperature is important in judging the risk of condensation, or dew, forming on a surface. For example, ISO 8502-4 recommends that, unless otherwise agreed, the temperature of a steel surface generally should be at least 3°C (5°F) above the dew point when protective coatings are...
-
Page 8: Calibration
Gage manufacturer or by a certified calibration laboratory in a controlled environment using a documented process. The PosiTector DPM is shipped with a Certificate of Calibration showing traceability to a national standard. For organizations with re-certification requirements, the PosiTector DPM may be... -
Page 9: Why Is Measurement Important
Why is Measurement Important? Why is Measurement Important? For industrial painters, the primary reason for measuring climatic conditions is to avoid rework and the premature failure of protective coatings. Recommendations and requirements are covered under various internationally recognized standards. Temperature – It is important to measure both surface and air temperatures as they are often different. -
Page 10: Probes
The PosiTector body accepts a wide variety of probe types including magnetic, eddy current and ultrasonic coating thickness, surface profile, shore hardness durometer, salt contamination and ultrasonic wall thickness probes. See www.defelsko.com/probes PosiTector DPM probes: PosiTector DPM PosiTector DPM-S Integral Surface Temperature Sensor Magnetic Surface Temperature Sensor Surface Temperature Air Temperature &... - Page 11 - general purpose probe with stainless steel shaft CAUTION: To ensure optimal performance of your PosiTector DPM, do not obstruct the airflow near the air temperature and humidity sensors. Keep fingers away from the sensor, as body heat can cause incorrect readings.
-
Page 12: Menu Operation
Gage functions are menu controlled. To access the Menu, power-up the Gage, then press the center navigation button. Below is a sample menu for a PosiTector DPM Advanced Model: Some buttons have a tick box to their right to indicate current status. An empty box indicates that feature is not active. - Page 13 Standard models have one, fixed alarm. When selected, the Gage will alert the user when the surface temperature is less than 3°C (5°F) above the dew point temperature. Enable by selecting the tick box. The Gage will alert the user with an audio tone and the LCD screen will reverse (see right) when conditions may be unsuitable for painting.
-
Page 14: Setup Menu
Setup Menu Setup Menu Reset Reset (soft reset) restores factory settings and returns the Gage to a known condition. The following occurs: • All batches, stored datasets, images and batch names are erased. • Menu settings are returned to the following: Memory = OFF Bluetooth & Stream = OFF Auto Log = OFF... -
Page 15: Gage Info
It is calculated from Ta and RH using an air pressure of 1.0 atmospheres (1013 mbar). Variations of Tw at other pressures could be greater than ±1°C (±2°F). Anemometer (PosiTector DPM-A probes only) Air Temperature & Relative Humidity Hot Wire Anemometer... - Page 16 The battery state indicator icon is calibrated for the selected battery type. No damage will occur if the wrong battery type is selected. NOTE: DeFelsko recommends the use of eneloop (NiMH) rechargeable batteries. It may take as long as 12 hours to charge dead batteries. Units Converts the displayed units for temperature and wind velocity.
-
Page 17: Memory Management
Converts displayed and printed words to the selected language. Memory Management Memory Management The PosiTector DPM has internal memory storage for recording measurement datasets. Stored datasets can be reviewed on-screen or accessed via computers, tablets and smart phones. Datasets are date and time-stamped. Datasets can be stored manually (using the (+) button), or automatically using the Auto Log mode (pg. - Page 18 The following appears within the Memory menu: New Batch Closes any currently opened batch and creates a new batch name using the lowest available number. For example, if only Batch 1 and Batch 3 exist, then Batch 2 would be created and made the current batch. The icon appears.
-
Page 19: Annotate
Annotate (Advanced models only) Create meaningful batch names and enter notes directly on the Gage using a familiar onscreen QWERTY keyboard. Use the Gages navigation and (-)(+) buttons to enter annotations. Annotations can be synchronized with PosiSoft.net, the PosiTector App and are included in PosiSoft USB Drive reports. -
Page 20: Summaries
(see PosiSoft USB Drive pg. 19). Auto Log Mode Auto Log Mode The PosiTector DPM can automatically record datasets into memory at user selected time intervals. When selected, the Auto Log icon will appear on the display, with a countdown timer until the next dataset is stored. - Page 21 If connection fails, check FTP Setup settings and retry. Remote Monitoring of Environmental Conditions The PosiTector DPM is ideal for remotely monitoring environmental parameters over time on the jobsite, paint shop or manufacturing floor. See our online technical application note at:...
-
Page 22: Accessing Stored Measurement Data
Accessing Stored Measurement Data Accessing Stored Measurement Data DeFelsko offers the following free solutions for viewing, analyzing and reporting data: PosiSoft USB Drive - Connect the Gage to a PC/Mac using the supplied USB cable. View and print readings and graphs using universal PC/Mac web browsers or file explorers. -
Page 23: Connect Menu
(Advanced models only) Allows connection to your local wireless network or mobile hot spot. Ideal for using your network’s internet connection for synchronizing stored measurements with PosiSoft.net (pg.19). www.defelsko.com/wifi ü Enable Turns WiFi functionality ON. When selected, the icon will appear on the display. - Page 24 The PosiTector is now visible to all WiFi enabled devices. Simply connect your devices WiFi to the new PosiTector Access point. All PosiTectors are uniquely identified by their respective gage body serial numbers. AP Channel - Default Channel: 6 For most users the default channel will not have to be altered. If you are experiencing poor connection or are unable to connect, try another channel.
-
Page 25: Usb
Information (continued): • Server Enable: enables a connection between the network and the Gage • Gage Name: enter a name for the Gage (up to 14 Characters). AP Channel: The access point channel corresponding to a frequency range. (Default Channel: 6) AP Passphrase: A series of characters, numbers or symbols used to log on to a WiFi network. -
Page 26: Usb Serial Streaming
USB connected computer. Using 3rd party data collection or SPC software, datasets can be captured as they are taken. This following guide provides step-by-step directions for estab- lishing communication between the PosiTector Advanced and a USB connected computer. PosiTector Advanced USB Serial Streaming Instructions http://www.defelsko.com/usb/PosiTectorAdvanced-USBserial.pdf... -
Page 27: Sync.net Now
Sync .net Now The below WiFi, USB and Bluetooth menus contain a Sync .net Now option. When selected, the Gage immediately synchronizes stored measurement data via its respective communication method (internet connection required). Alternatively, select Auto Sync .net from within the USB connect menu to automatically synchronize upon connection to a PC. -
Page 28: Bluetooth
Allows individual readings to be sent to a computer, printer or compatible device as they are taken using Bluetooth wireless technology. See www.defelsko.com/bluetooth Pairing The instrument and receiving device must be paired before stored or streamed datasets can be transmitted. For pairing instructions, see http://www.defelsko.com/bluetooth... -
Page 29: Updates
Updates Determines if a software update is available for your Gage. If an update is available, a prompt will appear allowing the user to choose to perform the update at this time or not. To perform an update the Gage must be connected to an internet connected PC with PosiSoft Desktop Manager (pg. -
Page 30: Troubleshooting
If not, visit our Service & Support page for information on sending your Gage to us for a no charge evaluation. See: http://www.defelsko.com/service When the surface temperature probe is not on a surface, Air Temperature and Surface Temperature appear to be different... -
Page 31: Technical Data
Technical Data Conforms to: ISO 8502-4, BS7079-B, ASTM D3276, US Navy NSI 009-32, IMO PSPC, SSPC-PA 7 and others. Operating Range: -40° C to +80° C -40° F to +175° F PosiTector DPM, DPM-S, DPM-A, DPM-D Range Accuracy Resolution -40° to 80° C ±0.5°... -
Page 32: Returning For Service
Other brand or product names are trademarks or registered trademarks of their respective holders. Every effort has been made to ensure that the information in this manual is accurate. DeFelsko is not responsible for printing or clerical errors.
