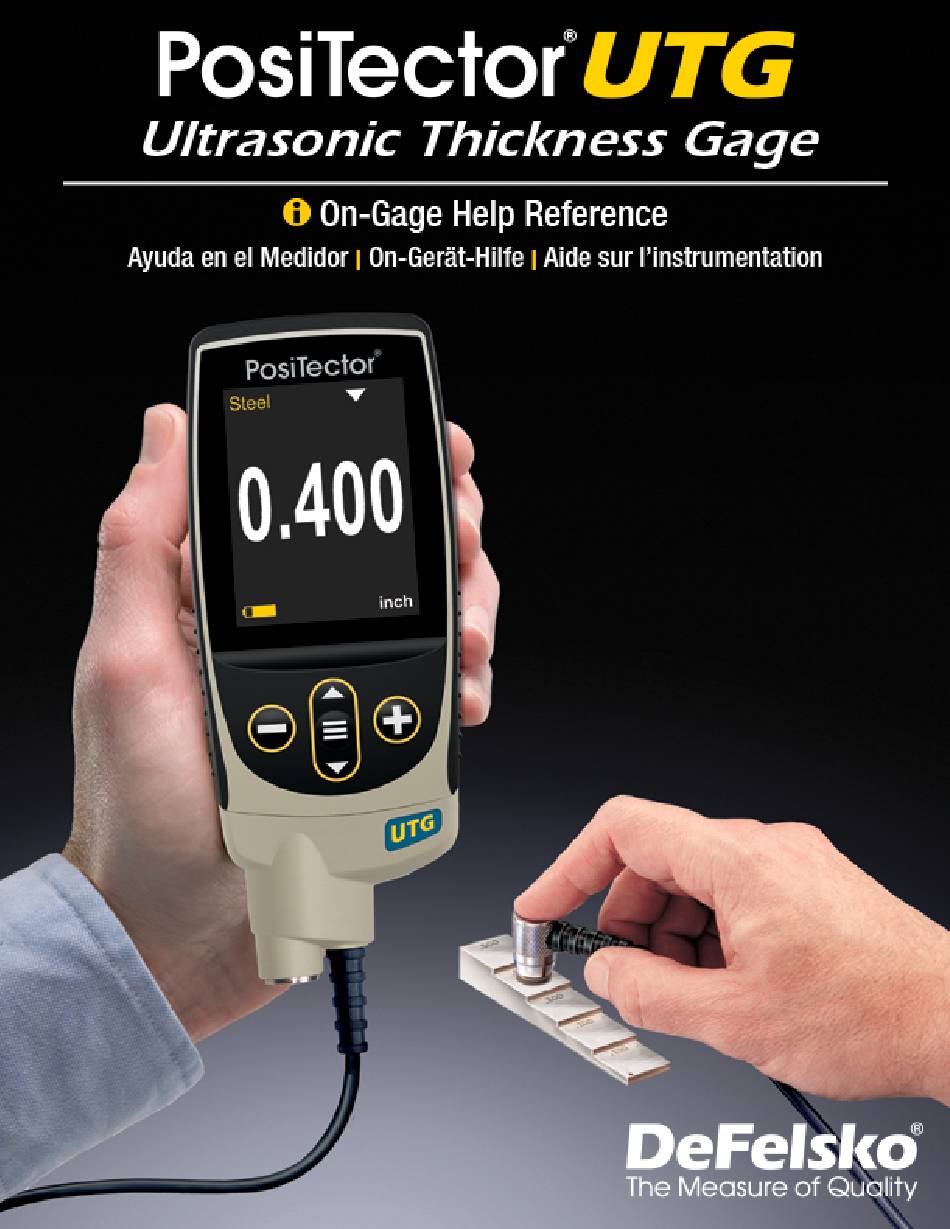

DeFelsko PosiTector UTG Quick Start Manual

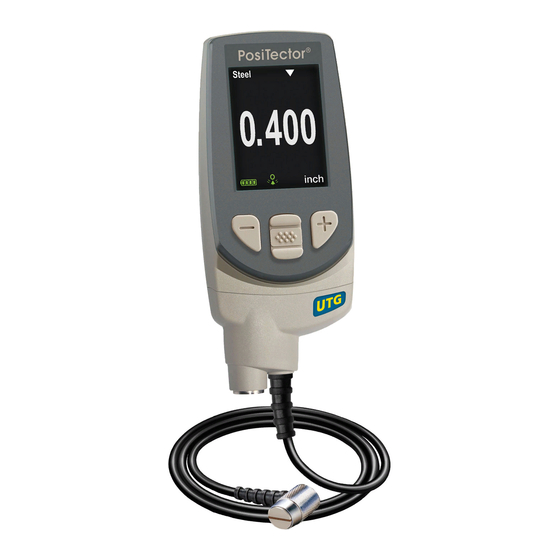

Ultrasonic thickness gage
Hide thumbs Also See for PosiTector UTG:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for DeFelsko PosiTector UTG

Summary of Contents for DeFelsko PosiTector UTG

  • Page 2 For an overview of the use and operation of your instrument, refer to its included Instruction Manual or download a digital PDF at www.defelsko.com/manuals. Update your gage to ensure your PosiTector includes these latest help references.

  • Page 3: Table Of Contents

    Contents Memory ........................View ........................Off .......................... On .......................... Clear ........................Statistics ........................Statistics ........................ Clear ........................HiLo Alarm ......................Calibration Settings ...................... Zero ........................Material ........................Cal Reset ....................... 2 Pt Adjust ......................Cal Lock ......................... Velocity ........................Thickness ....................... Setup ...........................

  • Page 4: Memory

    Memory The PosiTector UTG Standard has internal memory storage for recording measurement data. Stored measurements can be reviewed on-screen or downloaded to a computer. Measurements are date and time-stamped. Store up to 1000 readings (per probe) into a single batch.

  • Page 5: Statistics

    Statistics Menu option for configuring Statistics and HiLo Alarm modes. Statistics Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring. When selected, the statistics icon and statistical summary will appear on the display. Ignore the last measurement by pressing the (-) button. Press (+) to clear statistics. Clear Clears all on-screen Statistics and HiLo tabulations.

  • Page 6: Calibration Settings

    1. Make sure the Gage is ON and the probe is wiped clean. 2. Apply a single drop of couplant onto the included zero block (PosiTector UTG CA only) or built-in zero plate located on the underside of the probe connector. DO NOT apply couplant directly onto the probe face.

  • Page 7: Material

    3. Follow the on-screen prompts. 4. When complete, the Gage will double-beep and display dashed lines. Material If a known thickness of the material is not available, but the material is known, this quick adjustment allows the user to load one of several preprogrammed material velocities. Cal Reset Restores the gage back to factory calibration.

  • Page 8: Velocity

    When checked, the Cal Lock icon appears and the current Cal Settings are locked to prevent further user adjustments. Uncheck to make further adjustments. Velocity If the sound velocity for the test material is known, the Gage can be adjusted to that specific sound velocity.

  • Page 9: Setup

    Setup Set configuration options for the Gage. Set Clock All measurements are date and time stamped (24 hour format) when stored into memory. It is therefore important to keep both the date and time current using this menu option. Use the Up and Down buttons to scroll, and the (-) and (+) buttons to adjust value.

  • Page 10: Units

    However, it is sometimes necessary to examine a larger region to locate the thinnest point. When Min Scan is selected, the PosiTector UTG will take continuous readings and record min/max thicknesses when the probe is lifted from the surface – ideal for quick inspection over a large area.

  • Page 11: Battery Type

    Battery Type Selects the type of batteries used in the Gage from a choice of Alkaline, Lithium or NiMH (nickel-metal hydride rechargeable). The battery state indicator symbol is calibrated for the selected battery type. No damage will occur if the battery type used in the Gage does not match the selected battery type.

  • Page 12: Touch

    Press the Down button to brighten the display. Flip Lock Disables the Auto Rotate feature by locking the display in its current orientation. (PosiTector UTG M probes only) SE Mode Switches from multiple-echo to single-echo mode: - To increase the measurement range...

  • Page 13: Connect

    Connect Configure communication and connection options for the Gage. Connect the Gage to a PC/Mac using the supplied USB-C cable. View and print readings and graphs with universal web browsers/file explorers or using PosiSoft Desktop. NOTE: While connected, power is supplied through the included USB-C cable. The batteries are not used and the body will not automatically power down.

  • Page 14: Json Files

    Determines if a software update is available for your Gage. To perform an update the Gage must be connected to an internet connected computer running PosiSoft Desktop. See www.defelsko.com/update WARNING: The Gage will perform a Hard Reset after an update. All stored measurements will be erased from memory.

  • Page 15: Help

    Press (+) or touch the (i) icon to display the help. Update your gage to ensure that you have the latest on-gage help information. A formatted PDF containing all on-gage help items is available at www.defelsko.com/help. Menu Operation To access the Menu, power-up the gage, then press the center navigation button. Either the keypad or touch screen can be used to navigate the menu.

  • Page 16: Power Off

    Power Off To conserve battery life, the gage will automatically go to sleep after 5 minutes of inactivity and enter Sleep Mode. While in Sleep Mode the gage powers up significantly faster— convenient when moving between parts or locations. The gage will completely power off after 4 hours of inactivity.
