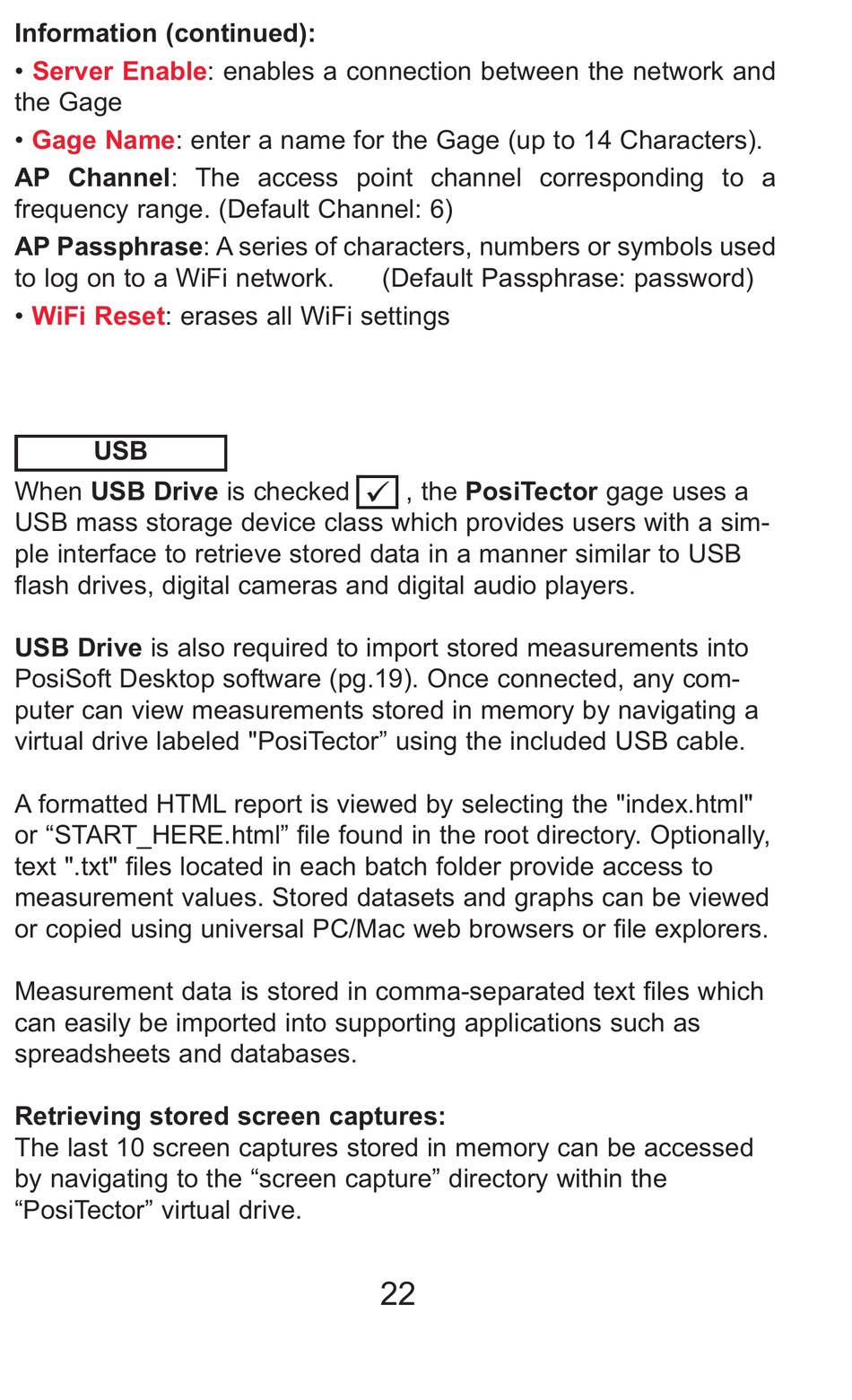

Information (continued):
• Server Enable: enables a connection between the network and
the Gage
• Gage Name: enter a name for the Gage (up to 14 Characters).
AP Channel: The access point channel corresponding to a
frequency range. (Default Channel: 6)
AP Passphrase: A series of characters, numbers or symbols used
to log on to a WiFi network.
• WiFi Reset: erases all WiFi settings

USB

When USB Drive is checked
USB mass storage device class which provides users with a sim-
ple interface to retrieve stored data in a manner similar to USB
flash drives, digital cameras and digital audio players.
USB Drive is also required to import stored measurements into
PosiSoft Desktop software (pg.19). Once connected, any com-
puter can view measurements stored in memory by navigating a
virtual drive labeled "PosiTector" using the included USB cable.
A formatted HTML report is viewed by selecting the "index.html"
or "START_HERE.html" file found in the root directory. Optionally,
text ".txt" files located in each batch folder provide access to
measurement values. Stored datasets and graphs can be viewed
or copied using universal PC/Mac web browsers or file explorers.
Measurement data is stored in comma-separated text files which
can easily be imported into supporting applications such as
spreadsheets and databases.
Retrieving stored screen captures:
The last 10 screen captures stored in memory can be accessed
by navigating to the "screen capture" directory within the
"PosiTector" virtual drive.
(Default Passphrase: password)
ü
, the PosiTector gage uses a
