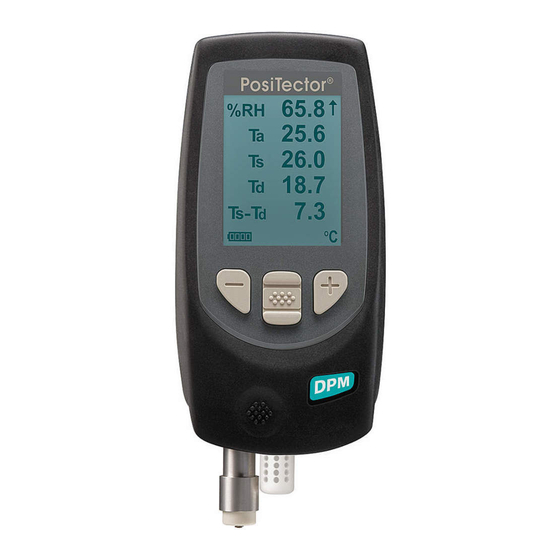

DeFelsko PosiTector DPM Instruction Manual

Dew point meter
Hide thumbs Also See for PosiTector DPM:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Full Manual, Manual
DPM
®
PosiTector
Dew Point Meter
Instruction Manual v. 3.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PosiTector DPM and is the answer not in the manual?

Questions and answers

Related Manuals for DeFelsko PosiTector DPM

Summary of Contents for DeFelsko PosiTector DPM

  • Page 1 ® PosiTector Dew Point Meter Instruction Manual v. 3.1...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Introduction ............Quick Start ............Operation Overview ..........Calibration ............Why is Measurement Important ......Probes ..............Menu Operation ..........Alarm Mode ............10 Setup Menu ............11 Reset .............. 11 Gage Info ............11 Wet Bulb Temperature ........
  • Page 3 Connect Menu ............. 21 Sync Now ............21 Auto Sync ............21 USB Drive ............21 Bluetooth ............23 Bluetooth Wireless Printer ......24 WiFi ..............24 Updates ............27 Power Supply / Battery Indicator ......28 Rechargeable Batteries ........28 Additional Accessories ........

  • Page 4: Introduction

    - Certificate of Calibration traceable to NIST - Two (2) year warranty on Body and Probe Quick Start Quick Start The PosiTector DPM powers-up when the center navigation button is pressed. Readings are updated automatically each second. To preserve battery life, the Gage powers down after approximately 5 minutes of no activity.
  • Page 5 PosiTector Body USB Port LCD Display Probe Connector Typical Screen - Relative Humidity (measured) - Air Temperature (measured) - Surface Temperature (measured) - Dew Point (calculated) Ts-Td - Surface minus Dew Point Temperature (calculated) - Wet Bulb Temperature (calculated) (Advanced Models Only)

  • Page 6: Operation Overview

    Protective Cap The PosiTector DPM is shipped with a protective plastic cap over the surface temperature sensor. Remove this cap prior to use. Replace it when the Gage is not in use to protect the sensor. Wrist Strap We recommend attaching and wearing the supplied wrist strap.
  • Page 7 d - The surface minus dew point temperature is important in judging the risk of condensation, or dew, forming on a surface. For example, ISO 8502-4 recommends that, unless otherwise agreed, the temperature of a steel surface generally should be at least 3°C (5°F) above the dew point when paints are applied.

  • Page 9: Why Is Measurement Important

    Why is Measurement Important? Why is Measurement Important? For industrial painters, the primary reason for measuring climatic conditions is to avoid rework and the premature failure of protective coatings. Recommendations and requirements are covered under various internationally recognized standards. Temperature – It is important to measure both surface and air temperatures as they are often different.

  • Page 10: Probes

    Probes Probes Separate probe with magnetic Surface surface temperature temperature sensor sensor Air temperature and humidity sensors Optionally, the Magnetic Surface Temperature Probe can be disconnected from the K-Type thermocouple connector (separate probe models only) and replaced with one of the following accessories: Hand-held Surface Temperature Probe - for spot checking hard-to-reach surfaces...
  • Page 11 CAUTION: To ensure optimal performance of your PosiTector DPM, do not obstruct the airflow near the air temperature and humidity sensors. Keep fingers away from the sensor, as body heat can cause incorrect readings. Allow time for the Gage to acclimate and for the readings to stabilize when moving the Gage between different environments.

  • Page 12: Menu Operation

    Menu Operation Gage functions are menu controlled. To access the Menu, power-up the Gage, then press the center navigation button. Below is a sample menu for a PosiTector DPM Advanced Model: Memory Auto Log Some buttons have a tick box to their right to indicate current status.

  • Page 13: Alarm Mode

    Alarm Mode Alarm Mode The PosiTector DPM can automatically alert the user when cur- rent climatic conditions exceed pre-set values. When selected, the Alarm icon is displayed at the top of the screen. According to ISO 8502-4 and ASTM D3276, steel surfaces should generally be 3°C (5°F) above the dew point when painting.

  • Page 14: Setup Menu

    Setup Menu Setup Menu Reset Reset (soft reset) restores factory settings and returns the Gage to a known condition. The following occurs: - All batches, stored datasets, images and batch names are erased. - Menu settings are returned to the following: Memory = OFF Bluetooth = OFF Auto Log = OFF...

  • Page 15: Wet Bulb Temperature

    Wet Bulb (Advanced models only) Displays the wet bulb temperature (Tw) on the main screen. It is calculated from Ta and RH using an air pressure of 1.0 atmospheres (1013 mbar). Variations of Tw at other pressures could be greater than ±1°C (±2°F). NOTE: This menu item only appears when all memory functions are turned off.

  • Page 16: Memory Management

    Converts displayed and printed words to the selected language. Memory Management Memory Management The PosiTector DPM has internal memory storage for recording measurement datasets. Stored datasets can be reviewed on-screen or accessed via computers, tablets and smart phones. Datasets are date and time-stamped. Datasets can be stored manually (using the (+) button), or automatically using the Auto Log mode (pg.

  • Page 17: Standard Models

    Standard models store up to 2,500 datasets in one batch. The following appears within the Memory menu: On: turns memory on Off: turns memory off (stored datasets remain in memory) Clear: removes all datasets from memory View: lists group statistics and all stored datasets on the display.

  • Page 18: Annotate

    View Scroll using the Up or Down buttons through information, statistical summary, and a list of each dataset in the currently opened batch. Press to exit. x - Average σ - Standard Deviation ↑ - Maximum Value ↓ - Minimum Value Annotate (Advanced models only) Create meaningful batch names and...

  • Page 19: Summaries

    The last 10 screen captures are stored in memory and can be accessed when connected to a computer (see PosiSoft USB Drive pg. 21). Below is a PosiTector DPM sample screen with: - Memory mode on with one batch containing nine saved datasets...

  • Page 20: Auto Log Mode

    Auto Log Mode Auto Log Mode The PosiTector DPM can automatically record datasets into memory at user selected time intervals. When selected, the Auto Log icon will appear on the display with a timer counting down until the next dataset is stored. Readings on the display are only updated when a dataset is stored.

  • Page 21: Accessing Stored Measurement Data

    (system tray) of a PC. PDM is available as a free download within your PosiSoft.net account www.defelsko.com/downloads Register your Gage on PosiSoft.net to take full advantage of your Gage’s capabilities. See www.PosiSoft.net NOTE: PDM is not required for WiFi enabled gages (pg. 24).

  • Page 22: Posisoft.net

    Reports and graphs with annotations and corporate logo can be generated. Data can be exported to XML or CSV (comma delimited) text files. NOTE: PosiSoft Software is available for use with DeFelsko’s complete line of electronic instruments and is available for download at www.defelsko.com/posisoft...

  • Page 23: Posisoft Mobile

    Ideal for use with devices such as Windows Phone/Mobile, Blackberry (RIM), Android, Apple iOS and more. In addition to browser based access, PosiSoft Mobile Managers are available for Apple iOS and Android users. See www.defelsko.com/wifi/wifi_mobile...

  • Page 24: Connect Menu

    Connect Menu Connect Menu Synchronizing (Sync) is the process whereby PosiTector stored measurement data uploads to PosiSoft.net (from both Standard and Advanced models) while images and batch notes are downloaded to the Gage (Advanced model only). This transfer occurs when the Gage is connected via USB, Bluetooth or directly through your WiFi router/hotspot via WiFi.
  • Page 25 When checked, any computer can view readings stored in memory by navigating a virtual drive labeled “PosiTector” using the included USB cable. A formatted HTML report is viewed by selecting the "index.html" or “START_HERE.html” file found in the root directory. Optionally, text ".txt"...

  • Page 26: Bluetooth

    To deactivate Bluetooth, select Off. Pairing: The Gage and receiving device must be paired before stored or streamed datasets can be transmitted. For pairing instructions, see www.defelsko.com/printer Info: Lists information about your current Bluetooth connection, including the currently paired device and MAC address.

  • Page 27: Bluetooth Wireless Printer

    WiFi (Advanced models only) Allows wireless communication with devices such as tablets, smart phones and computers connected to your local wireless network or portable mobile hot spot. See www.defelsko.com/WiFi ü On/Off : Turns WiFi functionality On. When selected, the icon will appear on the display. To deactivate WiFi, select Off.
  • Page 28 Imports generally take no longer than a few seconds. Batches are not erased from the gages memory during import. They remain on the gage until they have been deleted by the user. For more information regarding PosiSoft 3.0: http://www.defelsko.com/posisoft/posisoft_software.htm...
  • Page 29 Enter the displayed IP address into your devices web browser exactly as it appears. Example: 192.168.0.1:8080 For more information regarding PosiSoft Mobile: http://www.defelsko.com/posisoft/posisoft_mobile.htm Networks: The Gage will allow the user to add a new network and will automatically check for available local networks. Available networks...

  • Page 30: Updates

    Setup: Allows user to setup a WiFi connection • IP Settings: enter information follows... IP Type (DHCP or Static), IP Address, Gateway, Netmask, DNS1, DNS2. • Server Enable: enables a connection between the network and the Gage. • Gage Name: enter name Gage (up to 14 Characters).

  • Page 31: Power Supply / Battery Indicator

    Rechargeable Battery Pack - 4 AAA eneloop batteries The PosiTector can operate on rechargeable batteries and DeFelsko recommends the use of eneloop (NiMH) rechargeables. eneloop batteries combine the advantages of regular rechargeable batteries and disposable (Alkaline) batteries. They discharge very slowly and can be stored for long periods without having self discharge concerns.
  • Page 32 Additional Probes A selection of K-type connector probes are available for your PosiTector DPM separate probe model. (If you have a built-in probe model, a lower unit may be purchased that allows the connection of K-type connector probes.) See: www.defelsko.com/dewmeter...

  • Page 33: Troubleshooting

    If not, visit our Service & Support page for information on sending your Gage to us for a no charge evaluation. See: http://www.defelsko.com/service When the surface temperature probe is not on a surface, Air Temperature and Surface Temperature appear to be different...

  • Page 34: Technical Data

    the Gage was powered-on and the Gage was not able to self power-down. If this message appears it will be followed by a full reset. All datasets in memory will be erased and Gage settings will be reset to "out-of-the-box" settings. Gage will not print to the Bluetooth wireless printer: - Ensure the Gage has been paired for use with the printer and the Gage menu option Connect >...

  • Page 35: Returning For Service

    DeFelsko and PosiTector are trademarks of DeFelsko Corporation registered in the U.S. and in other countries. Other brand or product names are trademarks or registered trademarks of their respective holders. Every effort has been made to ensure that the information in this manual is accurate. DeFelsko is not responsible for printing or clerical errors.
