DeFelsko PosiTector SPG Manual

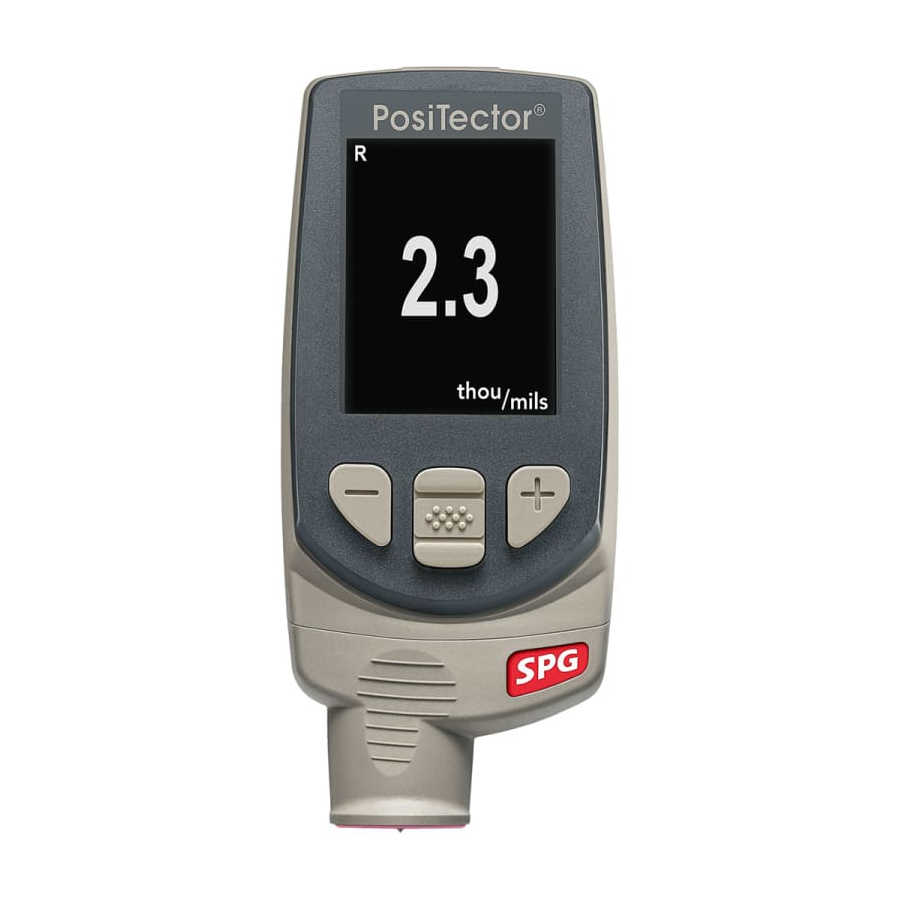

Hand-held electronic gage
Hide thumbs Also See for PosiTector SPG:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PosiTector SPG and is the answer not in the manual?

Questions and answers

Related Manuals for DeFelsko PosiTector SPG

Summary of Contents for DeFelsko PosiTector SPG

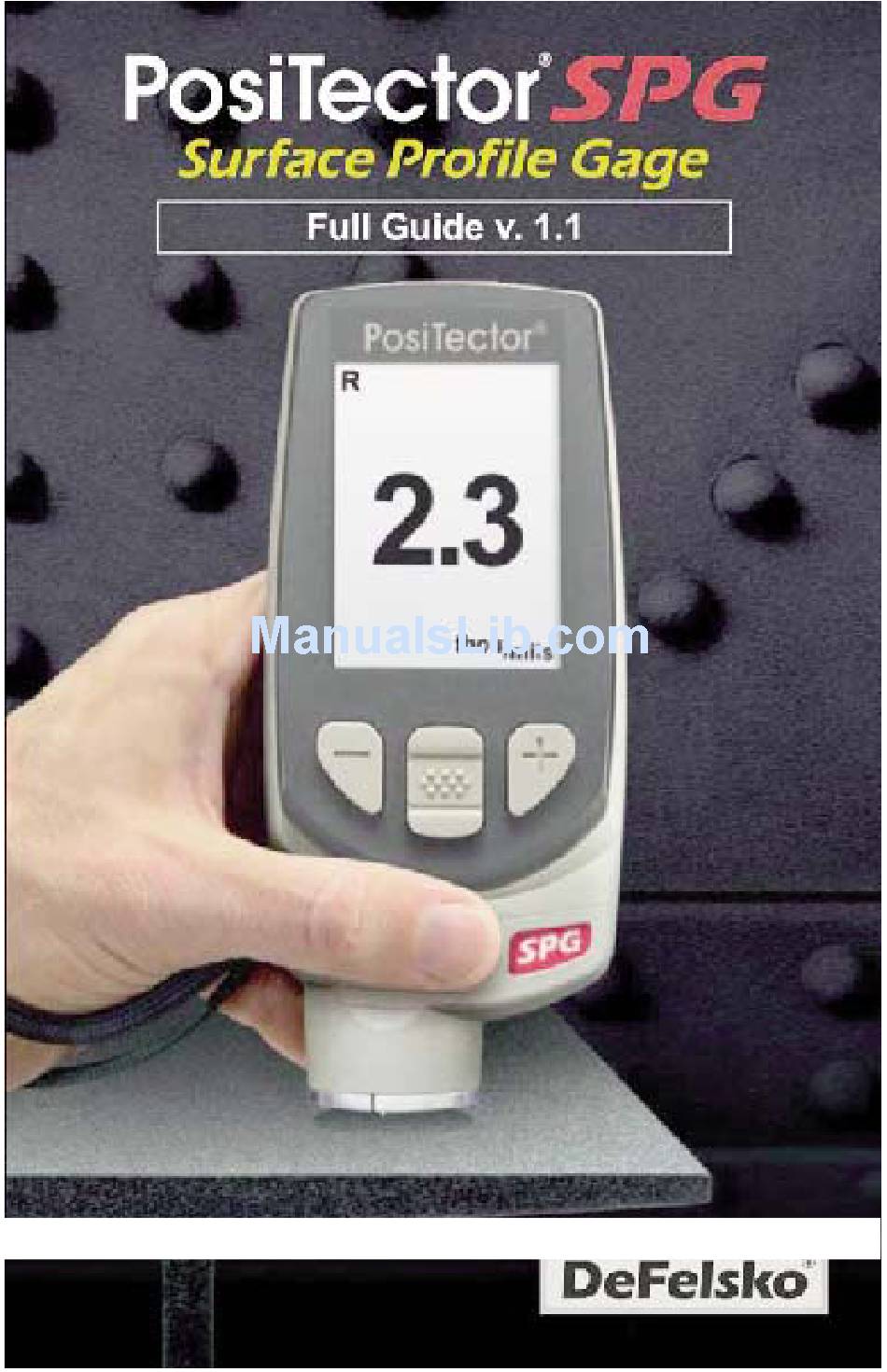

  • Page 1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Introduction ............Quick Start ............Probes ..............Why is Measurement Important? ......How to Measure ..........Calibration & Verification of Accuracy ....Menu Operation ..........Zero Menu ............Setup Menu ............Reset .............. Gage Info ............Statistics Menu ............
  • Page 3 Accessing Stored Measurement Data ....18 PosiSoft Desktop Manager (PDM) ....18 PosiSoft.net ............ 19 PosiSoft 3.0 ............ 19 PosiSoft Mobile ..........20 Connect Menu ............. 21 Sync Now ............21 Auto Sync ............21 USB Drive ............21 Bluetooth ............23 Bluetooth Wireless Printer ......

  • Page 4: Introduction

    - Two (2) year warranty on Body and Probe Quick Start Quick Start The PosiTector SPG powers-up when the center navigation button is pressed. To preserve battery life, it powers-down after approximately 5 minutes of no activity. All settings are retained.
  • Page 5 Protective Cap PosiTector SPG models are shipped with a protective plastic cap over the probe. Remove this cap prior to use. Replace it when the Gage is not in use to protect the probe. Wrist Strap We recommend attaching and wearing the supplied wrist strap.
  • Page 6 PosiTector Body USB Port LCD Display Probe Connector Typical Screen Measurement Type Current Measurement Factory Zero in Unit of Battery Indicator Measurement GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 7: Probes

    Perform the latest software Updates (pg. 27) to ensure probe compatibility with your Gage. For the latest information on probe interchangeability see www.defelsko.com/probes GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 8: Why Is Measurement Important

    Why is Measurement Important? Steel is often abrasive blast cleaned or otherwise roughened prior to painting. The peak-to-valley height of the resultant surface profile is an important factor in the performance of applied protective coatings. Low profile may reduce coating bond strength (adhesion). Too high and the peaks may receive insufficient coverage and possibly rust prematurely.

  • Page 9: Calibration & Verification Of Accuracy

    Instrument calibration is typically done by the manufacturer or qualified lab. All probes include a Certificate of Calibration showing traceability to a national standard. For organizations with re-certification requirements, the PosiTector SPG may be returned at regular intervals for calibration. DeFelsko recommends that our customers establish Gage calibration intervals based upon their own experience and work environment.

  • Page 10: Menu Operation

    Menu Operation Instrument functions are menu controlled. To access the Menu, power-up the Gage, then press the center navigation button. Below is a sample menu for a PosiTector SPG Advanced Model: Memory Statistics Some buttons have a tick box to their right to indicate current status.

  • Page 11: Zero Menu

    Zero Menu Zero Menu Glass Plate Zero Zero Factory Zero Zero NOTE: GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 12: Setup Menu

    Setup Menu Setup Menu Reset Reset (soft reset) restores factory settings and returns the Gage to a known condition. The following occurs: - All batches, stored measurements, images, and batch names are erased. - The zero adjustment is returned to the factory setting. Since this may not always be a precise zero, the gage should be checked on the glass plate (pg.
  • Page 13 The battery state indicator icon is calibrated for the selected battery type. No damage will occur if the wrong battery type is selected. NOTE: DeFelsko recommends the use of eneloop (NiMH) rechargeable batteries. Units Converts the display from inch to metric or vice versa. Stored measurements in memory are not converted.

  • Page 14: Statistics Menu

    Statistics Menu Statistics Menu ü Statistics When selected, a icon and statistical summary will appear on the display. Standard Mean # of Deviation (average) measurements Measurement Type σ 49.8 Minimum ↨ Maximum measurement measurement Last Battery Indicator reading microns Statistics Icon Remove the last measurement by pressing the (-) button.

  • Page 15: Memory Management

    Memory Management Memory Management The PosiTector SPG has internal memory storage for recording measurement data. Stored measurements can be reviewed on-screen or accessed via computers, tablets and smart phones. Measurements are date and time-stamped. Button functions with Memory ON: Create a new batch...

  • Page 16: Advanced Models

    (see pg. 11) current reading microns SmartBatch The PosiTector SPG measures the depth of a single valley in relation to the height of the surrounding peaks using a pointed, cone-shaped probe. A single depth measurement generally does not adequately characterize the surface profile of an abrasive blast cleaned surface.
  • Page 17 The Smart Batch menu option sets-up the PosiTector SPG to comply with the statistical approaches defined in various standards and test methods published by organizations such as ASTM, SSPC, ISO, IMO, US Navy, SANS and AS.

  • Page 18: Annotate

    Annotate (Advanced models only) Create meaningful batch names and enter notes directly on the Gage using a familiar onscreen QWERTY keyboard. Use the Gages navigation and (-)(+) buttons to enter annotations. Annotations can be synchronized with PosiSoft.netand are included in all PosiSoft reports (see Accessing Stored Measurement Data, pg.
  • Page 19 PosiSoft.net (pg. 19) and PosiSoft Mobile (pg. 20) are used to NOTE: GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com insert an Image and Notes into a batch.

  • Page 20: Display

    NOTES: Remove the last reading from the current open batch by pressing (-). Calibration adjustments cannot be made if any measurements were taken with that Cal setting and stored into a batch. Each batch can contain a maximum of 10,000 readings. (Advanced models only) Displays a summary of all stored batches including the name, probe...

  • Page 21: Accessing Stored Measurement Data

    (system tray) of a PC. PDM is available as a free download within your PosiSoft.net account www.defelsko.com/downloads Register your Gage on PosiSoft.net to take full advantage of your Gage’s capabilities. See www.PosiSoft.net NOTE: PDM is not required for WiFi enabled gages (pg. 24). GlobalTestSupply www.

  • Page 22: Posisoft.net

    Reports and graphs with annotations and corporate logo can be generated. Data can be exported to XML or CSV (comma delimited) text files. NOTE: PosiSoft Software is available for use with DeFelsko’s complete line of electronic instruments and is available for download at www.defelsko.com/posisoft GlobalTestSupply www.

  • Page 23: Posisoft Mobile

    Ideal for use with devices such as Windows Phone/Mobile, Blackberry (RIM), Android, Apple iOS and more. In addition to browser based access, PosiSoft Mobile Managers are available for Apple iOS and Android users. See www.defelsko.com/wifi/wifi_mobile GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 24: Connect Menu

    Connect Menu Connect Menu Synchronizing (Sync) is the process whereby PosiTector stored measurement data uploads to PosiSoft.net (from both Standard and Advanced models) while images and batch notes are downloaded to the Gage (Advanced model only). This transfer occurs when the Gage is connected via USB, Bluetooth or directly through your WiFi router/hotspot via WiFi.
  • Page 25 When checked, any computer can view readings stored in memory by navigating a virtual drive labeled “PosiTector” using the included USB cable. A formatted HTML report is viewed by selecting the "index.html" or “START_HERE.html” file found in the root directory. Optionally, text ".txt"...

  • Page 26: Bluetooth

    To deactivate Bluetooth, select Off. Pairing: The Gage and receiving device must be paired before stored or streamed readings can be transmitted. For pairing instructions, see www.defelsko.com/bluetooth Info: Lists information about your current Bluetooth connection, including the currently paired device and MAC address.
  • Page 27 ü On/Off : Turns WiFi functionality On. When selected, the icon will appear on the display. To deactivate WiFi, select Off. ü Access Point : Connect your smart device/computer to a PosiTector Advanced body wirelessly without the need for a separate network.
  • Page 28 Batches are not erased from the gages memory during import. They remain on the gage until they have been deleted by the user. For more information regarding PosiSoft 3.0: GlobalTestSupply http://www.defelsko.com/posisoft/posisoft_software.htm www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 29 Enter the displayed IP address into your devices web browser exactly as it appears. Example: 192.168.0.1:8080 For more information regarding PosiSoft Mobile: http://www.defelsko.com/posisoft/posisoft_mobile.htm Networks: The Gage will allow the user to add a new network and will automatically check for available local networks. Available networks...

  • Page 30: Wifi

    Setup: Allows user to setup a WiFi connection • IP Settings: enter information follows... IP Type (DHCP or Static), IP Address, Gateway, Netmask, DNS1, DNS2. • Server Enable: enables a connection between the network and the Gage. • Gage Name: enter a name for the Gage (up to 14 Characters). •...

  • Page 31: Rechargeable Batteries

    Rechargeable Battery Pack - 4 AAA eneloop batteries The PosiTector can operate on rechargeable batteries and DeFelsko recommends the use of eneloop (NiMH) rechargeables. eneloop batteries combine the advantages of regular rechargeable batteries and disposable (Alkaline) batteries. They discharge very slowly and can be stored for long periods without having self discharge concerns.
  • Page 32 PosiTector 200 - Ultrasonic Coating Thickness probes • measure coatings on wood, concrete, plastics and more PosiTector SPG - Surface Profile probes • measure and records peak to valley surface profile height PosiTector RTR - Replica Tape Reader probes •...

  • Page 33: Technical Data

    Most conditions can be cleared with a Hard Reset (see pg. 9). If not, visit our Service & Support page for information on sending your Gage to us for a no charge evaluation. See: http://www.defelsko.com/service Thickness readings are inconsistent: - Probe tip may be damaged, scratched or worn Gage will not print to the Bluetooth wireless printer: - Ensure the gage has been paired for use with the printer and...

  • Page 34: Returning For Service

    Other brand or product names are trademarks or registered trademarks of their respective holders. Every effort has been made to ensure that the information in this manual is accurate. DeFelsko is not responsible for printing or clerical errors. GlobalTestSupply www.
