Connect the monitor

Program the cameras by attaching a standard video monitor to the
system.
To connect the monitor, do the following:
1. Plug the monitor output cable to the video monitor output
connector (see Figure 1 on page 4.)
2. Connect the BNC cable to the video monitor.
3. Press Enter (Figure 5 below) to display the Setup menu.

Programming

OSD controls

Use the OSD (on-screen display) setup menus to program the camera.
See Figure 5.
Note: If you do not press a button for two minutes, your changes are
saved, and the camera returns to its normal function.

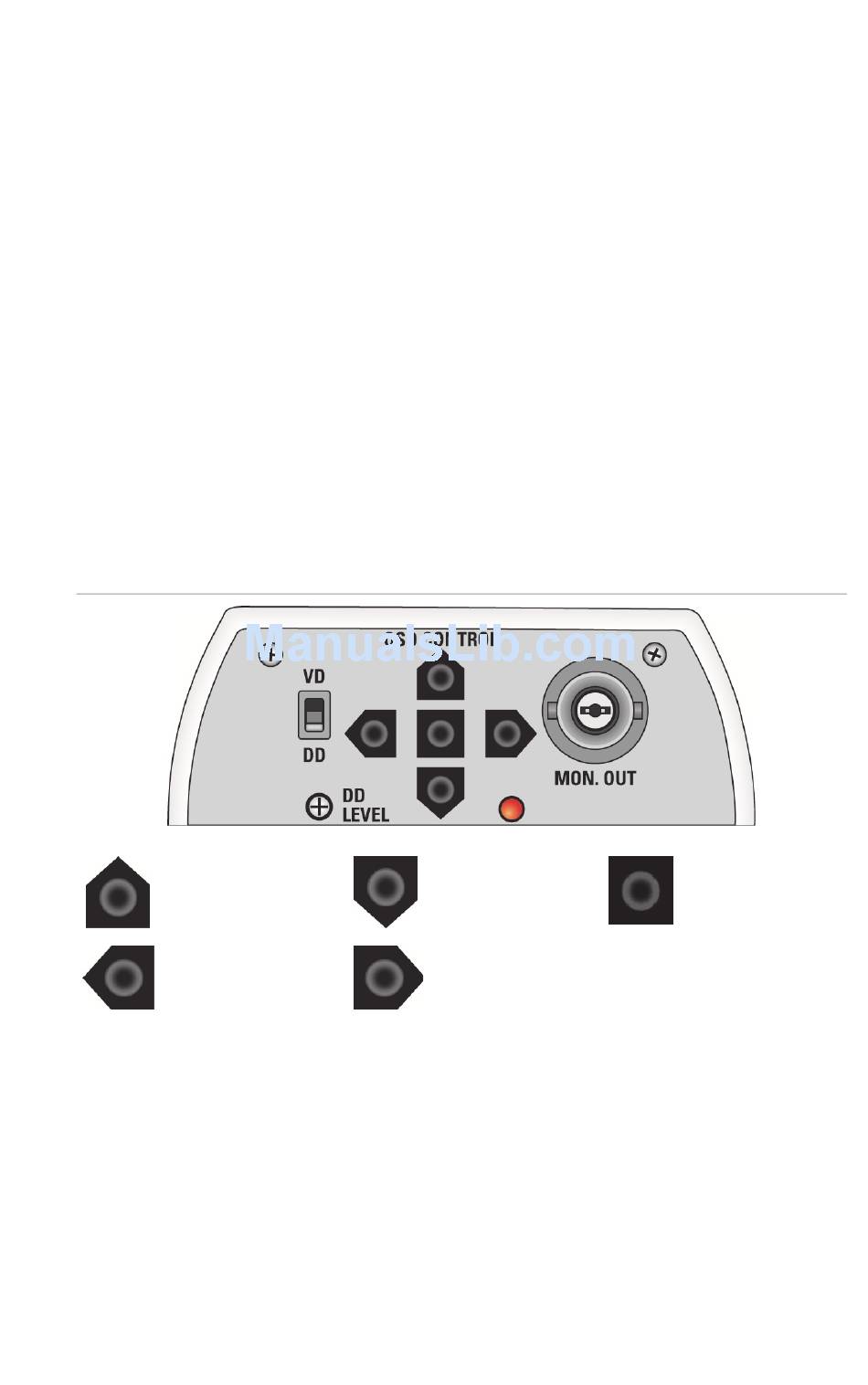

Figure 5: OSD menu controls
Up
Left
Note: Wherever the PREVIOUS PAGE option appears, use it to leave
the current menu and return to the previous menu. Move to the
PREVIOUS PAGE option and press the center button.

Main menu

The camera is configured through the setup menus which appear on-
screen.
Quick Start Guide
Down
Right
Enter
