Attach The Lens - Interlogix UVC-XP4DN-HR Quick Start Manual

Note: When the lens mode DIP switch is set to DD, you can use the
DD level screw (iris level adjustment) to ensure the correct exposure of
images for the camera's position and the lighting conditions. Use an
insulated tool to rotate the screw. Observe the results on the monitor
screen for the best setting.

Attach the lens

Refer to the instructions that came with the lens you purchased for
complete installation instructions of that lens.
Note: For optimal performance, use an autoiris lens.

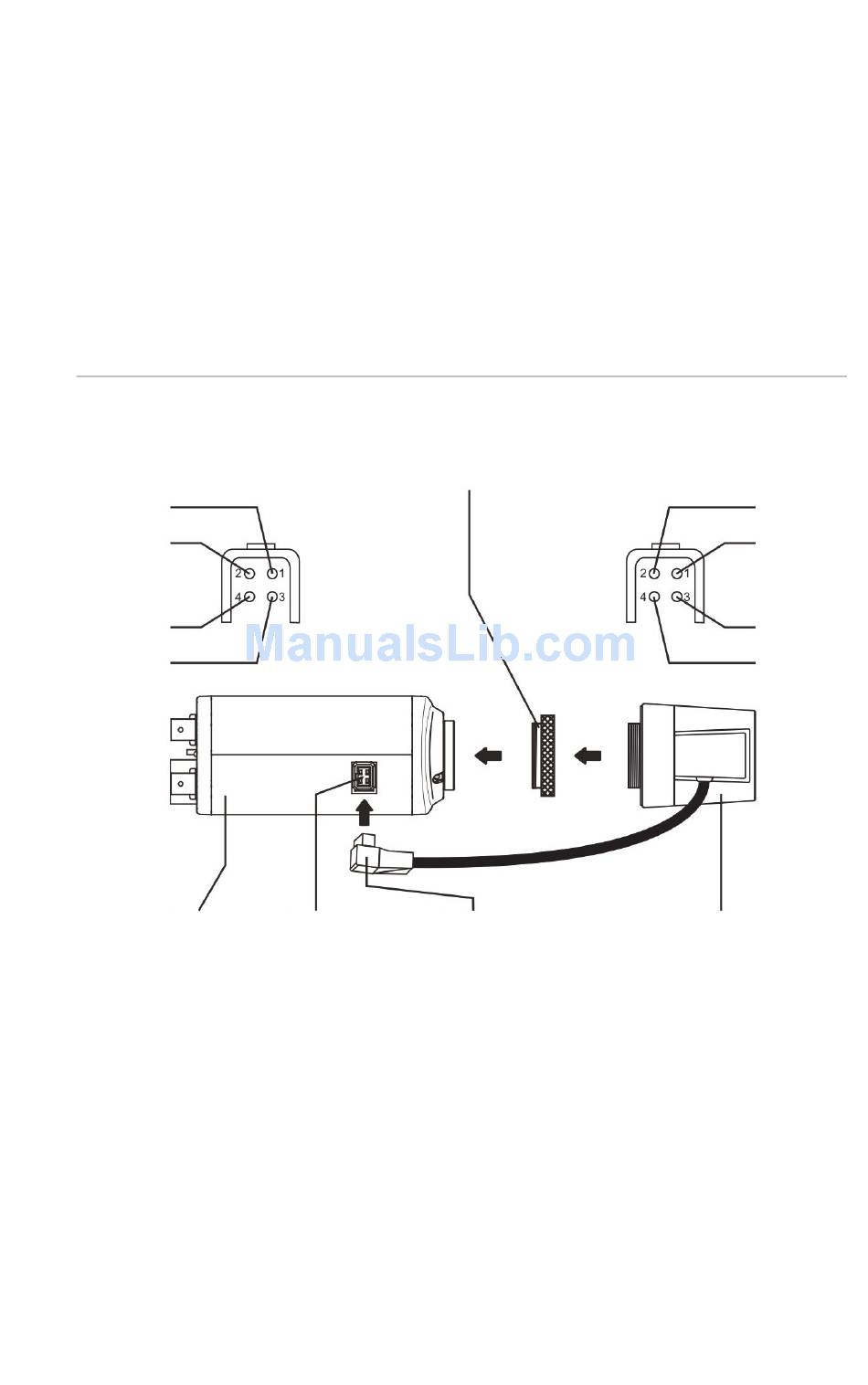

Figure 3: Attaching your lens
Video-type autoiris lens leads
A
B
C
D
Camera
Video-type autoiris lens leads: A. Red (9 VAC); B. NC (no connection); C. Black
(ground); D. White (video)
DC-type autoiris lens leads: E. Damping coil (+); F. Damping coil (-); G. Driving coil
(+); H. Driving coil (-)
1. If you are using a C-mount lens, screw on the provided C-mount
adapter.
2. Screw your customer-supplied lens onto the camera.
Quick Start Guide
C-mount adapter
(for C-mount lenses only)
Autoiris, lens
connector
DC-type autoiris lens leads
Autoiris lens
plug
E
F
G
H
Lens (autoiris shown);
manual iris has no
cable
5 EN
