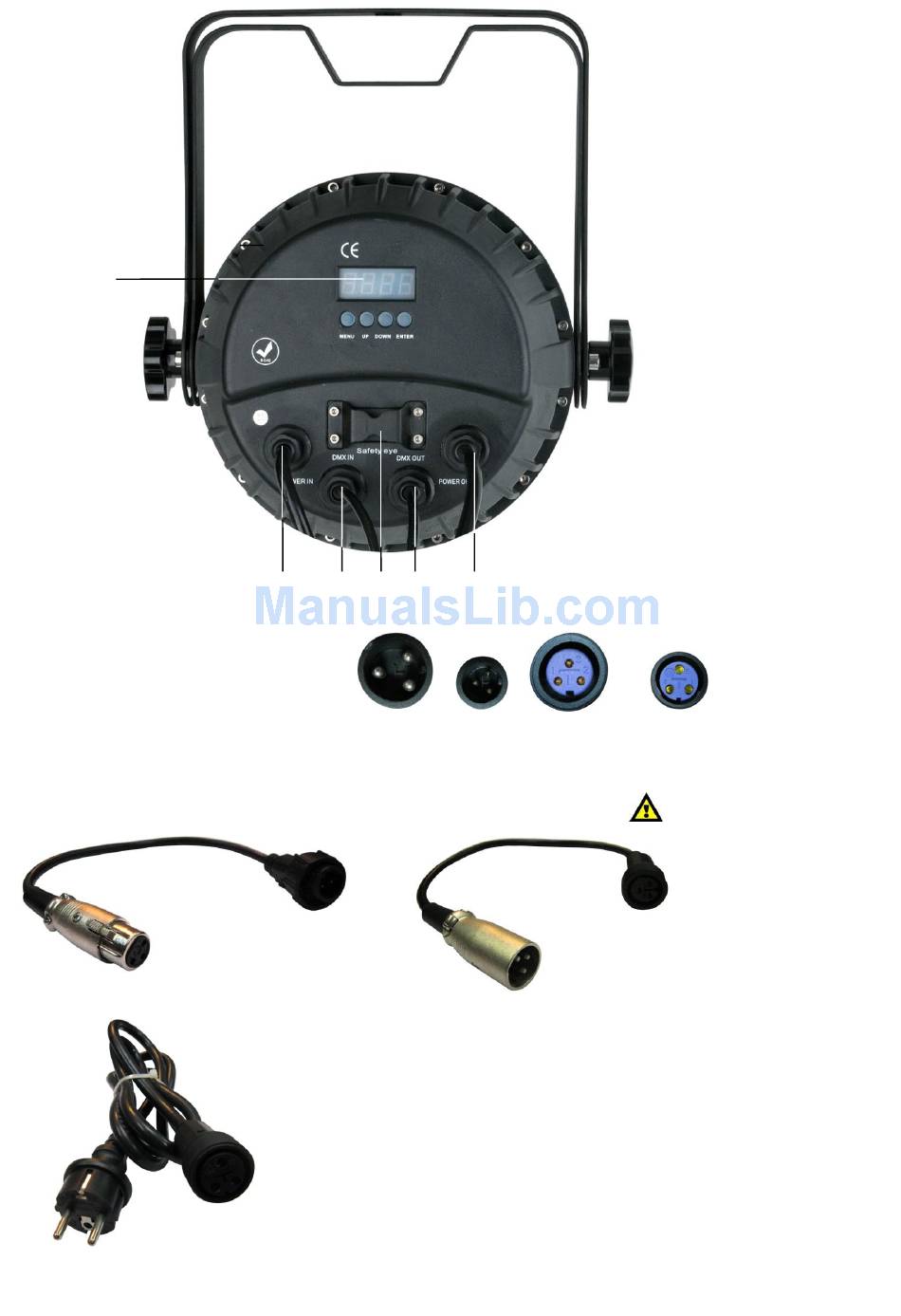

Backside
3
3) LCD Display+menu Buttons
4) Power IN
5)
DMX signal connector (IN)
6) Safety Eye
7) Power OUT
8) ) DMX
signal connector (OUT)
Note: You cannot plug a standard DMX cable directly into the connector
Be sure to use the included special cable for DMX connection.
Female 3 pin DMX to special 3-pin Male
Powercable to special 3-pin Female
4
5
6 7
4
Male 3 pin DMX to special 3-pin Female
8
Fig. 2
8
5
6
8
