Main Menu Options

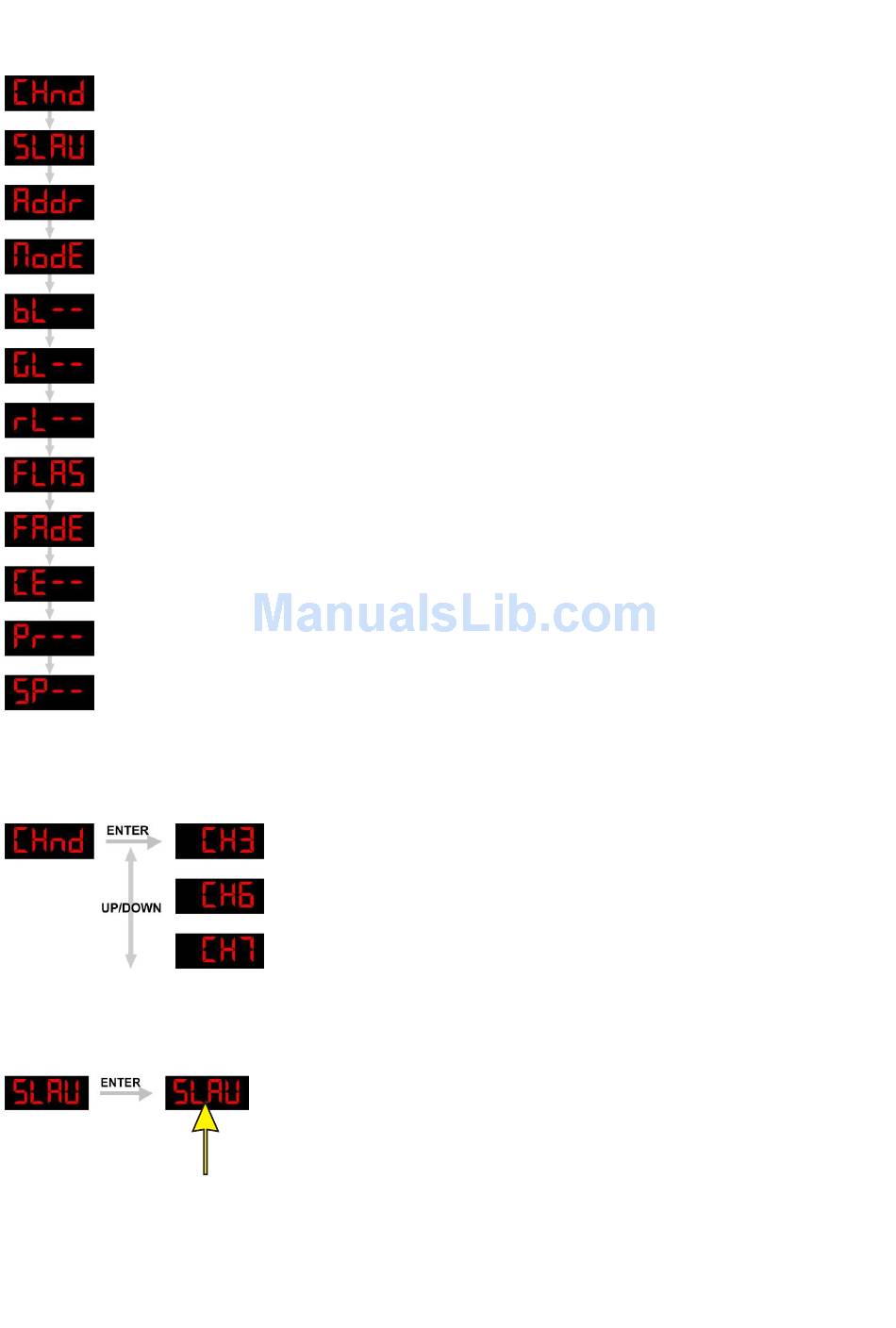

Press the MENU button to scroll through 12 options of the menu:
1. DMX Personalities 3CH, 6CH or 7CH
2. Master/Slave
3. DMX Address
4. Node (dimming curve)
5. Blue
6. Green
7. Red
8. Flash/Strobe (speed adjustable)
9. Fade (speed adjustable)
10. Seven Color Jump (speed adjustable)
11. Built-in Programs (speed adjustable)
12. Speed of the built-in programs and 7-color jump

1. Personality

Enter the PERSONALITY mode to select a DMX mode: CH3, CH6 or CH7.

2. Master/Slave Mode

1) When you press ENTER in menu SLAV, you can set the Spectral to Slave
2) An extra dot will appear behind SL, indicating your in slave mode.
15
Mode.
