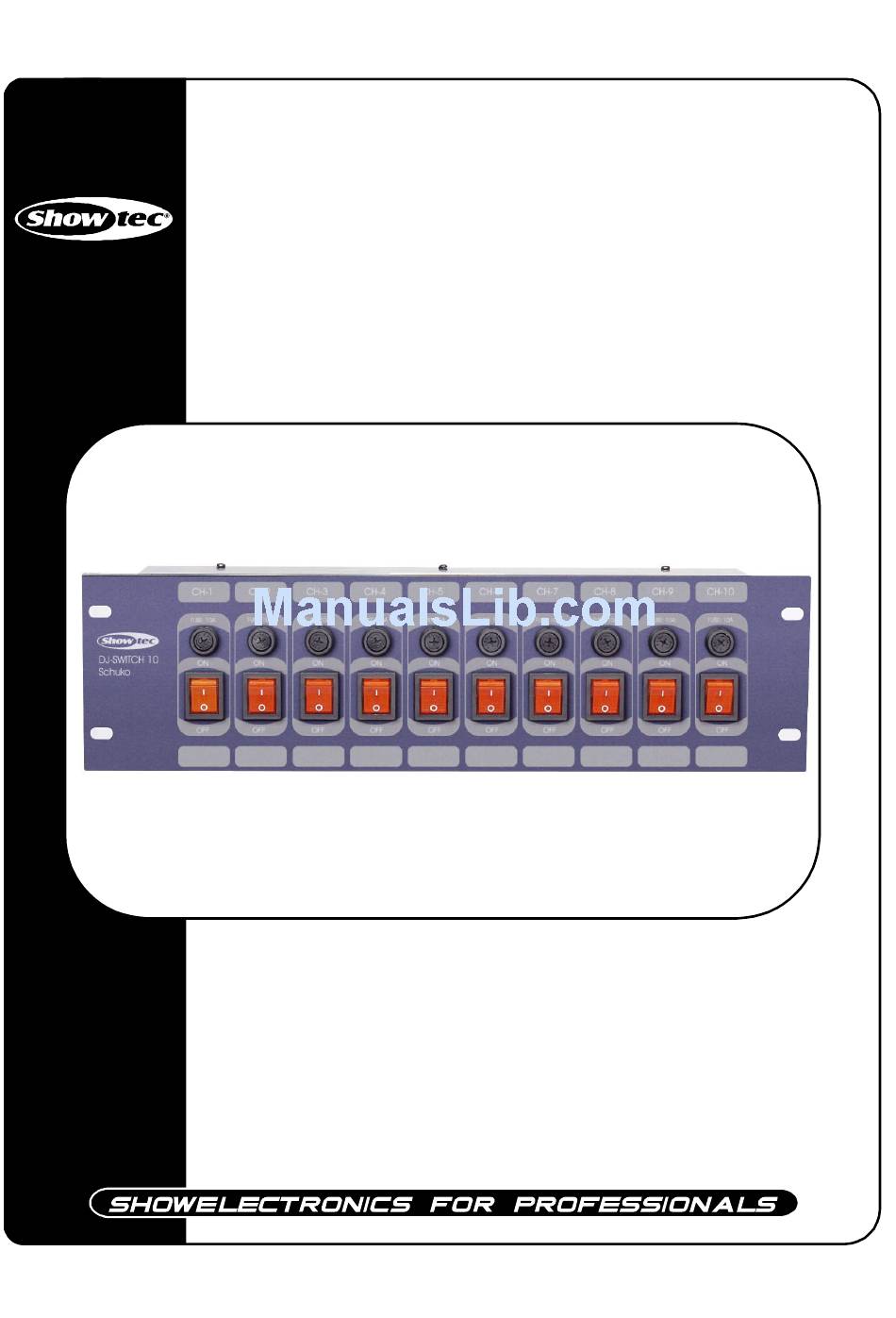

- Page 1 DJ Switch 10 ORDERCODE 50364...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec DJ Switch brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec DJ Switch Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Backside…….……………………………………………………………………………………….……...…. Installation................…...…………………………………….….. Set Up and Operation..............……..………………………………… Maintenance...................………..………….…….……………... Replacing the Fuse................…………………….………………… Troubleshooting................………………….………………….….. Product Specifications..............……………….…….…………………. -
Page 4: Warning
In case of a malfunction (burning smell, etc.), immediately stop operation, disconnect power and contact your Showtec dealer. If device is dropped or struck, disconnect mains power supply immediately. Have a qualified engineer inspect for safety before operating. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Description
Description of the device Features • 10 Channel switchboard • 10A per Channel • IEC Socket on the backside Overview Fig. 1 Backside Fig. 2 1) Fuse 10 A Power switch ON/OFF 3) 10x IEC Socket 4) Ground 5) Power cable... -
Page 7: Installation
Do not attempt to operate a 120V specification product on 230V power, or vice versa. Maintenance The Showtec DJ Switch requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 8: Product Specifications
Product Specification Model: Showtec DJ Switch 10 Voltage: AC 230V-50Hz (CE) Channel Output: 10A/CH. Dimensions: 482x135x120mm (LxWxH) 19 inch; 3HE Weight: 2,9 kg Design and product specifications are subject to change without prior notice. Website: www.Highlite.nl Email: service@highlite.nl... - Page 9 Other Showtec Products: DJ Switch 6 (50363) 6 Channel switchboard. Schuko outlets on backside 5 A per channel. 15 A total load. Fuses on frontpanel. DJ Switch 8 (50309) 8 Channel switchboard. IEC outlets on backside 5 A per channel. 15 A total load. Fuses on frontpanel.
