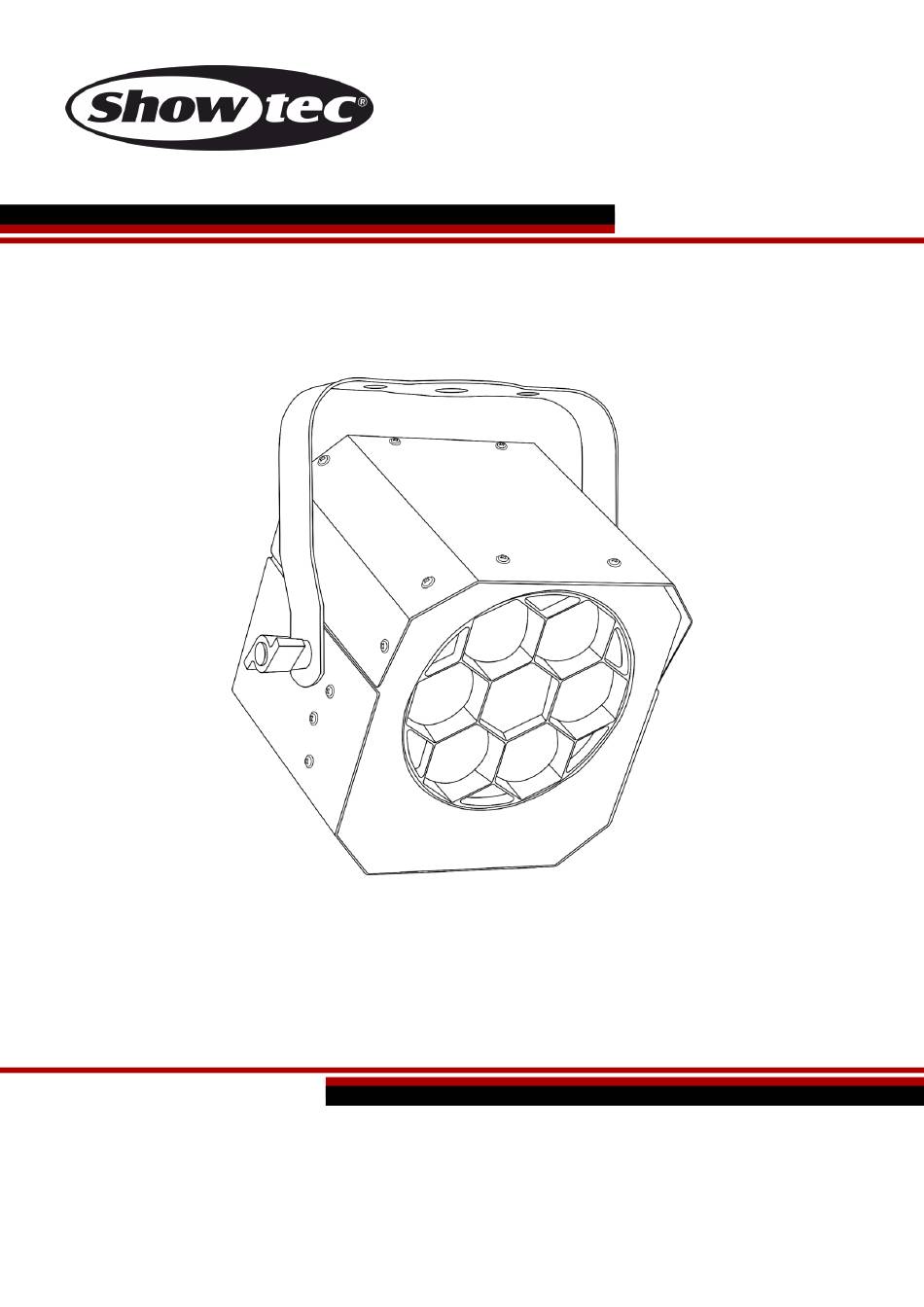

MANUAL
ENGLISH
Dreamwave
V1
Ordercode: 43166
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dreamwave V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SHOWTEC Dreamwave V1

  • Page 1 MANUAL ENGLISH Dreamwave Ordercode: 43166 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2: Table Of Contents

    Dreamwave Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 5 Connection with the mains ............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................7 Frontside ..................................
  • Page 3: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Dreamwave ● IEC power cable (1,5 m) ●...
  • Page 4 Dreamwave Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device. To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes contained in this manual.
  • Page 5: Operating Determinations

    ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
  • Page 6: Rigging

    Dreamwave Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: ● If the Dreamwave is lowered from the ceiling or high joists, professional trussing systems have to be used.
  • Page 7: Return Procedure

    Dreamwave Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the...
  • Page 8: Description Of The Device

    Dreamwave Description of the device Features The Dreamwave is a light effect with high output and great effects. It is equipped with laser, strobe and LED effects. ● Input voltage: 100-240V AC, 50/60Hz ● Power consumption: 70W ● DMX channels: 10 or 34 channels ●...
  • Page 9: Frontside

    Dreamwave Frontside Fig. 02 01) Mounting bracket 02) Adjustment screw Cooling fan 03) 6x 15W RGBW 4-in-1 LEDs Backside Fig. 03 04) LED display + control buttons 08) IEC power connector OUT 05) Cooling fan 09) IEC power connector IN + Fuse T1AL/250V 06) Ground/earth connection 10) 3-pin DMX signal connector OUT 07) Safety eye...
  • Page 10: Installation

    Dreamwave Installation Remove all packing materials from the Dreamwave. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty.
  • Page 11: Multiple Dreamwaves (Master/Slave Control)

    Dreamwave Multiple Dreamwaves (Master/Slave control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-p XLR cable to connect the Dreamwaves and other devices. The pins: 1.
  • Page 12: Multiple Dreamwaves (Dmx Control)

    Dreamwave Multiple Dreamwaves (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Dreamwaves and other devices. 04) Link the units as shown in Fig.
  • Page 13: Fixture Linking

    Dreamwave Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.
  • Page 14: Control Panel

    Dreamwave Control Panel A) LED display MENU button C) DOWN button D) UP button ENTER button Fig. 06 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.) DMX Addressing The control panel on the backside of the device allows you to assign DMX fixture addresses, which is the...
  • Page 15: Menu Overview

    Dreamwave Menu Overview Ordercode: 43166...
  • Page 16: Main Menu Options

    Dreamwave Main Menu Options DMX address Channel mode Slave Mode Master Mode Show Mode Sound-controlled Sensitivity DMX Fail Backlight Display inverse Manual Mode Temperature Runtime Fixture Software version 1. DMX Addressing With this menu you can set the DMX address. 01) In main menu, press the MENU button until the display shows 02) Press the ENTER button to open this menu.
  • Page 17: Slave Mode / Master Mode

    Dreamwave 3. Slave/Reverse Slave Mode In this menu you can set the slave or slave reverse. 01) In main menu, press the MENU button until the display shows 02) Press the ENTER button to open this menu. 03) Press the UP/DOWN buttons to choose one of the 2 slave modes: Normal slave mode Mirror slave mode 04) Press the ENTER button to confirm your choice.
  • Page 18: Sensitivity Mode

    Dreamwave 7. Sensitivity Mode With this menu you can set the Sensitivity control. 01) Press the MENU button and then the Up / Down buttons, until the display shows 02) Press the ENTER button to open this menu. 03) You can choose 100 different Audio Sensitivity levels 04) Press the SETUP button to confirm your choice.
  • Page 19: Manual

    Dreamwave 11. Manual With this menu you can manually set the desired colors. 01) Press the MODE button until the display shows 02) Press the ENTER button to open the menu. 03) Press the ENTER button to toggle through the available options: Gradual adjustment red intensity(0-255) Gradual adjustment green intensity (0-255) Gradual adjustment blue intensity (0-255)
  • Page 20: Dmx Channels

    Dreamwave DMX Channels 10 channels Channel 1 – Red CH5 must be open 0-255 Gradual adjustment Red, from 0-100% Channel 2 – Green CH5 must be open 0-255 Gradual adjustment Green, from 0-100% Channel 3 – Blue CH5 must be open 0-255 Gradual adjustment Blue, from 0-100% Channel 4 –...
  • Page 21: Channels

    Dreamwave 34 channels Channel 1 – Red CH5 must be open 0-255 Gradual adjustment Red, from 0-100% Channel 2 – Green CH5 must be open 0-255 Gradual adjustment Green, from 0-100% Channel 3 – Blue CH5 must be open 0-255 Gradual adjustment Blue, from 0-100% Channel 4 –...
  • Page 22 Dreamwave Channel 11 – Red 2 CH1 & CH5 must be open 0-127 Red 1 Off 128-255 Red 1 On Channel 12 – Green 2 CH2 & CH5 must be open 0-127 Green 1 Off 128-255 Green 1 On Channel 13 – Blue 2 CH3 &...
  • Page 23 Dreamwave Channel 24 – Green 5 CH2 & CH5 must be open 0-127 Green 1 Off 128-255 Green 1 On Channel 25 – Blue 5 CH3 & CH5 must be open 0-127 Blue 1 Off 128-255 Blue 1 On Channel 26 – White 5 CH4 &...
  • Page 24: Maintenance

    Dreamwave Maintenance The Dreamwave requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth.
  • Page 25: Troubleshooting

    Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Dreamwave to your Showtec dealer. 03) The fuse. Replace the fuse. See page 23 for replacing the fuse.
  • Page 26 Dreamwave Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown. • Replace fuse Fixtures reset The controller is not connected. •...
  • Page 27: Product Specifications

    Dreamwave Product Specifications Model: Showtec Dreamwave Input voltage: 100-240V AC, 50/60Hz Power consumption: 70W (full output) DMX linking: 30 pcs Power linking @110V 25 pcs Power linking @240V 52 pcs Fuse: T1L/250V Dimensions: 246 x 185 x 247 mm (LxWxH)
  • Page 28: Dimensions

    Dreamwave Dimensions Ordercode: 43166...
  • Page 29 Dreamwave Ordercode: 43166...
  • Page 30: Notes

    Dreamwave Notes Ordercode: 43166...
  • Page 31 Dreamwave Ordercode: 43166...
  • Page 32 ©2018 Showtec...
