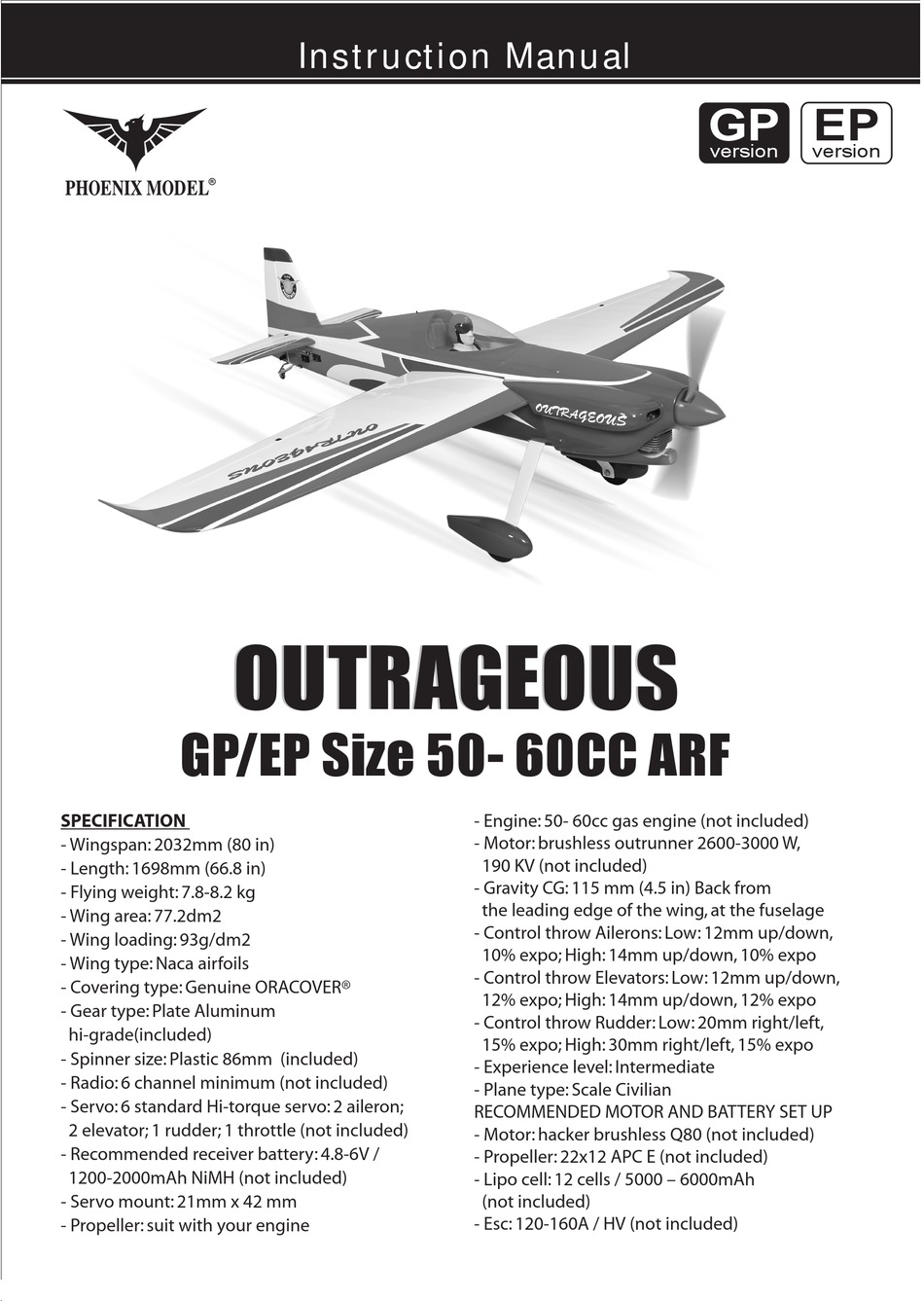

OUTRAGEOUS
GP/EP Size 50- 60CC ARF
SPECIFICATION
- Wingspan: 2032mm (80 in)
- Length: 1698mm (66.8 in)
- Flying weight: 7.8-8.2 kg
- Wing area: 77.2dm2
- Wing loading: 93g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Gear type: Plate Aluminum
hi-grade(included)
- Spinner size: Plastic 86mm (included)
- Radio: 6 channel minimum (not included)
- Servo: 6 standard Hi-torque servo: 2 aileron;
2 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V /
1200-2000mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
Instruction Manual
OUTRAGEOUS
- Engine: 50- 60cc gas engine (not included)
- Motor: brushless outrunner 2600-3000 W,
190 KV (not included)
- Gravity CG: 115 mm (4.5 in) Back from
the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 12mm up/down,
10% expo; High: 14mm up/down, 10% expo
- Control throw Elevators: Low: 12mm up/down,
12% expo; High: 14mm up/down, 12% expo
- Control throw Rudder: Low: 20mm right/left,
15% expo; High: 30mm right/left, 15% expo
- Experience level: Intermediate
- Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: hacker brushless Q80 (not included)
- Propeller: 22x12 APC E (not included)
- Lipo cell: 12 cells / 5000 – 6000mAh
(not included)
- Esc: 120-160A / HV (not included)
GP
EP
version
version
