Apply instant glue (CA glue, super glue).

INSTALLING THE AILERON SERVOS

1. Install the rubber grommets and brass eyelets
onto the aileron servo.
2. Using a modeling knife, remove the covering
from over the pre-cut servo arm exit hole on the
aileron servo tray / hatch. This hole will allow
the servo arm to pass through when installing
the aileron pushrods.
3. Place the servo into the servo tray. Center the
servo within the tray and drill pilot holes
through the block of wood for each of the four
mounting screws provided with the servo.
Assemble left and right
sides the same way
Make certain the hinges are adequately secured with glue. If
they come loose in flight accidents may result.
Secure nylon hinges with instant glue, being careful
not to glue the wing and airleron together.
Align the center line of main wing with aileron.
4. Using the thread as a guide and using masking
tape, tape the servo lead to the end of the
thread: carefully pull the thread out. When you
have pulled the servo lead out, remove the
masking tape and the servo lead from the
thread.

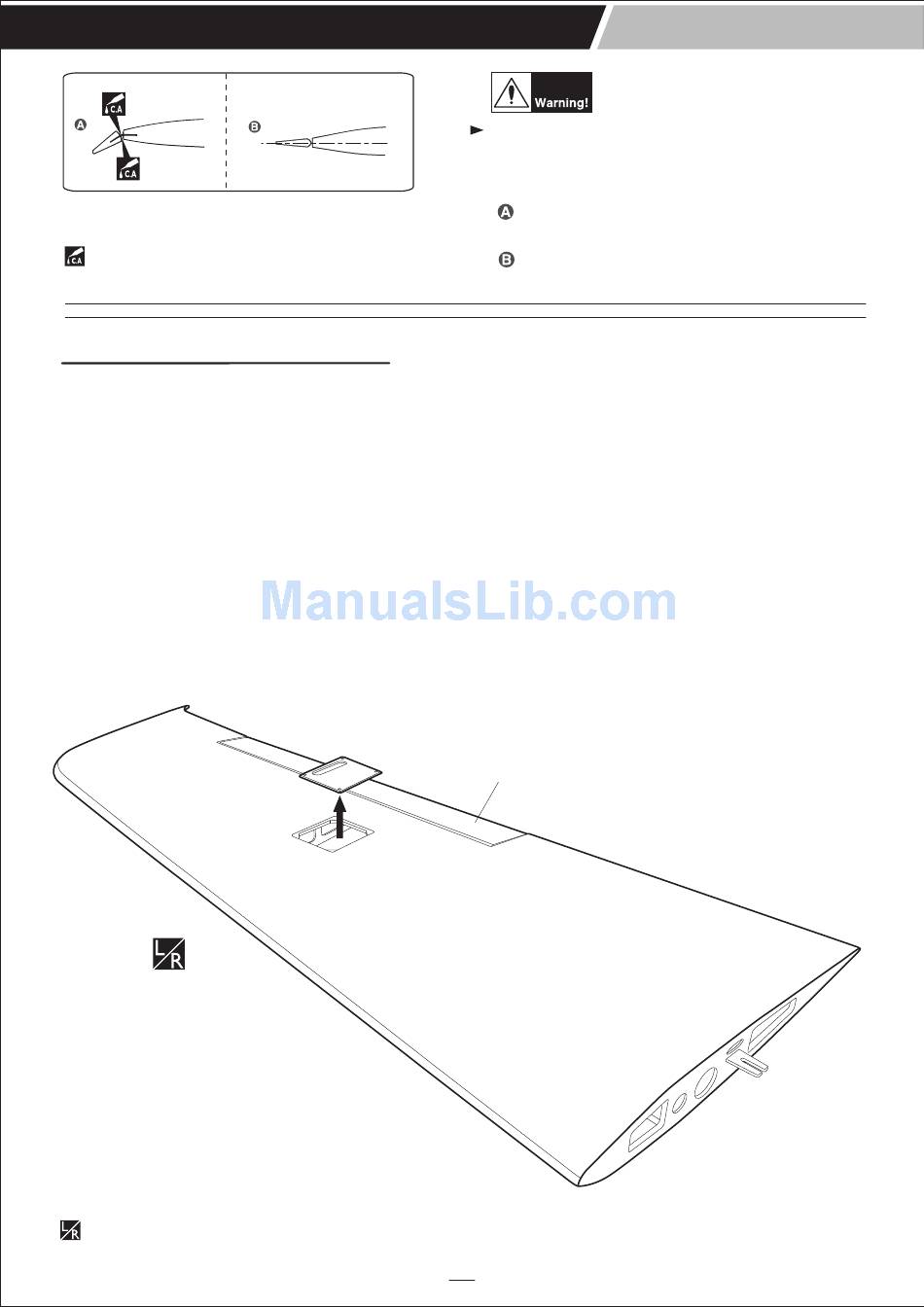

5. Place the aileron servo tray / hatch into the
servo box on the bottom of the wing and drill
pilot holes through the tray and the servo box
for each of the four mounting screws. Secure
the servo tray in place using the mounting
screws provided .
6. Repeat step # 2 - # 5 to install the second
aileron servo in the opposite wing half.
Aileron
< Bottom view >
9
OUTRAGEOUS
