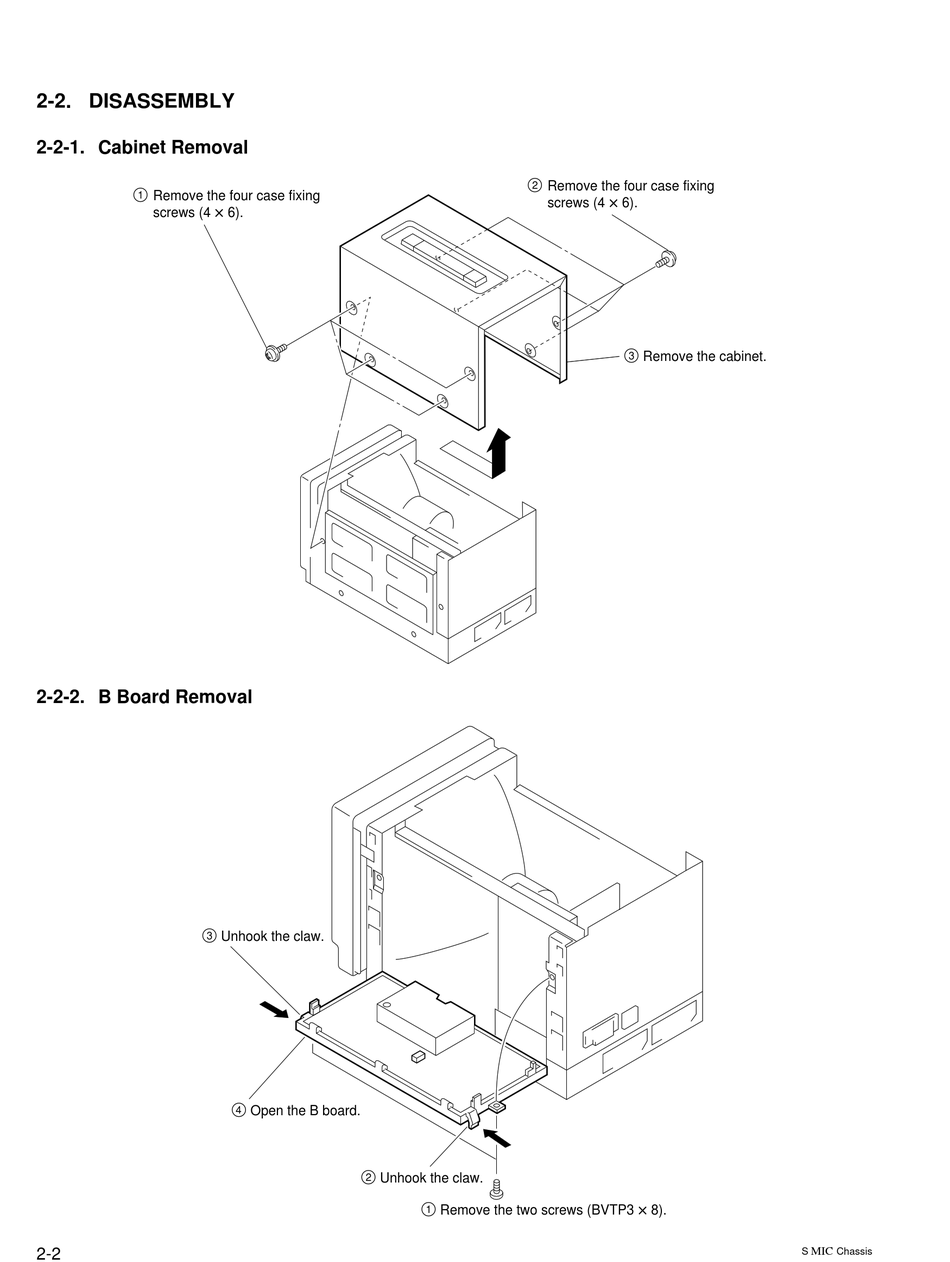

2-2. DISASSEMBLY

2-2-1. Cabinet Removal

1
Remove the four case fixing
screws (4 x 6).

2-2-2. B Board Removal

3 Unhook the claw.
2-2
4 Open the B board.
2 Unhook the claw.
2
Remove the four case fixing
screws (4 x 6).
1 Remove the two screws (BVTP3 x 8).
3 Remove the cabinet.
S
MIC
Chassis
