Specifications

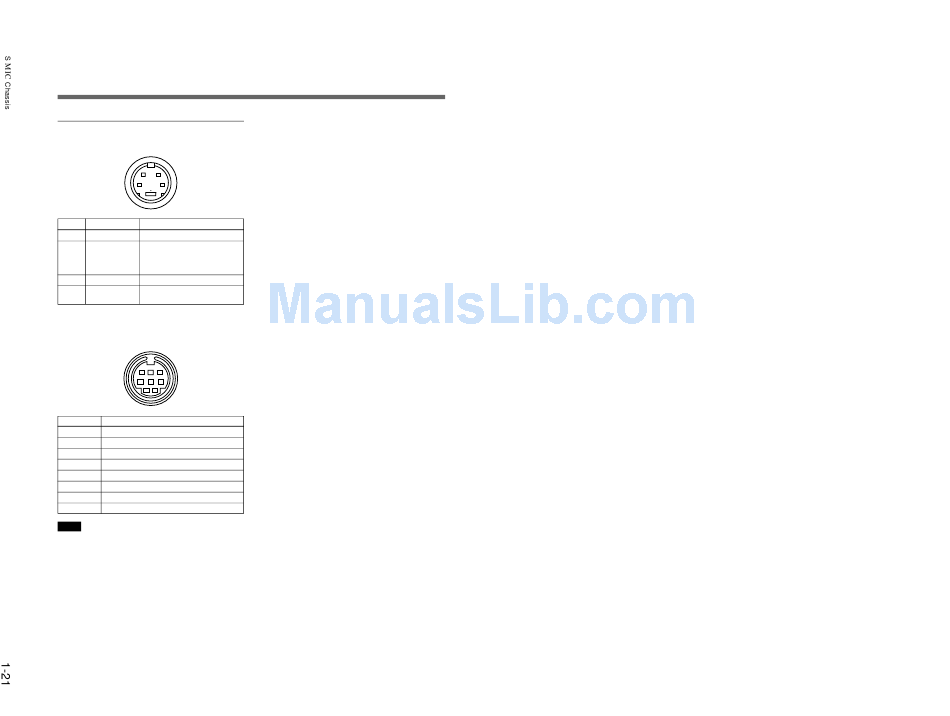

Pin Assignment
Y/C IN connector (4-pin mini DIN)
2
1
4
3
Pin No.
Signal
Description
1
Y-input
1 Vp-p, sync negative, 75 ohms
2
CHROMA
300 mVp-p (PAL-M),
286 mVp-p (NTSC), burst
sub-carrier-input Delay time between Y and
C: within 0 ±100 nsec., 75 ohms
3
GND for Y-input
GND
4
GND for
GND
CHROMA-input
REMOTE connector (8-pin mini DIN)
(PVM-8045Q/8042Q only)
8
7
6
5
4
3
2
1
Pin No.
Signal
1
16:9
2
H/V delay
3
GND
4
EXT SYNC
5
Tally
6
Underscan
7
A/B or RGB/Y R-Y B-Y
8
LINE/RGB
Notes
• For remote control, connect the pin of the desired
function to pin 3 (GND).
• For remote control, set the front button to OFF (the
switch is out).
12
(US)
