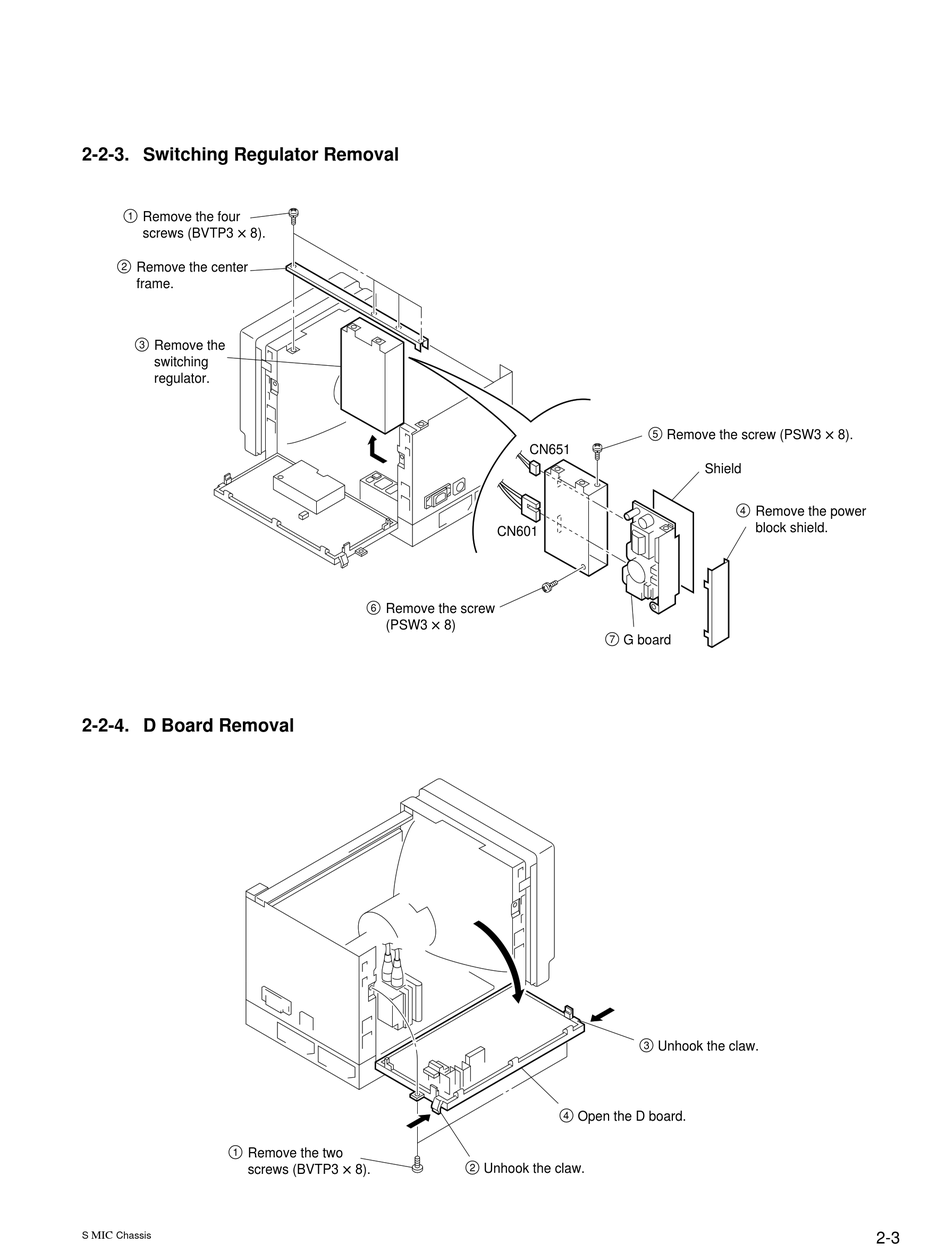

2-2-3. Switching Regulator Removal
1
Remove the four
screws (BVTP3 x 8).
2
Remove the center
frame.
3
Remove the
switching
regulator.
2-2-4. D Board Removal
1
Remove the two
screws (BVTP3 x 8).
MIC
S
Chassis
CN651
CN601
6
Remove the screw
(PSW3 x 8)
2 Unhook the claw.
5 Remove the screw (PSW3 x 8).
Shield
4
7 G board
3 Unhook the claw.
4 Open the D board.
Remove the power
block shield.
