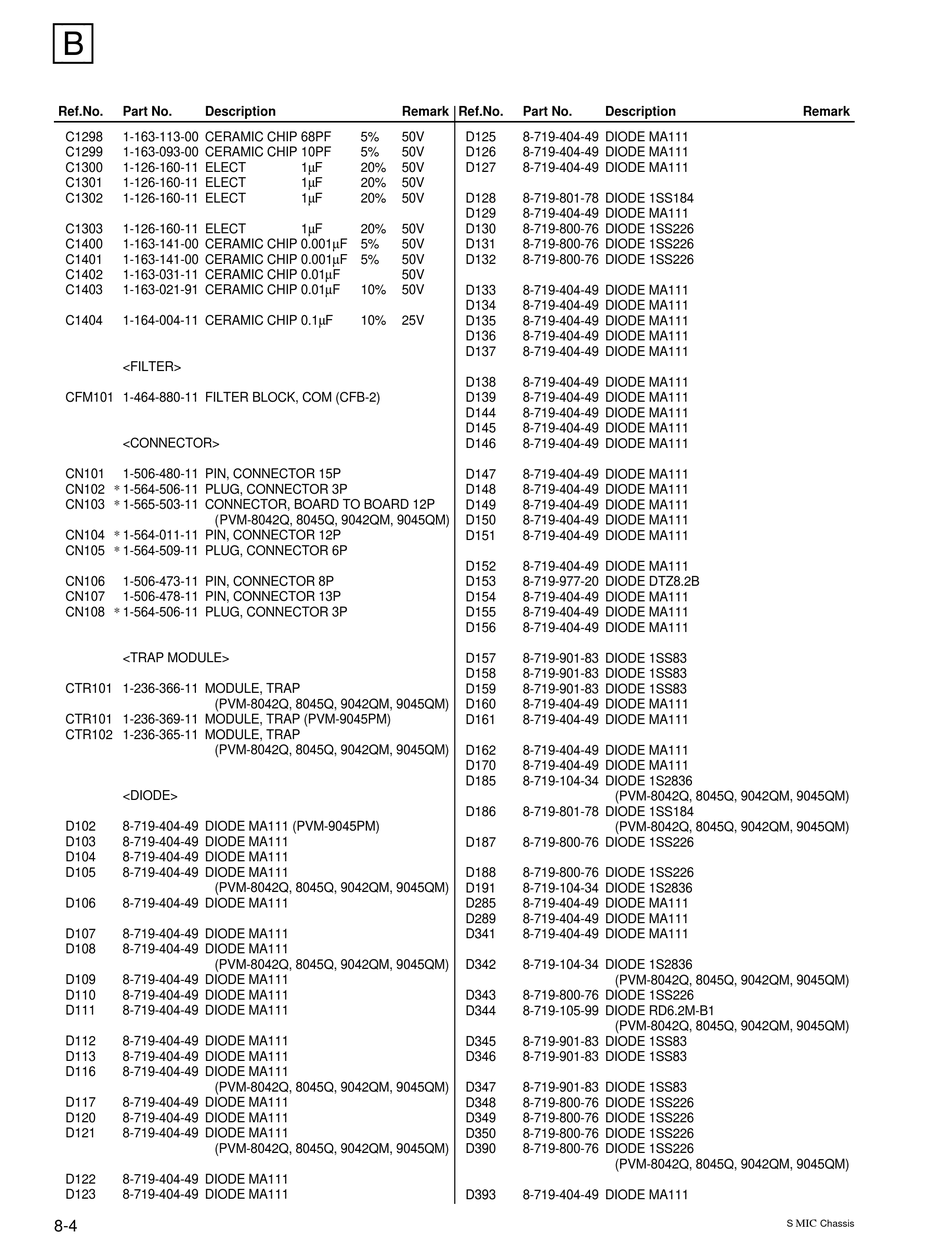

[B]
Ref.No.
Part No.
Description
C1298
1-163-113-00 CERAMIC CHIP 68PF
C1299
1-163-093-00 CERAMIC CHIP 10PF
C1300
1-126-160-11 ELECT
C1301
1-126-160-11 ELECT
C1302
1-126-160-11 ELECT
C1303
1-126-160-11 ELECT
C1400
1-163-141-00 CERAMIC CHIP 0.001µF 5%
C1401
1-163-141-00 CERAMIC CHIP 0.001µF 5%
C1402
1-163-031-11 CERAMIC CHIP 0.01µF
C1403
1-163-021-91 CERAMIC CHIP 0.01µF
C1404
1-164-004-11 CERAMIC CHIP 0.1µF
<FILTER>
CFM101 1-464-880-11 FILTER BLOCK, COM (CFB-2)
<CONNECTOR>
CN101
1-506-480-11 PIN, CONNECTOR 15P
CN102 * 1-564-506-11 PLUG, CONNECTOR 3P
CN103 * 1-565-503-11 CONNECTOR, BOARD TO BOARD 12P
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
CN104 * 1-564-011-11 PIN, CONNECTOR 12P
CN105 * 1-564-509-11 PLUG, CONNECTOR 6P
CN106
1-506-473-11 PIN, CONNECTOR 8P
CN107
1-506-478-11 PIN, CONNECTOR 13P
CN108 * 1-564-506-11 PLUG, CONNECTOR 3P
<TRAP MODULE>
CTR101 1-236-366-11 MODULE, TRAP
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
CTR101 1-236-369-11 MODULE, TRAP (PVM-9045PM)
CTR102 1-236-365-11 MODULE, TRAP
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
<DIODE>
D102
8-719-404-49 DIODE MA111 (PVM-9045PM)
D103
8-719-404-49 DIODE MA111
D104
8-719-404-49 DIODE MA111
D105
8-719-404-49 DIODE MA111
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
D106
8-719-404-49 DIODE MA111
D107
8-719-404-49 DIODE MA111
D108
8-719-404-49 DIODE MA111
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
D109
8-719-404-49 DIODE MA111
D110
8-719-404-49 DIODE MA111
D111
8-719-404-49 DIODE MA111
D112
8-719-404-49 DIODE MA111
D113
8-719-404-49 DIODE MA111
D116
8-719-404-49 DIODE MA111
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
D117
8-719-404-49 DIODE MA111
D120
8-719-404-49 DIODE MA111
D121
8-719-404-49 DIODE MA111
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
D122
8-719-404-49 DIODE MA111
D123
8-719-404-49 DIODE MA111
8-4
Remark Ref.No.
5%
50V
D125
5%
50V
D126
1µF
20%
50V
D127
1µF
20%
50V
1µF
20%
50V
D128
D129
1µF
20%
50V
D130
50V
D131
50V
D132
50V
10%
50V
D133
D134
10%
25V
D135
D136
D137
D138
D139
D144
D145
D146
D147
D148
D149
D150
D151
D152
D153
D154
D155
D156
D157
D158
D159
D160
D161
D162
D170
D185
D186
D187
D188
D191
D285
D289
D341
D342
D343
D344
D345
D346
D347
D348
D349
D350
D390
D393
Part No.
Description
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-801-78 DIODE 1SS184
8-719-404-49 DIODE MA111
8-719-800-76 DIODE 1SS226
8-719-800-76 DIODE 1SS226
8-719-800-76 DIODE 1SS226
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-977-20 DIODE DTZ8.2B
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-901-83 DIODE 1SS83
8-719-901-83 DIODE 1SS83
8-719-901-83 DIODE 1SS83
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-104-34 DIODE 1S2836
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
8-719-801-78 DIODE 1SS184
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
8-719-800-76 DIODE 1SS226
8-719-800-76 DIODE 1SS226
8-719-104-34 DIODE 1S2836
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-404-49 DIODE MA111
8-719-104-34 DIODE 1S2836
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
8-719-800-76 DIODE 1SS226
8-719-105-99 DIODE RD6.2M-B1
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
8-719-901-83 DIODE 1SS83
8-719-901-83 DIODE 1SS83
8-719-901-83 DIODE 1SS83
8-719-800-76 DIODE 1SS226
8-719-800-76 DIODE 1SS226
8-719-800-76 DIODE 1SS226
8-719-800-76 DIODE 1SS226
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
8-719-404-49 DIODE MA111
