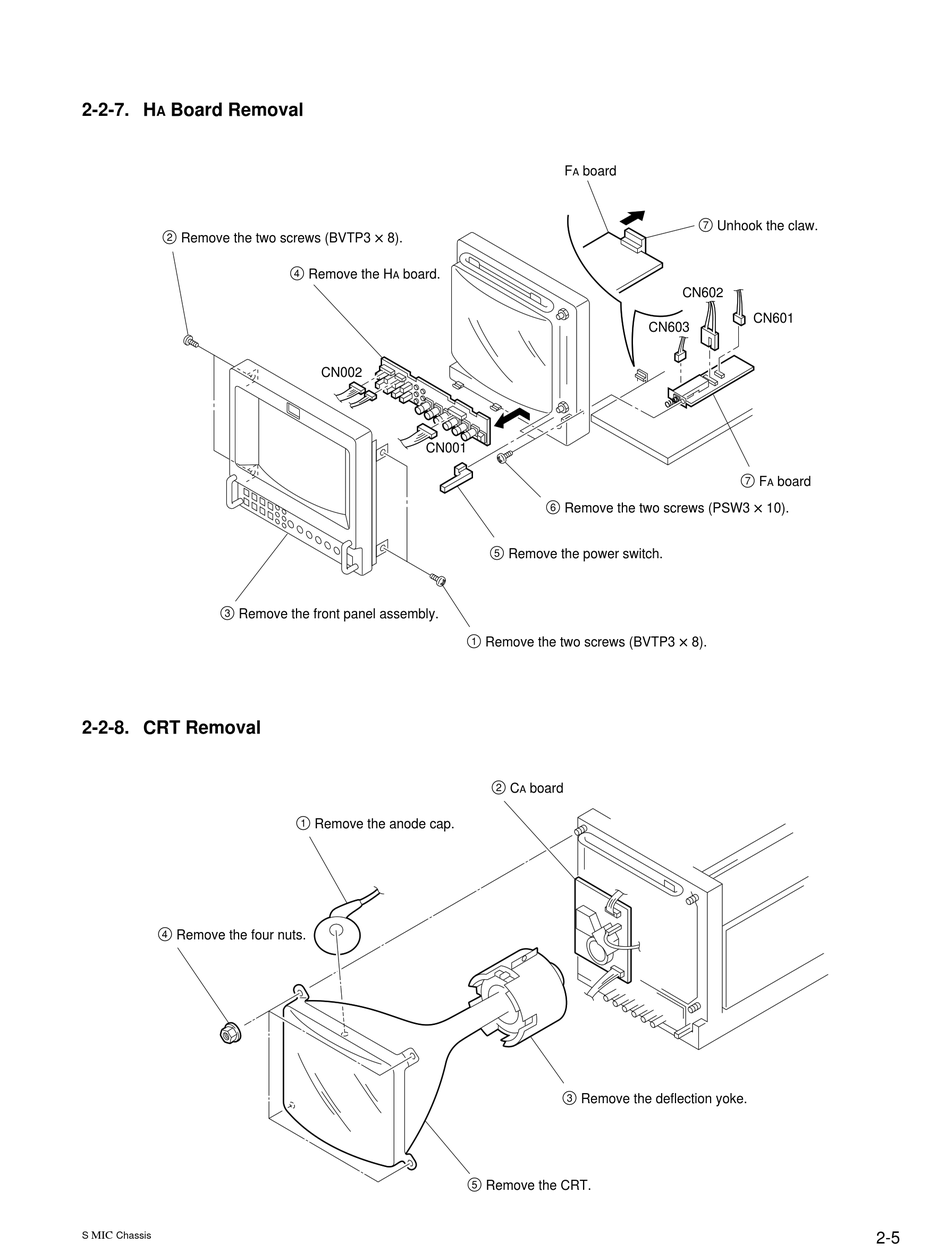

2-2-7. H
Board Removal
A
F
board
A
7 Unhook the claw.
2 Remove the two screws (BVTP3 x 8).
4 Remove the H
board.
A
CN602
CN601
CN603
CN002
CN001
7 F
board
A
6 Remove the two screws (PSW3 x 10).
5 Remove the power switch.
3 Remove the front panel assembly.
1 Remove the two screws (BVTP3 x 8).

2-2-8. CRT Removal

2 C
board
A
1 Remove the anode cap.
4 Remove the four nuts.
3 Remove the deflection yoke.
5 Remove the CRT.
MIC
S
Chassis
2-5
