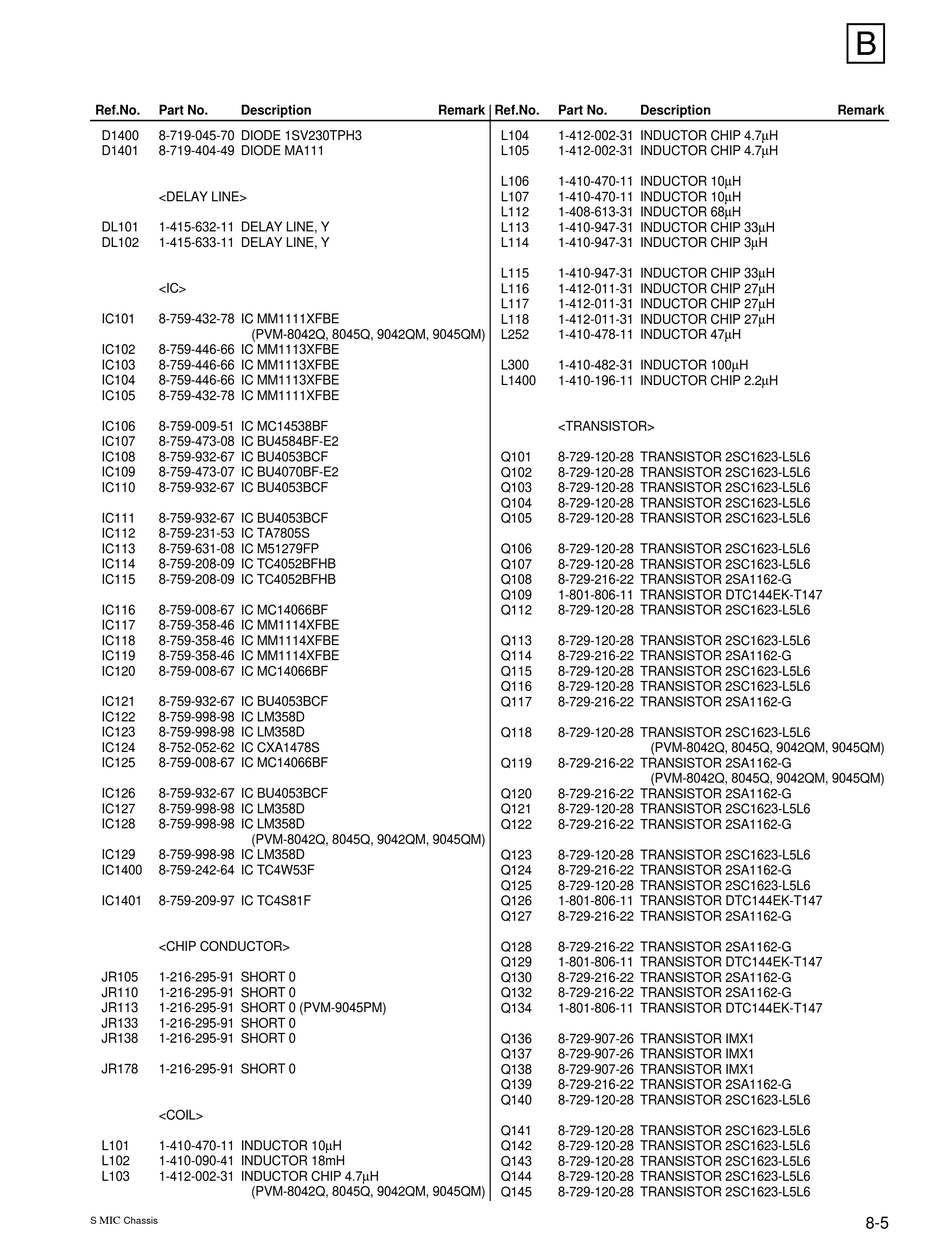

Sony TRINITRON PVM-8042Q Service Manual Page 61

S mic chassis color video monitor.
Hide thumbs

Advertisement

Ref.No.
Part No.
Description
D1400
8-719-045-70 DIODE 1SV230TPH3
D1401
8-719-404-49 DIODE MA111
<DELAY LINE>
DL101
1-415-632-11 DELAY LINE, Y
DL102
1-415-633-11 DELAY LINE, Y
<IC>
IC101
8-759-432-78 IC MM1111XFBE
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
IC102
8-759-446-66 IC MM1113XFBE
IC103
8-759-446-66 IC MM1113XFBE
IC104
8-759-446-66 IC MM1113XFBE
IC105
8-759-432-78 IC MM1111XFBE
IC106
8-759-009-51 IC MC14538BF
IC107
8-759-473-08 IC BU4584BF-E2
IC108
8-759-932-67 IC BU4053BCF
IC109
8-759-473-07 IC BU4070BF-E2
IC110
8-759-932-67 IC BU4053BCF
IC111
8-759-932-67 IC BU4053BCF
IC112
8-759-231-53 IC TA7805S
IC113
8-759-631-08 IC M51279FP
IC114
8-759-208-09 IC TC4052BFHB
IC115
8-759-208-09 IC TC4052BFHB
IC116
8-759-008-67 IC MC14066BF
IC117
8-759-358-46 IC MM1114XFBE
IC118
8-759-358-46 IC MM1114XFBE
IC119
8-759-358-46 IC MM1114XFBE
IC120
8-759-008-67 IC MC14066BF
IC121
8-759-932-67 IC BU4053BCF
IC122
8-759-998-98 IC LM358D
IC123
8-759-998-98 IC LM358D
IC124
8-752-052-62 IC CXA1478S
IC125
8-759-008-67 IC MC14066BF
IC126
8-759-932-67 IC BU4053BCF
IC127
8-759-998-98 IC LM358D
IC128
8-759-998-98 IC LM358D
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
IC129
8-759-998-98 IC LM358D
IC1400
8-759-242-64 IC TC4W53F
IC1401
8-759-209-97 IC TC4S81F
<CHIP CONDUCTOR>
JR105
1-216-295-91 SHORT 0
JR110
1-216-295-91 SHORT 0
JR113
1-216-295-91 SHORT 0 (PVM-9045PM)
JR133
1-216-295-91 SHORT 0
JR138
1-216-295-91 SHORT 0
JR178
1-216-295-91 SHORT 0
<COIL>
L101
1-410-470-11 INDUCTOR 10µH
L102
1-410-090-41 INDUCTOR 18mH
L103
1-412-002-31 INDUCTOR CHIP 4.7µH
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
S
MIC
Chassis
Remark Ref.No.
Part No.
L104
1-412-002-31 INDUCTOR CHIP 4.7µH
L105
1-412-002-31 INDUCTOR CHIP 4.7µH
L106
1-410-470-11 INDUCTOR 10µH
L107
1-410-470-11 INDUCTOR 10µH
L112
1-408-613-31 INDUCTOR 68µH
L113
1-410-947-31 INDUCTOR CHIP 33µH
L114
1-410-947-31 INDUCTOR CHIP 3µH
L115
1-410-947-31 INDUCTOR CHIP 33µH
L116
1-412-011-31 INDUCTOR CHIP 27µH
L117
1-412-011-31 INDUCTOR CHIP 27µH
L118
1-412-011-31 INDUCTOR CHIP 27µH
L252
1-410-478-11 INDUCTOR 47µH
L300
1-410-482-31 INDUCTOR 100µH
L1400
1-410-196-11 INDUCTOR CHIP 2.2µH
<TRANSISTOR>
Q101
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q102
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q103
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q104
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q105
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q106
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q107
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q108
8-729-216-22 TRANSISTOR 2SA1162-G
Q109
1-801-806-11 TRANSISTOR DTC144EK-T147
Q112
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q113
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q114
8-729-216-22 TRANSISTOR 2SA1162-G
Q115
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q116
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q117
8-729-216-22 TRANSISTOR 2SA1162-G
Q118
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q119
8-729-216-22 TRANSISTOR 2SA1162-G
Q120
8-729-216-22 TRANSISTOR 2SA1162-G
Q121
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q122
8-729-216-22 TRANSISTOR 2SA1162-G
Q123
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q124
8-729-216-22 TRANSISTOR 2SA1162-G
Q125
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q126
1-801-806-11 TRANSISTOR DTC144EK-T147
Q127
8-729-216-22 TRANSISTOR 2SA1162-G
Q128
8-729-216-22 TRANSISTOR 2SA1162-G
Q129
1-801-806-11 TRANSISTOR DTC144EK-T147
Q130
8-729-216-22 TRANSISTOR 2SA1162-G
Q132
8-729-216-22 TRANSISTOR 2SA1162-G
Q134
1-801-806-11 TRANSISTOR DTC144EK-T147
Q136
8-729-907-26 TRANSISTOR IMX1
Q137
8-729-907-26 TRANSISTOR IMX1
Q138
8-729-907-26 TRANSISTOR IMX1
Q139
8-729-216-22 TRANSISTOR 2SA1162-G
Q140
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q141
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q142
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q143
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q144
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q145
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Description
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
(PVM-8042Q, 8045Q, 9042QM, 9045QM)
[B]
Remark
