Sony CCTV Systems Catalog

Sony CCTV Systems Catalog

2000-2001 network video surveillance
Hide thumbs Also See for CCTV Systems:
Table of Contents

Advertisement

Quick Links

See also: Catalog
EIA/NTSC
Network Video Surveillance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCTV Systems and is the answer not in the manual?

Questions and answers

Related Manuals for Sony CCTV Systems

Summary of Contents for Sony CCTV Systems

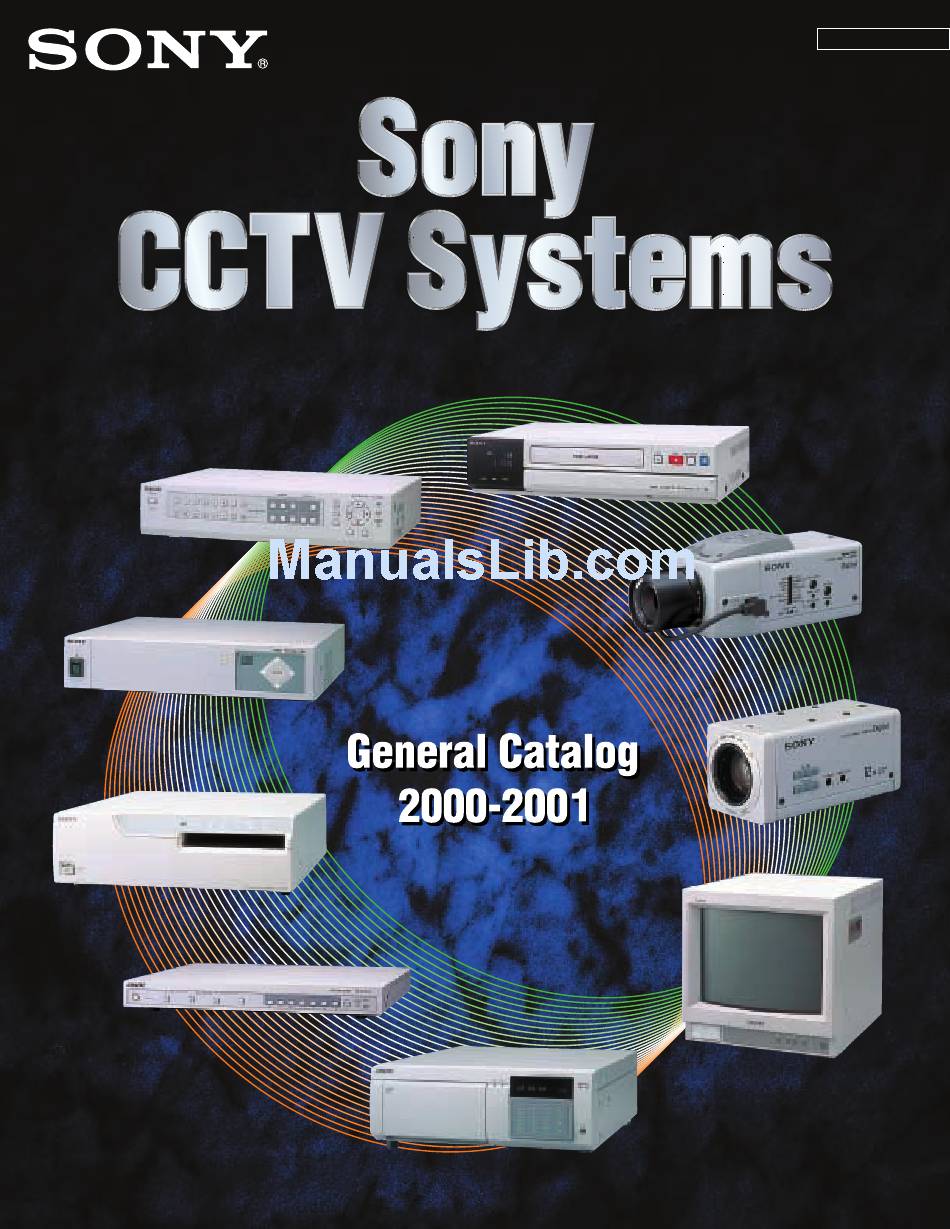

  • Page 1 EIA/NTSC Network Video Surveillance...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Sony Camera, Monitor and Time-lapse VCR Technologies ....2 CAMERAS Color CCD Cameras ..........4 B/W CCD Cameras .

  • Page 3: Introduction

    INTRODUCTION Sony Camera, Monitor and Time-lapse VCR Technologies - The Sony Advantage Camera technologies Smart Control Camera technologies (SSC-DC10/14/50A/54A and SSC-CX34) Exwave HAD Strong backlighting can often cause the subject of the picture to (SSC-DC50A/54A/330/334, be cast into shadow. To overcome this problem, Smart Control...
  • Page 4 Hybrid Recording (HSR-1/2) DV Signal Transfer The Sony HSR-1/2 digital time-lapse recorder uses both a hard disk drive (HDD) and a DV (digital video) tape drive for storage. The image data is first recorded onto the HDD and is then transferred to DV tape.

  • Page 5: Cameras

    CAMERAS Color CCD Cameras SSC-DC50A/DC54A Especially designed for surveillance applications 1/2 type IT CCD 470 lines of horizontal resolution Exwave HAD technology offers extremely high sensitivity (0.8 lux at F1.2, 50 IRE) and low smear level (-120 dB) Backlight compensation by Smart Control for faster backlight compensation, the detection area can be preset Preset Auto Exposure (AE) settings Turbo AGC (6 dB more gain than conventional gain): TURBO/NORMAL/OFF switchable...
  • Page 6 CAMERAS SSC-CX34 1/3 type IT HAD Built-in 12x optical preset zoom lens (5.4 mm - 64.8 mm) Over 470 lines of resolution Hyper HAD technology provides high sensitivity (4.5 lux at F1.8, 50 IRE) AWB/ATW/ATW Pro White balance modes Backlight compensation by Smart Control and Turbo Gain AGC (Digital BLC ON/OFF switchable) Built-in Zoom and Focus controls Auto/remote Iris functions...
  • Page 7 CAMERAS Color CCD Cameras CVX-V1 1/4 type Color CCD Camera Thumb sized small and light camera head CCU attaches directly to ZBOX-2 Incident Recorder Built-in 3.9 mm F1.8 with manual focus and iris 2 lux minimum illumination 470 lines of resolution 2 meter cable (6.5 feet) between camera head and CCU Variable shutter speed dial on CCU AE Lock mode (ON/OFF selectable from CCU)

  • Page 8: B/W Ccd Cameras

    CAMERAS B/W CCD Cameras SPT-M320/M324 1/3 type IT CCD 570 line horizontal resolution Exwave HAD technology offers extremely high sensitivity (0.07 lux at F1.2) Wide range electronic CCD IRIS function (ON/OFF switchable, 1/60 - 1/100,000 sec.) CCD IRIS function allows use of inexpensive manual iris lenses Backlight compensation is possible with the LEVEL and BLC volume controls (only when using auto iris lenses or the CCD IRIS function) DC servo circuit drives auto iris facility...

  • Page 9: Camera Adaptors

    CAMERAS Camera Adaptors YS-W250 Used with SSC-DC50A/DC330/DC10 Transmits DC power and video/sync signal between the adaptor and camera over a single coaxial cable Up to four cameras can be connected Internal or external synchronization with VS or AC line lock Maximum cable length: 600 m with RG-11A/U (7C-2V) coaxial cable YS-W250 Rear YS-W150...

  • Page 10: Monitors

    MONITORS Color Monitors SSM-14N5U 13-inch (viewable area, measured diagonally) Trinitron color monitor Over 500 lines of horizontal resolution Accepts PAL, NTSC, SECAM and NTSC 4.43 Automatic beam current feedback for stable white balance Loop-through Composite and Y/C inputs with 75 Ω automatic termination On-screen menu operation available in five languages EIA standard rack mount capability with optional MB-502B and SLR-102...
  • Page 11 MONITORS Color Monitors PVM-8045Q Aspect ratio is switchable (4:3 and 16:9) with the 16:9 button on the front panel High resolution CRT provides 450 TV lines at center (composite video) Stable color temperature from beam current feedback circuit Analog component level selectable between BETA and SMPTE/N10 by a rear panel slide switch NTSC comb filter Accepts external sync/sync on Green Tally input...

  • Page 12: B/W Monitors

    MONITORS B/W Monitors SSM-930 Especially designed for surveillance applications 9-inch (viewable area, measured diagonally) high resolution B/W monitor Over 750 lines of horizontal resolution Loop-through video input with switchable 75 Ω termination DC clamp switch for the stable black level reference EIA standard rack mount capability SSM-930 Rear SSM-125...

  • Page 13: Switchers And Multiplexers

    SWITCHERS AND MULTIPLEXERS Switchers YS-S6 Accepts six video inputs with loop-through capability The pictures from up to six video cameras can be monitored sequentially on a monitor via the SELECT VIDEO OUT Dwell time (displayed time) settings per each monitor range from 1 second to 30 seconds Pictures from connected camera which don't have to be monitored can be skipped by the use of SKIP buttons 1 through 6 Accepts NTSC/EIA signals...

  • Page 14: Video Transmission System

    SWITCHERS AND MULTIPLEXERS YS-DX504 Half duplex video multiplexer with up to 4 cameras Multiplexing recording to one VCR while switching between each camera by a field for precise surveillance of multiple points Live pictures can be displayed in full screen, sequence and quad while simultaneously recording Playback can be reviewed in full screen, sequence and quad Zoom and Freeze functions are available in full screen and quad...

  • Page 15: Surveillance Video Recorders

    Two monitoring outputs for simultaneous playback on the first monitor and monitoring on the second monitor RS-232C interface for PC control Pre Alarm recording capability for event recording Full control HSR-1/HSR-2 over a network via the Sony SNT-V304 Video Network Station HSR-1/1, 2 Rear Video Network Station SNT-V304...

  • Page 16: Analog Time Lapse Video Recorders

    SURVEILLANCE VIDEO RECORDERS Analog Time Lapse Video Recorders SVT-5050 Up to 960 hours (T-120) plus 1 shot mode 12 different time lapse recording/playback modes Adaptive Picture Control (APC) Audio recording in 2, 12 and 24 hour modes Loop-through video on power off mode Built-in time/date generator, 30 day battery backup Multiple recording modes such as Auto Repeat Recording, Timer Recording, Alarm Recording, One-shot Recording and Series Recording...
  • Page 17 SVT-168E Reality Regenerator provides clearer, more accurate picture during playback Sony’s ‘Real Action’ technology allows high density recording of 20 fields per second Maximum 168-hour time lapse recording is available with a T-120 tape Maximum 224-hour time lapse recording is available with a T-160 tape...
  • Page 18 SVT-LC300 Rear SVT-40E Reality Regenerator provides clearer, more accurate picture during playback Sony’s ‘Real Action’ technology allows high density recording of 20 fields per second 2 different time lapse recording/playback modes Adaptive Picture Control (APC) Audio recording and playback in 8, 24, 40 hour modes...
  • Page 19 SURVEILLANCE VIDEO RECORDERS Analog Time Lapse Video Recorders SVT-DL224 Sony’s ‘Real Action’ technology allows high density recording of 20 fields per second DC 12 V power operation 2, 8, 24 hour recording/playback modes (T-160) Compact size - only 240 mm (9 1/2") wide...
  • Page 20 SURVEILLANCE VIDEO RECORDERS Standard Video Recorders SVO-1330 4-Head Double Azimuth High Quality Circuitry Adaptive Picture Control II (APCII) Timer, Series and SP/EP Record Modes Built-in Time and Date Generator On-Screen Display available in English, French and Spanish Automatic Daylight Savings Time Simutaneous Control of Multiple VCR’s Recording Check Power Failure Protection up to 30 Days...

  • Page 21: Standard Video Recorders

    SURVEILLANCE VIDEO RECORDERS Standard Video Recorders EVO-250 Hi8 format achieves over 400 lines of horizontal resolution Compact and lightweight Long battery operation (over 9 hours using NP-F950) with adoption of Lithium Ion battery system Direct attachment interface with the PGV-250 program unit 5 head system for high quality SP/LP mode recording LaserLink™...

  • Page 22: Printers

    PRINTERS B/W Printers UP-960 Thermal video graphic printer with 256 steps of gradation grey level Large print size of 190 x 143 mm in standard mode High speed printing of approx. 10 seconds in standard mode Approx. 124 prints out of UPP-210HD/210SE (25 m) Frame/Field memory selectable Printing direction selectable: Standard/Side/Reverse Positive/Negative printing...

  • Page 23: Specifications

    SPECIFICATIONS Color CCD Cameras SSC-DC50A SSC-DC54A SSC-DC330 SSC-DC334 Pickup device type type type type Interline Transfer CCD Interline Transfer CCD Interline Transfer CCD Interline Transfer CCD Pic. Elements (HxV) 768 x 494 768 x 494 768 x 494 768 x 494 Lens mount C and CS adj.
  • Page 24 SPECIFICATIONS Color CCD Cameras SSC-CX34 SSC-DC10 SSC-DC14 SSC-DC134 Pickup device type type type type Interline Transfer CCD Interline Transfer CCD Interline Transfer CCD Interline Transfer CCD Pic. Elements (HxV) 768 x 494 768 x 494 768 x 494 510 x 492 Lens mount Built-in auto-iris C and CS adj.

  • Page 25: B/W Ccd Cameras

    SPECIFICATIONS B/W CCD Cameras SPT-M320 SPT-M324 SPT-M124 Pickup device type type type Interline Transfer CCD Interline Transfer CCD Interline Transfer CCD Pic. Elements (HxV) 768 x 494 768 x 494 510 x 492 Lens mount C and CS adj. C and CS adj. C and CS adj.

  • Page 26: Camera Adaptors

    SPECIFICATIONS Camera Adaptors YS-W250 YS-W150 Video output BNC (8), composite video BNC (2), composite video Video input Camera In, BNC (4) Camera In, BNC (1) External sync BNC (2), VS or composite sync input/output BNC (2), VS or composite sync input/output Internal sync Crystal or Line Lock selectable Crystal or Line Lock selectable...

  • Page 27: Color Monitors

    SPECIFICATIONS Color Monitors SSM-14N5U SSM-20N5U PVM-20N6U PVM-14N6U Picture tube 13-inch, 19-inch, 19-inch, 13-inch, (viewable area, measured diagonally) 90 degree deflection 90 degree deflection 90 degree deflection 90 degree deflection TV System/color standard NTSC/PAL/SECAM/NTSC NTSC/PAL/SECAM/NTSC NTSC/PAL/SECAM/NTSC NTSC/PAL/SECAM/NTSC 4.43 4.43 4.43 4.43 Horizontal resolution 500 lines at center 500 lines at center...

  • Page 28: B/W Monitors

    SPECIFICATIONS B/W Monitors SSM-930 SSM-125 SSM-175A Picture tube 9-inch, 12-inch, 16-inch, (viewable area, measured diagonally) 90 degrees deflection 90 degrees deflection 90 degrees deflection TV System Horizontal resolution 750 TV lines at center 750 TV lines at center 850 lines at center Video input Composite video Composite video A/B...

  • Page 29: Multiplexers

    SPECIFICATIONS Multiplexers YS-DX516 YS-DX416 YS-DX504 Multiplexer type Duplex color Duplex B/W Half Duplex Color No. of video inputs Video signal NTSC color EIA B/W NTSC color Video input BNC (16) composite video BNC (16) composite video BNC (4) composite video VCR input BNC (1) composite video BNC (1) composite video...

  • Page 30: Digital Time Lapse Video Recorders

    SPECIFICATIONS Digital Time Lapse Video Recorders HSR-1/1 HSR-2 HDD capacity More than 4 GB More than 20 GB Playback During Recording Video signal EIA standard, NTSC color EIA standard, NTSC color Recording system Rotary two-head helical scanning system Rotary two-head helical scanning system Quantization 8-bit 8-bit...

  • Page 31: Analog Time Lapse Video Recorders

    SPECIFICATIONS Analog Time Lapse Video Recorders SVT-5050 SVT-168 SVT-124 SVT-LC300 Tape format Tape speed 33.35 mm/sec 33.35 mm/sec 33.33 mm/sec 11.11 mm/sec (2-hour mode) (2-hour mode) (2-hour mode) (6 or 8-hour mode) Fast forward/rewind time Approx. 100 seconds Approx. 100 seconds Approx.
  • Page 32 SPECIFICATIONS Analog Time Lapse Video Recorders SVT-168E SVT-40E SVT-DL224 Tape format Tape speed 11.12 mm/sec 11.12 mm/sec 11.11 mm/sec (6 or 8-hour mode) (6 or 8-hour mode) (6 or 8-hour mode) Fast forward/rewind time Approx. 100 seconds Approx. 100 seconds Approx.
  • Page 33 SPECIFICATIONS Analog Time Lapse Video Recorders SVT-S480ES SVO-1330 Tape format S-VHS or VHS VHS NTSC standard Tape speed SP: 33.35 mm/sec SP: 33.35 mm/s (1 inches) EP: 11.12 mm/sec EP: 11.12 mm/s ( inches) Fast forward/rewind time Approx. 100 seconds Approx.

  • Page 34: Standard Video Recorders

    EVO-250 PGV-250 Tape format Hi8/Standard 8 mm (SP/LP) — Fast forward/rewind time Approx. 6 min. — (with Sony a P6-120 cassette) Recording system Rotary Dual-Head Helical — Scanning FM System Video input Composeite (1) (phono type) Composeite (1) (phono type)

  • Page 35: Printers

    SPECIFICATIONS Printers UP-2100SD Printing method Dye sublimation printing Resolution 155 dpi Gradation 256 levels Effective print 752 x 488 dots pixels Paper size 130 x 88 mm inches) Print area 108 x 79 mm inches) Printing time Approx. 60 seconds Picture memory One frame memory Inputs/Outputs...
  • Page 36 SPECIFICATIONS Printers UP-960 UP-895 Printing method Direct thermal printing Direct thermal printing Thermal head 163 dpi 325 dpi Gradation 256 grey levels 256 grey levels Effective (EIA)1280 x 508 dots (EIA)1280 x 508 dots print pixels (CCIR)1280 x 608 dots (CCIR)1280 x 606 dots (Wide 2 mode) (Wide 2 mode)

  • Page 37: Video Network Station

    SPECIFICATIONS Video Network Station SNT-V304 Video inputs VBS/VS, BNC type (4), Auto sensing for NTSC or PAL with 75 Ω termination on/off dip-switch S video, S terminal connector x (1) Alternative VIDEO 1 Serial port RS-232C, D-sub 9 pin (2) COM 1: EVI-D30/31, camera control HSR-1, HSR-2 digital recorder control COM 2: EVI-D30/31, camera control...
  • Page 38 NOTES...

  • Page 39: System Examples

    SYSTEM EXAMPLES Cameras: Typical System SSC-DC50A/DC10/DC330,SPT-M320 1. Single camera operation (a) Mode A: Triple multiplexing operation (b) Mode A: DC 12 V operation 2. Multiple camera operation SSC-DC54A/DC14/DC134/DC334, SSC-M324/M124 Colour Video Monitor 1. Single camera operation VIDEO OUT (Coaxial cable) AC 24 V AC 24 V AC outlet...
  • Page 40 SYSTEM EXAMPLES Cameras: Typical System Twisted Pair System — SSC-CX34...

  • Page 41: Switchers/Multiplexers: Typical System

    SYSTEM EXAMPLES Switchers/Multiplexers: Typical System Single YS-DX516/DX416 operation...

  • Page 42: Glossary

    Overcomes the problem of strong backlight which often causes the subject of the picture to be cast into shadow. Original Sony recording method of the HSR-1/2, which uses both a Hard Disk Drive and DV tape. Images are first recorded to HDD, then transferred to DV tape.

  • Page 43: Index

    INDEX Products Features Specifications CVX-V1 – CVX-V18NS – CVX-V3 – EVO-250 HSR-1/1, HSR-2 PGV-250 PVM-14N6U PVM-20N6U PVM-2950Q PVM-8040 PVM-8042Q PVM-8045Q RSE-500/400/5 SNT-V304 SPT-M124 SPT-M320/M324 SSC-CX34 SSC-DC10/DC14 SSC-DC134 SSC-DC330/DC334 SSC-DC50A/DC54A SSM-125 SSM-14N5U SSM-175A SSM-20N5U SSM-930 SVO-1330 SVT-124 SVT-168 SVT-168E SVT-40E SVT-5050 SVT-DL224 SVT-LC300 SVT-S480ES...
  • Page 44 NOTES...
  • Page 45 NOTES...
  • Page 46 © 2000 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Hi8, Multiscan, CCD Iris, trinitron, Hyper HAD, EXWAVE HAD, Turbo Gain, LaserLink, Smart Control and Nothing Escapes Us are trademarks of Sony.
