IN STA L L AT IO N & H A R DWA R E R E F E R E NCE M A N UA L
®
M O DE RO X
S E R I ES G 5 R E T RA C T A B LE TO U CH PA N E L S
MXR-1001-BL 10. 1" MODE RO X SER IES G5 RE TRACTABLE TOUCH PANEL (BLACK)
MXR-1001-SL 10. 1" MODE RO X SER IES G5 R ETRA CTABLE TOUCH PAN EL ( SI LVE R)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXR-1001-SL and is the answer not in the manual?

Questions and answers

Summary of Contents for AMX MXR-1001-SL

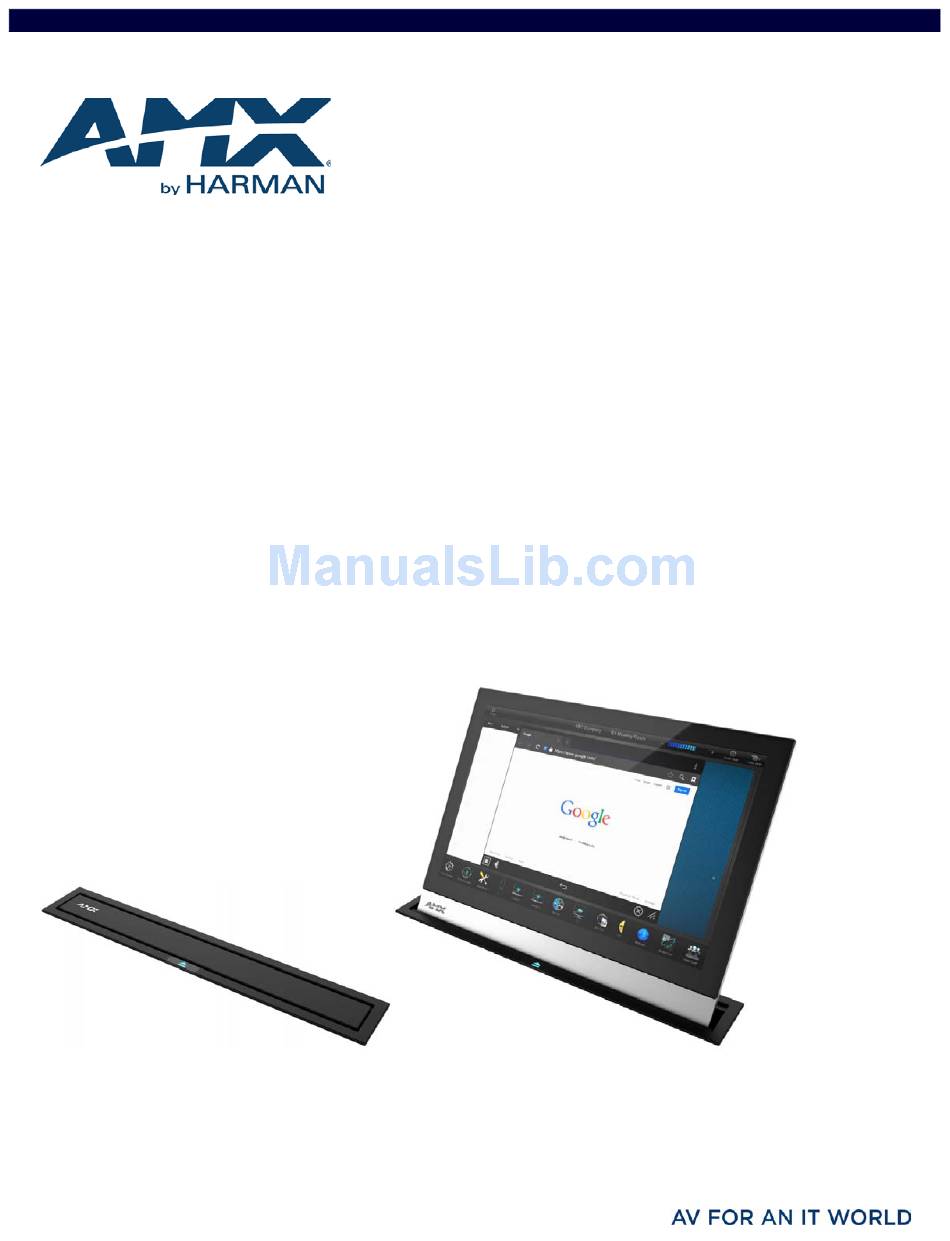

  • Page 1 S E R I ES G 5 R E T RA C T A B LE TO U CH PA N E L S MXR-1001-BL 10. 1" MODE RO X SER IES G5 RE TRACTABLE TOUCH PANEL (BLACK) MXR-1001-SL 10. 1" MODE RO X SER IES G5 R ETRA CTABLE TOUCH PAN EL ( SI LVE R)
  • Page 2: Copyright Notice

    COPYRIGHT NOTICE AMX© 2017, all rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AMX. Copyright protection claimed extends to AMX hardware and software and includes all forms and matters copyrightable material and information now allowed by statutory or judicial law or herein after granted, including without limitation, material generated from the software programs which are displayed on the screen such as icons, screen display looks, etc.
  • Page 3 Anyone performing field maintenance on AMX equipment should use an appropriate ESD field service kit complete with at least a dissipative work mat with a ground cord and a UL listed adjustable wrist strap with another ground cord WARNING: Do Not Open! Risk of Electrical Shock.
  • Page 4: Mxr-1001 - Installation & Hardware Reference Manual

    Evaluation, Authorization and Restriction of Chemicals (REACH) Directive 2006/121/EC; European Radio Equipment Directive (RED) 2014/53/EU. You may obtain a free copy of the Declaration of Conformity by visiting http://www.amx.com/techcenter/certifications.asp. WEEE NOTICE: This appliance is labeled in accordance with European Directive 2012/19/EU concerning waste of electrical and electronic equipment (WEEE).
  • Page 5: Table Of Contents

    Table of Contents Table of Contents MXR-1001 ......................7 Overview ........................... 7 MXR-1001 Specifications ....................7 Touch Panel Aspect Ratio ........................9 Active Video Windows - Limitations......................9 MXR-1001 Motor Controller ........................9 Powering On/Off the MXR-1001 Touch Panel..............9 Raising and Lowering the MXR-1001 Touch Panel ............10 Warning Screen ............................
  • Page 6: Mxr-1001

    Modero X Series Retractable G5 Touch Panels Name Description MXR-1001-BL FG5968-56 10.1" Modero X Series G5 Retractable Touch Panel - Black MXR-1001-SL FG5968-57 10.1" Modero X Series G5 Retractable Touch Panel - Silver MXR-1001 Specif ications MXR-1001 Specif ications DIMENSIONS (HWD) 15.325”...
  • Page 7 • File Formats: WAV, MP3 (as part of touch panel file only - no USB storage) • Intercom*: Full Duplex VoIP, SIP v2.0 GRAPHICS ENGINE AMX G5: G5 enhanced feature set supporting multi-touch and gestures, scrolling, transitions, and applications. EMBEDDED • Viewer Applications*: PDF, JPEG, BMP, PNG, TIFF, GIF APPLICATIONS •...
  • Page 8: Touch Panel Aspect Ratio

    MXR-1001 Touch Panel Aspect Ratio While the touch panel screen physical dimensions fall between 16:9 and 16:10, any incoming video stream can be scaled to 16:9 if needed. This may lead to some letter boxing around the video in some cases. Active Video Windows - Limitations The term "Active Video Windows"...
  • Page 9: Raising And Lowering The Mxr-1001 Touch Panel

    MXR-1001 Raising and Lowering the MXR-1001 Touch Panel Press the external pushbutton (with LED) to raise and lower the touch panel on the MXR-1001. When the MXR-1001 When the MXR-1001 is closed, press the is open, press the pushbutton to raise pushbutton to the panel lower the panel...
  • Page 10: Configuration And Programming

    NOTE: Refer to the Modero G5 Conf iguration and Programming - X Series G5 Touch Panels Instruction Manual for details. NOTE: Touch Panel f iles for G5 Touch Panels are created via TPDesign5 software (available to download from www.amx.com). Refer to the TPDesign5 online help and Instruction Manual for details.
  • Page 11: Installing The Mxr-1001

    CAUTION: This installation requires specif ic woodworking skills. Only a professional, AMX-qualif ied installer should perform this installation. Installation must conform to all local codes. This product may not be installed by the end-user. NOTE: Due to the weight of the MXR-1001, this installation requires TWO INSTALLERS.
  • Page 12: Above-Surface Dimensions

    Installing the MXR-1001 Above-Surface Dimensions FIG. 8 indicates the above-surface dimensions of the MXR-1001, including the Bezel: 2.405” (61.09 mm) mounting surface 11.142” (283 mm) Bezel Height above table = 0.079” (2 mm) Above-Surface Dimensions of MXR-1001 FIG. 8 Below-Surface Dimensions FIG.
  • Page 13: Hole Cutout Dimensions For The Mounting Surface

    Installing the MXR-1001 FIG. 10 indicates the below-surface depth requirements for the MXR-1001 (side view): 0.079” (2mm) front Bezel (above surface) Mounting mounting surface Clamps (x4) 15.325” 15.246” (389.25mm) (387.25mm) 4.196” (106.58mm) 13.315” (338.20mm) Motor chassis Dimensions of the MXR-1001 (side view, below the mounting surface) FIG.
  • Page 14: Cut The Hole In The Mounting Surface

    Installing the MXR-1001 3) Cut the Hole In the Mounting Surface CAUTION: Always wear safety glasses when operating the router. Failure to comply may result in eye injury. Using the specified guide bushing and router bit (not included, see Required Accessories): Use the appropriate Installation Router Guide to mark the edges of the cutout.
  • Page 15 Installing the MXR-1001 Bezel (above mounting surface) mounting surface Cutout hole Motor chassis (beneath the mounting surface) front Positioning the Motor beneath the Cutout FIG. 13 Carefully lift the Motor chassis up so that the top of the chassis fits into the cutout and is flush with the top of the mounting surface.
  • Page 16 Installing the MXR-1001 Bezel Use Mounting Screws to secure all four sides of the Bezel to the Motor chassis Motor chassis Motor chassis Run the MXR cable through Plug the MXR cable the notch on the front of the into the connector on Motor chassis the Motor chassis Attaching the Bezel to the Motor Chassis...
  • Page 17: Connect Ethernet, Usb And Power Cables

    Installing the MXR-1001 mounting surface Rubber Foot Mounting Clamp (x4) (2 on each side) Thumb Screw Release Tab Clamp Slot (x4) (2 on front/rear panels of the Motor chassis) Motor chassis front MXR-1001 - Installed (side view) FIG. 16 5) Connect Ethernet, USB and Power Cables Once the MXR-1001 is installed, plug in the Power, Ethernet and (optionally) USB cable(s).
  • Page 18: Appendix A: Waking The Panel Via Poe

    Appendix A: Waking the Panel via PoE Appendix A: Waking the Panel via PoE Overview This section describes a power saving feature designed into the non-POE versions of the ModeroX G5 line of touch panels, including the MXD/T-1901 and MXD/T-2001 Surface/Wall Mount touch panels, as well as MXR-1001 10.1" Retractable Touch Panels. Traditionally, in order to wake a panel from shutdown, the user would need to press the user button, which meant they had to be physically located at the panel.
  • Page 19: Appendix B: Troubleshooting

    Appendix B: Troubleshooting Appendix B: Troubleshooting Overview This section describes the solutions to possible hardware/firmware issues that could arise during the common operation of a Modero X Series G5 touch panel. In Case of a Power Failure (Manually Raising / Lowering the Touch Panel ) In the case of a power failure, it may be necessary to raise or lower the MXR-1001 touch panel manually.
  • Page 20: Panel Isn't Appearing In The Online Tree Tab

    Appendix B: Troubleshooting Panel Isn’t Appearing In The Online Tree Tab Verify that the System number is the same on both the NetLinx Studio Project Navigator window and the System Settings page on the device. Verify the proper NetLinx Master IP and connection methods entered into the Master Connection section of the System Settings page.
  • Page 21 HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies. 8/30/2017 AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time. The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
