INSTALLATION INSTRUCTIONS FOR PART 99-9605B
Porsche 911 (996) 1999-2005
Porsche Boxster (986) 1997-2004
KIT FEATURES
• ISO DIN radio provision with pocket (NAV models only)
• ISO DDIN radio provision
• Provision for HVAC relocation (vehicle must have a lower console)
• Painted matte black

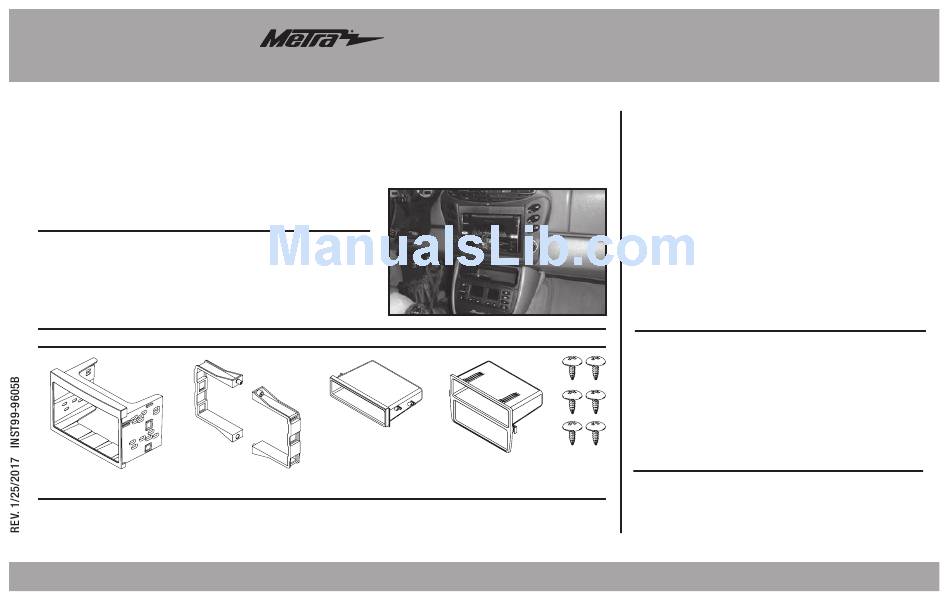

KIT COMPONENTS

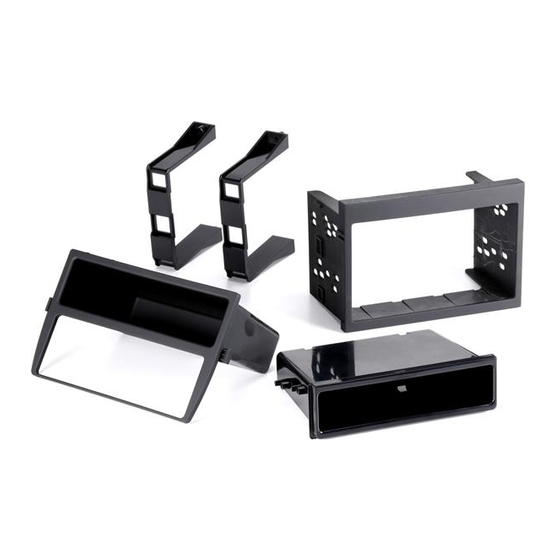

• A) Radio housing • B) Radio brackets • C) Pocket • D) HVAC trim panel with pocket • E) (6) #8 x 3/8" Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS
Wiring Harness: • 70-9401 • 70-1787 (amplified models) (sold separately)
Antenna Adapter: • 40-VW10
METRA. The World's best kits.
99-9605B
C
metraonline.com
®
D
E
Table of Contents
Dash Disassembly ..............................................2-4
Kit Preparation ....................................................... 5
- ISO DIN radio provision with pocket ...................... 6
- ISO DDIN radio provision ...................................... 7
- Models without factory NAV ................................. 7
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Torx T-20 screwdriver • Cutting tool
• 86-9001 radio removal keys (qty. 2 for NAV models)
CAUTION!
All accessories, switches, climate controls panels,
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-9605B
Summary of Contents for Metra Electronics 99-9605B
-
Page 1: Table Of Contents
INSTALLATION INSTRUCTIONS FOR PART 99-9605B Table of Contents Porsche 911 (996) 1999-2005 Porsche Boxster (986) 1997-2004 Dash Disassembly ..........2-4 99-9605B Kit Preparation ............5 Kit Assembly – ISO DIN radio provision with pocket ...... 6 KIT FEATURES – ISO DDIN radio provision ........7 •... -
Page 2: Dash Disassembly
99-9605B Dash Disassembly For models without factory 4. Unsnap and remove the switch navigation: panels from each side of the radio opening. (Figure D) Upper dash: Note: 2002-2005 911 models 1. Insert the radio removal keys into have one “U” shaped the radio until they click in, and panel instead. - Page 3 99-9605B Dash Disassembly Lower dash: For models equipped with a DSP controller: 6. Unsnap the trim panels from the sides of the lower console. 8. The controller will need to be (Figure F) relocated to the inside of the lower dash.
- Page 4 99-9605B Dash Disassembly For models with factory navigation: 3. Remove (6) Torx T-20 screws securing the radio frame assembly. 1. Insert the radio removal keys into (Figure C) the radio until they click in, and Note: The (2) middle screws are then remove the radio.
-
Page 5: Kit Preparation
99-9605B Kit Preparation 1. Cut and remove the center bar and the mounting positions from the inside of the radio frame assembly removed in dash disassembly to allow room for the radio. (Figure A) 2. Re-route the climate control wiring to the lower console area of the dash. -
Page 6: Kit Assembly
99-9605B Kit Assembly ISO DIN radio provision with pocket 5. Locate the factory wiring harness (NAV models only) and antenna connector in the dash and complete all necessary 1. Secure the pocket to the radio connections to the radio. Metra housing using the (4) 8 x 3/8”... -
Page 7: Iso Ddin Radio Provision
99-9605B Kit Assembly ISO DDIN radio provision For models without factory navigation: 1. Slide the radio into the radio housing and then secure it using 1. Secure the HVAC controls into the the screws supplied with the radio. lower location of the lower console... - Page 8 INSTALLATION INSTRUCTIONS FOR PART 99-9605B IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
- Page 9 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-9605B Indice Porsche 911 (996) 1999-2005 Porsche Boxster (986) 1997-2004 Desmontaje del tablero ........2-4 99-9605B Preparación del kit ..........5 Ensamble del kit CARACTERÍSTICAS DEL KIT • Provisión de radio ISO DIN con cavidad (solo modelos NAV) –...
-
Page 10: Desmontaje Del Tablero
99-9605B Desmontaje del tablero Para los modelos sin navegación 4. Suelte a presión y quite los paneles de fábrica: del interruptor de cada lado de la abertura del radio. (Figura D) Tablero superior: Nota: los modelos del 911 2002 1. Inserte las llaves de remoción de... - Page 11 99-9605B Desmontaje del tablero Tablero inferior: Para los modelos equipados con un controlador DSP: 1. Suelte a presión los paneles de la 3. El controlador necesitará moldura laterales de la consola inferior. (Figura F) reubicarse dentro del tablero inferior. El controlador debe...
- Page 12 99-9605B Desmontaje del tablero Para los modelos con navegación 3. Quite los (6) tornillos T-20 Torx que de fábrica: sujetan el ensamble del marco del radio. (Figura C) 1. Inserte las llaves de remoción de Nota: los (2) tornillos se ubican...
-
Page 13: Preparación Del Kit
99-9605B Preparación del kit 1. Corte y quite la barra central y las posiciones de montaje desde adentro del ensamble del marco del radio retirado en el desarmado del tablero, para dar espacio al radio. (Figura A) 2. Vuelva a enrutar los cables del control de clima al área de la... -
Page 14: Ensamble Del Kit
99-9605B Ensamble del kit Provisión de radio ISO DIN con 5. Localice el arnés de cableado cavidad (solo modelos NAV) de fábrica y el conector de la antena en el tablero y realice 1. Sujete la cavidad a las carcasas... -
Page 15: Provisión De Radio Iso Ddin
99-9605B Ensamble del kit Provisión de radio ISO DDIN Para los modelos sin navegación de fábrica: 1. Deslice el radio en la carcasa del radio y después sujételo usando los tornillos 1. Sujete los controles HVAC en la suministrados con el radio. (Figura A) ubicación inferior de la consola... - Page 16 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-9605B IMPORTANTE Si tiene dificultades con la instalación de este producto, llame a nuestra línea de soporte técnico al 1-800-253-TECH. Antes de hacerlo, revise las instrucciones por segunda vez y asegúrese de que la instalación se haya realizado exactamente como se indica en las instrucciones.
