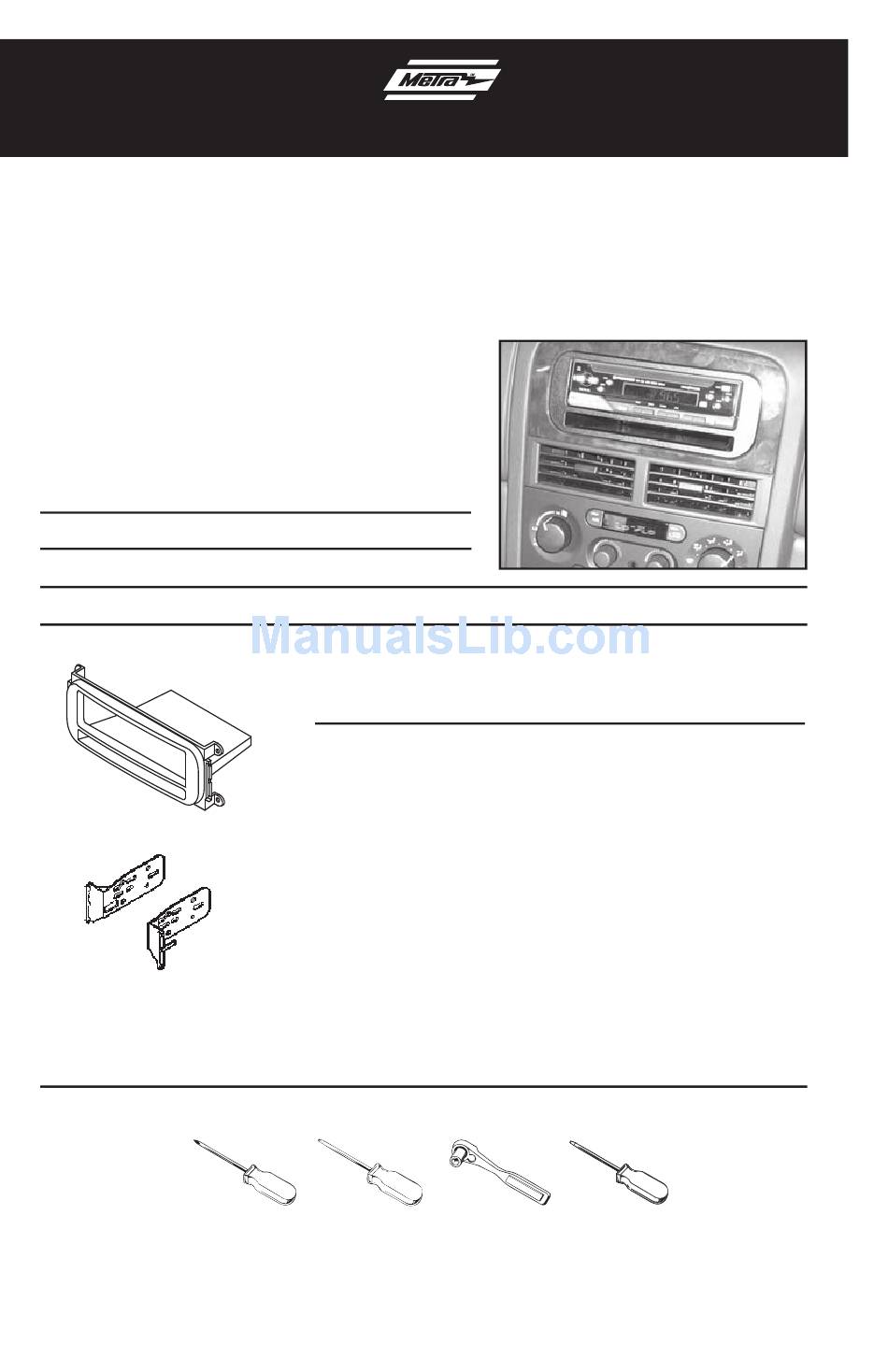

INSTALLATION INSTRUCTIONS FOR PART 99-6504
Chrysler multi-kit 1998-2009
KIT FEATURES
• ISO head unit provision with pocket

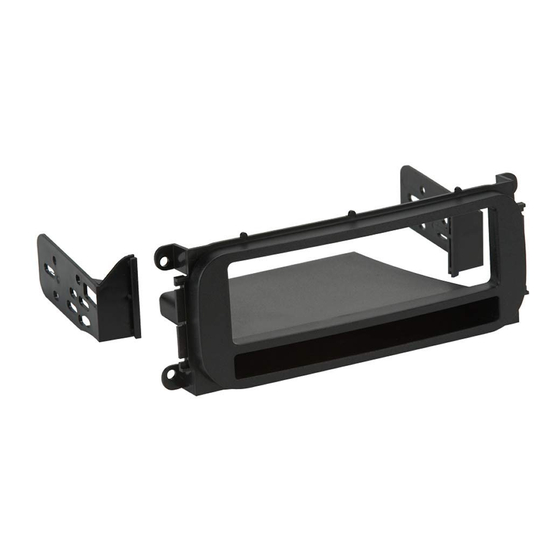

KIT COMPONENTS
• A) Radio housing • B) ISO brackets
A
B
• Phillips screwdriver • Torx #20 • Socket wrench • Small flat blade screwdriver
APPLICATIONS
See application list inside
99-6504
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-1817 - Chrysler harness 1984-2006 (vehicle specific)
• 70-6502 - Chrysler harness 2002-up (vehicle specific)
• 70-1818 - Chrysler amplifier integration harness 1984-up
(vehicle specific)
• 70-6503 - Chrysler/Dodge amplifier integration harness
2002-up (vehicle specific)
Antenna Adapter:
• 40-CR10 - Chrysler factory antenna to aftermarket radio
adapter cable 2002-up
TOOLS REQUIRED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-6504 and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 99-6504

Summary of Contents for Metra Electronics 99-6504

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-6504 APPLICATIONS See application list inside Chrysler multi-kit 1998-2009 99-6504 KIT FEATURES • ISO head unit provision with pocket KIT COMPONENTS • A) Radio housing • B) ISO brackets WIRING & ANTENNA CONNECTIONS (sold separately) Wiring Harness: •...

  • Page 2: Table Of Contents

    99-6504 Applications Chrysler Dodge Jeep 300M 1999-2004 Caravan 2001-2006 Grand Cherokee 1999-2004 Concorde 1998-2004 Dakota 2001-2004 Liberty 2002-2006 LHS 1998-2001 Durango 2001-2003 Wrangler 2003-2006 PT Cruiser 2001-2005 Intrepid 1998-2004 Plymouth Sebring 2001-2006 Neon 2000-2006 Town & Country 2001-2006 Ram 2002-2005...

  • Page 3: Concorde

    Dash Disassembly 99-6504 Chrysler 300M/Concorde 1998-2004 LHS 1998-2001/Dodge Intrepid 1998-2004 1. Remove the ashtray by pressing down on the inner spring clip. (Concorde only) 2. Unclip gear shifter trim panel and slide trim panel toward the rear of the vehicle.

  • Page 4: Pt Cruiser

    Dash Disassembly 99-6504 Chrysler PT Cruiser 2001-2005 1. Unclip power window control panel. Disconnect and remove panel. 2. Pull off climate control knobs. 3. Unclip and remove the dash trim panel. (Figure A) 4. Remove (4) Phillips head screws securing the radio. Disconnect and remove the radio.

  • Page 5: Sebring

    Dash Disassembly 99-6504 Chrysler Sebring/Dodge Stratus 2001-2006 1. Remove (2) Phillips head screws from under the climate controls. (Coupe only) 2. Unclip and remove radio trim panel. (Figure A) 3. Remove (4) Phillips head screws securing the radio. Disconnect and remove the radio.

  • Page 6: Town & Country

    Dash Disassembly 99-6504 Chrysler Town & Country/Dodge Caravan 2001-2006 1. Open cup holder. Unclip and remove trim above cup holder. 2. Remove (2) Phillips head screws from above cup holder. (Figure A) 3. Unclip and remove the dash trim panel.

  • Page 7: Neon

    Dash Disassembly 99-6504 Dodge Neon 2000-2006/Plymouth Neon 200-2001 1. Pull off climate control knobs. 2. Unclip and remove A/C and heater vents. (Figure A) 3. Remove (1) Phillips head screw from each vent cavity. 4. Unclip and remove dash trim panel.
  • Page 8 Dash Disassembly 99-6504 Dodge Ram 2002-2005 1. Unclip the top edge of the trim panel below the steering column. Note, it is not necessary to completely remove this panel. 2. Remove (1) Phillips head screw from below right A/C and heater vent.

  • Page 9: Viper

    Dash Disassembly 99-6504 Dodge Viper 2003-2006 1. Using a small flat blade screw driver, pry up on center console trim panel. Note, be careful not to scratch the trim panel. (Figure A) 2. Loosen the shifter lock nut below center console trim panel (Figure A) and unscrew the shifter knob.

  • Page 10: Grand Cherokee

    Dash Disassembly 99-6504 Jeep Grand Cherokee 1999-2004 1. Unclip and remove radio trim panel. (Figure A) 2. Remove (4) Phillips head screws securing the radio. Disconnect and remove the radio. Continue to kit assembly (Figure A)

  • Page 11: Dakota

    Dash Disassembly 99-6504 Dodge Dakota 2001-2004 Durango 2001-2003 1. Remove (3) T-20 Torx screws from 2 Screws 2 Screws the bottom edge of the panel below the steering column and unsnap to remove panel. (Figure A) 2. Remove (2) Phillips screws from the instrument cluster panel above gauges.

  • Page 12: Liberty

    Dash Disassembly 99-6504 Jeep Liberty 2002-2006 1. Remove ashtray and remove one Phillips screw exposed. (Figure A) 2. Unclip and remove radio/climate control panel. 3. Remove (4) Phillips screws securing radio. Disconnect and remove radio. Continue to kit assembly POWER...

  • Page 13: Wrangler

    Dash Disassembly 99-6504 Jeep Wrangler 2003-2006 1. Unsnap and remove defroster grille panel near windshield. (Figure A) 2. Remove (2) Phillips screws exposed at the top of the center dash panel and unsnap and remove panel. 3. Remove glove box door to access one 10 mm nut on back of radio.
  • Page 14 Kit Assembly 99-6504 ISO head unit provision with pocket 1. Attach the ISO brackets to the radio housing by sliding the bracket tabs into the housing slots. (Figure A) 2. Slide the aftermarket head unit into the radio housing. 3. Align the holes in the head unit with the...
  • Page 15 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-6504 APLICACIONES Lista de aplicaciones dentro Chrysler multi-kit 1998-2009 99-6504 CARACTERÍSTICAS DEL KIT • Provisión de unidad central ISO con bolsillo COMPONENTES DEL KIT • A) Carcasa del radio • B) Soportes ISO CABLEADO Y CONEXIONES DE ANTENA (se venden por separado) Arnés de cableado:...
  • Page 16 99-6504 Aplicaciones Chrysler Dodge Jeep 300M 1999-2004 Caravan 2001-2006 Grand Cherokee 1999-2004 Concorde 1998-2004 Dakota 2001-2004 Liberty 2002-2006 LHS 1998-2001 Durango 2001-2003 Wrangler 2003-2006 PT Cruiser 2001-2005 Intrepid 1998-2004 Plymouth Sebring 2001-2006 Neon 2000-2006 Town y Country 2001-2006 Ram 2002-2005...
  • Page 17 Desmontaje del tablero 99-6504 Chrysler 300M/Concorde 1998-2004 LHS 1998-2001/Dodge Intrepid 1998-2004 1. Retire el cenicero presionando hacia abajo el gancho de resorte interior (solo Concorde). 2. Desenganche el panel de la moldura de la palanca de velocidades y deslice el panel de la moldura hacia la parte trasera del vehículo.
  • Page 18 Desmontaje del tablero 99-6504 Chrysler PT Cruiser 2001-2005 1. Desenganche el panel de control eléctrico de la ventana. Desconecte y retire el panel. 2. Retire las perillas del control de clima. 3. Suelte y retire el panel de la moldura del tablero.
  • Page 19 Desmontaje del tablero 99-6504 Chrysler Sebring/Dodge Stratus 2001-2006 1. Retire los (2) tornillos de cabeza Phillips debajo de los controles del clima (solo Coupe). 2. Suelte y retire el panel de la moldura del radio. (Figura A) 3. Retire los (4) tornillos de cabeza Phillips que sostienen el radio.
  • Page 20 Desmontaje del tablero 99-6504 Chrysler Town y Country/Dodge Caravan 2001-2006 1. Abra el portavasos. Desenganche y retire la moldura de arriba del portavasos. 2. Retire los (2) tornillos Phillips de arriba del portavasos. (Figura A) 3. Suelte y retire el panel de la moldura del tablero.
  • Page 21 Desmontaje del tablero 99-6504 Dodge Neon 2000-2006/Plymouth Neon 200-2001 1. Retire las perillas del control de clima. 2. Desenganche y retire las rejillas del aire acondicionado/calefacción. (Figura A) 3. Retire (1) tornillo de cabeza Phillips de cada cavidad de rejilla.
  • Page 22 Desmontaje del tablero 99-6504 Dodge Ram 2002-2005 1. Desenganche el borde superior del panel de la moldura debajo de la columna de dirección (no es necesario retirar el panel por completo). 2. Retire (1) tornillo de cabeza Phillips debajo de la rejilla derecha de aire acondicionado/calefacción.
  • Page 23 Desmontaje del tablero 99-6504 Dodge Viper 2003-2006 1. Usando un pequeño destornillador de paleta, haga palanca hacia arriba en el panel de la moldura de la consola central. Precaución: Tenga cuidado de no rayar el panel de la moldura. (Figura A) 2.
  • Page 24 Desmontaje del tablero 99-6504 Jeep Grand Cherokee 1999-2004 1. Suelte y retire el panel de la moldura del radio. (Figura A) 2. Retire los (4) tornillos de cabeza Phillips que sostienen el radio. Desconecte y retire el radio. Continuará al ensamble del kit...
  • Page 25 Desmontaje del tablero 99-6504 Dodge Dakota 2001-2004 Durango 2001-2003 1. Retire los (3) tornillos Torx T-20 del 2 Tornillos 2 Screws borde inferior del panel, debajo de la columna de dirección y suelte a presión el panel para retirarlo. (Figura A) 2.
  • Page 26 Desmontaje del tablero 99-6504 Jeep Liberty 2002-2006 1. Retire el cenicero y retire un tornillo Phillips expuesto. (Figura A) 2. Desenganche y retire el panel del radio/control del clima. 3. Retire los (4) tornillos Phillips que sostienen el radio. Desconecte y retire el radio.
  • Page 27 Desmontaje del tablero 99-6504 Jeep Wrangler 2003-2006 1. Suelte y retire el panel de la rejilla del desempañador cerca del parabrisas. (Figura A) 2. Retire los (2) tornillos Phillips expuestos en la parte superior del panel del tablero central y suelte a presión y retire el panel.
  • Page 28 Ensamble del kit 99-6504 Provisión de unidad central ISO con bolsillo 1. Una los soportes ISO a la carcasa del radio deslizando las pestañas del soporte en las ranuras de la carcasa. (Figura A) 2. Deslice la unidad central de mercado secundario en la carcasa del radio.
