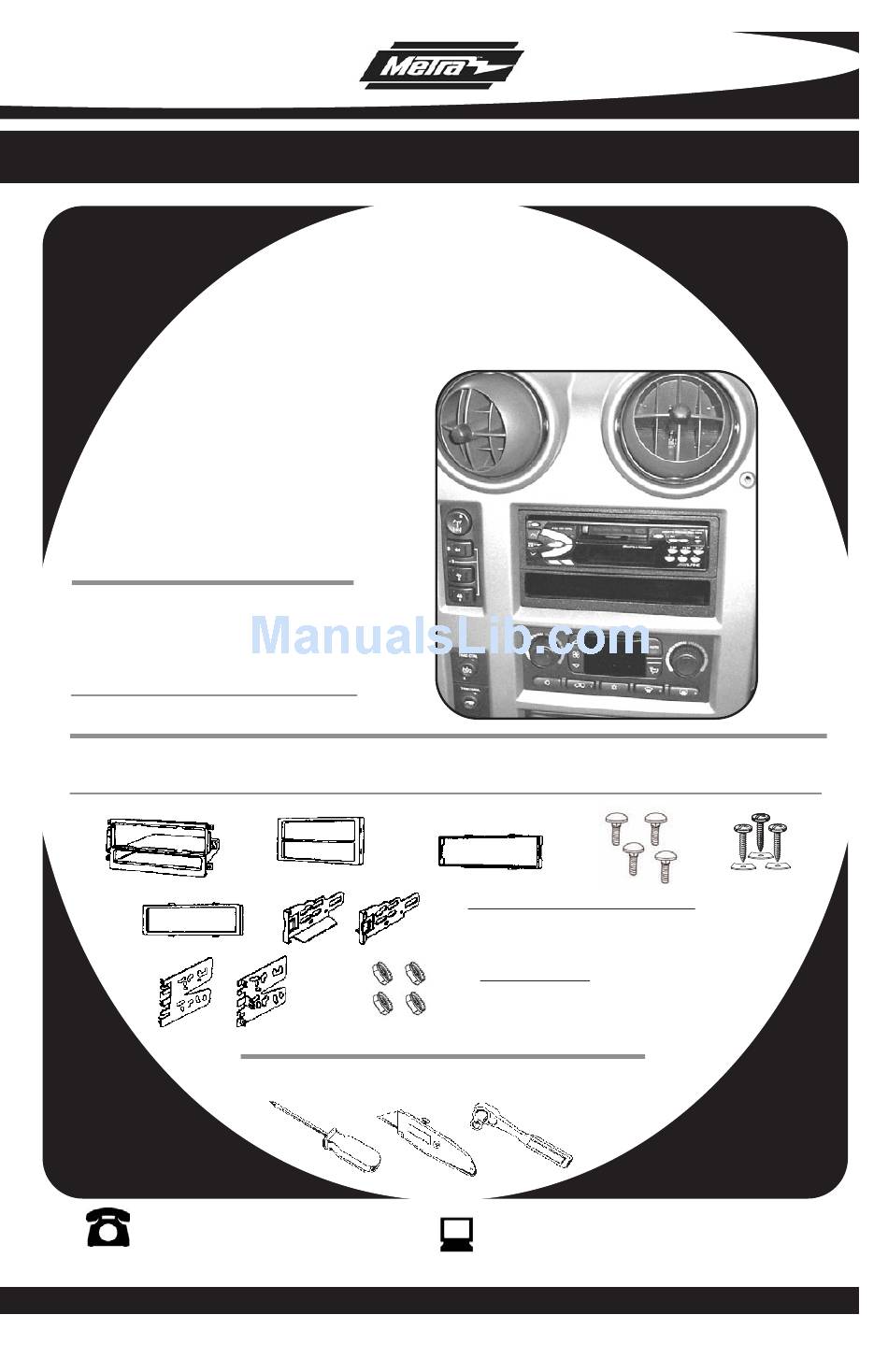

INSTALLATION INSTRUCTIONS FOR PART 99-2003
99-2003
KIT FEATURES
• DIN Head Unit Provisions with Pocket
• ISO DIN Head Unit Provisions with Pocket
• Double DIN head unit provision
• Stacked ISO head unit provision

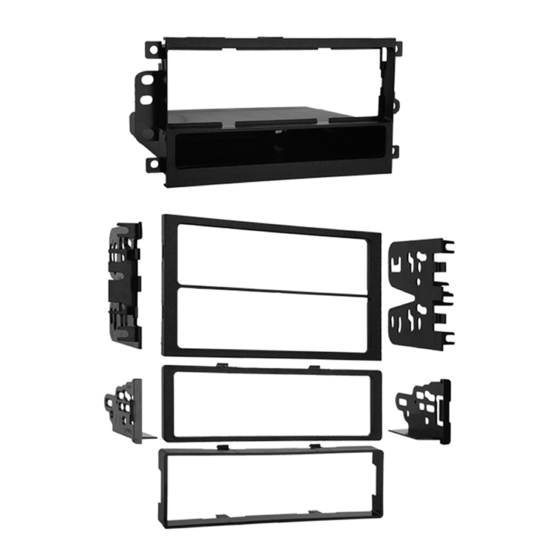

KIT COMPONENTS
A) Radio Housing w/ Pocket • B) ISO Trim Plate • C) DDIN Trimplate • D) DDIN Stacked ISO Brackets
E) DIN Spacer • F) ISO Snap In Brackets • G) Carriage Bolts • H) Kep Nuts • I) (3) Screws/(3) Speed Clips
A
B
D
1-800-221-0932
APPLICATIONS
GM/SUZUKI MULTI KIT
C
F
H
TOOLS REQUIRED:
Phillips Screwdriver
•
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
E
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
• Wiring Harness - Please see www.metraonline.com
for specific interface applications
• Antenna Adapter -
• 40-GM10 - GM Antenna Adapter 1988-up
• 40-CR10 - Chrysler Antenna Adapter 2002-up
Utility Knife
•
Socket Wrench
www.metraonline.com
G
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-2003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics 99-2003

Summary of Contents for Metra Electronics 99-2003

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-2003 APPLICATIONS GM/SUZUKI MULTI KIT 99-2003 KIT FEATURES • DIN Head Unit Provisions with Pocket • ISO DIN Head Unit Provisions with Pocket • Double DIN head unit provision • Stacked ISO head unit provision KIT COMPONENTS A) Radio Housing w/ Pocket •...

  • Page 2: Table Of Contents

    99-2003 BUICK HUMMER Century 1997-2005 2003-2005 27,28 Le Sabre 1995-2005 ISUZU Park Avenue 1995-2005 Ascender 2003-2008 Regal 1995-2004 OLDSMOBILE Rendezvous 2002-2005 Achieva 1996-1998 Riviera 1996-1999 Roadmaster 1995-1996 Alero 1999-2004 Skylark 1996-1998 Aurora 1995-2003 Bravada 1998-01 CADILLAC Escalade/EXT 2003-2005 Bravada 2002-04...

  • Page 3: Century

    99-2003 DASH DISASSEMBLY BUICK • Century 1997-04 / Regal 1997 - 04 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open both doors and remove end caps from both ends of dashboard. 2. Open glove box, then remove (1) 9/32" screw from panel above passenge kick panel and remove.

  • Page 4: Le Sabre

    99-2003 DASH DISASSEMBLY BUICK • LeSabre 1995-99 / Park Avenue 1995-99 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unsnap the climate control trim panel (from door to door) and remove (5) 9/32” screws exposed. 2. Pop out the a/c vents and remove (1) Phillips screw exposed in each vent cavity.
  • Page 5 99-2003 DASH DISASSEMBLY BUICK • LeSabre 2000-04 / Park Avenue 2000-04 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open drivers door and unsnap and remove dash end cap. 2. Remove (2) Phillips screws from underneath steering column cover.

  • Page 6: Rendezvous

    99-2003 DASH DISASSEMBLY BUICK • Rendezvous 2002-2005 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open center console and remove (2) Torx T-15 screws at front of console opening. 2. Remove liners from cup holders and storage pocket next to cup holders, then remove (4) Torx T-15 screws.
  • Page 7 99-2003 DASH DISASSEMBLY BUICK • Rivieria 1996- Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unsnap left side panel exposing (1) Phillips screw to remove. 2. Remove (1) Phillips screw and unsnap right side panel to expose (1) Phillips screw beneath panel and remove.

  • Page 8: Roadmaster

    99-2003 DASH DISASSEMBLY BUICK • Roadmaster 1995-1996 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unclip dash panel sides and remove. 2. Unclip panel below steering column and remove. 3. Unclip panel next to glove box on passenger side and remove.

  • Page 9: Skylark

    99-2003 DASH DISASSEMBLY BUICK • Skylark 1996- Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove (6) 9/32" screws inside glove box. 2. Under glove box and drivers knee bolster, remove (2) plastic panels by turning (2) 1/4 turn fasteners per side.

  • Page 10: Avalanche

    99-2003 DASH DISASSEMBLY CADILLAC • Escalade 2003-2004 CHEVROLET • Avalanche 2003-2004 Silverado 2003-04 / Suburban 2003-2004 Tahoe 2003-2004 GMC • Sierra 2003-2004 Yukon / Denali / XL 2003-2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unsnap and remove dash bezel.
  • Page 11 99-2003 DASH DISASSEMBLY CADILLAC • Fleetwood 1990-1996 / Fleetwood Brougham 1990-1996 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Carefully unsnap trim panel above a/c controls. 2. Remove (2) 7mm screws at the top of the radio/air conditioning bezel, then unclip panel and remove.
  • Page 12 99-2003 DASH DISASSEMBLY 1) Remove (4) 10mm nuts, (2) on top of the radio and (2) on the bottom of the radio, that hold the factory mounting brackets on.
  • Page 13 99-2003 DASH DISASSEMBLY 2) Using carriage bolts and Keps nuts supplied, mount the factory brackets to the radio housing with the pocket, keeping in mind which bracket is top and which one is bottom.

  • Page 14: Bravada

    99-2003 DASH DISASSEMBLY CHEVROLET • Blazer 2002-04 / S-10 2002-04 GMC • Sonoma 2002-04 OLDSMOBILE • Bravada 1998-01 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove (2) 9/32" hex-head screws from the knee bolster. 2. Pull down on the bolster and remove 9/32" screws exposed on the base of the dash trim bezel.

  • Page 15: Cavalier

    99-2003 DASH DISASSEMBLY CHEVROLET • Cavalier 2000-2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open driver door and remove fuse panel on the end of dash. 2. Open passenger door and remove panel on end of dash.

  • Page 16: Express Van

    99-2003 DASH DISASSEMBLY CHEVROLET • Express Van 2001-02 / GMC • Savanna 2001-02 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unsnap and remove small trim panel below steering column. 2. Unsnap radio/climate/instrument panel. 3. Move shift lever to first gear position.
  • Page 17 99-2003 DASH DISASSEMBLY 2003-04 CHEVROLET • Express Van 2003-04 / GMC • Savanna Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove (2) 10mm bolts from below knee bolster under steering column and remove panel. 2. Remove (2) 10mm bolts from panel below passenger dash airbag and remove panel.

  • Page 18: Impala

    99-2003 DASH DISASSEMBLY CHEVROLET • Impala 2000-2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unclip each side of the dash trim bezel (fuse access) and remove (1) Phillips screw exposed on each side. 2. Remove (2) Phillips screws under the instrument cluster.

  • Page 19: Malibu

    99-2003 DASH DISASSEMBLY CHEVROLET • Malibu 2001-03 / Malibu Classic 2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unsnap and remove radio bezel. 2. Remove (3) 9/32" hex head screws and remove radio. 3. See page 44 for all vehicle tab instructions.

  • Page 20: Metro

    99-2003 DASH DISASSEMBLY CHEVROLET • Metro 1995-01 / SUZUKI • Swift 1995-01 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove the ashtray and (2) Phillips screws exposed 2. Remove (2) Phillips screws above the radio opening.

  • Page 21: Monte Carlo

    99-2003 DASH DISASSEMBLY CHEVROLET • Monte Carlo 2000-2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unclip the trim panel above the pedals. (It is not necessary to remove the panel, it can remain hanging.) 2. Remove (2) 9/32" screws from the knee panel and unclip the panel.
  • Page 22 99-2003 DASH DISASSEMBLY CHEVROLET • SSR 2003-2006 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the (3) climate control knobs. (Figure A) Unclip and remove the long trim panel below the radio and passenger air bag.

  • Page 23: Tracker

    99-2003 DASH DISASSEMBLY CHEVROLET • Tracker 1992-04 SUZUKI • Sidekick 1992-98 / Vitara 1999-04 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove the cigarette lighter and climate control knobs. 2. Remove the ashtray and (1) screw exposed.

  • Page 24: Trailblazer

    99-2003 DASH DISASSEMBLY CHEVROLET • Trailblazer 2002-2009 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove (2) Phillips screws inside instrument cluster. 2. Remove (1) Phillips screw under climate controls to the left of the power outlet.

  • Page 25: Venture

    99-2003 DASH DISASSEMBLY CHEVROLET • Venture 2000 OLDSMOBILE • Silhouette 2000 PONTIAC • Montana 2000 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove the ashtray and (1) Phillips screw exposed in the ashtray cavity. 2. Remove (1) Phillips screw from the cigarette lighter compartment.
  • Page 26 99-2003 DASH DISASSEMBLY CHEVROLET • Venture 2001-2004 OLDSMOBILE • Silhouette 2001-2004 PONTIAC • Montana 2001-2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open cup holders and remove (2) Phillips 7mm screws. 2. Unsnap and remove dual power outlet assembly from lower storage.
  • Page 27 99-2003 DASH DISASSEMBLY HUMMER • H2 2003-2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open center console and remove (4) 9/32” screws from console box and remove box. 2. Remove (4) phillips screws from hinge on console door inside console and remove door.
  • Page 28 99-2003 DASH DISASSEMBLY HUMMER • H2 2003-2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 7. Remove (1) 10mm bolt to right of shift lever. 8. Remove (2) phillips screws from under console box on drivers side and (2) phillips screws from under console trimtop on passenger side.

  • Page 29: Envoy

    99-2003 DASH DISASSEMBLY GMC • Envoy 2002-09 / ISUZU • Ascender 2003-08 OLDSMOBILE • Bravada 2002-04 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove (4) Phillips screws, (2) from left and (2) from right of carpeted panel below dash forward of center console.
  • Page 30 99-2003 DASH DISASSEMBLY OLDSMOBILE • Achieva 1996-1998 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open the glove box, press inward on the walls of the glove box liner and remove the liner. 2. Remove (10) torx-head screws from the glove box location.

  • Page 31: Alero

    99-2003 DASH DISASSEMBLY OLDSMOBILE • Alero 1999-1904 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove shift knob by using a small screwdriver to remove U-clip from front of shifter and pull upward. 2. Unclip and remove shifter trim panel.

  • Page 32: Aurora

    99-2003 DASH DISASSEMBLY OLDSMOBILE • Aurora 1995- Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unclip the radio trim bezel and remove. 2. Remove (3) 9/32" screws securing the factory head unit and disconnect the wiring.

  • Page 33: Cutlass Supreme

    99-2003 DASH DISASSEMBLY OLDSMOBILE • Cutlass 1997-1999 OLDSMOBILE • Cutlass Supreme 1995-1997 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unclip the radio trim bezel and remove. 2. Remove (3) 7mm hex-head screws securing the factory head unit and disconnect the wiring.
  • Page 34 99-2003 DASH DISASSEMBLY OLDSMOBILE • Eighty Eight 1994-99 / Ninety Eight 1994-96 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open the glove box and remove (2) hex-head screws securing the wood trim. 2. Unsnap the wood trim and remove.

  • Page 35: Intrigue

    99-2003 DASH DISASSEMBLY OLDSMOBILE • Intrigue 1998- Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open the center console storage compartment and remove (2) 9/32" hex- head screws exposed. 2. Remove the center console. 3. Unclip the radio trim bezel and remove.

  • Page 36: Regency

    99-2003 DASH DISASSEMBLY OLDSMOBILE • LSS 1996-1999 / Regency 1997- Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open glove box and remove two-center trim bezels attached by screws. 2. Unsnap and remove radio trim bezel.

  • Page 37: Aztec

    99-2003 DASH DISASSEMBLY PONTIAC • Aztec 2001-2008 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Pull out cup holder inserts. 2. Remove (1) Phillips screw exposed inside bottom cup holder. 3. Unsnap and remove shifter trim with cup holders.
  • Page 38 99-2003 DASH DISASSEMBLY PONTIAC • Bonneville 2000-2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove (2) Phillips screws from the instrument cluster. 2. Unclip the ignition trim and remove. 3. Unclip the climate control / radio trim panel and remove.

  • Page 39: Grand Am

    99-2003 DASH DISASSEMBLY PONTIAC • Grand Am 2001-2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unsnap and remove radio trim bezel. 2. Remove (3) 9/32" screws from radio brackets and remove radio. 3. See page 44 for all vehicle tab instructions.

  • Page 40: Sunfire

    99-2003 DASH DISASSEMBLY PONTIAC • Sunfire 2000-2004 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Open the glove box and remove (2) Phillips screws exposed on the right edge of the radio trim bezel. 2. Unclip the bezel and remove.
  • Page 41 99-2003 DASH DISASSEMBLY SUZUKI • Aerio 2002 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unclip the dash trim bezel and remove. 2. Remove (4) Phillips screws securing the factory head unit and disconnect the wiring.
  • Page 42 99-2003 DASH DISASSEMBLY SUZUKI • Esteem 1995- Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Remove the climate control knobs. 2. Remove (1) Phillips screw located above the radio opening. 3. Unclip the radio trim bezel.

  • Page 43: Colorado

    99-2003 DASH DISASSEMBLY CHEVROLET • Colorado 2004-2009 Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unsnap and remove the entire panel surrounding the radio and A/C controls. (Figure A) 2. Remove (3) 9/32”screws securing the radio to remove. (Figure B)

  • Page 44: Canyon

    99-2003 DASH DISASSEMBLY GMC • Canyon 2004- Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Unsnap and remove the entire panel surrounding the radio and A/C controls. (Figure A) 2. Remove (3) 9/32”screws securing the radio to remove. (Figure B)
  • Page 45 99-2003 TAB INSTRUCTIONS ALL VEHICLES A = GM Vehicles B = Suzuki Vehicles C = Cadillac Fleetwood / Brougham Vehicles...
  • Page 46 99-2003 KIT ASSEMBLY ALL VEHICLES - DIN HEAD UNIT PROVISIONS Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Slide DIN cage into the Housing and secure by bending metal locking tabs outward. See Figure A 2. Slide radio into DIN cage. See Figure B 3.
  • Page 47 99-2003 KIT ASSEMBLY ALL VEHICLES - DIN HEAD UNIT PROVISIONS Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Slide DIN cage into the Housing and secure by bending metal locking tabs outward. See Figure A 2. Slide radio into DIN cage. See Figure B 3.
  • Page 48 99-2003 KIT ASSEMBLY ALL VEHICLES - DOUBLE DIN HEAD UNIT PROVISION 1. Remove the center bar from DDIN Trimplate. See Figure A 2. Attach the DDIN / stacked ISO brackets by aligning the holes and securing the unit to the brackets using the screws supplied with the unit.
  • Page 49 99-2003 KIT ASSEMBLY ALL VEHICLES - TWO ISO RADIOS PROVISION Disconnect the negative battery terminal to prevent an accidental short circuit. 1. Attach the DDIN/stacked ISO brackets by aligning the holes and securing the units to the brackets using the screws supplied with the units. See Figure A 2.

  • Page 50: Final Assembly

    99-2003 FINAL ASSEMBLY ALL VEHICLES A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and indi- vidually tape off the ends of any unused wires to prevent electrical short cir- cuit.) See figure A...
  • Page 51 99-2003 NOTES...
  • Page 52 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. 1-800-221-0932 www.metraonline.com REV. 04/15/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST99-2003...
