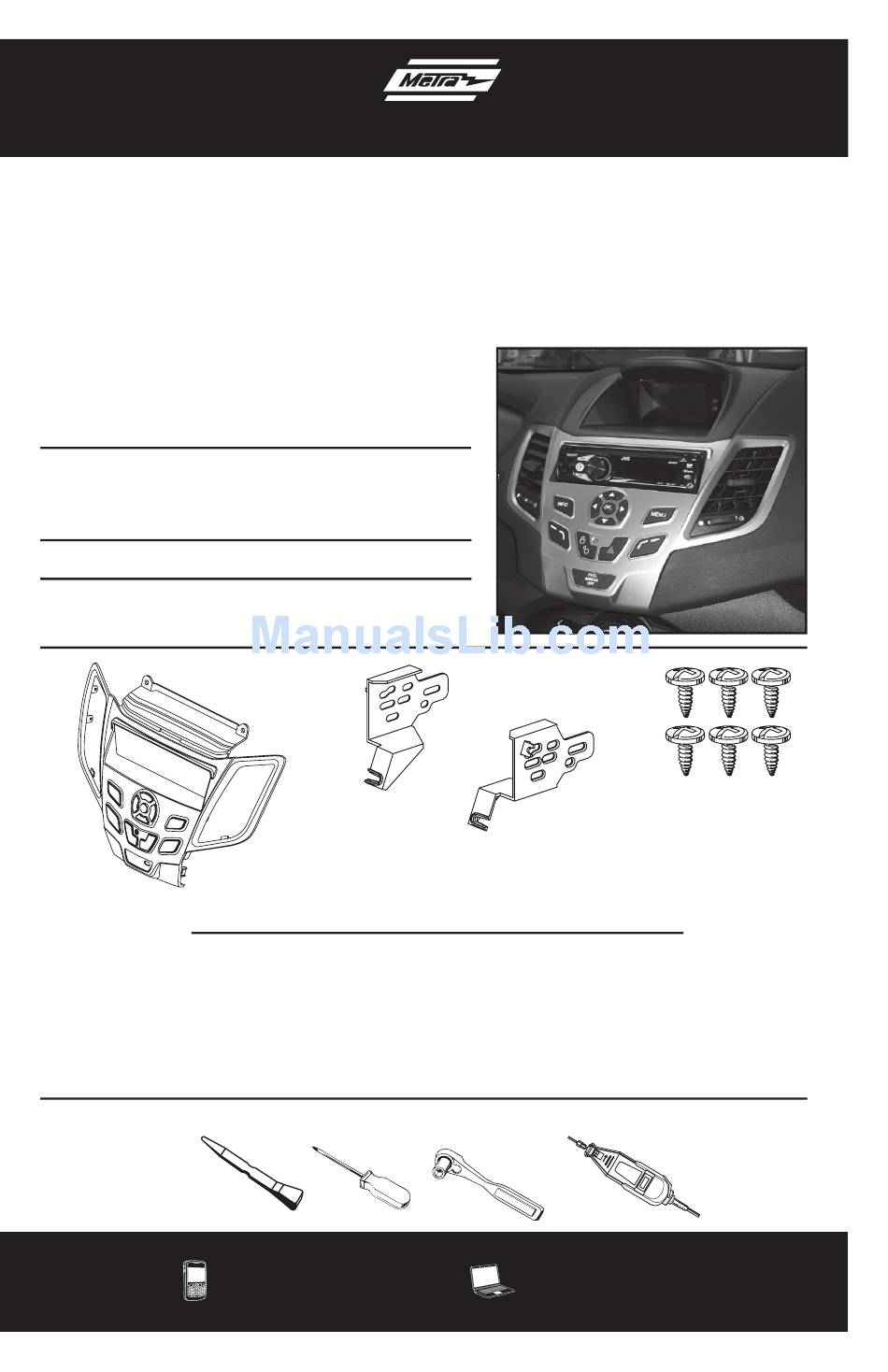

INSTALLATION INSTRUCTIONS FOR PART 99-5825

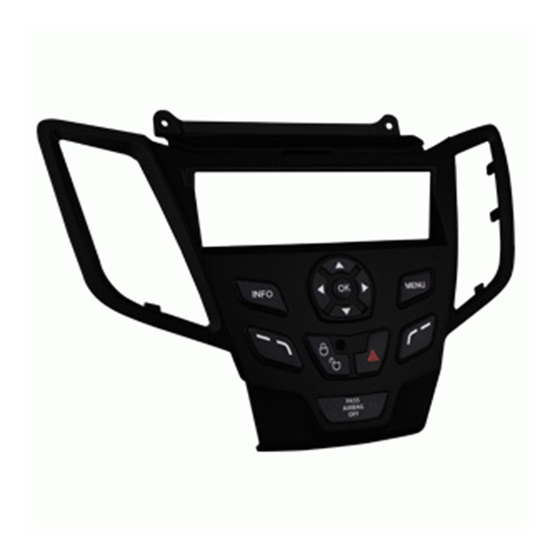

99-5825S
99-5825B
KIT FEATURES
• ISO DIN Head unit provision
• Driver information circuits and buttons
• Painted Silver or Matte Black to match factory finish
KIT COMPONENTS
• A) Radio Housing • B) Radio ISO Brackets
• C) (6) #8 x 3/8" Phillips truss head screws
A
WIRING & ANTENNA CONNECTIONS (Sold Separately)
Wire harness:
• XSVI-5524-NAV Ford interface 2011-up
Antenna adapter:
• 40-EU10 multi-app adapter
Panel Removal Tool • Phillips Screwdriver • Socket Wrench • Cutting Tool
APPLICATIONS
Ford Fiesta 2011-up
B
TOOLS REQUIRED
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
C
metraonline.com
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-5825S
Summary of Contents for Metra Electronics 99-5825S
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-5825 APPLICATIONS Ford Fiesta 2011-up 99-5825S 99-5825B KIT FEATURES • ISO DIN Head unit provision • Driver information circuits and buttons • Painted Silver or Matte Black to match factory finish KIT COMPONENTS • A) Radio Housing • B) Radio ISO Brackets • C) (6) #8 x 3/8” Phillips truss head screws WIRING & ANTENNA CONNECTIONS (Sold Separately) Wire harness: • XSVI-5524-NAV Ford interface 2011-up Antenna adapter: • 40-EU10 multi-app adapter TOOLS REQUIRED Panel Removal Tool • Phillips Screwdriver • Socket Wrench • Cutting Tool METRA. THE WORLD’S BEST KITS.™ metraonline.com 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
- Page 2 99-5825 Table of Contents Dash Disassembly – Ford Fiesta 2011-up Kit Assembly – Ford Fiesta 2011-up, ISO DIN head unit provisions NOTE: This kit comes pre-programmed for vehicles equipped with SYNC. It will not operate properly in vehicles equipped without SYNC unless it is programmed. Programming for vehicles without SYNC: 1. Turn on the ignition. 2.
- Page 3 99-5825 Dash Disassembly 1. Unsnap and remove the panel over the display at the top of the dash. (Figure A) 2. Remove two 7 mm hex screws from the top of the radio panel. (Figure B) 3. Unclip and remove the radio trim panel including the vents. (Figure C) Continued on next page (Figure A) (Figure B) (Figure C)
- Page 4 99-5825 Dash Disassembly 4. Remove two 7 mm hex holding radio and radio chassis together (from top of panel). (Figure A) 5. Remove two T-20 Torx and unclip the two vents from the factory radio panel. (Figure B) 6. Remove two T-20 Torx from passenger airbag light and remove it. (Figure B) 7. A small cut is required in the sub dash for clearance. (Figure C) (Figure A) (Figure B) (Figure C)
- Page 5 Kit Assembly 99-5825 ISO DIN head unit provisions 1. Snap the factory vents into the radio panel. (Figure A) 2. Mount the ISO brackets to the head unit with the screws supplied with the unit. (Figure B) 3. Mount the radio bracket assembly to the radio panel using the supplied screws. (Figure C) 4. Mount the factory airbag indicator to the Radio Panel using the supplied screws. (Figure A) 5. Locate the factory wiring harness (Figure A) and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS. 6. Reassemble dash in reverse order of disassembly. NOTE: This kit comes pre-programmed for vehicles equipped with SYNC. It will not operate properly in vehicles equipped (Figure B) without SYNC unless it is programmed.
- Page 6 Notes...
- Page 7 Notes...
- Page 8 INSTALLATION INSTRUCTIONS FOR PART 99-5825 METRA. THE WORLD’S BEST KITS.™ metraonline.com 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
