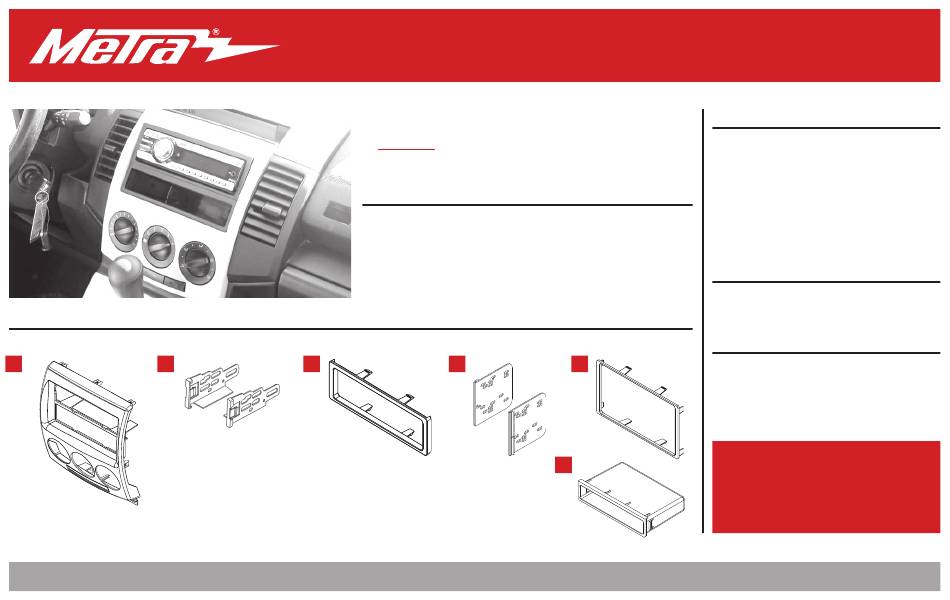

KIT COMPONENTS
• A) Radio housing • B) ISO DIN radio brackets • C) ISO DIN radio trim plate • D) ISO DDIN radio brackets • E) ISO DDIN radio trim plate • F) Pocket
A
B
Metra. The World's Best Kits.
®
Mazda 5
(without NAV)
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted to match factory dash
C
D
MetraOnline.com
2006-2010
E
F
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
99-7509
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Assembly
–DIN radio provision with pocket ........................4
–ISO DIN radio provision with pocket ..................5
–ISO DDIN radio provision .....................................6
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-7903
Steering Wheel Control Interface: ASWC-1
TOOLS REQUIRED
• Cutting tool • Phillips screwdriver
• Panel removal tool
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 8/26/19 INST99-7509
Advertisement
Related Manuals for Metra Electronics 99-7509
Summary of Contents for Metra Electronics 99-7509
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/26/19 INST99-7509...
- Page 2 DASH DISASSEMBLY 1. Unclip and remove the shifter trim panel. (Figure A) 2. Remove (2) Phillips screws exposed below the shifter trim panel. (Figure B) 3. Unclip and remove the center console trim panels, then remove (1) Phillips screw per side. (Figure C, D) Continued on the next page (Figure A) (Figure B)
- Page 3 DASH DISASSEMBLY (CONT.) 4. Unclip and pull the center console towards the rear of the vehicle, then set aside. The console does not need to be removed. (Figure E) 5. Remove (2) screws securing the radio trim panel. (Figure F) 6.
- Page 4 KIT ASSEMBLY DIN radio provision with pocket 1. Remove the metal DIN sleeve from the aftermarket radio 2. Slide the sleeve into the radio housing and secure by bending the metal locking tabs outward. (Figure A) 3. Slide the radio into the sleeve until it snaps into place.
- Page 5 KIT ASSEMBLY ISO DIN radio provision with pocket 1. Remove the metal DIN sleeve and trim ring from the aftermarket radio 2. Secure the ISO DIN radio brackets to the radio using screws supplied with the radio. (Figure A) 3. Slide the radio into the radio housing until it snaps into place.
- Page 6 KIT ASSEMBLY ISO DDIN radio provision 1. Cut and remove the center bar from the radio housing. (Figure A) 2. Attach the ISO DDIN radio brackets to the inside edge of the radio housing. (Figure B) 3. Slide the radio into the bracket/radio housing assembly, then secure the using screws supplied with the radio.
- Page 7 REV. 8/26/2019 INST99-7509...
- Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/26/19 INST99-7509...
