Metra Electronics 99-7313 Installation Instructions Manual

For hyundai elantra 2001, hyundai elantra 2002, hyundai elantra 2003, hyundai elantra 2004, hyundai elantra 2005, hyundai elantra 2006, hyundai tiburon 2003; hyundai tiburon 2004; hyundai tiburon 2005; hyundai tiburon 2006; hyundai tiburon 2007; hyundai t

Hide thumbs

INSTALLATION INSTRUCTIONS FOR PART 99-7313

(2006 Early Production Models Only)

99-7313

KIT FEATURES

• DIN Head Unit Provision with Pocket

KIT COMPONENTS

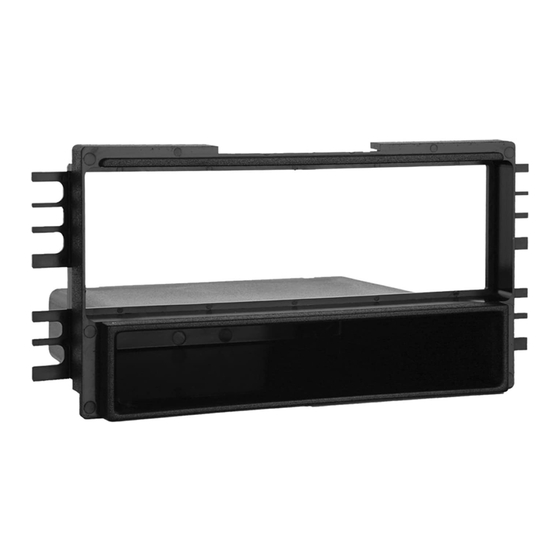

A) Radio Housing

1-800-221-0932

APPLICATIONS

Hyundai

Elantra 2001-2006

Tiburon 2003-2008

Sonata 2002-2005

Kia

Optima 2001-2006.5

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

Harness:

• 70-7301 - KIA / Hyundai harness 1999-08

Antenna Adapter:

• Not required

TOOLS REQUIRED:

Phillips Screwdriver

www.metraonline.com

Table of Contents

Need help?

Do you have a question about the 99-7313 and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics 99-7313

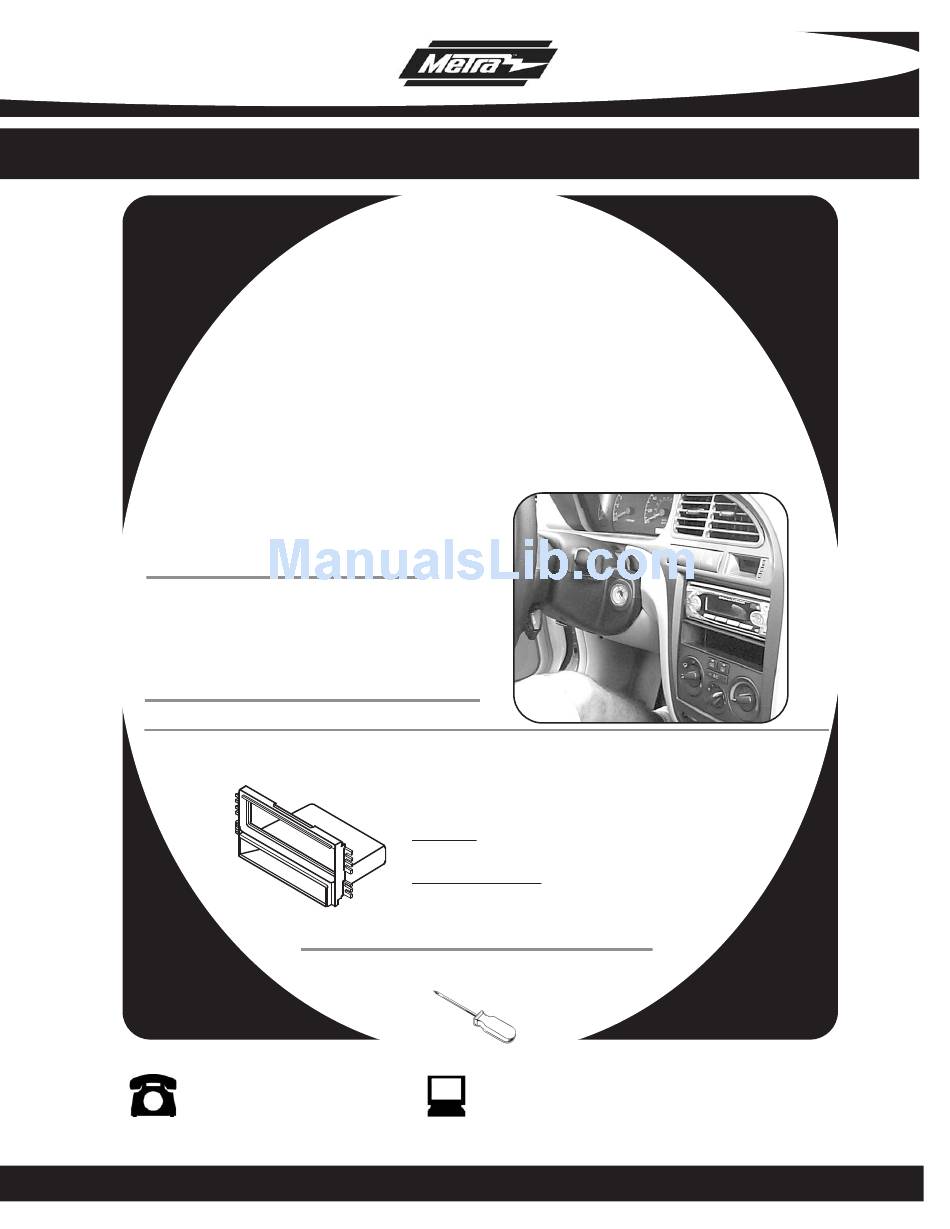

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7313 APPLICATIONS Hyundai Elantra 2001-2006 Tiburon 2003-2008 Sonata 2002-2005 Optima 2001-2006.5 (2006 Early Production Models Only) 99-7313 KIT FEATURES • DIN Head Unit Provision with Pocket KIT COMPONENTS A) Radio Housing WIRING AND ANTENNA CONNECTIONS (Sold Separately) Harness: •...
Page 2 99-7313 T ABLE OF CONTENTS Dash Disassembly - Hyundai Elantra 2001-2006 ......1 - Hyundai Tiburon 2003-2008 ......2 - Hyundai Sonata 2002-2005 .
Page 3 99-7313 DASH DISASSEMBL Y 2001-2006 HYUNDAI ELANTRA Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (2) Phillips screws from under the instrument cluster. Remove ashtray then remove (2) Phillips screws in ashtray cavity. Unclip and remove panel surround- ing radio and remove the bezel.
Page 4 99-7313 DASH DISASSEMBL Y 2003-2008 HYUNDAI TIBURON Disconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove the radio trim panel starting with the bottom edge. (Figure A) Remove (2) Phillips screws securing radio. NOTE: For the 2003-2008 Hyundai...
Page 5 99-7313 DASH DISASSEMBL Y 2002-2005 HYUNDAI SONATA 2001-2006.5 KIA OPTIMA (2006 OPTIMA EARL Y PRODUCTION MODELS ONL Y) Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove entire panel sur- rounding radio. (Figure A) Remove (4) Phillips screws securing radio.
Page 6 99-7313 KIT ASSEMBL Y DIN HEAD UNIT PROVISION WITH POCKET Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the aftermarket head unit into the cage until secure. (Figure B)
Page 7 99-7313 FINAL ASSEMBL Y FINAL ASSEMBL Y Strip wire ends back 1/2" Twist ends together Solder Tape Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
