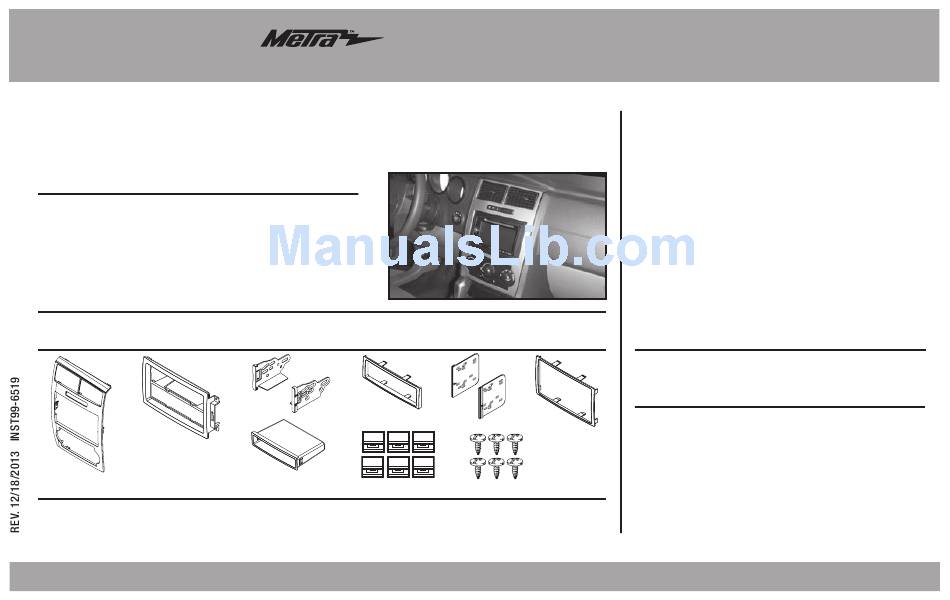

INSTALLATION INSTRUCTIONS FOR PART 99-6519
Dodge Charger/Magnum 2005-2007
99-6519B, 99-6519S, 99-6519CF
KIT FEATURES
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• DDIN radio provision
• Painted matte black (99-6519B), silver (99-6519S)
or carbon fiber (99-6519CF)

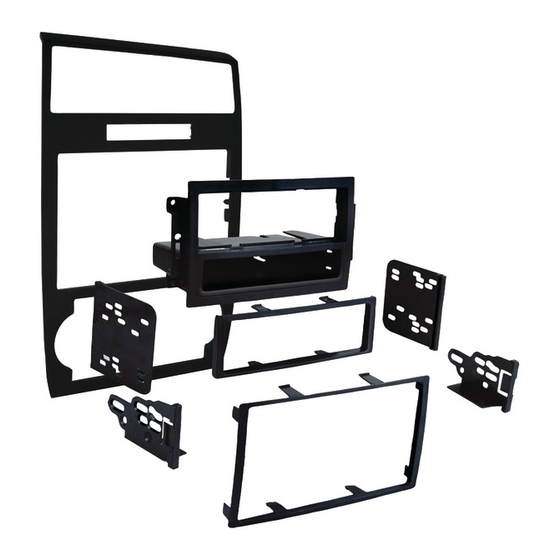

KIT COMPONENTS
• A) Radio Housing Trim Panel • B) Radio Housing • C) ISO Brackets • D) ISO Trim Plate • E) DDIN Brackets
• F) DDIN Trim Plate • G) Pocket • H) (6) Metal Panel Clips • I) (6) #6 x 3/8" truss head Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • XSVI-6502-NAV - Chrysler CAN R.A.P. interface 2004-up
• CHTO-01 - Chrysler CAN amp interface 2004-up
Antenna Adapter: • 40-CR10 - Chrysler antenna adapter 2004-up
METRA. The World's best kits.
APPLICATIONS
C
D
G
H
™
1-800-221-0932
(without factory NAV)
E
F
I
metraonline.com
Table of Contents
Dash Disassembly
– Dodge Charger 2005-2007 .................................. 2
– Dodge Magnum 2005-2007 ................................. 2
Kit Assembly
– DIN radio provision with pocket ............................ 2
– ISO DIN radio provision with pocket ...................... 3
– DDIN radio provision ............................................ 3
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket Wrench
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
© COPYRIGHT 2013 METRA ELECTRONICS CORPORATION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-6519B
Summary of Contents for Metra Electronics 99-6519B
- Page 1 • ISO DIN radio provision with pocket • DDIN radio provision – DIN radio provision with pocket ......2 • Painted matte black (99-6519B), silver (99-6519S) – ISO DIN radio provision with pocket ...... 3 or carbon fiber (99-6519CF) – DDIN radio provision ..........3 KIT COMPONENTS •...
- Page 2 99-6519 Dash Disassembly Kit Assembly 1. Unclip and remove entire panel DIN radio provision with pocket surrounding radio and climate 1. Slide the DIN cage into the radio controls, including A/C vents. housing and secure by bending (Figure A) the metal locking tabs down. 2.
- Page 3 99-6519 Kit Assembly ISO radio provision with pocket Double DIN radio provision 1. Mount the ISO brackets to the 1. Cut and remove center divider in radio with the screws supplied radio housing. (Figure A) with the unit. (Figure A) 2.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians METRA. The World’s best kits. ™ 1-800-221-0932 metraonline.com © COPYRIGHT 2013 METRA ELECTRONICS CORPORATION...
- Page 5 • Provisión de radio ISO DIN con cavidad • Provisiones de radio DDIN – Provisión de radio DIN con cavidad ......2 • Pintura negro mate (99-6519B), plata (99-6519S) – Provisión de radio ISO DIN con cavidad ....3 o fibra de carbono (99-6519CF), –...
- Page 6 99-6519 Desmontaje del tablero Ensamble del kit 1. Desenganche y retire todo el panel Provisión de radio DIN con cavidad que rodea el radio y los controles 1. Deslice la reja DIN en la carcasa del clima, incluyendo las rejillas del del radio y sujétela doblando hacia aire acondicionado.
- Page 7 99-6519 Ensamble del kit Provisión de radio ISO con cavidad Provisión de radio doble DIN 1. Monte los soportes ISO en el radio con los 1. Corte y quite el divisor central de la carcasa tornillos que vienen con la unidad. del radio.
- Page 8 800-354-6782 para obtener más información y avance toward a better tomorrow. hacia un futuro mejor. Metra recomienda técnicos con certificación del Programa de Certificación en Electrónica Móvil (Mobile Electronics Certification Program, MECP). METRA. The World’s best kits. ™ 1-800-221-0932 metraonline.com © COPYRIGHT 2013 METRA ELECTRONICS CORPORATION...
