6. When the use of stand-by batteries is required, they must be sealed lead acid or gel type.
Connect four (4) 12VDC batteries in series to terminals marked [+BAT–] (Fig. 2e, pg. 3), carefully observing polarity.
Note: When batteries are not used, loss of AC will result in a loss of output voltage.
Fig. 2

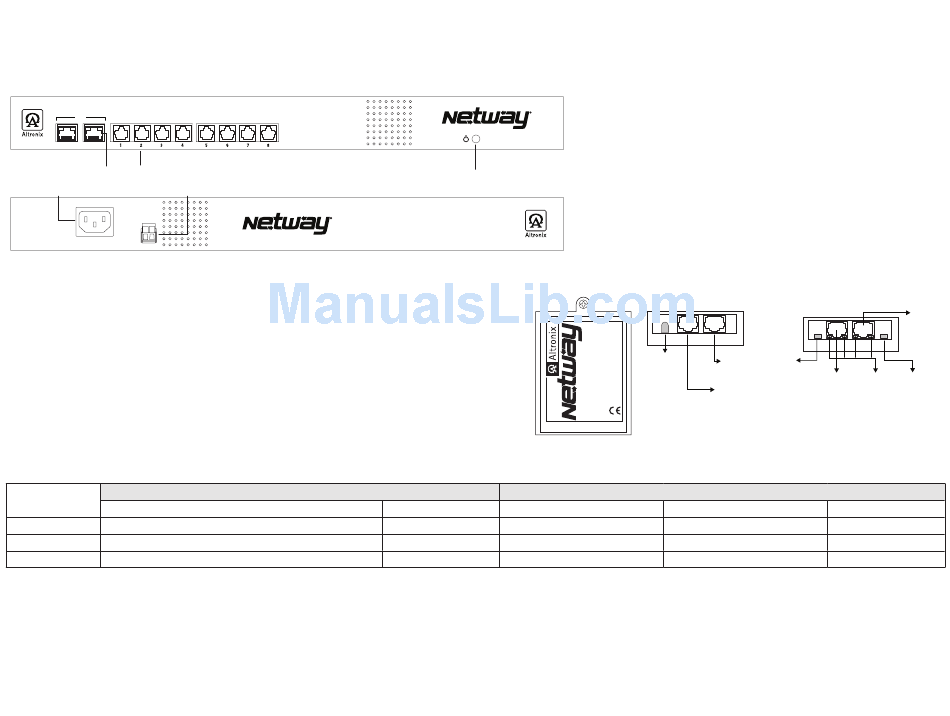

NetWay8E - Front Panel
1Gb
2a
2b
2e
2d
+ BAT –
AC POWER
NetWay8E - Rear Panel
Installing a NetWayXT/NetWayXTX repeater module:
NetWayXT will work only with PoE devices. NetWayXTX will work with PoE/PoE+ devices.
1.
Mount NetWayXT/NetWayXTX in desired location utilizing the mounting hole (Fig. 3, pg. 3).
Use a proper fastener and/or wall anchor when securing NetWayXT/NetWayXTX to the wall.
2.
Connect structured cable from port marked [OUT] on NetWay to port marked [IN] on the
NetWayXT/NetWayXTX (Fig. 3, pg. 3).
3.
Connect structured cable from port marked [OUT] on NetWayXT/NetWayXTX to the
PoE/PoE+ camera/edge device or next NetWayXT/NetWayXTX repeater (Fig. 3, pg. 3).
4.
Port status LEDs will illuminate on NetWayXT/NetWayXTX indicating the port is operational
(refer to LED Definitions, pg. 3).
5.
Power LED will illuminate indicating 12VDC output.
Status
OFF
Indicates it is connected as 10Base-T or no link.
ON
Indicates it is connected as 100Base-TX.
Blinking
www.altronix.com
Port LED Definitions for NetWayXT and NetWayXTX Repeaters:
NetWayXT
Green LED
-------
2c
Power
OUT
Yellow LED
PoE/PoE+ Output LED
Indicates no link.
No PoE/PoE+ Output
Indicates a link.
Normal PoE/PoE+ Output
Indicates activity.
- 3 -
2a 1Gb uplink to NVR.
2b OUT 1-8: Structured cable to powered cameras/devices.
2c Input Power LED.
2d IEC 320 Connector: 115/230VAC (grounded line cord included).
2e Built-in battery charger: Charges stand-by batteries for
applications requiring back-up.
(Optional rack mount battery enclosure available - RE2)
NetWayXT
NetwayXT
Structured
Repeater
Power
Cable from
LED
NetWayG
Structured Cable
to IP Camera/
Edge Device
or next
NetWayXT
www.altronix.com
IN
NetWayXTX
PoE/PoE+ Input LED
No PoE/PoE+ Input
PoE/PoE+ Input
- - - - - - -
- -- -- --
Fig. 3 - NetWayXT/NetWayXTX
NetWayXTX
Structured
Cable from
NetWayG
PoE/PoE+
Output
LED
PoE/PoE+
Structured
Port Status
LEDs
Input
Cable to
LED
PoE/PoE+
Camera/Device or
next NetWayXTX
Yellow LED
Indicates no link.
Indicates a link.
Indicates activity.
NetWay8E
