Summary of Contents for Digital Projection HIGHlite Laser II 3D Series

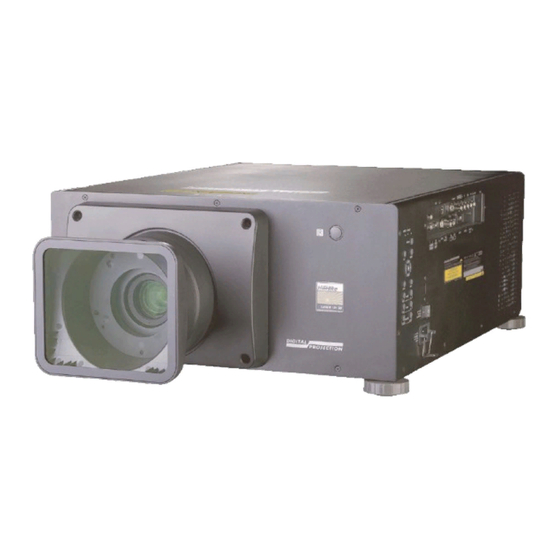

- Page 1 HIGHlite Laser II 3D Series High Brightness Digital Video Projector 4INSTALLATION AND QUICK-START GUIDE 4CONNECTION GUIDE 4OPERATING GUIDE 4REFERENCE GUIDE Rev B December 2016 118-089B...
- Page 2 NOTE: this symbol indicates that there is some important information that you should read. Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice.
- Page 3 모델명 : HIGHlite Laser II 3D 116-330 A/S전화: +822 515 5303 S/N: M/F Date: Digital Projection HIGHlite Laser II 3D Series Laser Information Notes RISK GROUP 2 CAUTION ATTENTION Possibly hazardous optical radiation emitted Ce produit peut émettre des rayonnements from this product.
- Page 4 Digital Projection HIGHlite Laser II 3D Series Introduction Notes Congratulations on your purchase of this Digital Projection product. Your projector has the following key features: • Support for most 3D formats. • HDBaseT for transmission of uncompressed High Definition Video up to 100 m from the source.
-
Page 5: Table Of Contents
Digital Projection HIGHlite Laser II 3D Series CONTENTS CONNECTION GUIDE INSTALLATION AND QUICK-START GUIDE ................21 ......1 SIGNAL INPUTS ................23 WHAT’S IN THE BOX? ..............3 Digital inputs and outputs ..............23 CONNECTING THE POWER SUPPLY ..........4 Analog inputs and outputs..............24 Voltage selection ................... - Page 6 Digital Projection HIGHlite Laser II 3D Series CONTENTS (continued) OPERATING GUIDE ................... 52 ................31 Keystone ..................54 4 Corners USING THE MENUS ..............33 .................... 55 Rotation Opening the OSD ................33 ................56 Pincushion / Barrel Opening a menu.................. 33 Edge Blend menu................
- Page 7 Digital Projection HIGHlite Laser II 3D Series CONTENTS (continued) REFERENCE GUIDE ..............103 ................77 2:3:3:2 (advanced) pulldown APPENDIX A: LENS PART NUMBERS ........104 THE DMD™ .................. 80 APPENDIX B: LENS CHARTS ............ 105 CHOOSING A LENS ..............82 ..............105 How to use the lens charts Basic calculation .................
- Page 8 Digital Projection HIGHlite Laser II 3D Series CONTENTS (continued) APPENDIX E: WIRING DETAILS ..........128 Signal inputs and outputs ..............128 ....................128 ................... 129 HDMI 1 and 2 ..................130 DisplayPort ................ 131 3G-SDI In, 3G-SDI Out .................. 131 COMPONENT Control connections ................
-
Page 9: Installation And Quick-Start Guide
HIGHlite Laser II 3D Series High Brightness Digital Video Projector INSTALLATION AND QUICK-START GUIDE Rev B December 2016... - Page 10 Digital Projection HIGHlite Laser II 3D Series IN THIS GUIDE IN THIS GUIDE What’s In The Box? ..................... 3 Connecting The Power Supply ................ 4 Voltage selection ......................Projector Overview ..................... 5 Front and rear views ....................Control Panel ......................6 Remote Control ....................
-
Page 11: What's In The Box
Digital Projection HIGHlite Laser II 3D Series WHAT’S IN THE BOX? What’s In The Box? Notes Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Only one remote will be supplied with the projector. For more... -
Page 12: Connecting The Power Supply
Digital Projection HIGHlite Laser II 3D Series CONNECTING THE POWER SUPPLY Connecting The Power Supply Notes Use only the power cable provided. Ensure that the power outlet includes a ground connection as Lift the cable lock up, push the mains connector in firmly and this equipment MUST be earthed. -
Page 13: Projector Overview
Digital Projection HIGHlite Laser II 3D Series PROJECTOR OVERVIEW Projector Overview Notes Front and rear views Do not use the short lens hood with the 4.34 - 6.76 : 1 zoom lens. Control panel Connection panel For further information about using... -
Page 14: Control Panel
Digital Projection HIGHlite Laser II 3D Series CONTROL PANEL Control Panel Notes ON indicator (blue) ERROR STANDBY Behavior Meaning The projector is switched off. The projector is switched ON. Flashing The projector is warming up or cooling down. ERROR indicator (red) -
Page 15: Remote Control
Digital Projection HIGHlite Laser II 3D Series REMOTE CONTROL Remote Control Notes Power ON / OFF Turns power on and off. Pic Mute OPEN / CLOSE Pic Mute Shows and hides the projected image. OPEN CLOSE When CLOSE is pressed, the light source switches off completely and the screen becomes black. - Page 16 Digital Projection HIGHlite Laser II 3D Series REMOTE CONTROL EXIT INFO Notes FREEZE RE-SYNC LENS adjustment adjust focus. FOCUS IN / OUT: press and hold this button, then use the Navigation arrow SHIFT: buttons to move the lens. LENS FOCUS...
- Page 17 MENU DEFAULT Digital Projection HIGHlite Laser II 3D Series REMOTE CONTROL Notes DISPLAYPORT / R / numeric input 4 Select DisplayPort input. HD-T / G / numeric input 5 Select the HDBaseT input. 3GSDI / B / numeric input 6 Select the 3G-SDI input.
-
Page 18: Infrared Reception
Digital Projection HIGHlite Laser II 3D Series REMOTE CONTROL Infrared reception Notes 40° The projector has infrared sensors at the front and back. The angle of acceptance is 40°. Make sure that the remote control is within the angle of acceptance when trying to control the projector. -
Page 19: Positioning The Screen And Projector
Digital Projection HIGHlite Laser II 3D Series POSITIONING THE SCREEN AND PROJECTOR Positioning The Screen And Projector Notes Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. Set the adjustable feet so that Always allow the projector the projector is level, and perpendicular to the screen. -
Page 20: Roll And Pitch
Digital Projection HIGHlite Laser II 3D Series POSITIONING THE SCREEN AND PROJECTOR Roll and pitch Notes The projector can be operated in numerous positions. It is not recommended to position the projector in portrait mode with inputs facing upward, as shown in the diagram. -
Page 21: Changing The Lens
Digital Projection HIGHlite Laser II 3D Series CHANGING THE LENS Changing The Lens Notes The lens hood Before changing the lens, There are two types of lens hood, short and long. always make sure the projector The short lens hood is used with the following lenses:... -
Page 22: Inserting A New Lens
Digital Projection HIGHlite Laser II 3D Series CHANGING THE LENS Inserting a new lens Notes Before changing the lens, always make sure the projector Insert the lens into the lens aperture, making sure that the plug on the zoom drive is switched off and fully mechanism lines up with socket on the right of the lens aperture. -
Page 23: Removing The Lens
Digital Projection HIGHlite Laser II 3D Series CHANGING THE LENS Removing the lens Notes Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. Loosen the four screws securing the lens hood to the body of the projector. -
Page 24: Changing The Filters
Digital Projection HIGHlite Laser II 3D Series CHANGING THE FILTERS Changing The Filters Notes two screws Remove the holding the filter cover. Before changing the filters, always make sure the projector Remove the filter cover is switched off and fully Remove the old filter disconnected from its power supply. -
Page 25: Operating The Projector
Digital Projection HIGHlite Laser II 3D Series OPERATING THE PROJECTOR Operating The Projector Notes Switching the projector on Connecting The Power See also Ensure a lens is fitted. Connect the power cable between the mains supply and the projector. (See Connecting the power supply Supply earlier in this guide. -
Page 26: Selecting An Input Signal
Digital Projection HIGHlite Laser II 3D Series OPERATING THE PROJECTOR Selecting an input signal Notes Connect one or more image sources to the projector. Select the input you want to display: For full details of how to use the •... -
Page 27: Adjusting The Lens
Digital Projection HIGHlite Laser II 3D Series OPERATING THE PROJECTOR Adjusting the lens Notes The lens can be adjusted using the Lens menu, or using the lens buttons on the remote control. Lens menu When adjusting focus and zoom, menu provides access to the setting and the command. - Page 28 Digital Projection HIGHlite Laser II 3D Series This page is intentionally left blank. Installation and Quick-Start Guide...
-
Page 29: Connection Guide
HIGHlite Laser II 3D Series High Brightness Digital Video Projector CONNECTION GUIDE Rev B December 2016... - Page 30 Digital Projection HIGHlite Laser II 3D Series IN THIS GUIDE IN THIS GUIDE Signal Inputs ....................... 23 Digital inputs and outputs ..................Analog inputs and outputs ..................EDID on the HDMI, DisplayPort and VGA inputs ............ Using HDMI/DisplayPort switchers with the projector ..........
-
Page 31: Signal Inputs
Digital Projection HIGHlite Laser II 3D Series SIGNAL INPUTS Signal Inputs Notes Digital inputs and outputs For simultaneous HDBaseT and LAN connectivity, a third-party distribution product can be utilised HDBaseT to combine HDBaseT video stream Receives digital signal from HDBaseT-compliant devices. -
Page 32: Analog Inputs And Outputs
Digital Projection HIGHlite Laser II 3D Series SIGNAL INPUTS Analog inputs and outputs Notes For a complete listing of all Component supported signal input modes, see RGBHV, RGsB or RGBS Appendix C: Supported Signal • Color Space in the Color... -
Page 33: Edid On The Hdmi, Displayport And Vga Inputs
Digital Projection HIGHlite Laser II 3D Series SIGNAL INPUTS EDID on the HDMI, DisplayPort and VGA inputs Notes If you are using a computer graphics card or another source that obeys the EDID protocol, the source will automatically configure itself to suit the projector. -
Page 34: 3D Connections
Digital Projection HIGHlite Laser II 3D Series SIGNAL INPUTS 3D connections Notes 3D sources up to 60Hz requiring frame doubling and left/right interleaving Connect to either of the following inputs on the connection panel: For a complete listing of all •... -
Page 35: 3D Sync
Digital Projection HIGHlite Laser II 3D Series SIGNAL INPUTS 3D Sync Notes 3D Sync in Sync input signal – normally only required for Sequential 3D For a complete listing of pin sources. configurations for all signal and • control connectors, see Appendix Connect the 3D sync from your graphics card or server. -
Page 36: Control Connections
Digital Projection HIGHlite Laser II 3D Series CONTROL CONNECTIONS Control Connections Notes For simultaneous HDBaseT and • All of the projector’s features can be controlled via a LAN connectivity, a third-party LAN connection, using commands described in the distribution product can be utilised Protocol Guide. -
Page 37: Lan Connection Examples
Digital Projection HIGHlite Laser II 3D Series CONTROL CONNECTIONS LAN connection examples Notes The projector’s features can be controlled via a LAN connection, using Digital Projection’s Projector Controller application or a terminal- emulation program. Projector Controller is available for download, free of charge, from the Digital Projection website. -
Page 38: Rs232 Connection Example
Digital Projection HIGHlite Laser II 3D Series CONTROL CONNECTIONS RS232 connection example Notes Straight-through cable Computer Projector RS232 Connection Guide Rev B December 2016 page 30... -
Page 39: Operating Guide
HIGHlite Laser II 3D Series High Brightness Digital Video Projector OPERATING GUIDE Rev B December 2016... - Page 40 Digital Projection HIGHlite Laser II 3D Series IN THIS GUIDE IN THIS GUIDE Using The Menus ....................33 Pincushion / Barrel ......................Opening the OSD ...................... Edge Blend menu ...................... Opening a menu ......................Blend Width ........................Exiting menus and closing the OSD ...............
-
Page 41: Using The Menus
Digital Projection HIGHlite Laser II 3D Series USING THE MENUS Using The Menus Notes Opening the OSD Access the various menus using either the projector control panel or Pic Mute the remote control. On either device, OPEN CLOSE • press the button. -
Page 42: Inside A Menu
Digital Projection HIGHlite Laser II 3D Series USING THE MENUS Inside a menu Notes Menu Name Color >> When you open a menu, the page consists of the following elements: Highlighted Item Value • Color Space Auto Title bar at the top... -
Page 43: Editing Projector Settings
Digital Projection HIGHlite Laser II 3D Series USING THE MENUS Editing projector settings Notes Menu Name Setup >> Infrared Remote >> If the highlighted menu item contains a list of values to choose from, you can change the value by doing the following:... -
Page 44: Using The Projector
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Using The Projector Notes Main Menu Input HDMI 1 Main menu Signal Inputs in the Test Pattern • Input Connection Guide for further Lens Press ENTER/OK to open the list of available inputs. -
Page 45: Lens Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Lens menu Notes Lens • Lens Lock Lens Lock When this feature is , all other Lens menu items are disabled. Lens Control • Lens Control Center Lens Opens a sub-menu, see below. -
Page 46: Lens Memory
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Lens menu continued from previous page Notes Lens Memory Lens Memory This menu allows you to load, save and delete up to ten lens presets, containing position, function is only Lens Memory zoom, focus and shift adjustment information. -
Page 47: Image Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Image menu Notes Image • Dynamic Black Dynamic Black Set to to allow for increased contrast in darker scenes by modulating the light Some settings may be unavailable source. Gamma depending on other settings. -
Page 48: Noise Reduction
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Image menu continued from previous page Notes Noise Reduction Noise Reduction • Temporal A time-based filter that removes the noise on the luminance component. Temporal • Block Block This filter helps reduce block noise, which appears like small blocks in the image and Mosquito is caused by MPEG compression. -
Page 49: Color Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Color menu Notes Color Color Space Auto Color Space Color Mode ColorMax In most cases, the Auto setting determines the correct colorspace to use. If it does not, ColorMax Peak... -
Page 50: Color Mode
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Color Mode Notes Color The projector can work in the following color modes: ColorMax Manual Color Matching Color Temperature Gains and Lifts Color Space Auto Only one color mode can be... - Page 51 Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Color menu continued from previous page Notes Manual Color Matching Manual Color Matching Color Mode Auto Test Pattern Manual Color Matching Open the Manual Color Matching submenu. Green Blue For more details about the...
- Page 52 Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Color menu continued from previous page Notes Color matching parameters explained The levels of hue, saturation and gain in the Manual Color Matching menu change the color values in the following ways:...
- Page 53 Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Color menu continued from previous page Notes Color Temperature Color Color Mode Color Temperature Some settings may be unavailable Color Space Auto depending on other settings. For Navigate to the Color Temperature setting.
- Page 54 Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Color menu continued from previous page Notes Gains and Lifts Gains and Lifts Lifts allow you to adjust black levels of individual colors, while gains adjust the bright part of the scale.
-
Page 55: Geometry Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Geometry menu Notes Geometry Aspect Ratio Source This menu allows you to compensate for image distortions caused by an unusual Digital Zoom & Shift Some settings may be unavailable projection angle or irregular screen surface. - Page 56 Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Theaterscope setting Notes setting is used in combination with an anamorphic lens to restore 2.35:1 images packed into a 16:9 frame. Such images TheaterScope are projected with black lines at the top and bottom of the 16:9 screen to make up for the difference in aspect ratios.
-
Page 57: Digital Zoom & Shift
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR .Geometry menu continued from previous page Notes Digital Zoom & Shift Digital Zoom & Shift Digital zooming enlarges a section of the image, while the area outside the enlarged section Some settings may be unavailable is cropped out to preserve the overall image size. -
Page 58: Overscan
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Overscan Geometry Use this setting to compensate for noisy or badly defined image edges. Some settings may be unavailable Aspect Ratio Source depending on other settings. For Crop removes unwanted artifacts from the edges of your image by cropping the edges. -
Page 59: Blanking
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Blanking Blanking Use this feature to: Some settings may be unavailable • depending on other settings. For fit an odd-sized screen; more information, see... -
Page 60: Keystone
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Keystone Keystone Use this setting to compensate for any distortion caused by the projector being in a Some settings may be unavailable different horizontal or vertical plane to the screen. - Page 61 Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Keystone settings Some settings may be unavailable Projector to the left depending on other settings. For The projector is positioned more information, see Possible to the left of the screen.
-
Page 62: Corners
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes 4 Corners 4 Corners For each corner, apply horizontal and / or vertical correction as necessary to restore the Corner corrections provide a simple rectangular shape of the image. -
Page 63: Rotation
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Rotation Rotation Use this feature for example to correct a mounting error causing the image not to be level Some settings may be unavailable with the screen. -
Page 64: Pincushion / Barrel
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Pincushion / Barrel Pincushion / Barrel Pincushion or barrel distortions are the result of poor or incorrect tensioning of the screen Some settings may be unavailable or using a surface that is not flat. -
Page 65: Edge Blend Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Edge Blend menu Notes Edge Blend Use this menu to blend together images from an array of two or more projectors. Edge Blend The feature feathers the light output of the projector within the edges that overlap with... -
Page 66: Blend Width
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Edge Blend menu continued from previous page Notes Blend Width Blend Width Use the LEFT RIGHT arrow buttons to set the width of the blended regions: Some settings may be unavailable depending on other settings. -
Page 67: Black Level Uplift
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Edge Blend menu continued from previous page Notes Black Level Uplift Black Level Uplift Black in the blended regions appears less dark than in the rest of the image. To... -
Page 68: 3D Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR 3D menu Notes Use this menu to enable, disable and set up 3D input, as follows: 3D Format Auto • — 3D Format Auto Side by Side (Half) op and Bottom... -
Page 69: 3D Types
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR 3D menu continued from previous page Notes 3D types In most situations you can use the Auto setting to have the projector automatically detect the format. Otherwise, consider the notes below to help you set up the 3D input manually. -
Page 70: Some 3D Settings Explained
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR 3D menu continued from previous page Notes Some 3D settings explained Fully on Right Left In order to achieve maximum light Dark Time output and a smooth grayscale, Ghosting can be caused by the left and right images... -
Page 71: Frame Rate Multiplication In 3D Images
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR 3D menu continued from previous page Notes Frame rate multiplication in 3D images When displaying a low frame rate 3D video, the projector multiplies the frame rate to obtain a flicker-free image. For... -
Page 72: Laser Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Laser menu Notes Laser Power Mode Normal • Power Mode Power Level — — — — • will automatically set the laser power to 80%. • will set the power to 100%. -
Page 73: Setup Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Setup menu Notes Setup Orientation Auto-front • Orientation automatically detects Auto-front Cooling Condition Auto Choose from Front Tabletop Front Ceiling Rear Tabletop Rear Ceiling the projector’s position and sets the... - Page 74 Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Setup menu continued from previous page Notes • Auto Source Setup If this setting is , the projector will automatically search for an active input source. If you turn the remote control off, •...
-
Page 75: Colormax Setting
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Color menu continued from previous page Notes ColorMax Setting ColorMax Setting ColorMax Setting permits seven point color matching of red, green, blue, Measured Data yellow, cyan, magenta and white. Target Data – User 1... -
Page 76: Power On/Off
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Setup menu continued from previous page Notes Power On/Off Power On/Off • Auto Power Off Auto Power Off Set this to On if you want the projector to go into STANDBY mode when no input source is detected for 20 minutes. -
Page 77: Clock Adjust
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Setup menu continued from previous page Notes Notes Clock Adjust Clock Adjust Use this menu to set date (in dd:MM:yyyy format), time (in HH:mm format) and time zone. Date (dd:MM:yyyy) -
Page 78: Osd Settings
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Setup menu continued from previous page Notes OSD Settings OSD Settings • Language sets the OSD language. Language English • Menu Position determines where the OSD should appear ont he screen when... -
Page 79: Network Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Network menu Notes Network Network Mode Projector Control • Network Mode Standby Power Choose between Projector Control Service DHCP • Standby Power 192 . 168 . 000 . 100 If this setting is... -
Page 80: Pip Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR PIP menu Notes • Turn PIP on and off. Source HDMI1 Some settings may be unavailable • Source depending on other settings. For Position Top-Left more information, see Possible Select an input source for the PIP image. -
Page 81: Information Menu
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Information menu Notes Information This menu gives information about software and hardware configuration, input source and Model Name E-Vision Laser 8500 laser operating times It also allows you to restore the factory default settings. -
Page 82: System Status
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Information menu continued from previous page Notes System Status System Status Atmospheric Pressure 98988 Pa (116 m) AC Voltage 160V – 264V Ceiling Mode Tilt Angle 4 deg Portrait Angle... -
Page 83: Factory Reset
Digital Projection HIGHlite Laser II 3D Series USING THE PROJECTOR Information menu continued from previous page Notes Factory Reset Information To restore the factory default settings: Model Name E-Vision Laser 8500 Navigate to Factory Reset and press ENTER Serial Number... -
Page 84: Possible Combinations Of Settings
Digital Projection HIGHlite Laser II 3D Series POSSIBLE COMBINATIONS OF SETTINGS Possible Combinations Of Settings Notes Some OSD settings cannot be used in combination with others. The table below shows the possible combinations. A tick (ü) means that the combination is possible. A cross () means applying the new setting is impossible if the existing setting is being used. -
Page 85: Reference Guide
HIGHlite Laser II 3D Series High Brightness Digital Video Projector REFERENCE GUIDE Rev B December 2016... - Page 86 Digital Projection HIGHlite Laser II 3D Series IN THIS GUIDE IN THIS GUIDE The DMD™ ......................80 Appendix A: Lens Part Numbers ..............104 Choosing A Lens ....................82 Appendix B: Lens Charts ................105 Basic calculation ....................... How to use the lens charts ...................
- Page 87 Digital Projection HIGHlite Laser II 3D Series IN THIS GUIDE IN THIS GUIDE (continued) Appendix E: Wiring Details ................128 Signal inputs and outputs ..................VGA ..........................HDMI 1 and 2 ....................... DisplayPort ........................3G-SDI In, 3G-SDI Out ....................COMPONENT ......................
-
Page 88: The Dmd
Digital Projection HIGHlite Laser II 3D Series THE DMD™ The DMD™ Notes A DMD™ (Digital Micromirror Device™) is a true digital light modulator which utilises an array of up to 2.3 million moving aluminium mirrors, with each one representing a pixel in the final projected image. The outermost micromirrors in the array remain inactive (pond of mirrors) and are not used in constructing the image. - Page 89 Digital Projection HIGHlite Laser II 3D Series THE DMD™ Notes Depending on the voltage polarity applied, each mirror will either tilt to the left to produce a bright pixel or to the right for a dark pixel. When light is applied to the complete DMD™, only the light redirected from a mirror tilting to the left is projected.
-
Page 90: Choosing A Lens
Digital Projection HIGHlite Laser II 3D Series CHOOSING A LENS Choosing A Lens Notes A number of lenses are available. Which lens you choose depends on the screen size, image aspect ratio, throw distance and light output. For information about individual lens... -
Page 91: Basic Calculation
Digital Projection HIGHlite Laser II 3D Series CHOOSING A LENS Basic calculation Notes Identify the required lens by calculating the throw ratio. A throw ratio is the ratio of the throw distance to the screen width: The basic calculation on this page... -
Page 92: Basic Calculation Example
Digital Projection HIGHlite Laser II 3D Series CHOOSING A LENS Basic calculation example Notes INFORMATION YOU NEED FOR THIS CALCULATION Calculate the throw ratio using the formula. The basic calculation on this page does not take into consideration Your screen is 4.5 m wide and you wish to place the projector DMD™... -
Page 93: Full Lens Calculation
Digital Projection HIGHlite Laser II 3D Series CHOOSING A LENS Full lens calculation Notes Introducing TRC The choice of lens will affect the image size and will address discrepancies between the DMD™ resolution and the source. TRC can only be applied if greater When an image fills the height of the DMD™... -
Page 94: Calculating Trc
Digital Projection HIGHlite Laser II 3D Series CHOOSING A LENS Calculating TRC Notes To calculate TRC, use the following formula: 1.6 (DMD™ aspect ratio) TRC can only be applied if greater TRC = than 1. If TRC is 1 or less, disregard... -
Page 95: Calculating The Throw Ratio With Trc
Digital Projection HIGHlite Laser II 3D Series CHOOSING A LENS Calculating the throw ratio with TRC Notes For TRC > 1, amend the basic throw ratio formula as follows: Throw distance TRC can only be applied if greater Throw ratio = than 1. -
Page 96: Full Lens Calculation Example
Digital Projection HIGHlite Laser II 3D Series CHOOSING A LENS Full lens calculation example Notes Your screen is 4.5 m wide; you wish to place the projector INFORMATION YOU NEED FOR THESE CALCULATIONS approximately 11 m from the screen. The source is 4:3. -
Page 97: Screen Requirements
Digital Projection HIGHlite Laser II 3D Series SCREEN REQUIREMENTS Screen Requirements Notes Fitting the image to the DMD™ If the source image supplied to the projector is smaller than the DMD™ resolution, the image will not fill the DMD™. The following examples show how a number of common formats may be displayed, depending on your DMD™... -
Page 98: Wuxga Images Displayed With A Height Of 1080 Pixels
Digital Projection HIGHlite Laser II 3D Series SCREEN REQUIREMENTS WUXGA images displayed with a height of 1080 pixels Notes 4:3 = 1.33:1 = 1440 pixels 16:10 = 1.6:1 = 1728 pixels 1.66:1 (Vista) = 1792 pixels full width = 1920 pixels... -
Page 99: Wuxga Images Displayed Full Height
Digital Projection HIGHlite Laser II 3D Series SCREEN REQUIREMENTS WUXGA images displayed full height Notes Only WUXGA or UXGA images can fill the full height of the DMD™, using all 1200 pixels without scaling. UXGA = 4:3 = 1.33:1 = 1600 pixels WUXGA = 16:10 = 1.6:1 = 1920 pixels... -
Page 100: Diagonal Screen Sizes
Digital Projection HIGHlite Laser II 3D Series SCREEN REQUIREMENTS Diagonal screen sizes Notes Screen sizes are sometimes specified by their diagonal size (D). When dealing W = width with large screens and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H). -
Page 101: Fitting The Image To The Screen
Digital Projection HIGHlite Laser II 3D Series SCREEN REQUIREMENTS Fitting the image to the screen Notes It is important that your screen is of sufficient height and width to display images at all the aspect ratios you are planning to use. -
Page 102: Positioning The Screen And Projector
Digital Projection HIGHlite Laser II 3D Series SCREEN REQUIREMENTS Positioning the screen and projector Notes For optimum viewing, the screen should be a flat surface perpendicular to the floor. The bottom of the screen should The projector should be installed be 1.2 m (4 feet) above the floor and the front row of the... -
Page 103: Positioning The Image
Digital Projection HIGHlite Laser II 3D Series POSITIONING THE IMAGE Positioning The Image Notes The normal position for the projector is at the centre of the screen. However, you can set the projector above or below the centre, or to one side, and adjust the image using the Lens shift feature (known as rising and falling front) to maintain a geometrically correct image. - Page 104 Digital Projection HIGHlite Laser II 3D Series POSITIONING THE IMAGE Notes Any single adjustment outside the ranges specified on the following page may result in an unacceptable level of distortion, particularly at the corners of the image, due to the image passing through the periphery of the lens optics.
-
Page 105: Maximum Offset Range
Digital Projection HIGHlite Laser II 3D Series POSITIONING THE IMAGE Maximum offset range Notes The maximum offset range available with no distortion or vignetting is dependent on which lens is used. Shifting the lens beyond its undistorted limits may be physically possible, however you may experience some vignetting or distortion. -
Page 106: Aspect Ratios Explained
Digital Projection HIGHlite Laser II 3D Series ASPECT RATIOS EXPLAINED Aspect Ratios Explained Notes The appearance of a projected image on the screen depends on a combination of the following: • The DMD™ resolution is WUXGA with a 1920 x 1200 resolution, corresponding to an aspect ratio of 16:10 •... -
Page 107: Aspect Ratio Examples
Digital Projection HIGHlite Laser II 3D Series ASPECT RATIOS EXPLAINED Aspect ratio examples Notes Source: 4:3 Aspect Ratio: Source / 4:3 Aspect Ratio: 16:10 Source: 16:9 Aspect Ratio: Source / 16:9 Aspect Ratio: 16:10 Source: 16:10 (native) Unused screen areas... - Page 108 Digital Projection HIGHlite Laser II 3D Series ASPECT RATIOS EXPLAINED Aspect ratio example: TheaterScope Notes Notes TheaterScope setting is used in combination with an anamorphic lens to restore 2.35:1 images packed into a 16:9 frame. Such images are projected with black lines at the top and bottom of the 16:9 screen to make up for the difference in aspect ratios.
-
Page 109: Frame Rates And Pulldowns Explained
Digital Projection HIGHlite Laser II 3D Series FRAME RATES AND PULLDOWNS EXPLAINED Frame Rates And Pulldowns Explained Notes Interlaced and progressive scan A progressive scan is a method of updating the image by drawing all the lines of each frame in a sequence. In contrast, interlaced video alternately scans odd and even lines. -
Page 110: Pulldowns - Conversion Into Destination Formats
Digital Projection HIGHlite Laser II 3D Series FRAME RATES AND PULLDOWNS EXPLAINED Pulldowns - conversion into destination formats Notes Pulldowns are a method of converting a 24p source into a different destination format by adding extra frames to the source. -
Page 111: 2:3:3:2 (Advanced) Pulldown
Digital Projection HIGHlite Laser II 3D Series FRAME RATES AND PULLDOWNS EXPLAINED 2:3:3:2 (advanced) pulldown Notes This method is very similar to the normal pulldown. Unlike the normal pulldown method, the resulting 30 fps video sequence contains only one frame containing fields from two different source frames. -
Page 112: Appendix A: Lens Part Numbers
Digital Projection HIGHlite Laser II 3D Series APPENDIX A: LENS PART NUMBERS Appendix A: Lens Part Numbers Notes Throw ratios Part number Throw distance range Lens extension The throw ratios given here apply 0.77 : 1 fixed lens 110-808 1.3 - 15 m (4.3 - 49.2 ft) 170.9 mm... -
Page 113: Appendix B: Lens Charts
Digital Projection HIGHlite Laser II 3D Series APPENDIX B: LENS CHARTS Appendix B: Lens Charts Notes How to use the lens charts For information about individual The lens charts on the following pages provide a quick guide to the Appendix A lens part numbers, see type of lens needed for a particular projector. -
Page 114: Trc Values Applied In The Charts
Digital Projection HIGHlite Laser II 3D Series APPENDIX B: LENS CHARTS TRC values applied in the charts Notes Full width images For information about individual Formats that fit the width of the DMD™ without applying a throw ratio correction (TRC) include:... -
Page 115: Fixed Lenses - Full Dmd™ Width Images
Digital Projection HIGHlite Laser II 3D Series APPENDIX B: LENS CHARTS Fixed lenses - full DMD™ width images Notes Full width images are 2.35:1 (Scope), 1.85:1 (Flat) 1.78:1 (16:9), 1.66:1 (Vista) and 1.6:1 (native). This chart has a TRC of 1.0, for use with the following images: 0.77 : 1 fixed lens... -
Page 116: Zoom Lenses - Full Dmd™ Width Images
Digital Projection HIGHlite Laser II 3D Series APPENDIX B: LENS CHARTS Zoom lenses - full DMD™ width images Notes Full width images are 2.35:1 (Scope), 1.85:1 (Flat) 1.78:1 (16:9), 1.66:1 (Vista) and 1.6:1 (native). This chart has a TRC of 1.0, for use with the following images: 1.45 - 1.74 : 1 zoom lens... -
Page 117: Fixed Lenses - 1.25:1 Images
Digital Projection HIGHlite Laser II 3D Series APPENDIX B: LENS CHARTS Fixed lenses - 1.25:1 images Notes 18 m (59.1 ft) This chart has a TRC of 1.28, for 0.77 : 1 fixed lens use with the following images: 1.16 : 1 fixed lens 15 m (49.2 ft) 1.25:1 (5:4) -
Page 118: Zoom Lenses - 1.25:1 Images
Digital Projection HIGHlite Laser II 3D Series APPENDIX B: LENS CHARTS Zoom lenses - 1.25:1 images Notes 6 m (19.7 ft) This chart has a TRC of 1.28, for 1.45 - 1.74 : 1 zoom lens use with the following images: 1.74 - 2.17 : 1 zoom lens... -
Page 119: Fixed Lenses - 1.33:1 Images
Digital Projection HIGHlite Laser II 3D Series APPENDIX B: LENS CHARTS Fixed lenses - 1.33:1 images Notes 18 m (59.1 ft) This chart has a TRC of 1.2, for use 0.77 : 1 fixed lens with the following images: 1.16 : 1 fixed lens 15 m (49.2 ft) 1.33:1 (4:3) -
Page 120: Zoom Lenses - 1.33:1 Images
Digital Projection HIGHlite Laser II 3D Series APPENDIX B: LENS CHARTS Zoom lenses - 1.33:1 images Notes 6 m (19.7 ft) This chart has a TRC of 1.2, for use 1.45 - 1.74 : 1 zoom lens with the following images: 1.74 - 2.17 : 1 zoom lens... -
Page 121: Appendix C: Supported Signal Input Modes
Digital Projection HIGHlite Laser II 3D Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Appendix C: Supported Signal Input Modes Notes 2D formats HDMI / HD-BaseT 640x480 31.469 59.94 25.175 VESA DMT 640x480 37.500 74.99 31.500 VESA DMT 640x480 43.269 36.000... - Page 122 Digital Projection HIGHlite Laser II 3D Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Notes HDMI / HD-BaseT 1440 x 900 55.935 106.500 VESA DMT 1280 x 768 47.776 79.500 VESA DMT (continued) 1280 x 800 49.702 83.500 VESA DMT 1280 x 960 60.000...
-
Page 123: Formats
Digital Projection HIGHlite Laser II 3D Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Notes HDMI / HD-BaseT HDTV 1080p 67.433 59.94 148.352 (continued) 1080p 67.5 148.500 PsF formats 1080sf 33.75 74.250 1080sf 28.125 74.250 3D formats Remarks: *1: HB(High Bandwidth) mode without warping/blending. - Page 124 Digital Projection HIGHlite Laser II 3D Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Notes Remarks: *1: HB(High Bandwidth) mode without warping/blending. *2: 8-bit / color. 1080p50 Side-by-Side (Half) 1920x1080 50.00 1125 56.25 ü ü 1080p59 Side-by-Side (Half) 1920x1080 59.94 1125 67.43...
-
Page 125: Appendix D: Menu Map
Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Appendix D: Menu Map Notes Menu Sub Menus Some of the information in this menu INPUT map is summarised. See the actual menu on the projector for full details. -
Page 126: Image
Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu IMAGE map is summarised. See the actual Dynamic Black Off, On menu on the projector for full details. -
Page 127: Color
Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu COLOR map is summarised. See the actual Color Space Auto, YPbPr, YCbCr, RGB PC, RGB Video menu on the projector for full details. - Page 128 Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu COLOR map is summarised. See the actual (continued) menu on the projector for full details. Gains and Lifts...
-
Page 129: Geometry
Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu GEOMETRY map is summarised. See the actual Aspect Ratio Source, 5:4, 4:3, 16:10, 16:9, 1.88, 2.35, Theaterscope, Source, Unscaled menu on the projector for full details. - Page 130 Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu GEOMETRY map is summarised. See the actual (continued) menu on the projector for full details. Pincushion / Barrel...
-
Page 131: Edge Blend
Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu EDGE BLEND map is summarised. See the actual Edge Blend Off, On menu on the projector for full details. -
Page 132: Setup
Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu SETUP map is summarised. See the actual Orientation Front Tabletop, Front Ceiling, Rear Tabletop, Rear Ceiling menu on the projector for full details. - Page 133 Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu SETUP map is summarised. See the actual (continued) menu on the projector for full details. Power On/Off Management...
-
Page 134: Network
Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu NETWORK map is summarised. See the actual Network Mode Projector Control, Service menu on the projector for full details. -
Page 135: Information
Digital Projection HIGHlite Laser II 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu INFORMATION map is summarised. See the actual Model Name (information only) menu on the projector for full details. -
Page 136: Appendix E: Wiring Details
Digital Projection HIGHlite Laser II 3D Series APPENDIX E: WIRING DETAILS Appendix E: Wiring Details Notes Signal inputs and outputs 15 way D-type connector VGA: pin view of female connector unused Digital Ground (H Sync) R Ground B Ground G Ground... -
Page 137: Hdmi 1 And 2
Digital Projection HIGHlite Laser II 3D Series APPENDIX E: WIRING DETAILS HDMI 1 and 2 Notes 19 way type A connector TMDS Data 2+ TMDS Data 2 Shield HDMI: pin view of panel connector TMDS Data 2- TMDS Data 1+... -
Page 138: Displayport
Digital Projection HIGHlite Laser II 3D Series APPENDIX E: WIRING DETAILS DisplayPort Notes DisplayPort 1.2 Pin 1 ML_Lane 0 (p) Lane 0 (positive) Pin 2 Ground Pin 3 ML_Lane 0 (n) Lane 0 (negative) DisplayPort: pin view of panel connector... -
Page 139: 3G-Sdi In, 3G-Sdi Out
Digital Projection HIGHlite Laser II 3D Series APPENDIX E: WIRING DETAILS 3G-SDI In, 3G-SDI Out Notes 75 ohm BNC 3G-SDI signals are very high 3G-SDI connector speed digital signals which require better quality coaxial cable than conventional analogue video. The data rate is 3 Gigabits per second. -
Page 140: Control Connections
Digital Projection HIGHlite Laser II 3D Series APPENDIX E: WIRING DETAILS Control connections Notes Only one remote connection (RS232 or LAN) should be used at any one RJ45 socket time. (Shared with HDBaseT) HDBaseT/LAN port RS232 9 way D-type connector... -
Page 141: Trigger 1 & Trigger 2
Digital Projection HIGHlite Laser II 3D Series APPENDIX E: WIRING DETAILS Trigger 1 & Trigger 2 Notes Sleeve 3.5 mm mini jack Signal Sleeve Ground Output: 12V, 200 mA max IR input Sleeve 3.5 mm mini jack Signal Ring Not connected... -
Page 142: Appendix F: Glossary Of Terms
Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS Appendix F: Glossary Of Terms Notes 1080p HDTV resolution which corresponds to 1920 x 1080 pixels (a widescreen aspect ratio of 16:9). 3D active glasses Wireless battery-powered glasses with LCD shutters. Synchronization information is communicated to the glasses by means of an infrared (IR) or radio frequency (RF) emitter which is connected to the Sync Out terminal on the projector. - Page 143 Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS Blanking (projection) Notes The ability to intentionally turn off, that is, set to black, areas around the edges of the projected image. It is sometimes referred to as “curtains”...
- Page 144 Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS Color gamut Notes The spectrum of color available to be displayed. Color temperature The position along the black body curve on the chromaticity diagram, normally quoted in Kelvin. It takes into account the preset values for color balance in the service set-up to take up the variations in the prism.
- Page 145 Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS Dark time Notes frames 3D active glasses, to avoid ghosting The time inserted between when using caused by switching time between left and right eye. DDC (Display Data Channel) A communications link between the source and projector.
- Page 146 Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS EDID (Extended Display Identification Data) Notes Information stored in the projector that can be read by the source. EDID is used on the HDMI, DVI and VGA inputs, allowing the source to automatically configure to the optimum display settings.
- Page 147 Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS Ghosting Notes An artifact in 3D image viewing. Ghosting occurs when an image intended for one eye is partially seen by the other eye. Ghosting can be removed by optimizing the dark time and sync delay.
- Page 148 Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS Interleaving Notes The alternation between left and right eye images when displaying 3D. LED (Light Emitting Diode) An electronic component that emits light. Letterboxing Black margins at the top and bottom of the image. Letterboxing appears when a wider image is packed into a narrower...
- Page 149 Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS PAL (Phase Alternate Line) Notes interlaced fields The television system used in the UK, Australia and other countries - 625 lines transmitted at 50 per second. Pillarboxing Black margins at the left and right of the image. Pillarboxing appears when a narrower image is packed into a wider...
- Page 150 Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS Resolution Notes pixels The number of in an image, usually represented by the number of pixels per line and the number of lines (for example, 1920 x 1200).
- Page 151 Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS TheaterScope Notes aspect ratio anamorphic lens to display 2.35:1 images packed into a 16:9 frame. used in conjunction with a special Throw distance The distance between the screen and the projector.
- Page 152 Digital Projection HIGHlite Laser II 3D Series APPENDIX F: GLOSSARY OF TERMS Vista Notes aspect ratio of 1.66:1. WUXGA A display resolution of 1920 x 1200 pixels with a 16:10 screen aspect ratio. (Stands for Widescreen Ultra Extended Graphics Array.)
-
Page 153: Technical Specifications
Digital Projection HIGHlite Laser II 3D Series TECHNICAL SPECIFICATIONS Technical Specifications Notes Digital Projection reserves the right to change product specifications without prior notice. Models The specifications on these pages refer to the following projector: Series name HIGHlite Laser II 3D Color system: 3-chip DLP®... -
Page 154: Inputs And Outputs
Digital Projection HIGHlite Laser II 3D Series TECHNICAL SPECIFICATIONS Inputs and outputs Notes Type Connector Type Connector Video & Computer Communication & Control HDMI 1.4 HDMI 3D Sync Out DisplayPort 1.1a DisplayPort 3D Sync In HDBaseT/LAN RJ45 LAN (shared with HDBaseT) -
Page 155: Lenses
Digital Projection HIGHlite Laser II 3D Series TECHNICAL SPECIFICATIONS Lenses Notes Detailed information about available lenses can be found in Appendix A: Lens Part Numbers. Further information about lens offsets can be found in Positioning The Image > Maximum offset range. -
Page 156: Electrical And Physical Specifications
Digital Projection HIGHlite Laser II 3D Series TECHNICAL SPECIFICATIONS Electrical and physical specifications Notes • Power requirements 110-240 VAC, 50-60 Hz (single phase) • Power Consumption 1700 W • Thermal Dissipation 5800 BTU/hr • Fan Noise 52 dBA • Operating Temperature 0°C to 35°C (32 to 95F) - Page 157 Digital Projection HIGHlite Laser II 3D Series This page is intentionally left blank. Reference Guide...
-
Page 158: Contact Information
Shi Ao International Center (+65) 6284-1238 (+44) 161 947 3300 powerinfo@digitalprojection.com Chaoyang District (+44) 161 684 7674 www.digitalprojection.com www.digitalprojectionasia.com Beijing 100029, PR CHINA enquiries@digitalprojection.co.uk (+86) 10 84888566 service@digitalprojection.co.uk (+86) 10 84888566-805 www.digitalprojection.co.uk techsupport@dp-china.com.cn www.dp-china.com.cn 118-089B HIGHlite Laser II 3D Series User Manual...
Need help?
Do you have a question about the HIGHlite Laser II 3D Series and is the answer not in the manual?
Questions and answers
