Summary of Contents for Digital Projection HIGHlite Laser 3D Series

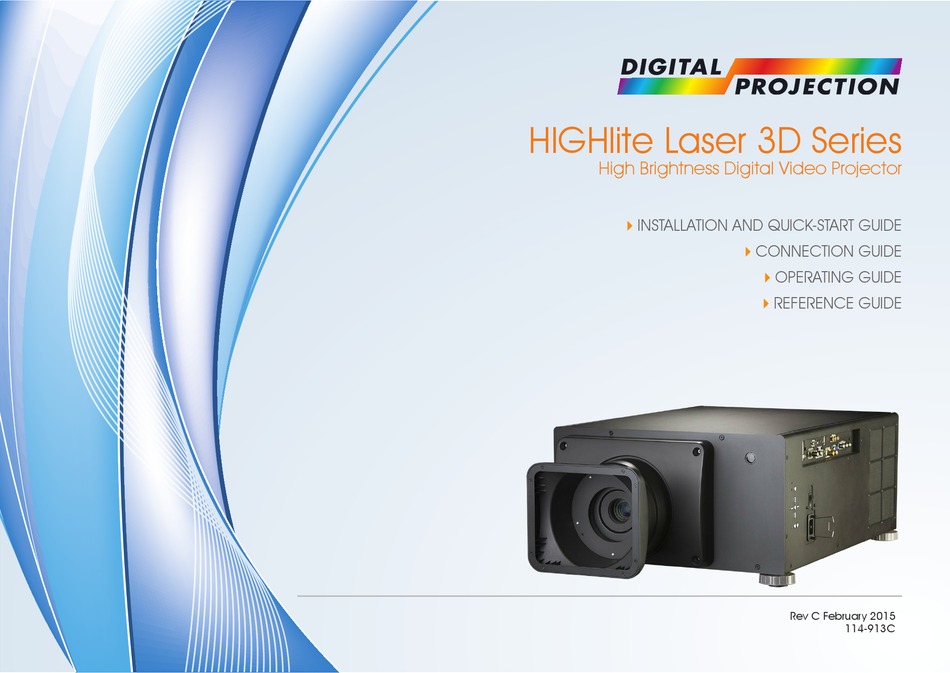

- Page 1 HIGHlite Laser 3D Series High Brightness Digital Video Projector 4INSTALLATION AND QUICK-START GUIDE 4CONNECTION GUIDE 4OPERATING GUIDE 4REFERENCE GUIDE Rev C February 2015 114-913C...
- Page 2 NOTE: this symbol indicates that there is some important information that you should read. Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice.
- Page 3 Digital Projection HIGHlite Laser 3D Series Laser Information Notes LASER LIGHT AVOID DIRECT EYE EXPOSURE CLASS 3R LASER PRODUCT 455-470nm <13Watts CLASSIFIED EN/IEC 60825-1 2007 Caution - use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Rev C February 2015 page ii...
- Page 4 Digital Projection HIGHlite Laser 3D Series Introduction Notes Congratulations on your purchase of this Digital Projection product. Your projector has the following key features: • Support for most 3D formats. • HDBaseT® for transmission of uncompressed High Definition Video up to 100 m from the source.
-
Page 5: Table Of Contents
Digital Projection HIGHlite Laser 3D Series CONTENTS INSTALLATION AND QUICK-START GUIDE ....................20 ......1 Picture WHAT’S IN THE BOX? ..............3 CONNECTING THE POWER SUPPLY ..........4 CONNECTION GUIDE ................21 PROJECTOR OVERVIEW ............... 5 Front and rear views ................5 SIGNAL INPUTS ................ -
Page 6: Operating Guide
Digital Projection HIGHlite Laser 3D Series CONTENTS (continued) OPERATING GUIDE ....................43 ................31 Gamut ..................44 User Gamut USING THE MENUS ..............33 ................46 RGB Lift and Gain Opening the OSD ................33 Geometry menu .................. 47 Opening a menu.................. 33 .................. - Page 7 Digital Projection HIGHlite Laser 3D Series CONTENTS (continued) REFERENCE GUIDE ..............97 ................71 2:3:3:2 (advanced) pulldown APPENDIX A: LENS PART NUMBERS .......... 98 THE DMD™ .................. 74 APPENDIX B: LENS CHARTS ............99 CHOOSING A LENS ..............76 ..............99 How to use the lens charts Basic calculation .................
- Page 8 Digital Projection HIGHlite Laser 3D Series CONTENTS (continued) APPENDIX F: GLOSSARY OF TERMS .........119 TECHNICAL SPECIFICATIONS ..........130 Models....................130 Inputs and outputs................131 Bandwidth ..................131 Remote control and keypad .............. 131 Automation control ................131 Color temperature ................131 Lenses....................
-
Page 9: Installation And Quick-Start Guide
HIGHlite Laser 3D Series High Brightness Digital Video Projector INSTALLATION AND QUICK-START GUIDE Rev C February 2015... - Page 10 Digital Projection HIGHlite Laser 3D Series IN THIS GUIDE IN THIS GUIDE What’s In The Box? ..................... 3 Connecting The Power Supply ................ 4 Projector Overview ..................... 5 Front and rear views ....................Control panel ....................... Remote Control ....................7 Infrared reception ......................
-
Page 11: What's In The Box
Digital Projection HIGHlite Laser 3D Series WHAT’S IN THE BOX? What’s In The Box? Notes Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Only one remote will be supplied with the projector. For more... -
Page 12: Connecting The Power Supply
Digital Projection HIGHlite Laser 3D Series CONNECTING THE POWER SUPPLY Connecting The Power Supply Notes Use only the power cable provided. Ensure that the power outlet includes a ground connection as Lift the cable lock up, push the mains connector in firmly and this equipment MUST be earthed. -
Page 13: Projector Overview
Digital Projection HIGHlite Laser 3D Series PROJECTOR OVERVIEW Projector Overview Notes Front and rear views Do not use the short lens hood with the long throw lens. Control panel Connection panel For further information about using the right lens and hood, see... -
Page 14: Control Panel
Digital Projection HIGHlite Laser 3D Series PROJECTOR OVERVIEW Control panel Notes ON indicator (green) Behavior Meaning During startup all LEDs light up MENU at the same time to indicate the The projector is switched off. projector is carrying out a self-test. -
Page 15: Remote Control
Digital Projection HIGHlite Laser 3D Series REMOTE CONTROL Remote Control Notes Power ON / OFF Shutter OPEN / CLOSE SHUTTER CLOSE OPEN MENU Access the projector OSD (on-screen display). If the OSD is open, press this button to go back to the previous menu. - Page 16 SHIFT Digital Projection HIGHlite Laser 3D Series REMOTE CONTROL Notes Press and hold this button to access alternative functions for all buttons with a green label. HDMI1 HDMI2 HDMI 1 / BRI / numeric input 1 Select the HDMI 1 input.
- Page 17 SHIFT Digital Projection HIGHlite Laser 3D Series REMOTE CONTROL Notes VGA / 3D / numeric input 7 Select the VGA input. Use with to toggle the setting between 3D Format Auto HDMI1 HDMI2 COMP1 / EYE / numeric input 8 Select the Component 1 input.
-
Page 18: Infrared Reception
Digital Projection HIGHlite Laser 3D Series REMOTE CONTROL Infrared reception Notes 40° The projector has infrared sensors at the front and back. The angle of acceptance is 40°. Make sure that the remote control is within the angle of acceptance when trying to control the projector. -
Page 19: Positioning The Screen And Projector
Digital Projection HIGHlite Laser 3D Series POSITIONING THE SCREEN AND PROJECTOR Positioning The Screen And Projector Notes Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. Set the adjustable feet so that Always allow the projector the projector is level, and perpendicular to the screen. -
Page 20: Roll And Pitch
Digital Projection HIGHlite Laser 3D Series POSITIONING THE SCREEN AND PROJECTOR Roll and pitch Notes The projector can be operated in numerous positions. The only non-workable angle is in portrait mode with inputs facing upward, as shown in the diagram. -
Page 21: Changing The Lens
Digital Projection HIGHlite Laser 3D Series CHANGING THE LENS Changing The Lens Notes The lens hood Before changing the lens, There are two types of lens hood, short and long. always make sure the projector The short lens hood is used with the following lenses:... -
Page 22: Inserting A New Lens
Digital Projection HIGHlite Laser 3D Series CHANGING THE LENS Inserting a new lens Notes Before changing the lens, always make sure the projector Insert the lens into the lens aperture, making sure that the plug on the zoom drive is switched off and fully mechanism lines up with socket on the right of the lens aperture. -
Page 23: Removing The Lens
Digital Projection HIGHlite Laser 3D Series CHANGING THE LENS Removing the lens Notes Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. Loosen the four screws securing the lens hood to the body of the projector. -
Page 24: Changing The Filters
Digital Projection HIGHlite Laser 3D Series CHANGING THE FILTERS Changing The Filters Notes Before changing the filters, always make sure the projector is switched off and fully Loosen the screws holding the filter cover. disconnected from its power supply. When changing the filters, avoid using excessive force as this may damage the equipment. -
Page 25: Operating The Projector
Digital Projection HIGHlite Laser 3D Series OPERATING THE PROJECTOR Operating The Projector Notes Switching the projector on Connect the power cable between the mains supply and the projector. Switch on at the switch next to the power connector. See also... -
Page 26: Selecting An Input Signal Or Test Pattern
Digital Projection HIGHlite Laser 3D Series OPERATING THE PROJECTOR Selecting an input signal or test pattern Notes Input signal • Connect an image source to the projector. The signal should be automatically detected by the projector, and should be displayed within For full details of how to use the two or three seconds. -
Page 27: Adjusting The Lens
Digital Projection HIGHlite Laser 3D Series OPERATING THE PROJECTOR Adjusting the lens Notes The lens can be adjusted using the menu, or using the lens buttons on the Lens Lens Control remote control. Lens menu Zoom menu provides access to the... -
Page 28: Adjusting The Image
Digital Projection HIGHlite Laser 3D Series OPERATING THE PROJECTOR Adjusting the image Notes Orientation • Setup menu This can be set from the menu. Setup Orientation Highlight Orientation and choose from Desktop Front Ceiling Front Desktop Rear Ceiling Rear Geometry menu... -
Page 29: Connection Guide
HIGHlite Laser 3D Series High Brightness Digital Video Projector CONNECTION GUIDE Rev C February 2015... - Page 30 Digital Projection HIGHlite Laser 3D Series IN THIS GUIDE IN THIS GUIDE Signal Inputs ....................... 23 Digital inputs and outputs ..................Analog inputs ......................EDID on the DVI and VGA inputs ................Using HDMI/DVI switchers with the projector ............3D connections ......................
-
Page 31: Signal Inputs
Digital Projection HIGHlite Laser 3D Series SIGNAL INPUTS Signal Inputs Notes Digital inputs and outputs For a complete listing of all supported signal input modes, see Appendix C: Supported Signal HDBaseT Input Modes in the Reference Receives digital signal from HDBaseT-compliant Guide. -
Page 32: Analog Inputs
Digital Projection HIGHlite Laser 3D Series SIGNAL INPUTS Analog inputs Notes Component 1 Component 2 For a complete listing of all supported signal input modes, see The Component inputs use colorspaces assigned Appendix C: Supported Signal from the setting in the menu. -
Page 33: Edid On The Dvi And Vga Inputs
Digital Projection HIGHlite Laser 3D Series SIGNAL INPUTS EDID on the DVI and VGA inputs Notes If you are using a computer DVI card or another source that obeys the EDID protocol, the source will automatically configure itself to suit the projector. -
Page 34: 3D Connections
Digital Projection HIGHlite Laser 3D Series SIGNAL INPUTS 3D connections Notes 3D sources up to 60Hz requiring frame doubling and left/right interleaving Connect to either of the following inputs on the connection panel: For a complete listing of all •... -
Page 35: 3D Sync
Digital Projection HIGHlite Laser 3D Series SIGNAL INPUTS 3D Sync Notes 3D Sync in Sync input signal. For a complete listing of pin • configurations for all signal and Connect the 3D sync from your graphics card control connectors, see Appendix or server. -
Page 36: Control Connections
Digital Projection HIGHlite Laser 3D Series CONTROL CONNECTIONS Control Connections Notes For a list of all commands used to • All of the projector’s features can be controlled via a LAN control the projector via LAN, see connection, using commands described in the Protocol Guide. -
Page 37: Lan Connection Examples
Digital Projection HIGHlite Laser 3D Series CONTROL CONNECTIONS LAN connection examples Notes The projector’s features can be controlled via a LAN connection, using Digital Projection’s Projector Controller application or a terminal- emulation program. Projector Controller is available for download, free of charge, from the Digital Projection website. -
Page 38: Rs232 Connection Example
Digital Projection HIGHlite Laser 3D Series CONTROL CONNECTIONS RS232 connection example Notes Straight-through cable Computer Projector RS232 Connection Guide Rev C February 2015 page 30... -
Page 39: Operating Guide
HIGHlite Laser 3D Series High Brightness Digital Video Projector OPERATING GUIDE Rev C February 2015... - Page 40 Digital Projection HIGHlite Laser 3D Series IN THIS GUIDE IN THIS GUIDE Using The Menus ....................33 Geometry menu ......................Opening the OSD ...................... Aspect Ratio ........................Opening a menu ......................Overscan ......................... Exiting menus and closing the OSD ...............
-
Page 41: Using The Menus
Digital Projection HIGHlite Laser 3D Series USING THE MENUS Using The Menus Notes MENU Opening the OSD ERROR Access the various menus using either the projector control panel or the remote control. On either device, SHUTTER • CLOSE OPEN press the MENU button. -
Page 42: Inside A Menu
Digital Projection HIGHlite Laser 3D Series USING THE MENUS Inside a menu Notes MENU>>Sub-menu>> When you open a menu, the page consists of the following elements: • Highlighted Item Value Title bar at the top Shows which menu (and sub-menu) you have accessed. -
Page 43: Editing Projector Settings
Digital Projection HIGHlite Laser 3D Series USING THE MENUS Editing projector settings Notes MENU>> If the highlighted menu item is a setting with a list of values to choose from, you can change the value in two different ways. Highlighted Item... -
Page 44: Using The Projector
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Using The Projector Notes Main menu Signal Inputs in the • Input HDMI1 Input Connection Guide for further Press ENTER/OK to open the list of available inputs. Test Pattern information about the available inputs and connections. -
Page 45: Lens Menu
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Lens menu Notes Lens >> Lens Control Lens Control < Execute > settings operate in Lens Control Zoom/Focus Adjustment Shift Lens Center < Execute > Adjustment mode. When in mode: Zoom/Focus Adjustment •... -
Page 46: Image Menu
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Image menu Notes Image >> Brightness Brightness and Contrast Contrast Highlight the setting you wish to edit, and then press ENTER/OK , or the LEFT Gamma arrow button to open the slider. -
Page 47: Gamma
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Image menu continued from previous page Notes Image >> Gamma Brightness Choose a de-gamma curve from 2.35 Contrast Used correctly, the Gamma setting can improve contrast while maintaining good Gamma details for blacks and whites. -
Page 48: Position And Phase
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Image menu continued from previous page Notes Image >> Position and Phase Position and Phase V Position Press ENTER/OK to open the submenu. Some of the settings within the H Position •... -
Page 49: Color Menu
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Color menu Notes Color >> Color Space Auto Color Space Color Temperature Native In most cases, the Auto setting determines the correct colorspace to use. If it does Color Gamut Native... -
Page 50: Color Temperature
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Color menu continued from previous page Notes Color >> Color Temperature Color Space 3200K Choose a value from 3200K (warmer) to 9300K (cooler) or Native Color Temperature correction). 5500K Color Gamut... -
Page 51: Gamut
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Color menu continued from previous page Notes Color >> Gamut Color Space Auto In most cases, the Auto setting will determine the correct color gamut to use. Color Temperature If it does not, you can select the appropriate setting manually. -
Page 52: User Gamut
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Color menu continued from previous page Notes Color >> User Gamut >> User Gamut Measure Gamut To enable this menu, set Color Gamut User Target RGBW Gamut You can enter your own gamut values here, or edit values you have imported... - Page 53 Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Color menu continued from previous page Notes Color >> User Gamut >> Target RGBW Gamut >> Target RGBW Gamut Red x 0.640 Highlight a target RGBW gamut coordinate, then press to open a ENTER/OK slider.
-
Page 54: Rgb Lift And Gain
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR RGB Lift and Gain Notes Color >> Adjust the RGB lift and gain settings to improve the color balance of the projected image. Color Space Auto Color Temperature Native Highlight the RGB lift or gain setting you wish to edit, and then press... -
Page 55: Geometry Menu
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Geometry menu Notes Geometry >> This menu allows you to compensate for image distortions caused by an unusual projection angle or irregular screen surface. Aspect Ratio 16:10 Some controls in the... -
Page 56: Overscan
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Geometry >> Overscan Aspect Ratio Use this setting to compensate for noisy or badly defined image edges. Overscan Crop Crop removes unwanted artifacts from the edges of your image by cropping the Keystone edges. -
Page 57: Keystone
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Geometry >> Keystone Aspect Ratio 16:10 Use this setting to compensate for any distortion caused by the projector being in Keystone corrections are Overscan a different horizontal or vertical plane to the screen. - Page 58 Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Keystone settings Keystone corrections are Projector to the left unavailable when using any of the The projector is positioned following: to the left of the screen.
-
Page 59: Rotation
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Geometry >> Rotation Aspect Ratio 16:10 Rotation is unavailable when using Overscan any of the following: Keystone • Keystone Rotation Rotation example • Pincushion / Barrel Pincushion / Barrel •... -
Page 60: Pincushion / Barrel
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Geometry >> Pincushion / Barrel Aspect Ratio 16:10 Pincushion / Barrel is unavailable Overscan when using any of the following: Keystone • Keystone Rotation •... -
Page 61: Corners
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Geometry >> Corners Aspect Ratio 16:10 For each corner, apply horizontal and / or vertical correction as necessary to Corner corrections are unavailable Overscan restore the rectangular shape of the image. -
Page 62: Reset
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Geometry >> Reset Aspect Ratio 16:10 This command allows you to reset all Geometry settings apart from Blanking Reset command does not apply Overscan and restore the factory default values. -
Page 63: Blanking
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Geometry menu continued from previous page Notes Geometry >> Blanking >> Blanking Select the edge you wish to blank and use the LEFT RIGHT arrow Blanking corrections are Bottom buttons to determine the amount of correction. -
Page 64: Edge Blend Menu
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Edge Blend menu Notes Edge Blend >> • Edge Blend Enable and disable Edge Blend Edge Blend When Edge Blend is set to • Align Pattern Align Pattern all other edge blend settings are... -
Page 65: Blend Width
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Edge Blend menu continued from previous page Notes Edge Blend >> Blend Width >> Blend Width Use the LEFT RIGHT arrow buttons to set the width of the blended Some controls in the... -
Page 66: Black Level Uplift
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Edge Blend menu continued from previous page Notes Edge Blend >> Black Level Uplift >> Black Level Uplift Select Area Black in the blended regions appears less dark than in the rest of the image. -
Page 67: Possible Geometry And Edge Blend Combinations
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Possible Geometry and Edge Blend combinations Notes Some settings cannot be used in combination with others. The table below shows the possible combinations: Geometry Edge Blend ... -
Page 68: 3D Menu
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR 3D menu Notes 3D >> Use this menu to enable, disable and set up 3D input, as follows: • 3D Format Auto 3D Format — Auto Side by Side (Half) op and Bottom... -
Page 69: 3D Types
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR 3D menu continued from previous page Notes 3D types In most situations you can use the Auto setting to have the projector automatically detect the format. Otherwise, consider the notes below to help you set up the 3D input manually. -
Page 70: Some 3D Settings Explained
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR 3D menu continued from previous page Notes Some 3D settings explained Fully on Right Left In order to achieve maximum light Dark Time output and a smooth grayscale, Ghosting can be caused by the left and right images... -
Page 71: Frame Rate Multiplication In 3D Images
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR 3D menu continued from previous page Notes Frame rate multiplication in 3D images When displaying a low frame rate 3D video, the projector multiplies the frame rate to obtain a flicker-free image. For... -
Page 72: Laser Menu
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Laser menu Notes Laser >> • Power Mode Custom Power Mode Custom Power Level 28 (100%) • will automatically set the laser power to 30%. High Altitude • Normal will set the power to 100%. -
Page 73: Setup Menu
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Setup menu Notes Setup >> • Orientation Choose from Desktop Front Ceiling Front Desktop Rear Orientation Desktop Front Ceiling Rear Auto Power Off • Auto Power Off Auto Power On Set this to... -
Page 74: Infrared Remote
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Setup menu continued from previous page Notes Setup >> Infrared Remote >> Infrared Remote IR Enable • IR Enable If you turn the remote control off, IR Code you can only turn it back on again Set to if you wish to disable the remote control. -
Page 75: Network
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Setup menu continued from previous page Notes Setup >> Network Network DHCP DHCP if the IP address is to be assigned by a DHCP server, or if it is IP Address 192. -
Page 76: On Screen Display
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Setup menu continued from previous page Notes Setup >> On Screen Display >> On Screen Display Position Center • Position Transparency Select from the list where you want the OSD to appear on the screen. -
Page 77: Presets
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Setup menu continued from previous page Notes Setup >> Presets >> Presets Recall Preset Default The current image settings can be saved as a preset, which you can recall later. Presets from one input cannot be... -
Page 78: Information Menu
Digital Projection HIGHlite Laser 3D Series USING THE PROJECTOR Information menu Notes Information >> This menu gives information about software and hardware configuration, input source and laser operating times It also allows you to restore the factory default Model Name : DP WUXGA Laser 3D settings. -
Page 79: Reference Guide
HIGHlite Laser 3D Series High Brightness Digital Video Projector REFERENCE GUIDE Rev C February 2015... - Page 80 Digital Projection HIGHlite Laser 3D Series IN THIS GUIDE IN THIS GUIDE The DMD™ ......................74 Appendix A: Lens Part Numbers ..............98 Choosing A Lens ....................76 Appendix B: Lens Charts ................99 Basic calculation ....................... How to use the lens charts ....................
- Page 81 Digital Projection HIGHlite Laser 3D Series IN THIS GUIDE IN THIS GUIDE (continued) Appendix E: Wiring Details ................113 Signal inputs and outputs ..................VGA ..........................HDMI 1 and 2 ....................... DVI ..........................3G-SDI In, 3G-SDI Out ....................Component 1 .......................
-
Page 82: The Dmd
Digital Projection HIGHlite Laser 3D Series THE DMD™ The DMD™ Notes A DMD™ (Digital Micromirror Device™) is a true digital light modulator which utilises an array of up to 2.3 million moving aluminium mirrors, with each one representing a pixel in the final projected image. The outermost micromirrors in the array remain inactive (pond of mirrors) and are not used in constructing the image. - Page 83 Digital Projection HIGHlite Laser 3D Series THE DMD™ Notes Depending on the voltage polarity applied, each mirror will either tilt to the left to produce a bright pixel or to the right for a dark pixel. When light is applied to the complete DMD™, only the light redirected from a mirror tilting to the left is projected.
-
Page 84: Choosing A Lens
Digital Projection HIGHlite Laser 3D Series CHOOSING A LENS Choosing A Lens Notes A number of lenses are available. Which lens you choose depends on the screen size, image aspect ratio, throw distance and light output. For information about individual lens... -
Page 85: Basic Calculation
Digital Projection HIGHlite Laser 3D Series CHOOSING A LENS Basic calculation Notes Identify the required lens by calculating the throw ratio. A throw ratio is the ratio of the throw distance to the screen width: The basic calculation on this page... -
Page 86: Basic Calculation Example
Digital Projection HIGHlite Laser 3D Series CHOOSING A LENS Basic calculation example Notes INFORMATION YOU NEED FOR THIS CALCULATION Calculate the throw ratio using the formula. The basic calculation on this page does not take into consideration Your screen is 4.5 m wide and you wish to place the projector DMD™... -
Page 87: Full Lens Calculation
Digital Projection HIGHlite Laser 3D Series CHOOSING A LENS Full lens calculation Notes Introducing TRC The choice of lens will affect the image size and will address discrepancies between the DMD™ resolution and the source. TRC can only be applied if greater When an image fills the height of the DMD™... -
Page 88: Calculating Trc
Digital Projection HIGHlite Laser 3D Series CHOOSING A LENS Calculating TRC Notes To calculate TRC, use the following formula: 1.6 (DMD™ aspect ratio) TRC can only be applied if greater TRC = than 1. If TRC is 1 or less, disregard... -
Page 89: Calculating The Throw Ratio With Trc
Digital Projection HIGHlite Laser 3D Series CHOOSING A LENS Calculating the throw ratio with TRC Notes For TRC > 1, amend the basic throw ratio formula as follows: Throw distance TRC can only be applied if greater Throw ratio = than 1. -
Page 90: Full Lens Calculation Example
Digital Projection HIGHlite Laser 3D Series CHOOSING A LENS Full lens calculation example Notes Your screen is 4.5 m wide; you wish to place the projector INFORMATION YOU NEED FOR THESE CALCULATIONS approximately 11 m from the screen. The source is 4:3. -
Page 91: Screen Requirements
Digital Projection HIGHlite Laser 3D Series SCREEN REQUIREMENTS Screen Requirements Notes Fitting the image to the DMD™ If the source image supplied to the projector is smaller than the DMD™ resolution, the image will not fill the DMD™. The following examples show how a number of common formats may be displayed, depending on your DMD™... -
Page 92: Wuxga Images Displayed With A Height Of 1080 Pixels
Digital Projection HIGHlite Laser 3D Series SCREEN REQUIREMENTS WUXGA images displayed with a height of 1080 pixels Notes 4:3 = 1.33:1 = 1440 pixels 16:10 = 1.6:1 = 1728 pixels 1.66:1 (Vista) = 1792 pixels full width = 1920 pixels... -
Page 93: Wuxga Images Displayed Full Height
Digital Projection HIGHlite Laser 3D Series SCREEN REQUIREMENTS WUXGA images displayed full height Notes Only WUXGA or UXGA images can fill the full height of the DMD™, using all 1200 pixels without scaling. UXGA = 4:3 = 1.33:1 = 1600 pixels WUXGA = 16:10 = 1.6:1 = 1920 pixels... -
Page 94: Diagonal Screen Sizes
Digital Projection HIGHlite Laser 3D Series SCREEN REQUIREMENTS Diagonal screen sizes Notes Screen sizes are sometimes specified by their diagonal size (D). When dealing W = width with large screens and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H). -
Page 95: Fitting The Image To The Screen
Digital Projection HIGHlite Laser 3D Series SCREEN REQUIREMENTS Fitting the image to the screen Notes It is important that your screen is of sufficient height and width to display images at all the aspect ratios you are planning to use. -
Page 96: Positioning The Screen And Projector
Digital Projection HIGHlite Laser 3D Series SCREEN REQUIREMENTS Positioning the screen and projector Notes For optimum viewing, the screen should be a flat surface perpendicular to the floor. The bottom of the screen should The projector should be installed be 1.2 m (4 feet) above the floor and the front row of the as close to the power outlet as audience should not have to look up more than 30°... -
Page 97: Positioning The Image
Digital Projection HIGHlite Laser 3D Series POSITIONING THE IMAGE Positioning The Image Notes The normal position for the projector is at the centre of the screen. However, you can set the projector above or below the centre, or to one side, and adjust the image using the Lens shift feature (known as rising and falling front) to maintain a geometrically correct image. - Page 98 Digital Projection HIGHlite Laser 3D Series POSITIONING THE IMAGE Notes Any single adjustment outside the ranges specified on the following page may result in an unacceptable level of distortion, particularly at the corners of the image, due to the image passing through the periphery of the lens optics.
-
Page 99: Maximum Offset Range
Digital Projection HIGHlite Laser 3D Series POSITIONING THE IMAGE Maximum offset range Notes The maximum offset range available with no distortion or vignetting is dependent on which lens is used. Shifting the lens beyond its undistorted limits may be physically possible, however you may experience some vignetting or distortion. -
Page 100: Aspect Ratios Explained
Digital Projection HIGHlite Laser 3D Series ASPECT RATIOS EXPLAINED Aspect Ratios Explained Notes The appearance of a projected image on the screen depends on a combination of the following: • The DMD™ resolution is WUXGA with a 1920 x 1200 resolution, corresponding to an aspect ratio of 16:10 •... -
Page 101: Aspect Ratio Examples
Digital Projection HIGHlite Laser 3D Series ASPECT RATIOS EXPLAINED Aspect ratio examples Notes Source: 4:3 Aspect Ratio: Source / 4:3 Aspect Ratio: 16:10 Source: 16:9 Aspect Ratio: Source / 16:9 Aspect Ratio: 16:10 Source: 16:10 (native) Unused screen areas Aspect Ratio: Source / 16:10... - Page 102 Digital Projection HIGHlite Laser 3D Series ASPECT RATIOS EXPLAINED Aspect ratio example: TheaterScope Notes Notes setting is used in combination with an anamorphic lens to restore 2.35:1 images packed into a 16:9 frame. Such images TheaterScope are projected with black lines at the top and bottom of the 16:9 screen to make up for the difference in aspect ratios.
-
Page 103: Frame Rates And Pulldowns Explained
Digital Projection HIGHlite Laser 3D Series FRAME RATES AND PULLDOWNS EXPLAINED Frame Rates And Pulldowns Explained Notes Interlaced and progressive scan A progressive scan is a method of updating the image by drawing all the lines of each frame in a sequence. In contrast, interlaced video alternately scans odd and even lines. -
Page 104: Pulldowns - Conversion Into Destination Formats
Digital Projection HIGHlite Laser 3D Series FRAME RATES AND PULLDOWNS EXPLAINED Pulldowns - conversion into destination formats Notes Pulldowns are a method of converting a 24p source into a different destination format by adding extra frames to the source. 2:3 (normal) pulldown This method is used to convert a 24p source (film) into a 60i destination (NTSC video) by adding two extra fields for every four frames, effectively increasing the frame rate to 30 fps. -
Page 105: 2:3:3:2 (Advanced) Pulldown
Digital Projection HIGHlite Laser 3D Series FRAME RATES AND PULLDOWNS EXPLAINED 2:3:3:2 (advanced) pulldown Notes This method is very similar to the normal pulldown. Unlike the normal pulldown method, the resulting 30 fps video sequence contains only one frame containing fields from two different source frames. -
Page 106: Appendix A: Lens Part Numbers
Digital Projection HIGHlite Laser 3D Series APPENDIX A: LENS PART NUMBERS Appendix A: Lens Part Numbers Notes Throw ratios Part number Throw distance range The throw ratios given here apply 0.77 : 1 fixed lens 110-808 1.3 - 2.5 m (4.3 - 8.2 ft) only when the image fills the width of the DMD™. -
Page 107: Appendix B: Lens Charts
Digital Projection HIGHlite Laser 3D Series APPENDIX B: LENS CHARTS Appendix B: Lens Charts Notes How to use the lens charts For information about individual The lens charts on the following pages provide a quick guide to the lens part numbers, see Appendix A type of lens needed for a particular projector. -
Page 108: Trc Values Applied In The Charts
Digital Projection HIGHlite Laser 3D Series APPENDIX B: LENS CHARTS TRC values applied in the charts Notes Full width images For information about individual Formats that fit the width of the DMD™ without applying a throw ratio correction (TRC) include:... -
Page 109: Full Dmd™ Width Images
Digital Projection HIGHlite Laser 3D Series APPENDIX B: LENS CHARTS Full DMD™ width images Notes Full width images are 2.35:1 (Scope), 1.85:1 (Flat) 1.78:1 (16:9), 1.66:1 (Vista) and 1.6:1 (native). This chart has a TRC of 1.0, for use with the following images: 0.77 : 1 fixed lens... -
Page 110: 1.25:1 Images
Digital Projection HIGHlite Laser 3D Series APPENDIX B: LENS CHARTS 1.25:1 images Notes 6 m (19.7 ft) This chart has a TRC of 1.28, for 0.77 : 1 fixed lens use with the following images: 1.16 : 1 fixed lens 1.45 - 1.74 : 1 zoom lens 5 m (16.4 ft) 1.25:1 (5:4) -
Page 111: 1.33:1 Images
Digital Projection HIGHlite Laser 3D Series APPENDIX B: LENS CHARTS 1.33:1 images Notes 6 m (19.7 ft) This chart has a TRC of 1.2, for use 0.77 : 1 fixed lens with the following images: 1.16 : 1 fixed lens 1.45 - 1.74 : 1 zoom lens 5 m (16.4 ft) 1.33:1 (4:3) -
Page 112: Appendix C: Supported Signal Input Modes
Digital Projection HIGHlite Laser 3D Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Appendix C: Supported Signal Input Modes Notes 2D input modes SDTV 480i 720 x 480 59.94 15.73 ü ü 576i 720 x 576 50.00 15.63 ü ü EDTV... - Page 113 Digital Projection HIGHlite Laser 3D Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES Notes COMPUTER SVGA60 800 x 600 60.32 37.88 ü ü ü (continued) SVGA75 800 x 600 75.00 46.88 ü ü ü SVGA85 800 x 600 85.06 53.67 ü...
-
Page 114: 3D Input Modes
Digital Projection HIGHlite Laser 3D Series APPENDIX C: SUPPORTED SIGNAL INPUT MODES 3D input modes Notes Only the HDMI 1 & 2 and HDBaseT inputs support HDMI 1.4 3D formats. SXGA60 Dual Pipe 1280 x 1024 60.02 1066 63.98 ü... -
Page 115: Appendix D: Menu Map
Digital Projection HIGHlite Laser 3D Series APPENDIX D: MENU MAP Appendix D: Menu Map Notes Menu Sub Menus Some of the information in this menu map is summarised. See the actual MAIN menu on the projector for full details. Input HDMI1, HDMI2, VGA, Comp1, Comp2, DVI, HDBaseT, SDI... -
Page 116: Color
Digital Projection HIGHlite Laser 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu COLOR map is summarised. See the actual Color Space Auto, YPbPr, YCbCr, RGB PC, RGB Video menu on the projector for full details. -
Page 117: Geometry
Digital Projection HIGHlite Laser 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu GEOMETRY map is summarised. See the actual Aspect Ratio 16:9, TheaterScope, 4:3, 4:3 Narrow, 16:10, 5:4, Source menu on the projector for full details. -
Page 118: Edge Blend
Digital Projection HIGHlite Laser 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu EDGE BLEND map is summarised. See the actual Edge Blend Off, On menu on the projector for full details. -
Page 119: Setup
Digital Projection HIGHlite Laser 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu SETUP map is summarised. See the actual Orientation Desktop Front, Ceiling Front, Desktop Rear, Ceiling Rear menu on the projector for full details. -
Page 120: Information
Digital Projection HIGHlite Laser 3D Series APPENDIX D: MENU MAP Notes Menu Sub Menus Some of the information in this menu INFORMATION map is summarised. See the actual Model Name (information only) menu on the projector for full details. Serial Number (information only) -
Page 121: Appendix E: Wiring Details
Digital Projection HIGHlite Laser 3D Series APPENDIX E: WIRING DETAILS Appendix E: Wiring Details Notes Signal inputs and outputs 15 way D-type connector VGA: pin view of female connector unused Digital Ground (H Sync) R Ground B Ground G Ground... -
Page 122: Hdmi 1 And 2
Digital Projection HIGHlite Laser 3D Series APPENDIX E: WIRING DETAILS HDMI 1 and 2 Notes 19 way type A connector TMDS Data 2+ TMDS Data 2 Shield HDMI: pin view of panel connector TMDS Data 2- TMDS Data 1+ TMDS Data 1 Shield... -
Page 123: Dvi
Digital Projection HIGHlite Laser 3D Series APPENDIX E: WIRING DETAILS Notes 24 way D-type connector Pin 1 TMDS data 2− Digital red− (link 1) High-bandwidth Digital Content Pin 2 TMDS data 2+ Digital red+ (link 1) Protection (HDCP) is supported on... -
Page 124: 3G-Sdi In, 3G-Sdi Out
Digital Projection HIGHlite Laser 3D Series APPENDIX E: WIRING DETAILS 3G-SDI In, 3G-SDI Out Notes 75 ohm BNC 3G-SDI signals are very high 3G-SDI connector speed digital signals which require better quality coaxial cable than conventional analogue video. The data rate is 3 Gigabits per second. -
Page 125: Control Connections
Digital Projection HIGHlite Laser 3D Series APPENDIX E: WIRING DETAILS Control connections Notes Only one remote connection (RS232 or LAN) should be used at any one RJ45 socket time. Update port RS232 9 way D-type connector 1 unused 2 Received Data (RX) -
Page 126: Trigger 1 & Trigger 2
Digital Projection HIGHlite Laser 3D Series APPENDIX E: WIRING DETAILS Trigger 1 & Trigger 2 Notes Sleeve 3.5 mm mini jack Signal Sleeve Ground IR input Sleeve 3.5 mm mini jack Signal Ring Not connected Sleeve Ground Ring USB type A socket... -
Page 127: Appendix F: Glossary Of Terms
Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS Appendix F: Glossary Of Terms Notes 1080p HDTV resolution pixels aspect ratio which corresponds to 1920 x 1080 (a widescreen of 16:9). 3D active glasses Wireless battery-powered glasses with LCD shutters. Synchronization information is communicated to the glasses by means of an infrared (IR) or radio frequency (RF) emitter which is connected to the Sync Out terminal on the projector. - Page 128 Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS Aspect ratio Notes The proportional relationship between the width and the height of the projected image. It is represented by two numbers separated by a colon, indicating the ratio of image width and height respectively: for example, 16:9 or 2.35:1.
- Page 129 Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS Chrominance Notes Also known as ‘C’, this is the component, or pair of components, of a Component Video signal which describes color difference information. Color difference Component Video luminance signals, the difference between specified colors and the component.
- Page 130 Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS Crop Notes Remove part of the projected image. Alternatively, fit an image into a frame with a different aspect ratio by removing part of the image. The image is resized so that either its length or its width equals the length or width of the frame, while the other dimension has moved outside the frame;...
- Page 131 Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS Edge tear Notes An artifact observed in interlaced video where the screen appears to be split horizontally. Edge tears appear when the video feed is out of sync with the refresh rate of the display device.
- Page 132 Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS Gamma Notes A nonlinear operation used to code and decode luminance. It originates from the Cathode Ray Tube technology used in legacy television sets. Ghosting An artifact in 3D image viewing. Ghosting occurs when an image intended for one eye is partially seen by the other eye.
- Page 133 Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS Interlacing Notes A method of updating the image. The screen is divided in two fields, one containing every odd horizontal line, the other one containing the even lines. The fields are then alternately updated. In analog TV interlacing was commonly used as a way of doubling the refresh rate without consuming extra bandwidth.
- Page 134 Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS OSD (on-screen display) Notes The projector menus allowing you to adjust various settings. Overlapping region blend region. PAL (Phase Alternate Line) The television system used in the UK, Australia and other countries - 625 lines transmitted at 50 interlaced fields per second.
- Page 135 Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS Progressive scanning Notes A method of updating the image in which the lines of each frame are drawn in a sequence, without interlacing. Pulldown frame rate (25 fps for PAL/SECAM, 30 fps for NTSC) by adding extra frames. DP The process of converting a 24 fps film footage to a video projectors automatically carry out reverse pulldown whenever possible.
- Page 136 Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS Synchronization Notes A timing signal used to coordinate an action. Test pattern A still image specially prepared for testing a projection system. It may contain various combinations of colors, lines and geometric shapes.
- Page 137 Digital Projection HIGHlite Laser 3D Series APPENDIX F: GLOSSARY OF TERMS Vertical Scan Rate Notes The rate at which the frames of the incoming signal are refreshed. The rate is set by the vertical synchronization from the source and measured in Hertz.
-
Page 138: Technical Specifications
Digital Projection HIGHlite Laser 3D Series TECHNICAL SPECIFICATIONS Technical Specifications Notes Digital Projection reserves the right to change product specifications without prior notice. Models The specifications on these pages refer to the following projector: Series name HIGHlite Laser WUXGA 3D Color system: 3-chip DLP®... -
Page 139: Inputs And Outputs
Digital Projection HIGHlite Laser 3D Series TECHNICAL SPECIFICATIONS Inputs and outputs Notes Type Connector Type Connector Video & Computer Communication & Control HDMI 1.4 HDMI 3D Sync Out DVI-D 3D Sync In HDBaseT RJ45 RJ45 3G-SDI In RS232 9-pin D-Sub... -
Page 140: Lenses
Digital Projection HIGHlite Laser 3D Series TECHNICAL SPECIFICATIONS Lenses Notes Detailed information about available lenses can be found in Appendix A: Lens Part Numbers. Further information about lens offsets can be found in Positioning The Image > Maximum offset range. -
Page 141: Electrical And Physical Specifications
Digital Projection HIGHlite Laser 3D Series TECHNICAL SPECIFICATIONS Electrical and physical specifications Notes • Power requirements 200-240 VAC, 50-60 Hz (single phase) • Power Consumption 1600 W • Thermal Dissipation 5027 BTU/hr • Fan Noise 48 dBA • Operating Temperature 0°C to 35°C (32 to 95F) -
Page 142: Contact Information
Shi Ao International Center (+65) 6284-1238 (+44) 161 947 3300 powerinfo@digitalprojection.com Chaoyang District (+44) 161 684 7674 www.digitalprojection.com www.digitalprojectionasia.com Beijing 100029, PR CHINA enquiries@digitalprojection.co.uk (+86) 10 84888566 service@digitalprojection.co.uk (+86) 10 84888566-805 www.digitalprojection.co.uk techsupport@dp-china.com.cn www.dp-china.com.cn 114-913C HIGHlite Laser 3D Series User Manual...
Need help?
Do you have a question about the HIGHlite Laser 3D Series and is the answer not in the manual?
Questions and answers
