Digital Projection E-Vision Laser 8500 Series Important Information Manual
Super high brightness digital video projector
Hide thumbs
Also See for E-Vision Laser 8500 Series:
- User manual (114 pages) ,
- Installation and quick start manual (126 pages)
Subscribe to Our Youtube Channel
Related Manuals for Digital Projection E-Vision Laser 8500 Series
Summary of Contents for Digital Projection E-Vision Laser 8500 Series

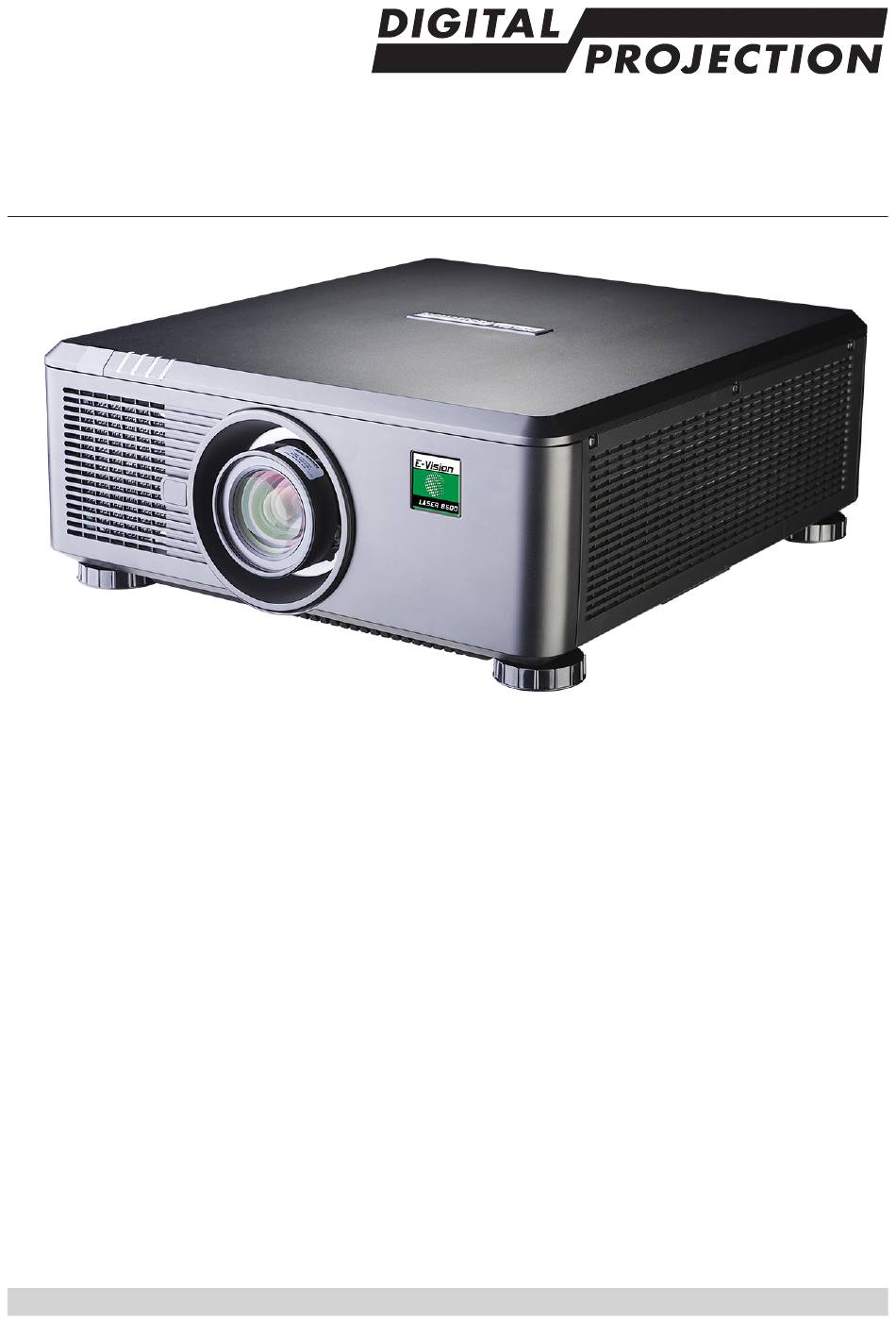

- Page 1 E-Vision Laser 7500 Series E-Vision Laser 8500 Series Super High Brightness Digital Video Projector Important Information 117-440D Rev D January 2017...
- Page 2 Important Information Digital Projection E-Vision Laser 7500 & 8500 Series Digital Projection Digital Projection Limited Digital Projection China Greenside Way, Middleton 中国 北京市 朝阳区 芍药居北里101号 Manchester M24 1XX, UK 世奥国际中心A座2006室(100029) Rm A2006 Registered in England No. 2207264 ShaoYaoJu 101 North Lane...
-
Page 3: Table Of Contents
Digital Projection E-Vision Laser 7500 & 8500 Series Important Information Super High Brightness Digital Video Projector Important Information Contents Symbols used in the User Manual ....................4 Electrical and physical specifications ..................5 Laser precautions ..........................5 Product labels ............................6 Label locations ..........................7 Location of laser aperture ......................8... -
Page 4: Symbols Used In The User Manual
Important Information Digital Projection E-Vision Laser 7500 & 8500 Series Symbols used in the User Manual LASER WARNING: this symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed. ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock unless the instructions are closely followed. -
Page 5: Electrical And Physical Specifications
Digital Projection E-Vision Laser 7500 & 8500 Series Important Information Electrical and physical specifications Main Voltage 200-240 VAC 4.5A 50/60Hz 100-130 VAC 9.5A 50/60Hz Operating Temperature 0°C to 40°C Storage Temperature -20°C to 60°C Operating Humidity 20% to 90% non-condensing Weight 28 kg (61.7 lb) without lens... -
Page 6: Product Labels
Important Information Digital Projection E-Vision Laser 7500 & 8500 Series Product labels Complies with FDA performance standards for laser products except for deviations pursuant to Laser Model/Modèle/ ( 型號 / 型號 ) : E-Vision Laser 8500 WUXGA Notice No. 50, dated June 24, 2007 AC INPUT/Entrée CA ( 輸入... -
Page 7: Label Locations
Digital Projection E-Vision Laser 7500 & 8500 Series Important Information Label locations AUTO CENTER RS-232 R/Pr MONITOR OUT POWER INPUT ASPECT BLANK B/Pb SYNC LENS TRIGGER LENS FOCUS ZOOM MENU EXIT SHIFT WIRED REMOTE HDBaseT/LAN HDMI 1 DVI-D DISPLAYPORT HDMI II... -
Page 8: Location Of Laser Aperture
Important Information Digital Projection E-Vision Laser 7500 & 8500 Series Location of laser aperture The laser aperture is located as indicated below. Laser aperture Interlock switches Three interlock switches installed at the main frame, inside the cover, will power-off the system individually when activated. -
Page 9: General Precautions
Digital Projection E-Vision Laser 7500 & 8500 Series Important Information General precautions The unit is never to be operated if the unit is defective or the cover or seal is damaged. No maintenance allowed by end user. Do not open the cabinet. There are no user serviceable parts inside. -
Page 10: Installation Precautions
Important Information Digital Projection E-Vision Laser 7500 & 8500 Series Installation precautions Connect the LAN cable only to a computer LAN connection. Other similar connectors may have a dangerously high voltage source. The projector must be installed only by suitably qualified personnel, in accordance with local building codes. -
Page 11: Operation And Configuration Precautions
Equipment. Our products are designed with reuse, recycling and recovery of all components in mind. To this end, at end of life, your projector may be returned to Digital Projection Ltd or its agent so that the environmental impact can be minimised. -
Page 12: Basic Operation Instructions
Important Information Digital Projection E-Vision Laser 7500 & 8500 Series Basic Operation Instructions Positioning the screen and projector Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. -
Page 13: Connecting The Power Supply
Digital Projection E-Vision Laser 7500 & 8500 Series Important Information Connecting the power supply Adjust the VOLTAGE SELECT switch to the required voltage, then firmly push the mains connector into the socket Voltage selection The VOLTAGE SELECT switch must be set to match the power supply you are using:... -
Page 14: Switching The Projector On
Important Information Digital Projection E-Vision Laser 7500 & 8500 Series Switching the projector on Connect the power cable between the mains supply and the projector. (See Connecting the power supply above.) Switch on at the switch next to the power connector. -
Page 15: Selecting A Test Pattern
Digital Projection E-Vision Laser 7500 & 8500 Series Important Information Selecting a test pattern To display a test pattern: • Press on the remote control. If necessary, press again to change the test pattern. Test TEST patterns are displayed in the following order: White, Black, Red, Green, Blue, CheckerBoard, CrossHatch, V Burst, H Burst, ColorBar, Off After the final test pattern, the projector exits test pattern mode and returns to the main image. -
Page 16: Inserting A New Lens
Important Information Digital Projection E-Vision Laser 7500 & 8500 Series Inserting a new lens Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. When changing the lens, avoid using excessive force as this may damage the equipment. -
Page 17: Removing The Lens
Digital Projection E-Vision Laser 7500 & 8500 Series Important Information Removing the lens Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. When changing the lens, avoid using excessive force as this may damage the equipment. -
Page 18: Control Panel Reference
Important Information Digital Projection E-Vision Laser 7500 & 8500 Series Control Panel Reference AUTO CENTER POWER INPUT ASPECT PIC MUTE SYNC LENS Page 18 Rev D January 2017... -
Page 19: Projector Indicators
Digital Projection E-Vision Laser 7500 & 8500 Series Important Information POWER Switches the projector on and off (STANDBY). INPUT Switches to the next input source. AUTO SYNC Re-synchronises with the current input signal. ASPECT Changes the aspect ratio. CENTER LENS Centers the lens. -
Page 20: Remote Control Reference
Important Information Digital Projection E-Vision Laser 7500 & 8500 Series Remote Control Reference Power ON/OFF Turns the projector on and off. To turn the projector off, press the OFF button twice within five seconds. Pic Mute OPEN / CLOSE Pic Mute Shows and hides the projected image. - Page 21 Digital Projection E-Vision Laser 7500 & 8500 Series Important Information EXIT INFO LENS adjustment FREEZE RE-SYNC adjust focus. FOCUS IN / OUT: press and hold this button, SHIFT: then use the Navigation arrow buttons to move the lens. LENS FOCUS ZOOM adjust zoom.
- Page 22 SHIFT Important Information Digital Projection E-Vision Laser 7500 & 8500 Series USER PRESET DISPLAYPORT / R / numeric input 4 Select DisplayPort input. HDMI1 HDMI2 HD-T / G / numeric input 5 Select the HDBaseT input. GAMMA DISPLAYPORT HD-T 3GSDI...
