Summary of Contents for Digital Projection HIGHlite Laser II 3D Series
-

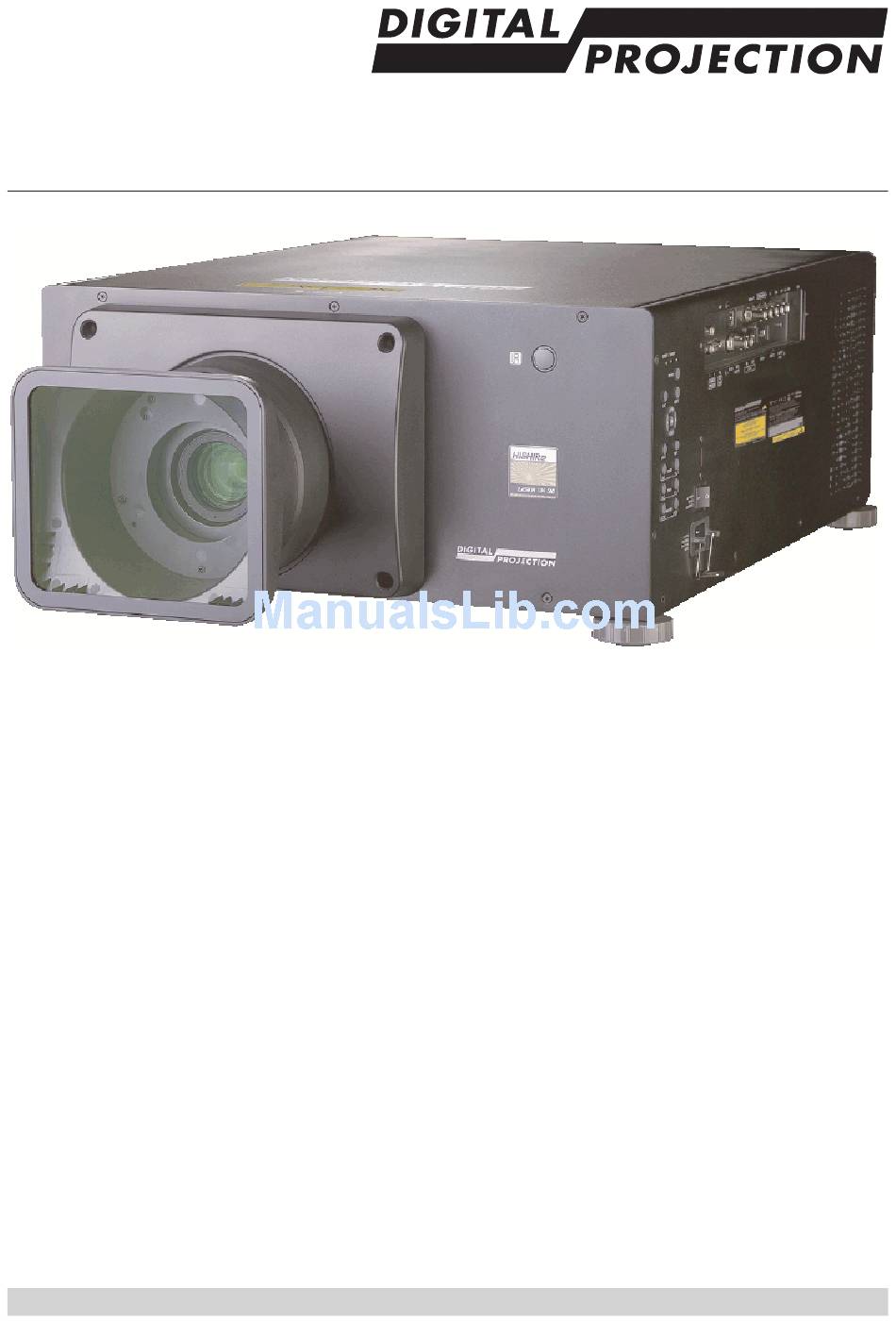

Page 1: Important Information

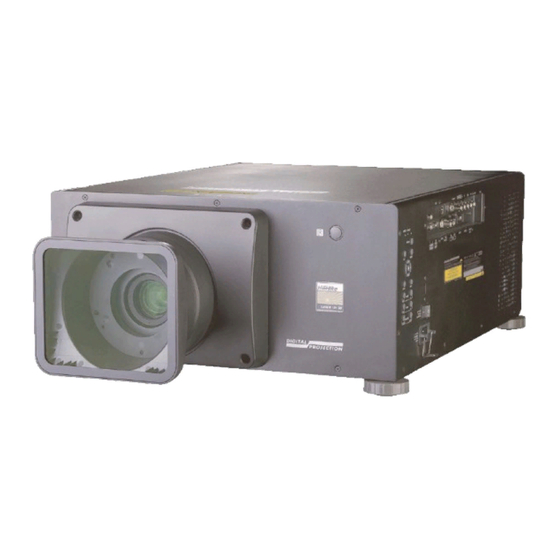

HIGHlite Laser II 3D Series Super High Brightness Digital Video Projector Important Information 117-895C Rev C April 2017... -
Page 2: Digital Projection
Important Information Digital Projection HIGHlite Laser II 3D Series Digital Projection Digital Projection Limited Digital Projection China Greenside Way, Middleton 中国 北京市 朝阳区 芍药居北里101号 Manchester M24 1XX, UK 世奥国际中心A座2006室(100029) Rm A2006 Registered in England No. 2207264 ShaoYaoJu 101 North Lane... -
Page 3: Table Of Contents
Digital Projection HIGHlite Laser II 3D Series Important Information Super High Brightness Digital Video Projector Important Information Contents Symbols used in the User Manual ....................4 Electrical and physical specifications ..................5 Laser precautions ..........................5 Product labels ............................6 Label locations ..........................7 Location of laser aperture ......................8... -
Page 4: Symbols Used In The User Manual
Important Information Digital Projection HIGHlite Laser II 3D Series Symbols used in the User Manual LASER WARNING: this symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed. ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock unless the instructions are closely followed. -
Page 5: Electrical And Physical Specifications
Digital Projection HIGHlite Laser II 3D Series Important Information Electrical and physical specifications Mains Voltage 200-240 VAC 9 A 50/60 Hz (single phase) 110-130 VAC 11.5 A 50/60 Hz (single phase) Operating Temperature 0°C to 35°C Storage Temperature -20°C to 60°C... -
Page 6: Product Labels
Important Information Digital Projection HIGHlite Laser II 3D Series Product labels MSIP-REM-DVP-LaserII3D KTL ZU10002-16011 Digital Projection Limited DLP PROJECTOR / DLP Projecteur 製造商: 數 位 投 影 機 / 数 字 投 影 机 델타 비디오 디스플레이 Greenside Way Middleton 시스템... -
Page 7: Label Locations
Digital Projection HIGHlite Laser II 3D Series Important Information MSIP-REM-DVP-LaserII3D KTL ZU10002-16011 DLP PROJECTOR / DLP Projecteur 數 位 投 影 機 / 数 字 投 影 机 델타 비디오 디스플레이 시스템 (우장) 리미티드 +822-515-5303 Model/Modèle 型號 / 型号 HIGHlite Laser II 3D 200-240Vac 9A 50/60Hz This device complies with part 15 of the FCC rules. -
Page 8: Location Of Laser Aperture
Important Information Digital Projection HIGHlite Laser II 3D Series Location of laser aperture The laser aperture is located as indicated below. Interlock switches Five interlock switches installed at the main frame, inside the cover, will power-off the system individually when activated. -
Page 9: Lens Hood
Digital Projection HIGHlite Laser II 3D Series Important Information Lens hood The lens hood is compatible with the following lenses: Throw ratios Part number 0.77 : 1 fixed lens 110-808 1.16 : 1 fixed lens 110-809 1.45 - 1.74 : 1 zoom lens 110-803 1.74 - 2.17 : 1 zoom lens... -
Page 10: General Precautions
Important Information Digital Projection HIGHlite Laser II 3D Series General precautions The unit is never to be operated if the unit is defective or the cover or seal is damaged. No maintenance allowed by end user. Do not open the cabinet. There are no user serviceable parts inside. -
Page 11: Installation Precautions
Digital Projection HIGHlite Laser II 3D Series Important Information Installation precautions Connect the LAN cable only to a computer LAN connection. Other similar connectors may have a dangerously high voltage source. The projector must be installed only by suitably qualified personnel, in accordance with local building codes. -
Page 12: Operation And Configuration Precautions
Equipment. Our products are designed with reuse, recycling and recovery of all components in mind. To this end, at end of life, your projector may be returned to Digital Projection Ltd or its agent so that the environmental impact can be minimised. -
Page 13: Basic Operation Instructions
Digital Projection HIGHlite Laser II 3D Series Important Information Basic Operation Instructions Positioning the screen and projector Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. -
Page 14: Connecting The Power Supply
Important Information Digital Projection HIGHlite Laser II 3D Series Connecting the power supply Adjust the VOLTAGE SELECT switch to the required voltage, then firmly push the mains connector into the socket 200-240Vac VOLTAGE SELECT 交流電壓選擇 110-130Vac AC POWER SWITCH 交流電源開關... -
Page 15: Switching The Projector On
POWER After approximately 15 seconds, the indicator begins flashing blue. When the flashing stops, indicator lights solid blue and the Digital Projection logo appears on the screen. The projector is switched on. Switching the projector off Press on the remote control or... -
Page 16: Selecting A Test Pattern
Important Information Digital Projection HIGHlite Laser II 3D Series Selecting a test pattern To display a test pattern: • Press on the remote control. If necessary, press again to change the test pattern. Test TEST patterns are displayed in the following order: White, Black, Red, Green, Blue, CheckerBoard, CrossHatch, V Burst, H Burst, ColorBar, Off After the final test pattern, the projector exits test pattern mode and returns to the main image. -
Page 17: Inserting A New Lens
Digital Projection HIGHlite Laser II 3D Series Important Information Inserting a new lens Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. When changing the lens, avoid using excessive force as this may damage the equipment. -
Page 18: Removing The Lens
Important Information Digital Projection HIGHlite Laser II 3D Series Removing the lens Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. When changing the lens, avoid using excessive force as this may damage the equipment. -
Page 19: Changing The Filters
Digital Projection HIGHlite Laser II 3D Series Important Information Changing the filters Before changing the filters, always make sure the projector is switched off and fully disconnected from its power supply. When changing the filters, avoid using excessive force as this may damage the equipment. -
Page 20: Control Panel Reference
Important Information Digital Projection HIGHlite Laser II 3D Series Control Panel Reference ERROR STANDBY MENU EXIT INPUT SHIFT FOCUS ZOOM SHUTTER CLOSE OPEN Page 20 Rev C April 2017... - Page 21 Digital Projection HIGHlite Laser II 3D Series Important Information ON indicator (blue) Behavior Meaning The projector is switched off. The projector is switched ON. Flashing The projector is warming up or cooling down. ERROR indicator (red) Behavior Meaning Flash once, then pause Laser failure.
-
Page 22: Remote Control Reference
Important Information Digital Projection HIGHlite Laser II 3D Series Remote Control Reference Power ON/OFF Turns the projector on and off. To turn the projector off, press the OFF button twice within five seconds. Pic Mute OPEN / CLOSE Pic Mute Shows and hides the projected image. - Page 23 Digital Projection HIGHlite Laser II 3D Series Important Information EXIT INFO LENS adjustment FREEZE RE-SYNC adjust focus. FOCUS IN / OUT: press and hold this button, SHIFT: then use the Navigation arrow buttons to move the lens. LENS FOCUS ZOOM adjust zoom.
- Page 24 SHIFT Important Information Digital Projection HIGHlite Laser II 3D Series USER PRESET DISPLAYPORT / R / numeric input 4 Select DisplayPort input. HDMI1 HDMI2 HD-T / G / numeric input 5 Select the HDBaseT input. GAMMA DISPLAYPORT HD-T 3GSDI ADDR 3GSDI / B / numeric input 6 Select the 3G-SDI input.
