Power/Composite - FDS FD141CV-C-1 Installation And Operation Manual

Power/Composite

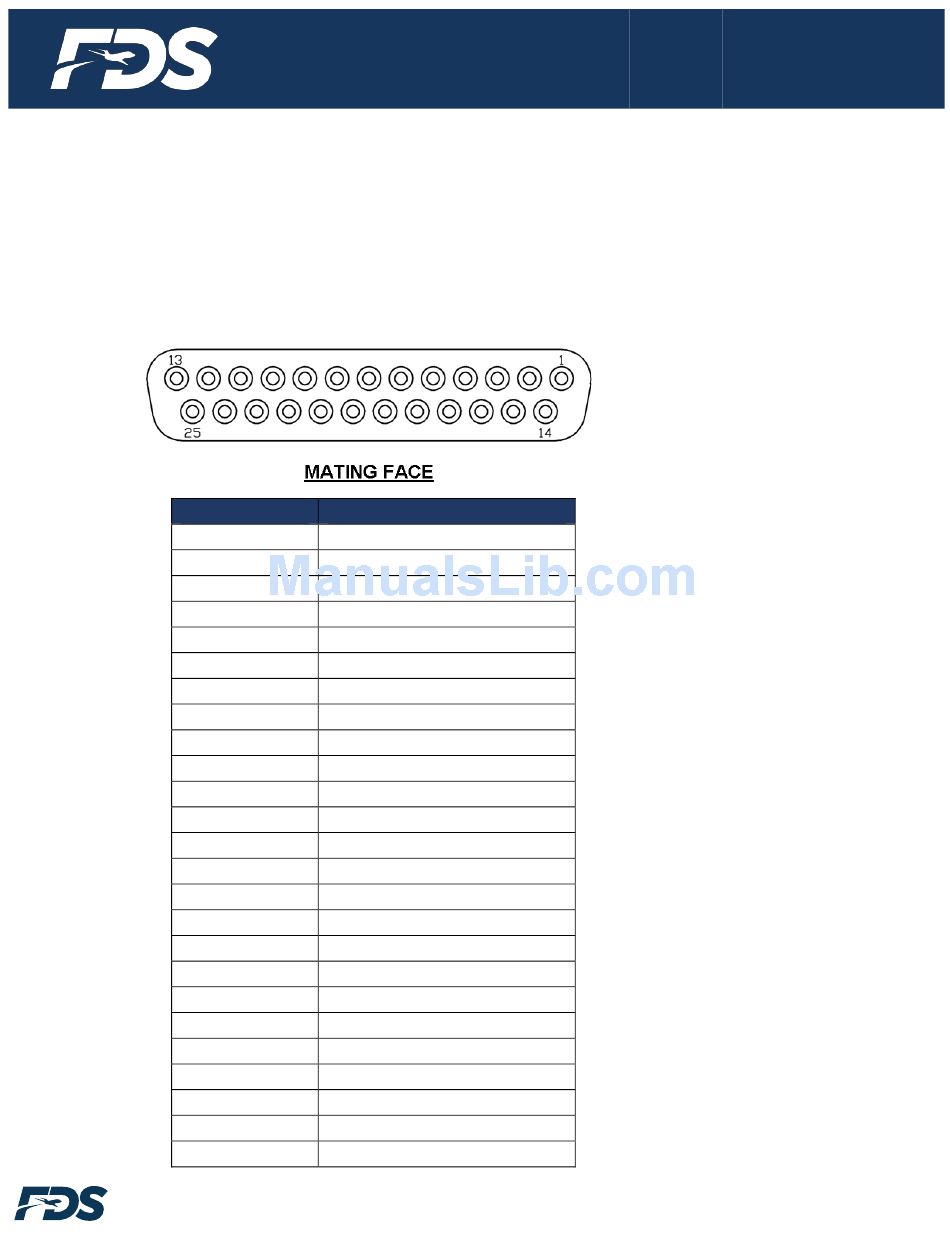

Standard Density DB-25 Receptacle – (supplied)
Connector
Crimp Contacts
PIN NUMBER
© 2017 FDS Avionics Corp.
All Rights Reserved.
Document Number:
MAN – FD141CV-C-1
DESCRIPTION
1 28VDC POWER
2 28VDC GROUND
3 COMPOSITE VIDEO - SIGNAL
4 COMPOSITE VIDEO - SHIELD
5
6
7
8
9
10
11
12
13
14
15 RS232 RxD
16 RS232 TxD
17 RS232 GROUND
18
19
20
21
22
23
24
25
P/N: M24308/2-283 or Equivalent
P/N: M39029/63-368 or Equivalent
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Revision Date:
Rev:
05/04/2017
B
Page 6 of 15
