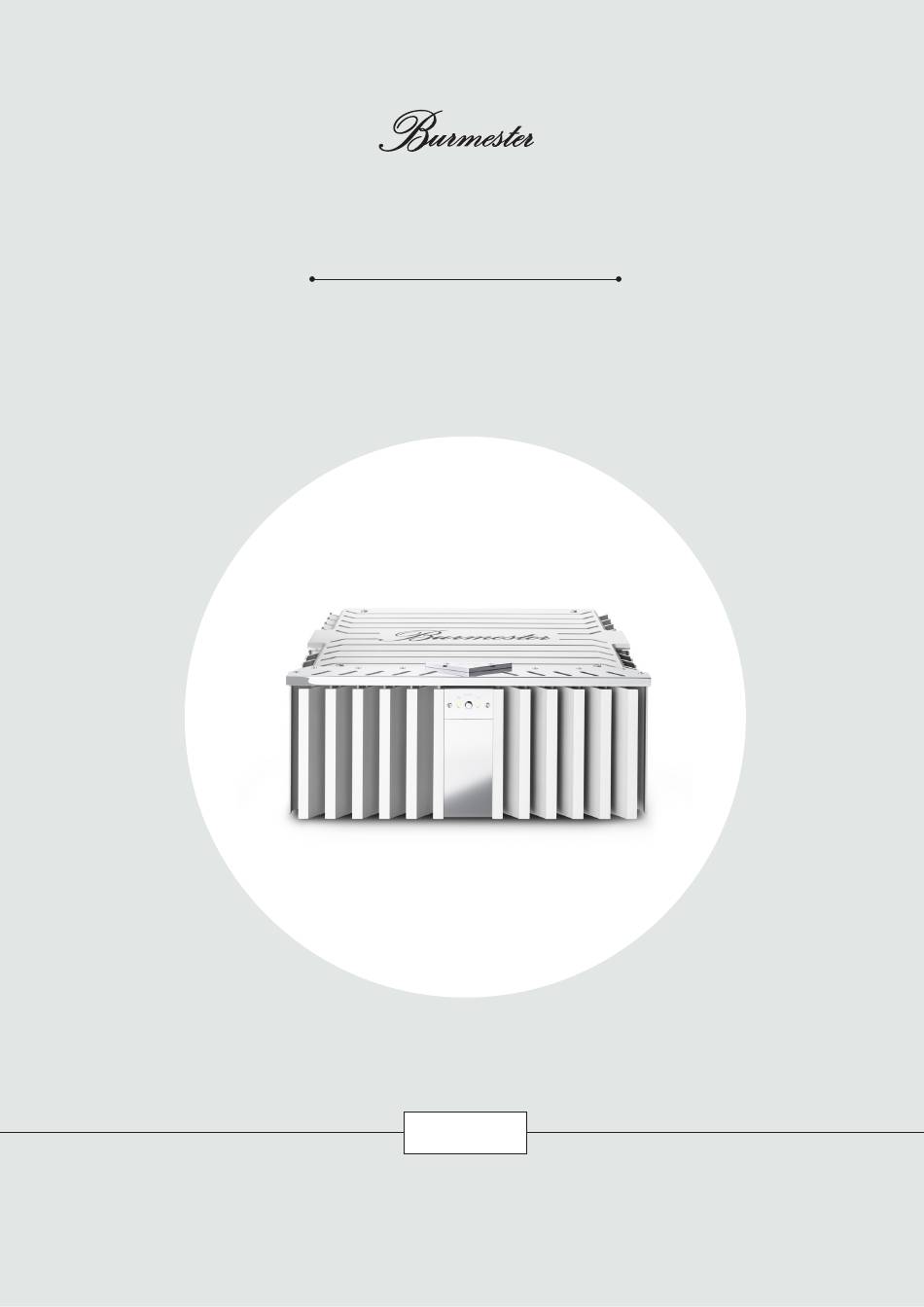

- Page 1 OPERATION MANUAL 911 mk3 power amplifier top line...
- Page 3 Dear music lover, Congratulations on your purchase and thank you for choosing Burmester. You have chosen a product that combines absolute fidelity and uncompromising quality with technical innovation and maximum versatility. Before using the device for the first time, we recommend that you read through the entire manual at least once so that you can make full use of the capabilities of this exceptional audio device.
- Page 4 STAND-BY LED POWER LED POWER BUTTON ANALOG INPUT RIGHT SPEAKER RIGHT SPEAKER LEFT ANALOG INPUT LEFT 911 MK3 POWER AMP Burmester Home Audio GmbH Wilhelm-Kabus-Straße 47 10829 Berlin HANDMADE IN GERMANY XLR PINNING XLR PINNING INPUT INPUT REGULATIONS SERIAL NUMBER...
- Page 5 STEREO WIRING DIAGRAM MONO WIRING DIAGRAM (bridged) – – – Blue From pre-amp From pre-amp MONO Adapter Right channel Left channel From pre-amp Left/right channel WIRING DIAGRAM FOR BI-AMPING With split passive crossover in speaker ACCESSORIES Tweeter/ mid-range driver – Woofer –...
-
Page 6: Starting Up The Device
The speaker outputs of power amps like the 911 may conduct potentially fatal voltages. Remote If you connect the REMOTE OUT (13) jack to the corresponding REMOTE IN jack on a BURMESTER device, you will be able to switch this on and off remotely when switching the 911 power amplifier on and off. -
Page 7: Operating The Device
Speaker output, negative, woofer (12) BI-AMP ADAPTER, blue side (10) Speaker output, positive, tweeter/mid-range driver (11) Speaker output, negative, tweeter/mid-range driver If you are not sure whether you have connected your 911 correctly for the desired operating mode, please contact your Burmester dealer. -
Page 8: General Instructions
THE PROTECTION CIRCUIT The protection circuitry of the 911 operates outside of the signal path. It constantly monitors the 911’s operating status for overheating, DC offset at the outputs and peak current. Temperature If the temperature in one or both channels of the device exceeds the permitted maximum, the speaker outputs will automatically be switched off and the POWER LED (3) will go out. - Page 9 We supply both balanced and unbalanced interconnect cables and speaker cables of any length to ensure optimum sound quality. The impedance of our cables is optimised for use with all BURMESTER components. For the cleanest power supply, we recommend using our triple-shielded BURMESTER-POWER cable. Hot components Be careful when touching the device –...
- Page 10 (Custom design) CONNECTION OPTIONS Balanced input (stereo/mono) Unbalanced input using supplied adapter 10 V DC Input/Output for Remote on/off via Burmester devices Speaker outputs (stereo/mono) VERSIONS Standard version with chrome brackets, engraved chrome triangle, anodised silver housing. Custom versions (e.g. black) available on request.
- Page 12 Burmester Home Audio GmbH Wilhelm–Kabus Strasse 47 ∙ 10829 Berlin, Germany www.burmester.de...
