7- ELECTRIC RETRACT
7D
CA
Attach the plastic gear door to the
plywood gear door .
5mm wooden gear door mount
................4
3x20mm screw
(flat head)
2mm
CA
CA
7A

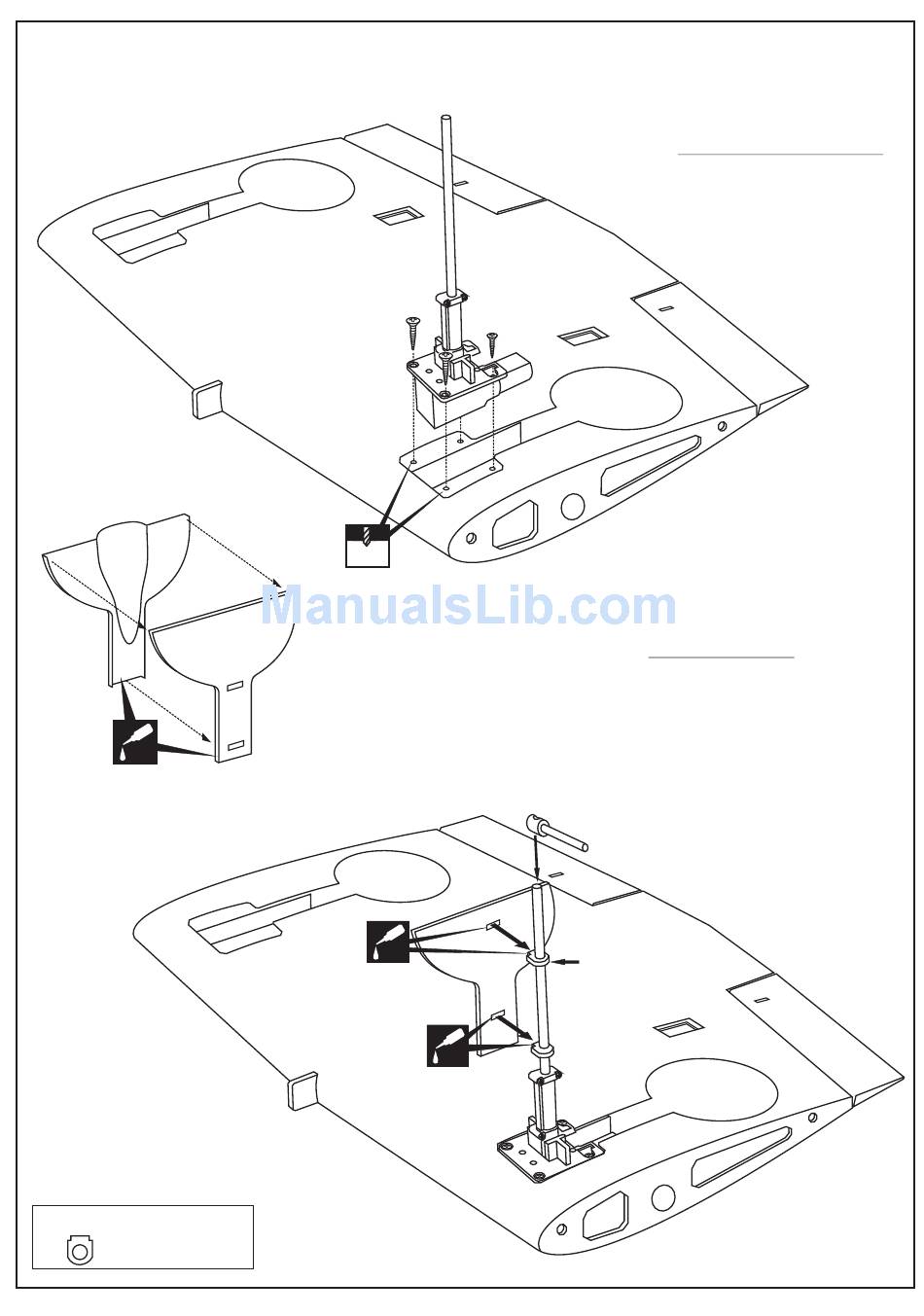

Attach the electric retract gear onto the wing and mark
the gear mount on the wing where the four holes to be drill.
7B
Remove the electric retract gear and drill a 2mm hole at
each of the four marks marked.
7C
Reposition the electric retract gear onto the wing and
secure it in place using there 3x20mm and one 3x12mm
screw as show.
3x12mm screw
(flat head)
7D
Attach the plastic gear door to the plywood gear door .
7E
Slide the two wooden gear door mounts onto each
landing gear. Do not glue at this time.
Attach the gear door to the wooden gear door mounts,
7F
secure the plastic gear door in place using CA glue.
7G
Slide the main wheel axle onto the landing gear
7G
5mm wooden
gear door mount
7F
7E
