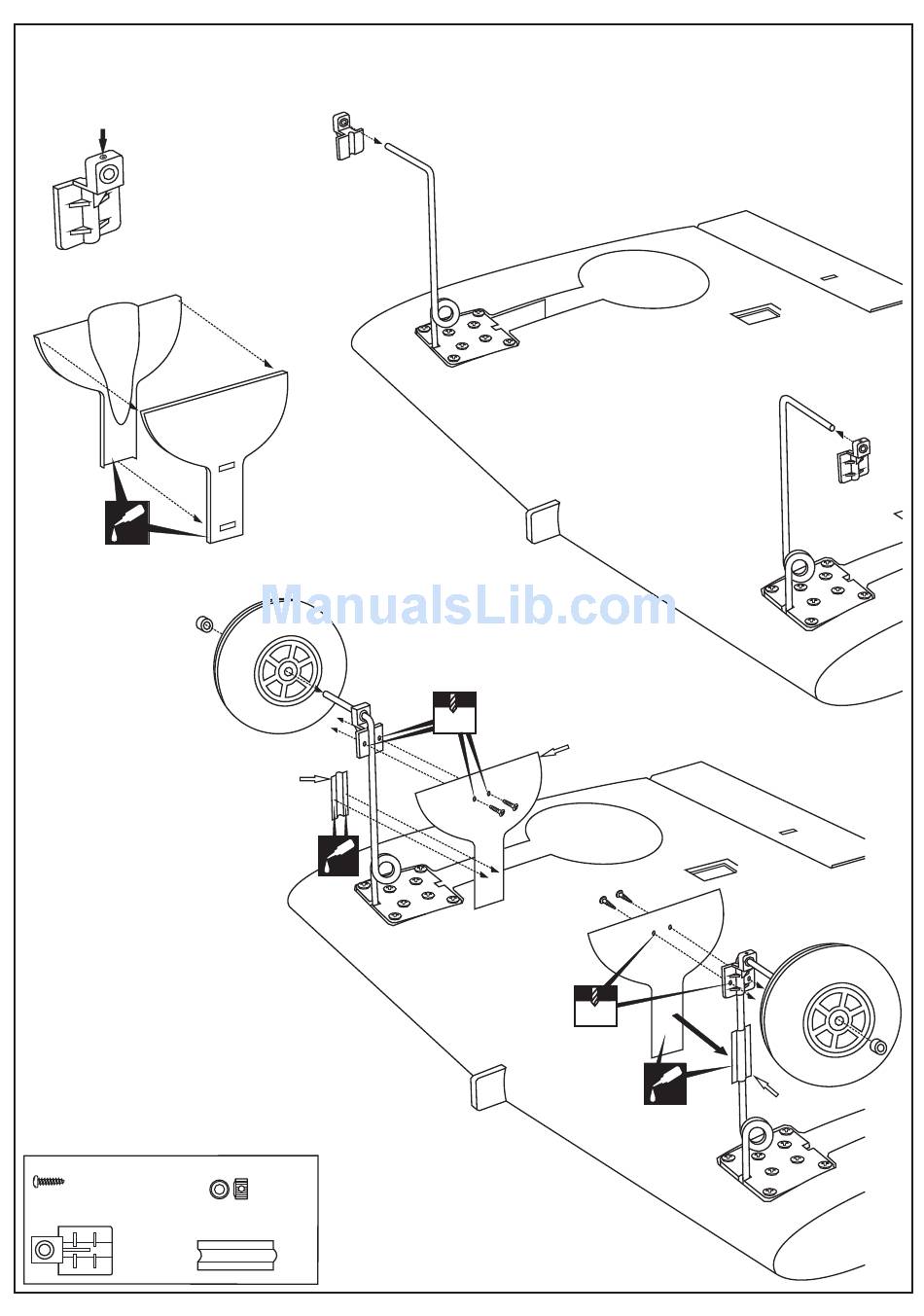

6- FIXED GEAR Continued
Secure the plastic gear door
mount in place using the
3mm screw set.
6C
CA
6B
Plastic gear strap
6D
Attach the plastic gear door to the plastic
gear door mounts, drill the 1.5mm holes through
the plastic gear door and the plastic gear door mount
as shown.
6E
Secure the gear doors using the 2x6mm
screws and plastic gear straps as shown.
2x6mm screw
..........4
Plastic gear door mount
...2
Plastic gear door mount
6A
6C
6E
CA
4mm collar
....2
Plastic gear strap
....2
6A
Slide the two plastic gear door mounts onto each
landing gear.
6B
Slide the wheels and 4mm collar onto the
landing gears.
6C
Attach the plastic gear door to the plywood gear door.
6D
1.5mm
Plastic gear door
2x6mm
2x6mm
6D
1.5mm
6A
6C
CA
Plastic gear strap
6E
6B
