Instruction manual / Montageanleitung
SPECIFICATIONS
Wingspan:.........................1630mm (64.1in)
Length:..............................1300mm (51.1in)
Electric Motor:.....................See next pager
Glow Engine:.................... .55 - .61 2T
RTF Weight: 3.9Kg / 8.6lbs (Will vary with
Equipment Used).
Radio:......................8 Channel / 6-7 Servos
Function: Ailerons-Elevator-Rudder-Throttle
Flaps-Optional Retractable Landing Gear.
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

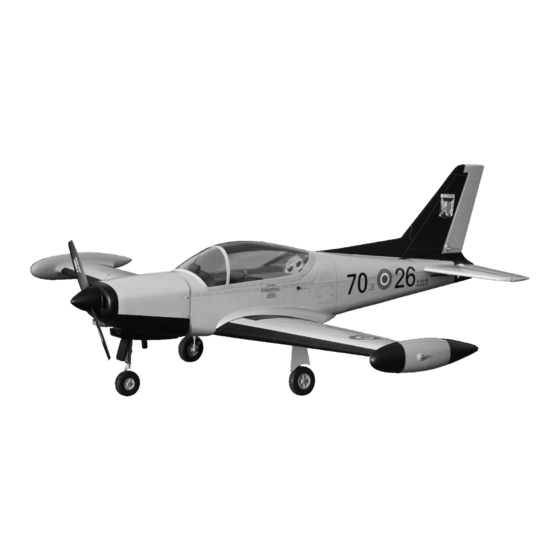

Radio control model / Flugmodel
SIAI MARCHETTI
SF-260
VQ No: VQA143GE - VQA143US - VQA143IT
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
TECHNISCHE DATEN
Spannweite:...................................1630mm
Lange:............................................1300mm
Elektroantrieb.............(siehe nächste Seite)
Verbrennerantrieb:...............................10cc
Fluggewicht:.......................................3.9Kg
Fernsteuerung.............8 Kanal / 6-7 Servos
EP
GP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VQ Models SIAI MARCHETTI SF-260
Summary of Contents for VQ Models SIAI MARCHETTI SF-260
- Page 1 Radio control model / Flugmodel SIAI MARCHETTI SF-260 VQ No: VQA143GE - VQA143US - VQA143IT ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY Instruction manual / Montageanleitung TECHNISCHE DATEN SPECIFICATIONS Wingspan:......1630mm (64.1in) Spannweite:........1630mm Length:......1300mm (51.1in) Lange:..........1300mm Electric Motor:.....See next pager Elektroantrieb.....(siehe nächste Seite) Glow Engine:....
- Page 2 REQUIRED ITEMS / Zum Betrieb wird benotigt 12x6 for .58 - 2 cycle engine Extension cord for aileron servos: 50cm(x2) 12x7 for .61 - 2 cycle engine Extension cord for flap servos: 50cm(x4) 14x8 for Electric motor Extension cord for retract servos: 30cm(x2) Extension cord for Rx battery pack: 20cm(x1) Motor Brushless...
-
Page 3: Flap Servo Installation
1-Aileron extension cord installation Siai Marchetti SF-260 Aileron servo hatch 30cm Extension cord WING BOTTOM-VIEW Flap servo hatch Turn the screws and full the aileron and flap servo hatch out of the wing half. Thread Using the thread (pre-installed at factory) to slide the aileron and flap extension cord into the wing half. - Page 4 3- Flap servo installation Siai Marchetti SF-260 Flap pushrod Bend the flap pushrod 35o at shown Steel clevis ..2 Installing the flap servo on to the hatch (side-view) Flap push rod (2mm) ..2 Pushrod exit hole WING BOTTOM Flap servo Hatch...
-
Page 5: Aileron Servo Installation
4- Aileron servo installation Siai Marchetti SF-260 1.5mm cut away only the covering Aileron linkage Steel Clevis EZ link Aileron servo Steel clevis ..2 Aileron push rod (2mm) ..2 Plastic control horn EZ link ..2 ....2 set Installing the aileron servo on to the hatch (side-view) - Page 6 5- Electric retract and Strut installation Siai Marchetti SF-260 Note: Do not glue the wooden ring to the strut at this time.
- Page 7 6- Electric retract and Strut installation Siai Marchetti SF-260...
-
Page 8: Fixed Gear Installation
7- Fixed gear installation Siai Marchetti SF-260 TOP VIEW Remove the nylon gear Reposition the nylon gear Slide the landing gear onto the Using the nylon gear strap strap and drill a 2mm hole strap and secure them in plywood gear mount and push... - Page 9 8- Fixed gear installation Siai Marchetti SF-260 continued 3x12mm self tapping screw ....8 3x12mm ...2...
-
Page 10: Joining The Wing Halves
9- Fixed gear installation Siai Marchetti SF-260 2x6mm self tapping screw .....4 1.5mm 2x6mm 1.5mm 10- Joining the wing halves Draw the center line on the wing joiner Before gluing: - Draw the center line on the wing joiner. - Trial fit each part before gluing . Be certain that there are no gaps. - Page 11 11- Joining the wing halves Siai Marchetti SF-260 Glue Wing joiner Wing half Glue must go inside ! Make sure to glue securely, If not properly glued, a failure in flight may occur. WING TOP-VIEW 30 min. Epoxy Carefully slide the wing halves together, ensuring that they are accurately aligned.
- Page 12 13- Horizontal Stabilizer installing Siai Marchetti SF-260 Using a sharp hobby knife, carefully cut away the covering around of all slots for the horizontal stabilizer installation. Pull the left and right elevator out of the horizontal stabilizer. Push the horizontal stabilizer into the slot on the fuselage as show.
- Page 13 14- Horizontal Stabilizer installing Siai Marchetti SF-260 continued Apply thin CA glue where the fuselage meet the horizontal stabilizer (both sides). Install the horizontal stabilizer onto the fuselage and adjust the alignment as described in steep 13B. Note: it is important to ensure that the horizontal stabilizer is also level in regards to the fuselage.
-
Page 14: Control Horn Installation
16- Control horn installation Siai Marchetti SF-260 Plastic control horn ......3 Plastic back plate ......3 2x15mm screw .....6 2x12mm Control horn Alignment STABILIZER Attach the rudder control horn using the hardware provided (two 2x15mm screws and a back plate). 17- Engine... - Page 15 18- Engine Siai Marchetti SF-260 continued 4x25mm screw - washer ....4 Blind-nut ....4 Insert the blind-nut onto each of the four holes make above . Reposition the engine mount beams on to the fire-wall and secure them with four 4x25mm screw.
-
Page 16: Electric Motor
19- Engine Siai Marchetti SF-260 continued 3x25mm screw ..4 Washer ..4 3mm nut ..4 Reposition the engine on the engine mount beams, aligning it with the holes. Secure the engine to the engine mount using four 3x25mm screws. Note: Apply Silicon sealer to each of the 3x25mm screw and nut. - Page 17 22- Electric Motor Siai Marchetti SF-260 continued Remove the wooden motor mounting plate and drill a 5mm hole through the fire-wall at each of the four marks marked . 6x100mm bolt..4 6mm nut..12 6mm washer...16 Attach the four 6x100mm bolts and nuts to the fire-wall as shown.
- Page 18 23- Nose Gear (Electric retract and strut) Siai Marchetti SF-260 1.5mm Rudder servo...
- Page 19 24- Nose Gear (Fixed gear) Siai Marchetti SF-260 Nose gear mount ....1 3x15mm screw...4 Place the nose gear mount onto the fire-wall and secure it in place using the four 3x15mm 3mm nut, washer...4 screws. Steering arm...1 4mm colar..2 Insert “z” bend of steering linkage inside the hole...
-
Page 20: Servo And Linkage
25- Servo and Linkage Siai Marchetti SF-260 Elevator pushrod Connector 3mm set Screw ....1 ....2 Elevator pushrod 2 mm LINKAGE - IN CASE OF ELECTRIC MOTOR USING Elevator servo Rudder servo LINKAGE - IN CASE OF GLOW ENGINE USING Rudder servo... - Page 21 26- Servo and Linkage Siai Marchetti SF-260 2.5x12mm self tapping screw ...5 Cut off shaded portion 1.5mm 2.5mm self tapping screw 1.5mm 27- Decal 70 STORMO 70 STORMO SOCCORSO SOCCORSO RUOTARE LA MANOVELLA RUOTARE LA MANOVELLA FAR SCORRERE IL TETTUCCIO...
-
Page 22: German Version
28- Decal Siai Marchetti SF-260 continued RESCUE TURN HANDLE SLIDE CANOPY STATIC PORT KEEP CLEAN STATIC PORT STATIC PORT USA. AIR COMBAT VERSION KEEP CLEAN KEEP CLEAN RESCUE RESCUE TURN HANDLE TURN HANDLE SLIDE CANOPY SLIDE CANOPY RESCUE TURN HANDLE... -
Page 23: Control Throws
IMPORTANT: Flying your model at these throws will provide you with the greatest chance for successful first flights. If,after you have become accustomed to the way the Siai Marchetti SF-260 flies, you would like to change the throws to suit your...
