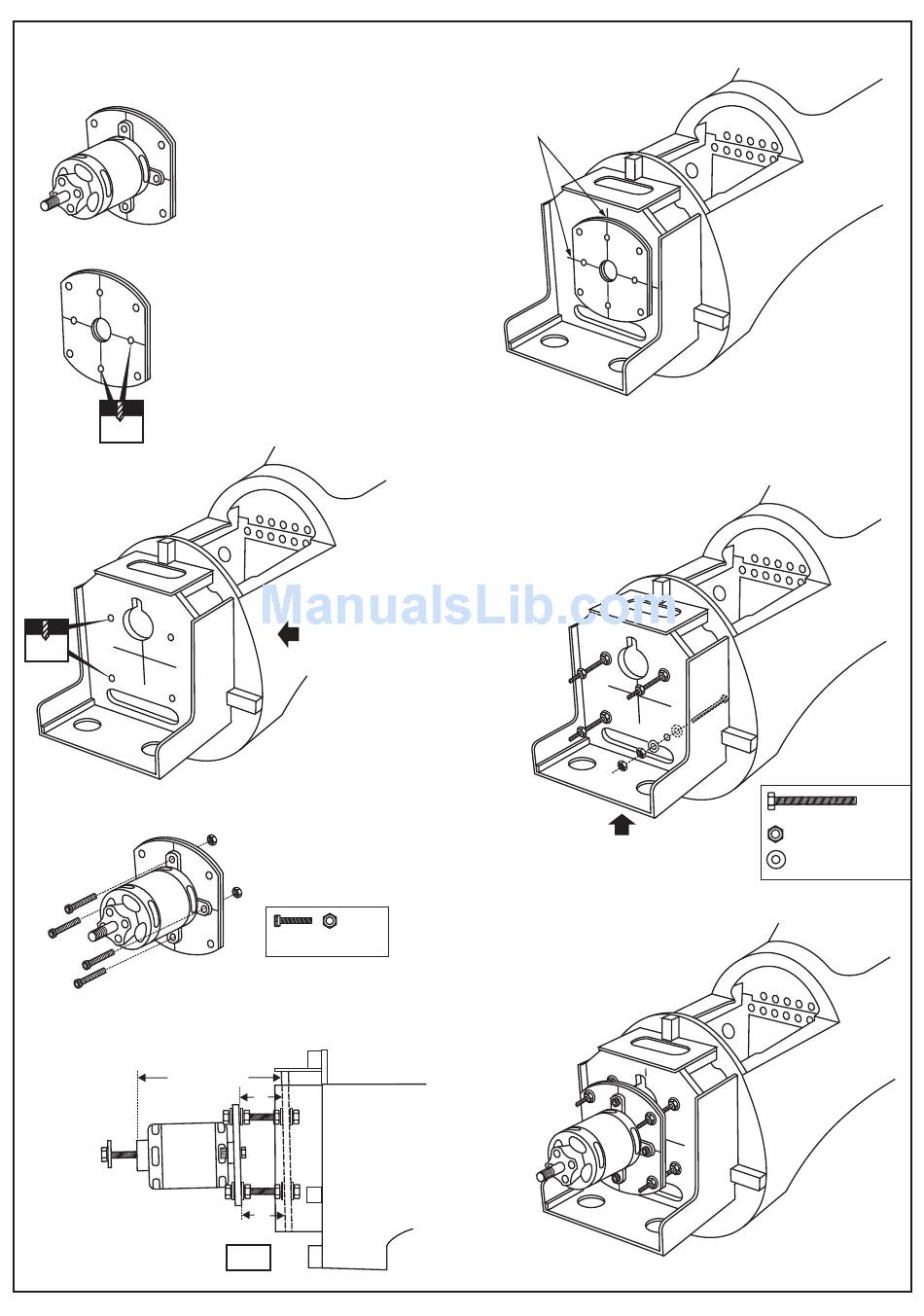

3- ELECTRIC MOTOR

Using a aluminum motor mounting plate
as a template, mark the plywood motor
mounting plate where the four holes are
to be drilled.
Remove the aluminum motor mounting
plate and drill a 1/8"(3mm) hole through
the plywood at each of the four marks
marked .
3B
3mm
5mm
106-108mm
! Motor thrust on balk head
is already adjust at factory
3A
3D
Remove the wooden motor mounting
plate and drill a 5mm hole through
the fire-wall at each of the four marks
marked .
3F
Secure the Motor to the wooden
motor mounting plate using the
four 3mm bolts.
3mm bolt / nut...4
SIDE-VIEW / Seitenansicht
B
FUSELAGE
B'
B=B'
! Align the mark on wooden motor
mounting plate with the mark on
the fire-wall.
Using a wooden motor mounting plate as a template,
3C
mark the fire-wall where the four holes are to be drilled.
3E
Attach the four 5x70mm bolts
and nuts to the fire-wall as shown.
3G
5x70mm bolt.....4
5mm nut..........12
5mm washer...16
