VQ Models F6F HELLCAT Instruction Manual page 2

Us navy fighter
Table of Contents

Advertisement

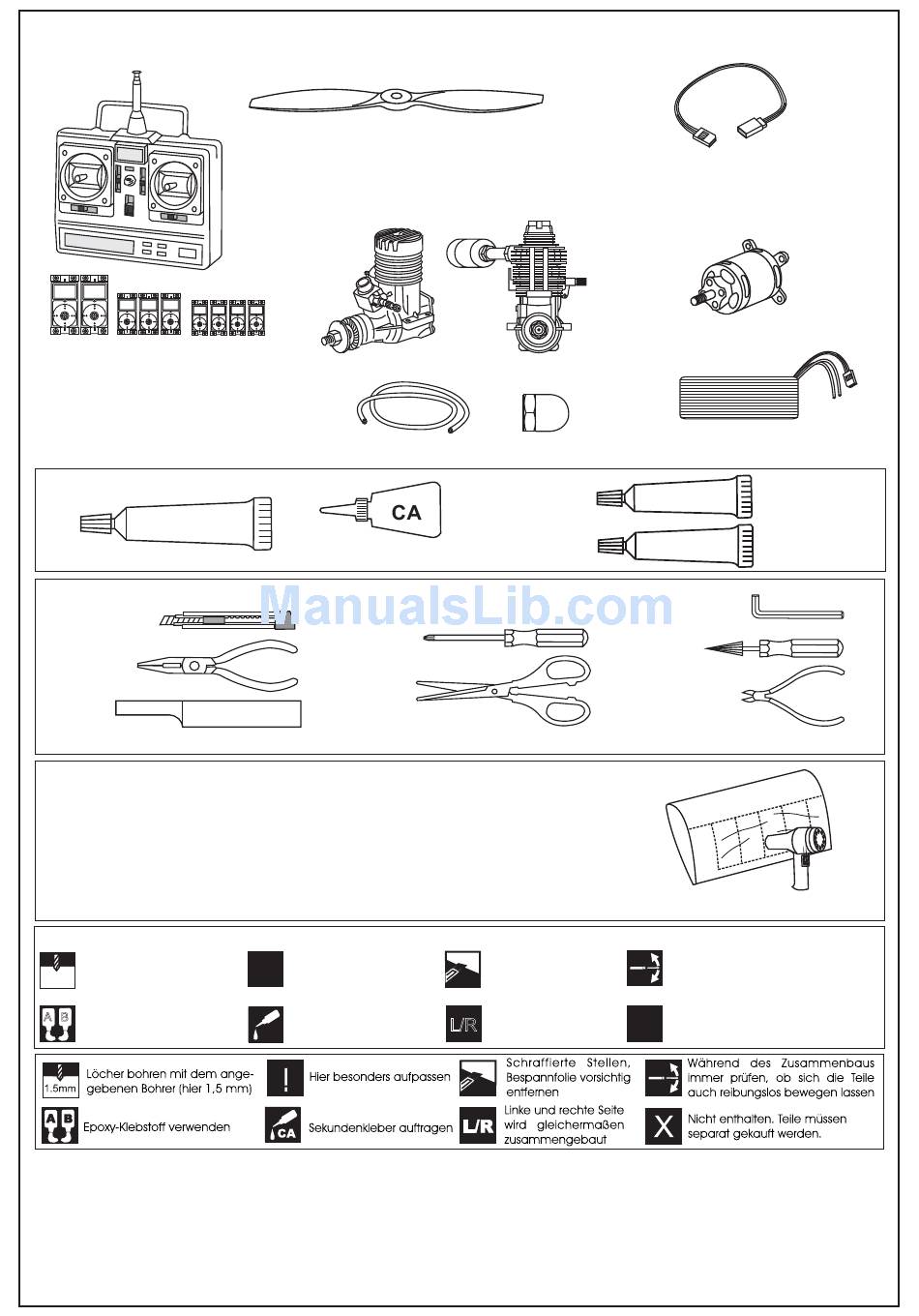

REQUIRED FOR OPERATION (Purchase separately)
Standard
Mini
Minimum 7 channel radio
Elevator : 1 standard servo
Rudder: 1 standard servo
Aileron: 2 mini servo
Flaps: 4 micro servo
Throttle: 1 mini servo (for glow engine only)
(Purchase separately)
GLUE
SILICON
Silicon sealer
TOLLS REQUIRED
Hobby knife
Needle nose Pliers
Sander
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
Masking tape - Straight Edged Ruler - Pen or pencil - Drill and Assorted Drill Bits
If exposed to direct sunlight and/or heat, wrinkels can appear. Storing the
model in a cool place will let the wrinkles disappear. Otherwise, remove
wrinkles in covering film with a hair dryer, starting with
low temperature. You can fix the corners by using a hot iron.
Bei Sonneneinstrahlung und/oder Wärme kann die Folie erschlaffen bzw. Falten
entstehen. Verwenden Sie ein Warumluftgebläse (Haartrockner) um evtl. Falten aus der Folie
zu bekommen. Die Kanten können Sie mit einem Bügeleisen behandeln. Nicht zuviel Hitze anwenden !
Symbols used throughout this instruction manual, comprise:
Drill holes using the stated
size of drill
1.5mm
(in this case 1.5 mm )
A B
Use epoxy glue
Read through the manual before you begin, so you will have an overall idea of what to do.
CONVERSION TABLE
3.0mm = 1/8"
1.0mm = 3/64"
4.0mm = 5/32"
1.5mm = 1/16"
5.0mm = 13/64"
2.0mm = 5/64"
6.0mm = 15/64"
2.5mm = 3/32"
10.5x6 for .40 - 2 cycle engine
11x6 for .46
12x6 for .60
12x7 for .70
13x7 - 13x8 for electric motor
Micro
.46 ~ .50 - 2 cycle
Silicone tube
Cyanoacrylate Glue (thin type)
(Purchase separately)
Phillip screw driver
Scissors
!
T ake particular care here
Apply cyano glue
CA
10mm = 13/32"
12mm = 15/32"
15mm = 19/32"
20mm = 51/64"
- 2 cycle engine
- 4 cycle engine
- 4 cycle engine
.60 ~.70 - 4 cycle
Spinner hub
Hatched-in areas:
remove covering
film carefully
Assemble left and right
L/R
sides the same way.
25mm = 1"
30mm = 1-3/16"
45mm = 1-51/64"
Extension cord for aileron servos: 50cm(x2)
Extension cord for flap servos:
Extension cord for retract servos:
Extension cord for Rx battery pack: 20cm(x1)
700-800W Brushless Motor
5 cell 4500mAh LiPo battery
EPOXY A
EPOXY B
Hex Wrench
Awl
Wire Cutters
Check during assembly that these
parts move freely, without binding
Not included.
These parts must be
X
purchased separately
50cm(x4)
30cm(x2)
Epoxy Glue
(30 minute type)
Low seting
