5- FIXED GEAR Continued
5A
2mm

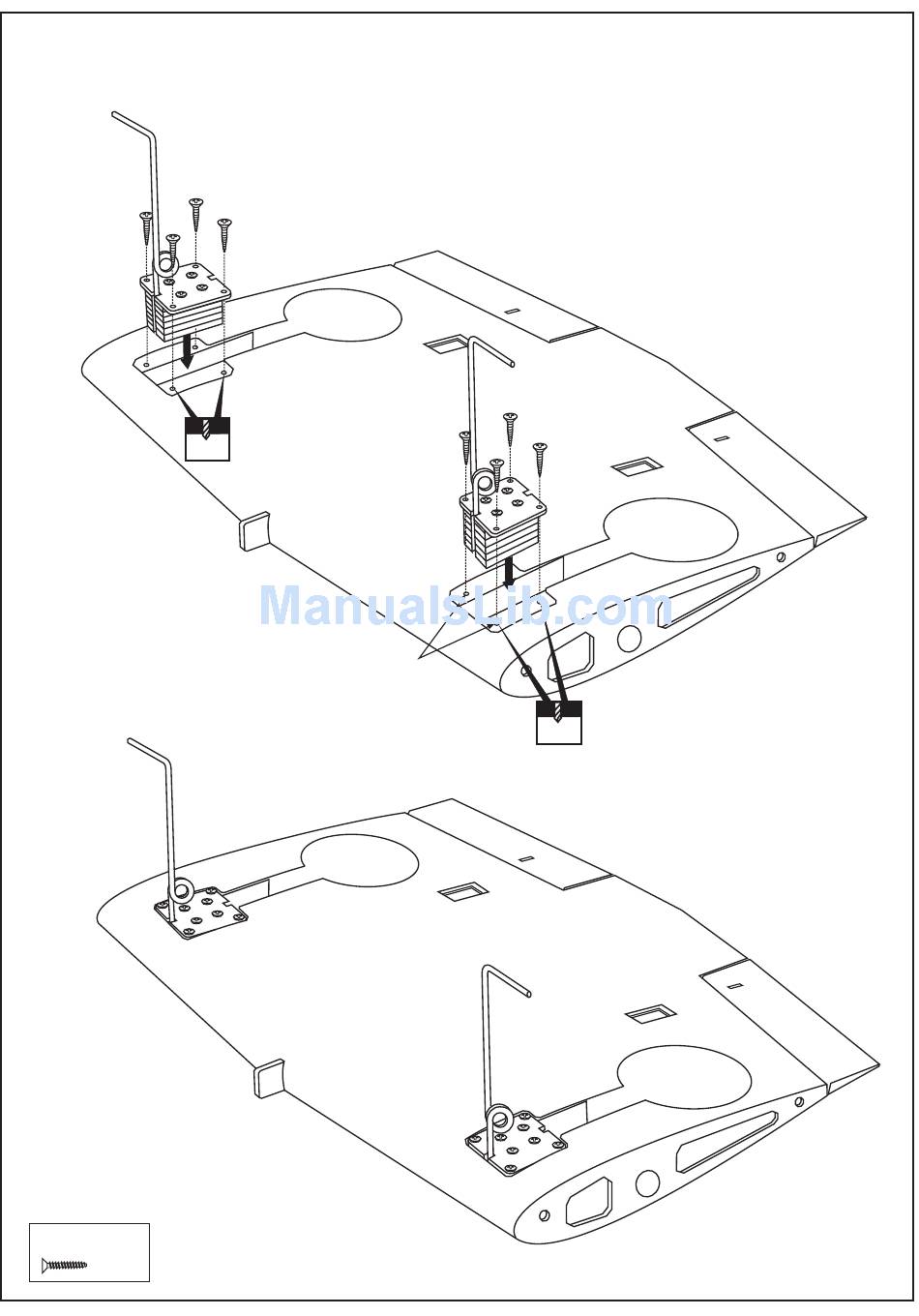

Attach the fixed gear onto the wing and mark the gear
mount on the wing where the four holes to be drill.
Reposition the fixed gear onto the wing,
5C
secure the fixed gear using eight 3x20 screws.
3x20mm screw
.......8
5B
5A
5A
Attach the fixed gear onto the wing and mark the gear
mount on the wing where the four holes to be drill.
5B
Remove the fixed gear and drill a 2mm hole at each of
the four marks marked.
CENTER WING - BOTTOM VIEW
5B
2mm
