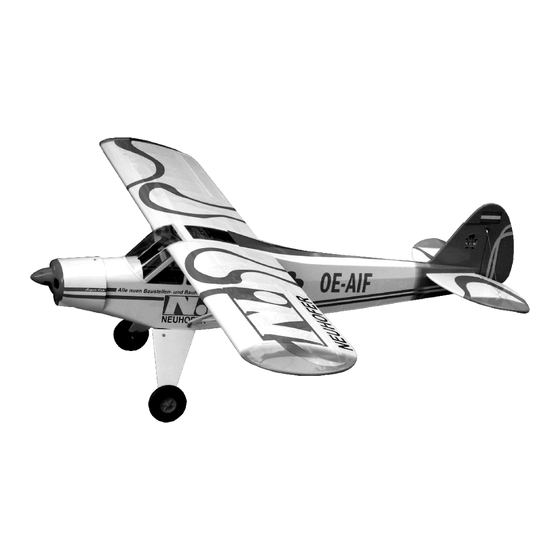

VQ Models PIPER PA-18 SUPER CUB Instruction Manual

Radio control model. designed for brushless electric motors (.46-.52 class glow conversion optional)

Hide thumbs

page of 16

/ 16
Bookmarks

Quick Links

Download this manual

Radio control model

R/C Flugmodell

INSTRUCTION MANUAL

MONTAGEANLEITUNG

Designed for brushless electric motors

Entwickelt für Brushless Elektro Motoren

Floats available as an option! (No. C4682)

Schwimmer als Sonderzubehör erhältlich! (Best.Nr.C4682)

TECHNISCHE DATEN

Spannweite

Lange

Elektroantrieb

(siehe nächste Seite)

Verbrennerantrieb

7.5cc 2-T / 8.5cc 4-T

Fernsteuerung

5 Kanal / 4 -5 Servos

WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and

cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.

Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.

ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,

die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann

hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um

professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist

durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

SPECIFICATIONS

Wingspan

1620mm

Length

1250mm

Electric Motor

Glow Engine

Radio

PIPER PA-18

SUPER CUB

(.46-.52 class glow conversion optional)

(7,5 -8,5cc Glühzündermotor Einbau möglich)

49.2 in.

(See next page)

.46 2Stroke / .52 4-Stroke

5 Channel / 4 -5 Servos

63.7in.

Need help?

Do you have a question about the PIPER PA-18 SUPER CUB and is the answer not in the manual?

Questions and answers

Summary of Contents for VQ Models PIPER PA-18 SUPER CUB

Page 1 Radio control model PIPER PA-18 R/C Flugmodell INSTRUCTION MANUAL SUPER CUB MONTAGEANLEITUNG Designed for brushless electric motors (.46-.52 class glow conversion optional) Entwickelt für Brushless Elektro Motoren (7,5 -8,5cc Glühzündermotor Einbau möglich) Floats available as an option! (No. C4682) Schwimmer als Sonderzubehör erhältlich! (Best.Nr.C4682) TECHNISCHE DATEN SPECIFICATIONS Wingspan...
Page 2 RECOMMENDED ACCESSORIES (Purchase separately) Empfohlenes Zubehör (Nicht im Lieferumfang enthalten) Egänzungskit Verbrenner (Tank + Motorträger) Antrieb Standard: Best.Nr. C4165 BOOST 40 Brushless Combo Set, Best.Nr. C2983 LiPo Battery RED POWER 3200-3S, Best.Nr. C3164 Luftschraube 12*6, Best.Nr. C1937 1 x Servo S4020 (für Seitenruder) Antrieb Tuning (Kraftvoller Kunstflug): Best.Nr.
Page 3 Align the mark on both Securely attach the engine mount to the mounts with the center fire-wall using the four 4x25mm screws. mark on the fire-wall Note the side thrust for motor! Sturz und Zug beachten! Set the engine on the engine mounting beams.
Page 4 Using a plywood motor mounting plate as a template, mark the fire wall where the four holes are to be drilled . 13/64” Remove the plywood motor mounting plate and drill a 13/64”(5mm) hole through the fire-wall at each of the four marks marked above.
Page 5 2.5x8mm screw ....3 2.mm 2.mm 2.mm Cut two slots (3x7mm and 3mm deep) along the trailing edge of the horizontal stabilizer. TOP VIEW / Draufsicht HORIZONTAL STABILIZER TOP VIEW / Draufsicht 85mm 85mm Full the elevator out of the horizontal stabilizer. Cut away only the film both side...
Page 6 When you are satisfied with the alignment, use a pencil to trace around the top and bottom of the stabilizer where it meets the fuselage. Cut away only the covering both side Remove the horizontal stabilizer from the fuselage. Using the sharp hobby knife, carefully cut away the covering inside the lines which were marked above.
Page 7 10mm Cut a slots (3x7mm and through both the covering and balsa wood) along the trailing edge of the vertical stabilizer. Cut away only the covering FRONT-VIEW Trial fit the vertical stabilizer in place. Check the alignment of the vertical stabilizer. If the parts will join, but with a gaps, sand or trim the parts a little at a time until the parts meet exactly with no gaps.
Page 8 Collar 0.5~0.6in. 1/8(3mm) screw 12~15mm 0.3in. 1/16 1.5mm Cut away the covering and balsa wood BOTTOM - VIEW / Unteransicht 3x12..2 1/16 1.5mm ......1 ......1 4X20mm screw ....4 Cut away only the covering * WARNING: When removing any covering from the airframe, please ensure that you secure the cut edge with CA or similar cement.
Page 9 3mm connector 3mm connector Connector ..4 3mm connector Aluminum landing gear Hauptfahrwerk BOTTOM - VIEW / Unteransicht 4mm washer 4mm nut 4X40mm screw AUSTRIA VERSION 4x40mm screw ....2 VQA083 4mm nut-washer BURDA VERSION Aluminum landing gear VQA082 4mm nut 4mm nut 4x30mm 4x30mm screw...
Page 10 ...1 Servo tray TOP VIEW Servo tray Elevator servo FRONT Elevator pushrod Throttle servo Throttle pushrod Rudder servo...
Page 11 Tipp Battery seat bell Akku Kiettband aus dem PICHLER Sortiment Best.Nr. C4739 Magnetic seating (front seating only) Magnetic piece.
Page 12 B’ Aluminum tube Aluminum tube B=B’ Note: check the length (B=B’) of the aluminum tube with the fuselage before glue. Aileron extension Aileron pushrod cord 1.2mm O Alenk-Gestange Trial fit the control horn into the slot. If the parts will join, but with a gaps, sand or trim the parts a little at a time until the parts meet exactly with no gaps.
Page 13 Note: The hole on the surface of the top of the 2.mm drill bit wing are pre-drilledat factory. Secure the wing in place using 3x15mm screw. Aluminum 3x15mm screw tube inside 3x15mm screw ..2...
Page 14 IN CASE OF FLOATING USING Rear landing gear mount Note: The rear landing gear mount is pre-installed at factory Rear landing gear not included 220mm BOTTOM - VIEW / Unteransicht 3x15mm screw ..6 Cut away only the covering ..4...
Page 15 0.5mm dia. Cable ...1 roll 2mm metal tube .....4 VQA082 VQA083...
Page 16 Aileron 10mm 10mm Querruderausschlag 20mm Rudder Elevator 10mm 20mm Seitenruderausschlag 10mm Hohenruderausschlag 65 ~ 70mm Do not try to fly an out-of balance model! Uberprufen Sie vor dem Flug den Schwerpunkt. IMPORTANT: Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner to clean on surface of your model to keep the colour not fade.
