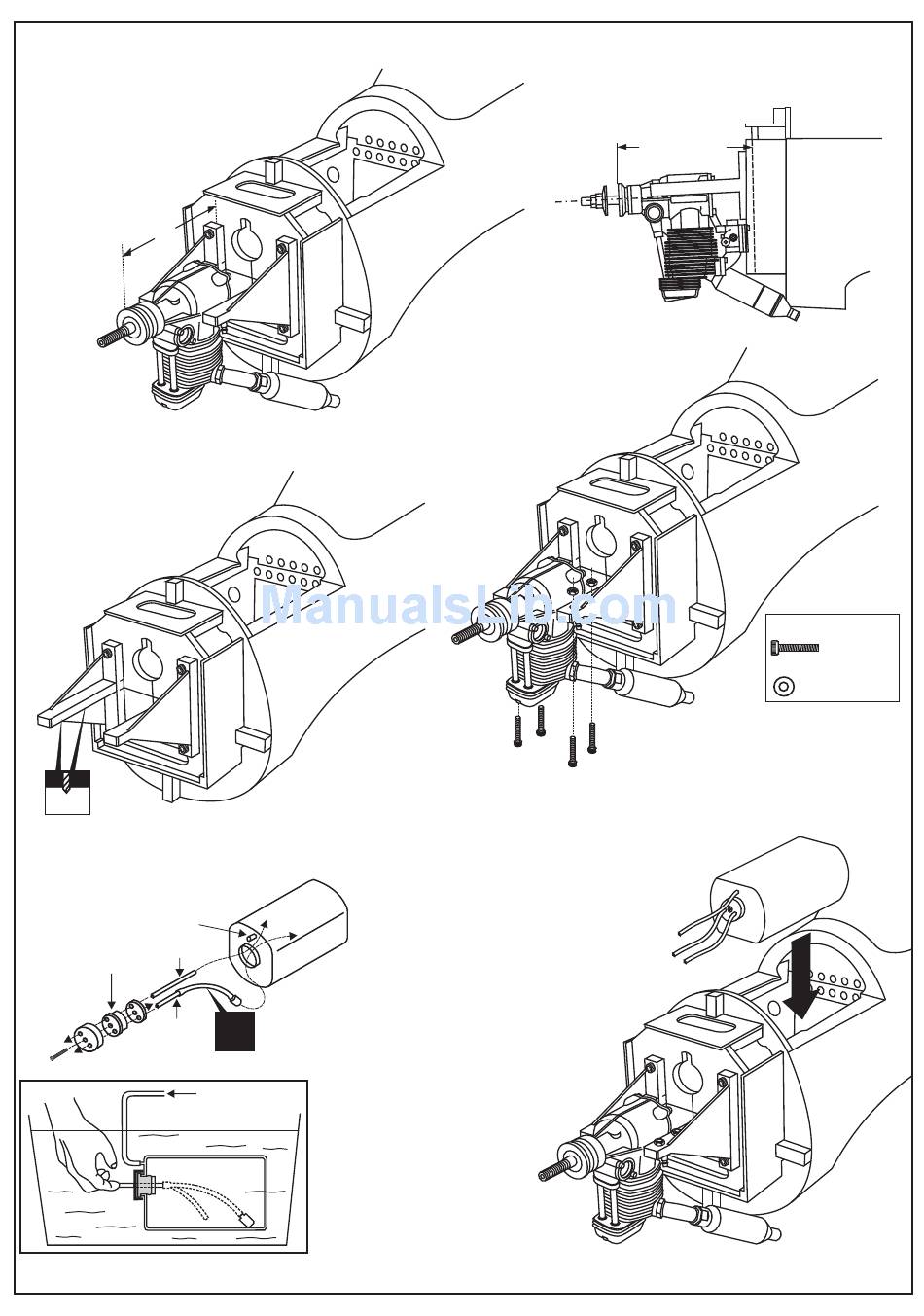

2- ENGINE
2A
C=106-108mm
C
Position the engine to the engine mounts so the distance from the prop hub
to the fire-wall is 106-108mm.
Mark the engine mounting plate where the four holes are to be drilled (8B)
2B
3mm
Remove the engine and drill a 3mm holes through the beam at each
of the four marks made above (8C)
Marking sure that you drill the hole perpendicular to the beam of the engine mount.
To muffler
2D
Filler tube
Rubber stopper
To engine
3x35mm screw
Blow
Water
X
2E
Checking for leaks - block the vents
and blow into the feed - if in doubt
submersing the tank in a blow of
water will show up any problems.
106-108mm
2C
Reposition the engine on the engine mount
beams, aligning it with the holes. Secure the
engine to the engine mount using four
3x25mm screws (2C)
Note: Apply Silicon sealer to each of the
3x25mm screw and nut.
Carefully install the fuel tank
to ensure that they will not
shift during flight (2F).
! Engine thrust on balk head
is already adjust at factory
FUSELAGE
SIDE-VIEW
3x25mm screw
Washer
2F
.......4
.......4
