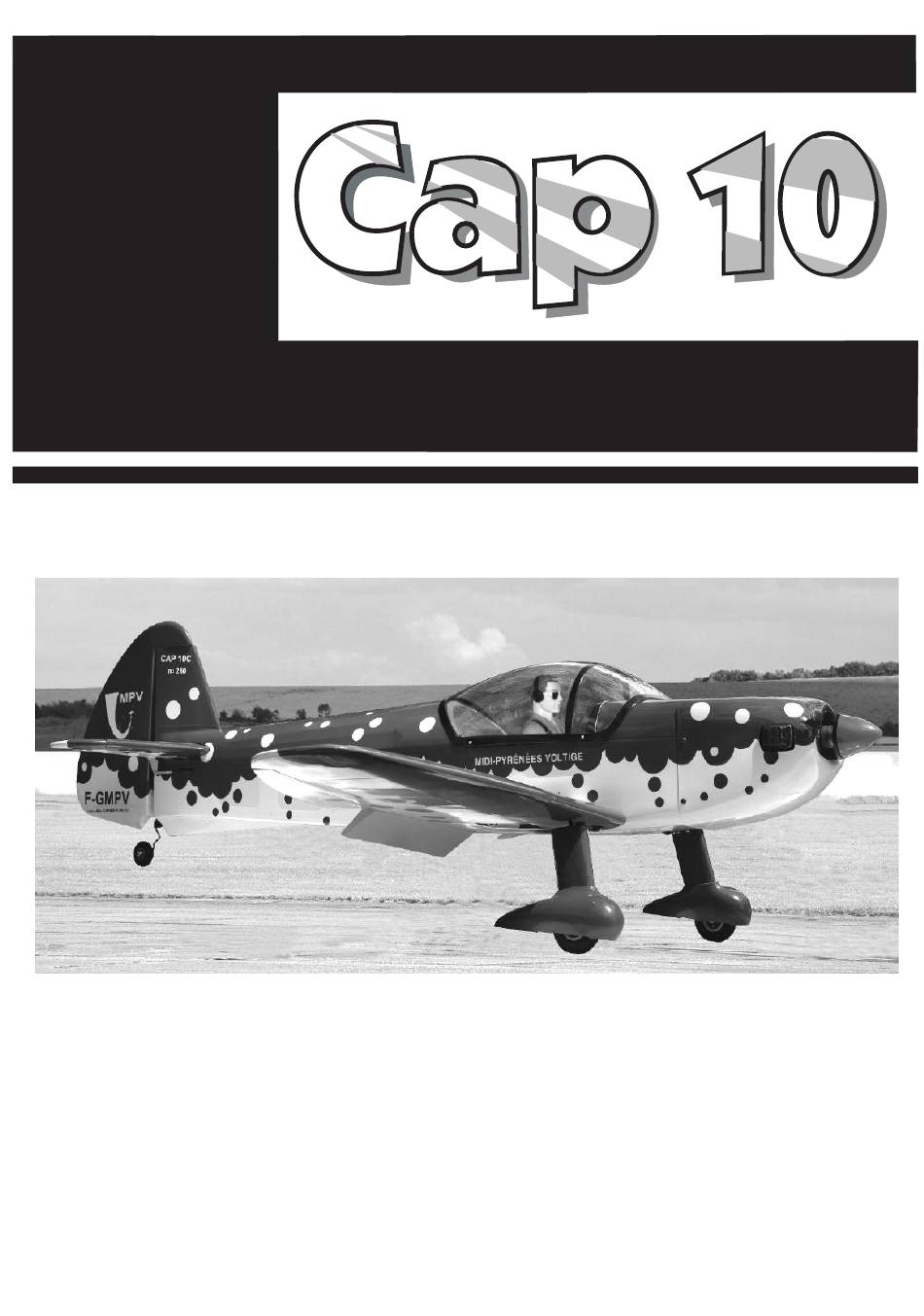

VQ Models Cap 10 Instruction Manual

60 class 2-cycle engine, 90 class 4-cycle engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
60 Class
2-cycle engine
90 Class
4-cycle engine
INSTRUCTION MANUAL / MONTAGEANLEITUNG
RADIO CONTROLED ALMOST READY-TO-FLY ENGINE POWERED ALL BALSA PLANE
SPECIFICATION
Wingspan approx.
Fuselage lenght approx
Electric Motor
Glow Engine
Radio
AEROBATIC MODEL
1500mm
1205mm
870 Watt (PULSAR 60)
.61 2T / .91 4T
5 Channel / 6 Servos
TECHNISCHE DATEN
Spannweiter ca.
Lange ca.
Elektroantrieb
Verbrennerantrieb
Fernsteuerung
1500mm
1205mm
870 Watt (PULSAR 60)
10cc 2Takt / 15cc 4Takt
5 Kanal / 6 Servos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cap 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VQ Models Cap 10

Summary of Contents for VQ Models Cap 10

  • Page 1 60 Class 2-cycle engine 90 Class 4-cycle engine AEROBATIC MODEL INSTRUCTION MANUAL / MONTAGEANLEITUNG RADIO CONTROLED ALMOST READY-TO-FLY ENGINE POWERED ALL BALSA PLANE SPECIFICATION TECHNISCHE DATEN Spannweiter ca. 1500mm Wingspan approx. 1500mm Lange ca. 1205mm Fuselage lenght approx 1205mm Elektroantrieb 870 Watt (PULSAR 60) Electric Motor 870 Watt (PULSAR 60)
  • Page 2 REQUIRED ITEMS / Zum Betrieb wird benotigt 12x6 for .58 - 2 cycle engine Extension for aileron 12x7 for .61 - 2 cycle engine servo.(x2) 12x7 for .70 - 4 cycle engine 14x6 for .91 - 4 cycle engine ESC 80A .70 ~.91 - 4 cycle .58 ~ .61 - 2 cycle Motor Brushless...
  • Page 3 1- Servo installation / Servoeinbau Plastic back plate BOTTOM VIEW Unteransicht BOTTOM Plastic control horn 2x20mm screw 2x20mm screw 2x20mm screw Plastic control horn ......4 1.2mm Aileron servo 2x20mm screw extension cord .......8 1-When you are satisfied with the alignment of the control horn mark the mounting hole Linkage Stopper set positions with a felt tipped pen or a pencil.
  • Page 4 4- Wheel pants installation / Fahrwerkseinbau Wooden dowel TOP VIEW Right ABS gear cover of “L” set Wooden dowel FRONT REAR Left ABS gear cover of “L” set “L” For left wing BOTTOM VIEW “R” Unteransicht For right wing 1- Position the landing gear and strap as show.
  • Page 5 7- Four-stroke engine installation / Einbau Viertarktmotor Throttle push rod Engine FRONT VIEW In case of four-stroke engine Secure the engine to the engine mounts using fous 3x25mm screws and nuts 8- Two-stroke engine installation / Einbau Zweitarktmotor Engine Trim the fire wall so that your muffler doesn’t touch with a knife or Dremel FRONT VIEW...
  • Page 6 10- Engine installation / Motoreinbau TOP VIEW Draufsicht Cowling mount 118 ~ 122mm Engine thrust on balk head is already adjust at factory Cowling mount Push the fuel tank forward until 11- Fuel tank installation / Tankeinbau there are no gaps between the tank and firewall.
  • Page 7 13- Joining the wing Flachenverbindung TOP VIEW Draufsicht Aluminum tube 14- Joining the wing Flachenverbindung TOP VIEW Draufsicht Asemble the Left and Right wing the same way.
  • Page 8 15- Joining the wing / Flachenverbindung 4mm screws & washer ..2 TOP VIEW Draufsicht RIGHT WING HARVEST LEFT WING HARVEST TOP VIEW Draufsicht 16- Horizontal Tail / Hohenleitwerk A’ B’ Cut away only the film A = A’ B = B’ Warning: Securely glue together.
  • Page 9 Apply 5 min. 17- Horizontal Tail 10mm Epoxy both the Hohenleitwerk top and bottom. ELEVATOR STABILIZER Hinge Plastic control horn ......2 Plastic back plate ......2 2x20mm screw .......4 When you are satisfied with the alignment of the control horn mark the mounting hole positions with a felt tipped pen or a pencil.
  • Page 10 19- Linkages / Anlenkungen TOP VIEW Draufsicht Elevator pushrod Rudergestange Throttle pushrod Tank Elevator push rod Throttle push rod Connector Linkage stoper Included with the 2 mm radio set 2 mm 20- Linkages / Anlenkungen Rudder servo When you are satisfied with the alignment of the control horn, mark the mounting hole positions with a felt tipped pen or a pencil.
  • Page 11 22- Cockpit / Kabinen Magnetic hatch TOP VIEW Draufsicht 23- Cockpit / Kabinen TOP VIEW Draufsicht 2x10mm screw 1.5mm 2x10mm screw 24- Cowling installation / Motorhaube Drill holes for needle valve, exhaust pipe and glow-plug. Fuel tube or nylon tube 3x10mm self tapping screw...
  • Page 12 25- Cowling installation / Motorhaube Trim the cowl with a knife or Dremel so that your engine and muffler don’t touch Fix the cowling with the 3x10mm self tapping screws on the cowling mounts. BOTTOM VIEW Unteransicht 3x10mm self tapping screw Drill holes for needle valve Drill holes for needle valve and glow-plug...
