4- FIXED GEAR
4A

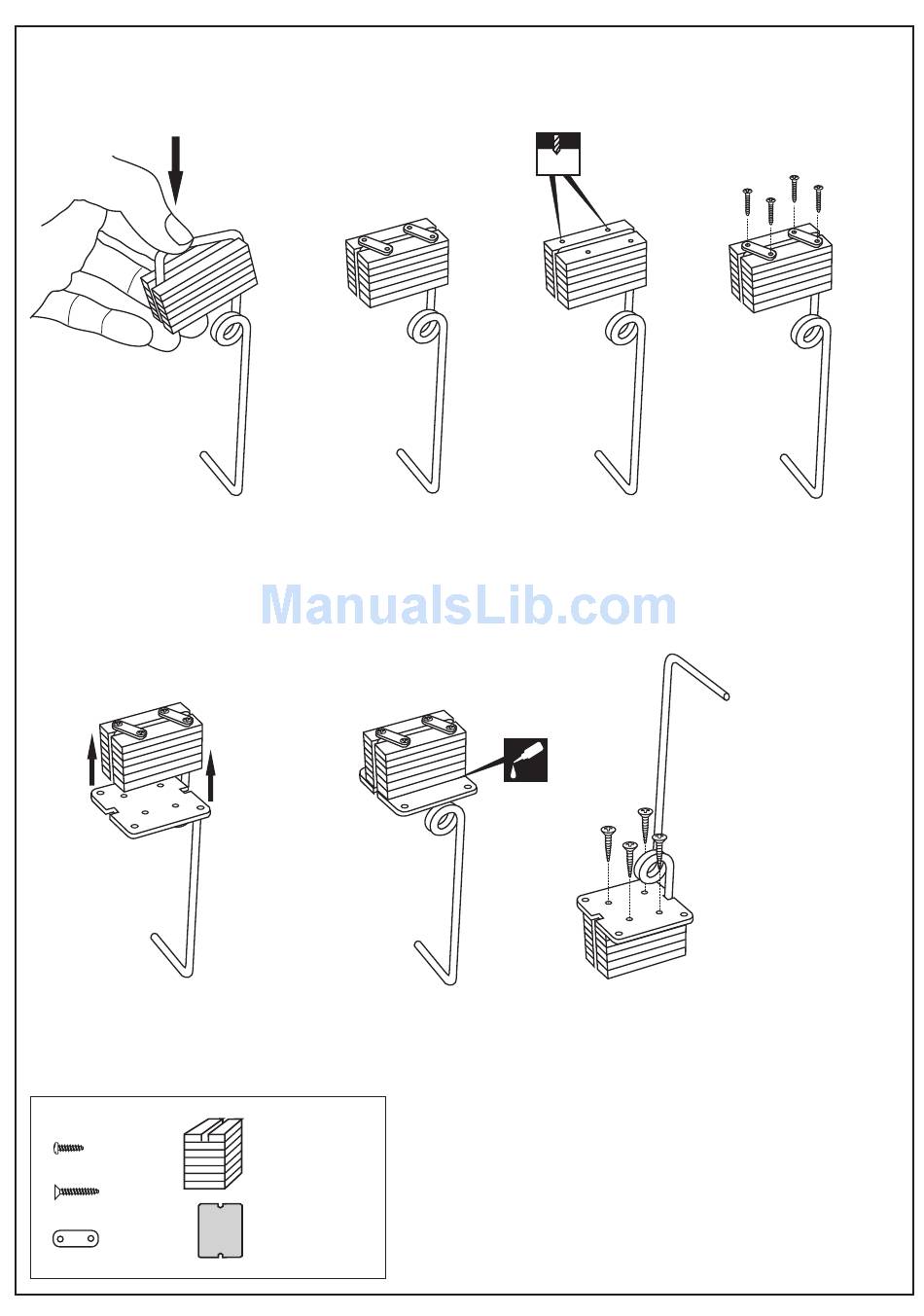

Slide the landing gear onto the
plywood gear mount and push
the landing gear as shown.
4E
Attach the ply gear mount plate
to the plywood gear mount
3x12mm screw
..........8
3x20mm screw
.......8
Nylon gear strap
.......4
4B
Using the nylon gear strap
as a template, mark the
plywood gear mount where
the four holes to be drill.
4F
Secure the ply gear mount
plate in place using CA glue.
Plywood Gear mount
x 2
Ply gear mount
plate x 2
2mm
4C
Remove the nylon gear
strap and drill a 2mm hole
at each of the four marks
marked.
CA
4G
Drill a 2mm holes through the
ply gear mount plate.
Secure the ply gear mount
using four 3x20mm screws.
4D
Reposition the nylon gear
strap and secure them in
place using four 3x12mm
screws.
