2. Installation

2.1. Mounting Options

To mount the extender Lightware supplies optional accessories for different usage. There
are two kinds of mounting kits with similar fixing method. The device has two mounting
holes with inner thread on the bottom side; see the bottom view in section
99. Fasten the device by the screws enclosed to the accessory.
The Under-desk double mounting kit makes easy to mount a single device on any flat
surface, e.g. furniture. 1U high rack shelf provides mounting holes for fastening two half-
rack or four quarter-rack sized units. Pocket-sized devices can also be fastened on the
shelf. To order mounting accessories please contact sales@lightware.eu.

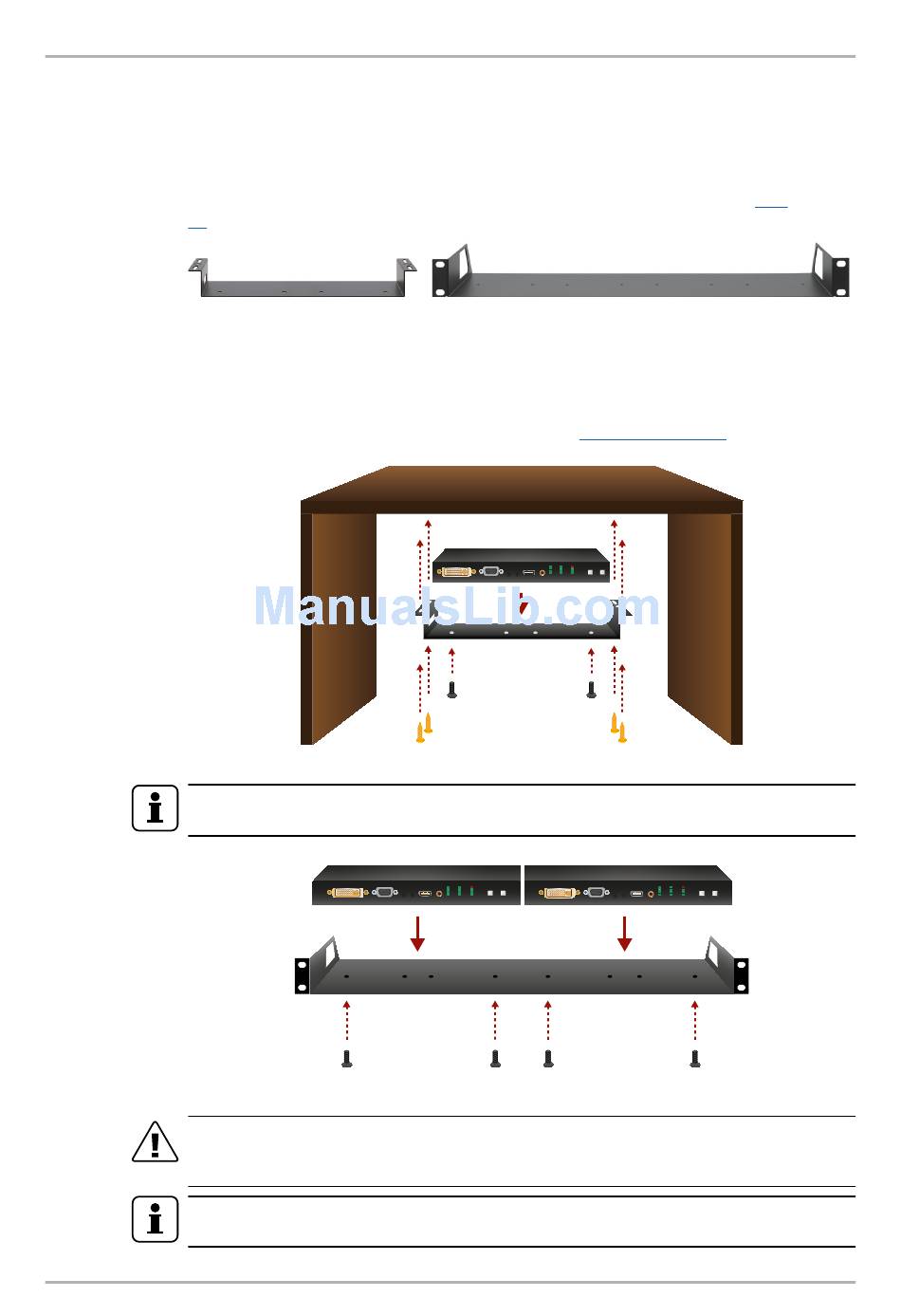

Installing the extender under the desk using Under-desk double mounting kit
INFO
The chipboard screws are not supplied with the mounting kit.
WARNING!
Always use the supplied screws. Using different (e.g. longer) ones may cause dam-
age to the device.
INFO
The extender is half-rack sized.
Chapter 2. Installation
Under-desk double
mounting kit
Mounting of two extenders to a 1U high rack shelf
UMX-OPT-TX150R
1U high rack shelf
User's Manual
