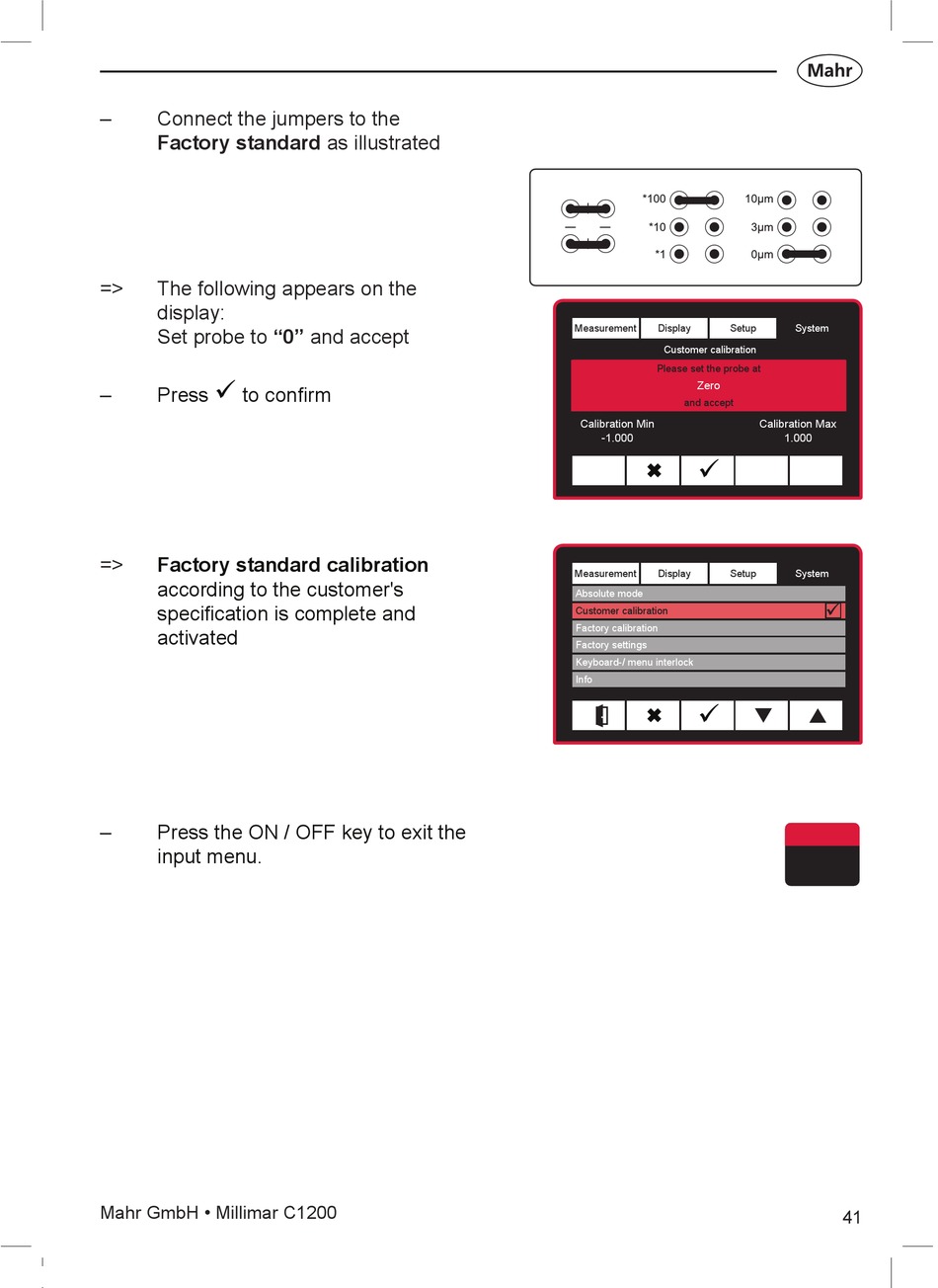

Mahr Millimar C 1200 Operating Instructions Manual page 41

– Connect the jumpers to the
Factory standard as illustrated
=> The following appears on the
display:
Set probe to "0" and accept
ü
– Press to confirm
Factory standard calibration
=>
according to the customer's
specification is complete and
activated
– Press the ON / OFF key to exit the
input menu.
Mahr GmbH • Millimar C1200
Measurement Display Setup
Customer calibration
Please set the probe at
Zero
and accept
Calibration Min Nominal value
-1.000 -0
ü
Ó
Measurement Display Setup
Absolute mode
Customer calibration
Factory calibration
Factory settings
Keyboard-/ menu interlock
Info
ü
Ó
System
Calibration Max
1.000
q p
System
ü
q p
41
