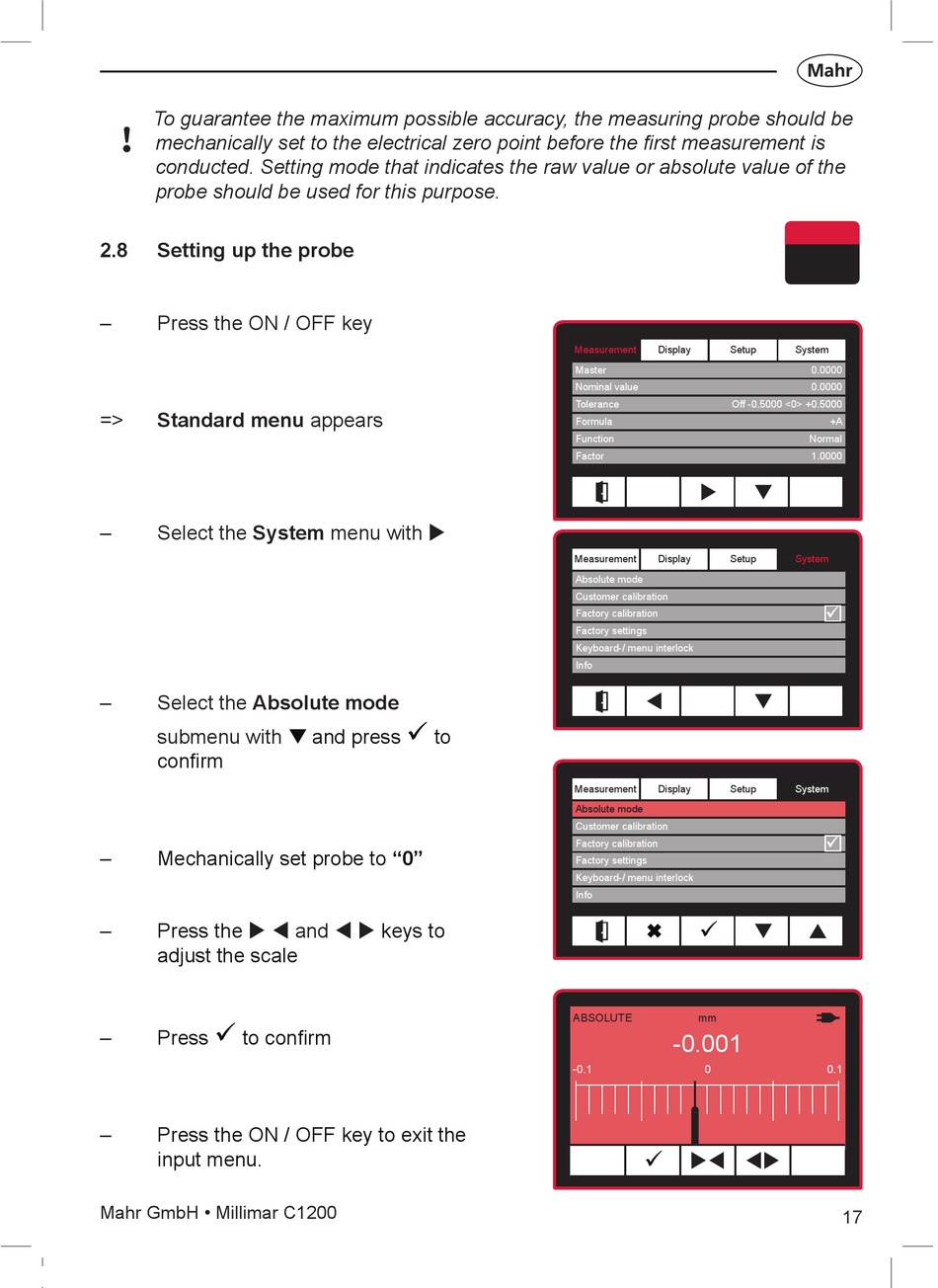

Setting Up The Probe - Mahr Millimar C 1200 Operating Instructions Manual

To guarantee the maximum possible accuracy, the measuring probe should be
!
mechanically set to the electrical zero point before the first measurement is
conducted. Setting mode that indicates the raw value or absolute value of the
probe should be used for this purpose.
2.8

Setting up the probe

– Press the ON / OFF key
=> Standard menu appears
– Select the System menu with u
– Select the Absolute mode
submenu with
confirm
– Mechanically set probe to "0"
– Press the u t and t u
adjust the scale
ü
– Press to confirm
– Press the ON / OFF key to exit the
input menu.
Mahr GmbH • Millimar C1200
ü
q and press to
keys to
Measurement Display Setup
Master
Nominal value
Tolerance Off -0.5000 ˂0> +0.5000
Formula
Function
Factor
u
Measurement Display Setup
Absolute mode
Customer calibration
Factory calibration
Factory settings
Keyboard-/ menu interlock
Info
t
Measurement Display Setup
Absolute mode
Customer calibration
Factory calibration
Factory settings
Keyboard-/ menu interlock
Info
ü
Ó
ABSOLUTE mm
-0.001
-0.1 0
ü
ut tu
System
0.0000
0.0000
+A
Normal
1.0000
q
System
ü
q
System
ü
q p
0.1
17
